Autel MaxiFlash VCI J2534 ECU Programmer OEM PassThru Programming Tool for MaxiSYS MS909

The Autel MaxiFlash VCI is a professional vehicle communication interface and J2534 PassThru ECU programming device designed for advanced diagnostics and OEM-level module programming. Built for compatibility with the Autel MaxiSYS MS909 platform and selected high-end MaxiSYS diagnostic tablets, this VCI dongle provides reliable communication through Bluetooth, Wi-Fi, and USB.

With support for modern communication technologies including CAN FD, DoIP, D-PDU, SAE J2534-1, SAE J2534-2, ISO 22900-1, ISO 22900-2, and RP1210, the MaxiFlash VCI is suitable for workshops and professional technicians who need a flexible interface for vehicle diagnostics and ECU programming.

When used with a Windows PC and the appropriate OEM software subscription, the device can function as a J2534 PassThru programming interface for compatible vehicle module programming. It can also work with supported Autel MaxiSYS tablets for programming compatible BMW and Mercedes-Benz vehicle modules.

What Is the Autel MaxiFlash VCI?

The MaxiFlash VCI is a Bluetooth-enabled Vehicle Communication Interface (VCI) combined with a professional J2534 PassThru programming device.

It is designed to establish communication between a vehicle, a diagnostic tablet, or a Windows computer. Depending on the application, technicians can use the device for wireless diagnostics, wired communication, and OEM module programming.

Main Functions of MaxiFlash VCI

The MaxiFlash VCI supports professional vehicle communication and programming applications, including:

• OEM ECU and module programming through a Windows PC
• ECU software and firmware updating
• New ECU programming and configuration
• Vehicle communication through Bluetooth, Wi-Fi, or USB
• J2534-1 and J2534-2 PassThru programming
• D-PDU and RP1210 communication
• CAN FD and DoIP vehicle communication
• Compatible BMW and Mercedes-Benz module programming with supported MaxiSYS tablets

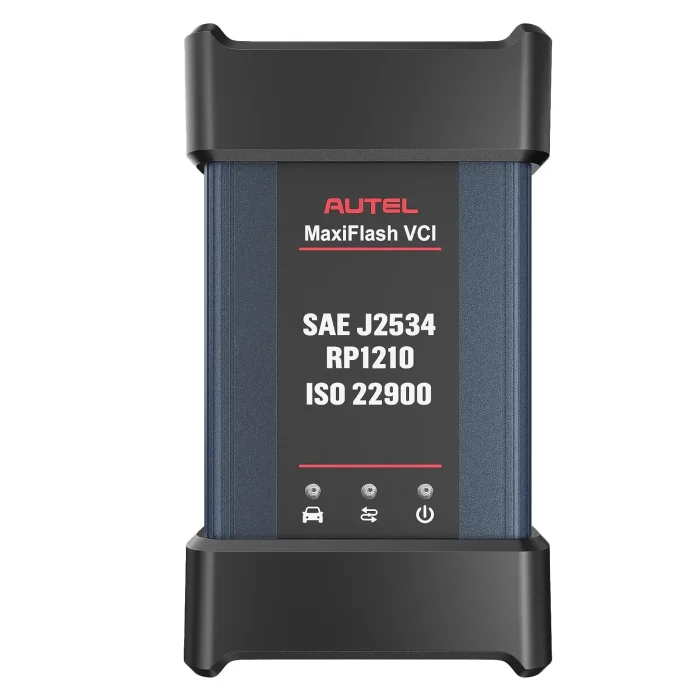

Why Use a J2534 PassThru Programming Device?

A J2534 ECU programmer acts as a communication bridge between OEM programming software and the vehicle's electronic control modules.

With the correct OEM software and a valid manufacturer subscription, a compatible PassThru device may be used to perform programming operations such as updating ECU software or programming replacement modules.

Important Requirement for OEM Programming

The MaxiFlash VCI itself does not replace OEM programming software or subscriptions.

For Windows-based OEM programming, users need:

• A compatible Windows PC
• Applicable OEM diagnostic or programming software
• A valid OEM software subscription where required
• A stable vehicle power supply
• A reliable communication connection during programming

Interrupting an ECU programming process may cause programming failure or leave a module in an incomplete programming state.

Autel MaxiFlash VCI Key Features

The MaxiFlash VCI is designed to support both traditional and modern automotive communication systems.

Supports CAN FD Technology

The device supports CAN FD, an advanced version of the traditional CAN communication protocol.

CAN FD allows higher data rates and larger data payloads, making it important for many newer vehicle electronic systems.

CAN FD Vehicle Coverage

CAN FD is not supported by every vehicle.

It is commonly found on newer vehicle platforms, including many GM vehicles produced from approximately 2019 and newer. Actual compatibility depends on the vehicle model, electronic architecture, and OEM software support.

Supports DoIP Communication

The MaxiFlash VCI also supports DoIP (Diagnostics over Internet Protocol) communication.

DoIP enables diagnostic communication through Ethernet-based vehicle networks and is increasingly used on modern vehicle platforms.

DoIP Compatibility

DoIP support varies by manufacturer and vehicle platform. It is commonly associated with certain newer models, including:

• Volvo vehicles from approximately 2018 and newer
• Jaguar and Land Rover vehicles from approximately 2017 and newer
• BMW F chassis and G chassis platforms

Vehicle compatibility should always be confirmed before programming.

Four CAN Channels for Advanced Communication

The device supports 4 CAN channels, providing enhanced communication capability for complex vehicle electronic systems.

This makes the MaxiFlash VCI suitable for modern vehicles using multiple communication networks and electronic modules.

Supports Multiple Professional Programming Standards

One of the major advantages of the MaxiFlash VCI is its support for several important automotive communication and PassThru standards.

SAE J2534-1 and J2534-2 Compliance

The device supports both:

• SAE J2534-1
• SAE J2534-2

These standards are widely used for PassThru programming applications and allow compatible OEM software to communicate with vehicle control modules through an approved interface.

D-PDU and ISO 22900 Support

The MaxiFlash VCI supports:

• D-PDU
• ISO 22900-1
• ISO 22900-2

These standards provide professional communication capabilities for OEM and advanced diagnostic applications.

RP1210 Compliance

The device is also RP1210 compliant, making it suitable for supported professional vehicle communication environments.

What Do These Standards Mean?

Supporting multiple communication standards gives technicians greater flexibility when working with different OEM software platforms and vehicle communication systems.

However, actual programming capability always depends on the combination of:

• Vehicle make and model
• ECU or module type
• OEM software compatibility
• Valid software subscription
• Supported communication protocol

Wireless and Wired Communication Options

The Autel MaxiFlash VCI supports Bluetooth, Wi-Fi, and USB communication.

This allows technicians to choose between wireless convenience and direct wired communication depending on the working environment.

Bluetooth Communication

The device supports Bluetooth communication between the VCI and a compatible diagnostic tablet.

In open areas, the Bluetooth working range can reach up to approximately 328 feet (100 meters).

5G Wi-Fi Communication

The MaxiFlash VCI also supports Wi-Fi communication.

In open areas, the 5G Wi-Fi communication range can reach approximately 164 feet (50 meters).

USB Wired Communication

For applications requiring a direct physical connection, the device can also communicate through USB.

Automatic Communication Recovery

If wireless communication is interrupted because the device moves outside the operating range, communication can resume when the device returns to the supported communication range.

Actual performance may vary depending on walls, interference, network conditions, and the working environment.

Compatibility with Windows PC for OEM Programming

The MaxiFlash VCI can be connected to a Windows computer and used as a J2534 PassThru programming interface.

This is useful for technicians who need to run compatible OEM software directly from a PC.

What Can the Device Do with OEM Software?

With supported and properly licensed OEM software, the device may be used for functions such as:

• Reprogramming compatible ECU software
• Updating ECU firmware
• Programming replacement control modules
• Addressing certain software-related drivability issues
• Performing OEM-supported PassThru programming procedures

OEM Subscription Is Required

For most OEM programming applications, an applicable manufacturer software subscription is required.

The MaxiFlash VCI provides the communication hardware, while the OEM software provides the programming functions and vehicle-specific procedures.

Recommended Programming Setup

For safer ECU programming, technicians should prepare:

1. A compatible Windows PC
2. Valid OEM programming software
3. An active OEM subscription when required
4. A compatible MaxiFlash VCI driver and connection
5. Stable vehicle voltage throughout the programming process

Maintaining stable voltage is particularly important during ECU flashing.

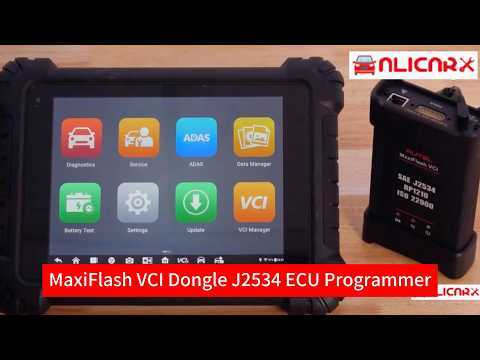

MaxiFlash VCI Compatibility with Autel MaxiSYS Tablets

The MaxiFlash VCI is designed to work with selected Autel diagnostic platforms.

Supported applications include compatibility with:

• MaxiSYS MS909
• MaxiSYS MS919
• MaxiSYS MSUltra
• AUTEL Ultra Lite
• AUTEL Ultra Lite S
• AUTEL MS909 EV
• AUTEL Elite II Pro
• AUTEL MS909CV

BMW and Mercedes-Benz Module Programming

When connected to compatible MaxiSYS diagnostic tablets, the MaxiFlash VCI can support programming functions for compatible BMW and Mercedes-Benz vehicle modules.

Actual programming coverage depends on the specific tablet model, software version, vehicle, ECU, and active software authorization.

Check Vehicle Compatibility Before Programming

Before performing any programming procedure, always verify:

• Vehicle year and model
• ECU part number
• Supported programming function
• Required communication protocol
• Software version
• Battery voltage requirements

Not every module or vehicle is supported for every programming function.

Autel MaxiFlash VCI Power Supply Options

The MaxiFlash VCI can receive power from both the vehicle and an external AC/DC power supply.

Vehicle Power Supply

The device supports 12V and 24V vehicle power.

When connected to a compatible OBDII/EOBD vehicle Data Link Connector (DLC), the MaxiFlash VCI can receive power directly through the vehicle connection port.

Auxiliary Power for Non-OBDII Vehicles

For vehicles without a compatible OBDII/EOBD connection supplying the required power, an auxiliary power cable can be used with an appropriate vehicle power outlet.

External AC/DC Power Adapter

The device can also be powered from a standard wall outlet using an appropriate AC/DC power adapter.

This provides additional flexibility when the VCI needs external power during workshop operations.

Important Safety Notes for ECU Programming

ECU programming is a sensitive process. Users should avoid interrupting communication or power while flash programming is in progress.

Do Not Disconnect During Programming

Do not disconnect the MaxiFlash VCI while the vehicle status LED indicates active communication or programming.

If communication is interrupted while an ECU is being erased or programmed, the module may become partially programmed or unrecoverable.

Keep Vehicle Voltage Stable

A stable power supply is essential during programming.

Technicians should ensure that the vehicle battery voltage remains within the required range throughout the complete programming process.

Confirm Protocol Compatibility

CAN FD and DoIP are not universal protocols.

Before purchasing or using the device, confirm whether the target vehicle requires and supports these communication technologies.

Professional Use Recommended

Because ECU flashing and module programming involve the vehicle's electronic control systems, the MaxiFlash VCI is best suited for professional workshops, automotive technicians, and experienced users familiar with OEM programming procedures.

MaxiFlash VCI Technical Advantages

The Autel MaxiFlash VCI combines several communication technologies and professional standards in one compact interface.

Key Advantages

• Bluetooth, Wi-Fi, and USB communication
• SAE J2534-1 and J2534-2 compliance
• D-PDU support
• ISO 22900-1 and ISO 22900-2 support
• RP1210 compliance
• CAN FD support
• DoIP support
• Four CAN channels
• Windows PC compatibility for supported OEM programming
• Compatibility with selected MaxiSYS diagnostic tablets
• Support for compatible BMW and Mercedes-Benz programming applications

Flexible Workshop Connectivity

The combination of wireless and wired communication allows technicians to select the connection method that best fits the job.

Bluetooth provides convenient wireless operation, Wi-Fi supports high-speed wireless data communication, and USB provides a direct wired connection for PC-based applications.

Who Should Choose the Autel MaxiFlash VCI?

The Autel MaxiFlash VCI J2534 ECU Programmer is suitable for users who need a professional vehicle communication interface for diagnostics and compatible programming applications.

Recommended for Automotive Workshops

It can be useful for repair shops that need a J2534-compatible interface for OEM PassThru programming.

Recommended for Professional Technicians

Technicians working with modern vehicle networks can benefit from support for CAN FD, DoIP, D-PDU, and multiple industry programming standards.

Recommended for MaxiSYS Users

It is particularly suitable for users of compatible Autel MaxiSYS platforms who require the appropriate VCI for supported advanced diagnostic and programming applications.

Package and Warranty Information

The MaxiFlash VCI is supplied as a programming and vehicle communication interface.

Please note that some versions may be sold as the VCI unit only and may not include all cables or a carrying case.

Users should confirm the package contents with the seller before purchasing.

The product is described as including a one-year limited warranty, subject to the seller's warranty terms and conditions.

Frequently Asked Questions About Autel MaxiFlash VCI

Is the MaxiFlash VCI a J2534 programmer?

Yes. The MaxiFlash VCI is a J2534-1 and J2534-2 compliant PassThru programming device designed for compatible OEM programming applications.

Can I use MaxiFlash VCI with a Windows PC?

Yes. It can be used with a compatible Windows computer and applicable OEM programming software and subscriptions.

Does MaxiFlash VCI include OEM software?

No. OEM programming software and manufacturer subscriptions are separate requirements unless specifically included by the seller.

Does it support CAN FD?

Yes, the MaxiFlash VCI supports CAN FD. However, CAN FD compatibility depends on the target vehicle and vehicle platform.

Does it support DoIP?

Yes. The device supports DoIP communication for compatible vehicles and software applications.

Can it program BMW and Mercedes-Benz vehicles?

When used with supported MaxiSYS tablets and compatible software coverage, it can support programming applications for compatible BMW and Mercedes-Benz vehicle modules.

Can I disconnect the VCI while programming?

No. Disconnecting the communication device during ECU flash programming may interrupt the process and potentially damage the programming state of the module.

Conclusion

The Autel MaxiFlash VCI J2534 ECU Programmer is a versatile professional PassThru interface designed for modern vehicle diagnostics and compatible ECU programming applications. With support for CAN FD, DoIP, 4 CAN channels, D-PDU, SAE J2534, ISO 22900, and RP1210, it offers broad communication capability for workshops and professional technicians.

Its support for Bluetooth, Wi-Fi, and USB communication provides flexible connectivity, while compatibility with a Windows PC for OEM programming makes it useful for technicians working with manufacturer diagnostic and programming software.

For compatible Autel users, the MaxiFlash VCI can also work with selected MaxiSYS MS909, MS919, MSUltra, Ultra Lite, MS909 EV, Elite II Pro, and MS909CV platforms for supported programming applications.

Before performing ECU programming, always confirm vehicle compatibility, software requirements, protocol support, and power stability to ensure a safe and reliable programming process.
