Modern ECU programming requires reliable hardware that ensures stable connections, accurate positioning, and safe operation during bench programming. The Latest LED BDM Frame with 22PCS BDM Adapters is designed specifically for professional ECU technicians, automotive tuning workshops, and ECU repair specialists. Compatible with popular programming tools such as KTAG, KESS, KTM100, FGTECH, BDM100, CMD, and Dimsport, this kit provides everything needed for efficient ECU reading, writing, and boot mode operations.

Why Choose the LED BDM Frame?

The upgraded LED BDM Frame is engineered to improve accuracy while simplifying ECU bench work. Compared with traditional BDM frames, it offers enhanced stability, integrated LED illumination, and adjustable probe holders for easier positioning.

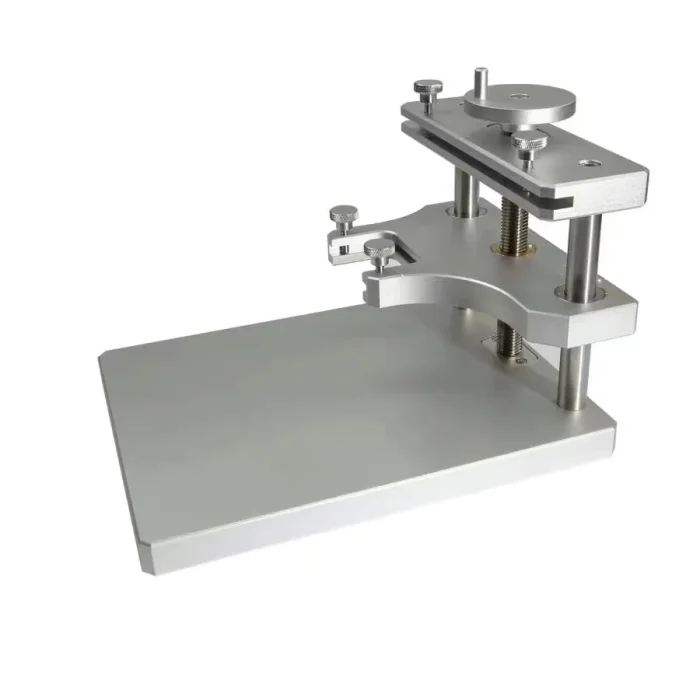

Premium Aluminum Construction

The frame is manufactured from high-quality aluminum alloy, providing excellent durability and rigidity during ECU programming.

Features include:

• Lightweight aluminum alloy stand

• Acrylic LED working platform

• Stable positioning during operation

• Corrosion-resistant materials

• Professional workshop appearance

Integrated LED Working Platform

The built-in LED lighting improves visibility when aligning probes with ECU test pads.

LED Features

• Bright integrated LED illumination

• Operates with 12V power supply

• Improves visibility during BDM operations

• Suitable for low-light working environments

Compatible ECU Programming Tools

This LED BDM Frame is compatible with many industry-leading ECU programming devices.

Supported Tools

• KTAG

• KESS

• KTM100

• FGTECH

• BDM100

• CMD

• Dimsport

• Other compatible ECU programming systems

Its universal design makes it suitable for most professional ECU repair benches.

Main Applications

The kit is designed for multiple ECU programming tasks.

ECU Reading and Writing

Supports secure bench reading and writing of ECU memory.

ECU Chip Tuning

Ideal for automotive performance tuning and ECU remapping.

Boot Mode Programming

Works with various boot mode adapters for advanced ECU access.

ECU Repair

Useful for repairing damaged or corrupted ECUs through direct bench programming.

Probe Positioning

Adjustable probe pens help technicians achieve precise contact without damaging the PCB.

22PCS BDM Adapter Kit Overview

The included adapter kit covers a wide range of ECU manufacturers and programming protocols.

Adapter Specifications

Material

• High-quality PCB material

Width

• Approximately 60 mm

• Compatible with original BDM probes

Thickness

• 2 mm

Color

• Green PCB

Complete List of 22PCS BDM Adapters

Bosch ECU Adapter

• 14AM00T01M

Suitable for Bosch ECUs.

Delphi DCM Adapter

• 14AM00T02M

Designed for Delphi DCM systems.

ST10xx Bootloader Adapter

• 14AM00T03M

Supports ST10xx bootloader programming.

Tricore EDC/MED17 Adapter

• 14P600KT04

Compatible with Bosch Tricore EDC17 and MED17 ECUs.

Marelli MPC55xx JTAG Adapter

• 14AM00T05M

For Magneti Marelli MPC55xx JTAG programming.

Delphi MPC55xx JTAG Adapter

• 14AM00T06M

Supports Delphi MPC55xx ECUs.

Denso Boot Adapters

Includes:

• CN1 Boot

• CN2 Boot

• CN3 Boot

Denso AUD Adapters

Includes:

• CN1 AUD

• CN2 AUD

Delphi DCI Adapter

• 14AM00T00M

Base Adapter

• 14AM00TBAS

1.27 mm universal base adapter.

Lotus NexusEFI T6 Adapter

• 14AM00T14M

Magneti Marelli BDM Insert

• 14AM00TB02

Siemens BDM Insert

• 14AM00TB01

EDC7 BDM Insert

• 14AM00TB03

Magneti Marelli MPC/SPC56xx Adapter

• 14AM00T18M

Nexus MPC5xx TRW ECU Adapter

• 14AM00T13M

Siemens PCR2.1 Adapter

Designed for:

• VAG 1.6 TDI

• Siemens PCR2.1 ECU

NEC76F Adapters

Includes:

• NEC76F-20

• NEC76F-26

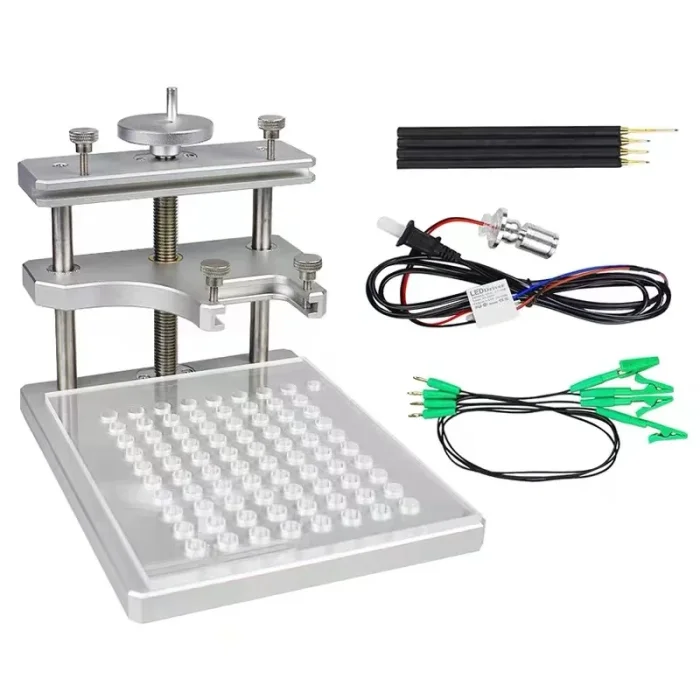

Package Contents

LED BDM Frame Kit

The package includes:

• 1 × Aluminum LED BDM Frame

• 1 × Acrylic LED Board with Connector

• 4 × Adjustable Probe Pens

• 4 × Connection Cables

BDM Adapter Kit

Includes:

• 22 × Professional BDM Adapters

Key Advantages

Adjustable Probe Pens

The four probe pens can be freely adjusted for different ECU layouts.

Safe PCB Contact

Designed to avoid unnecessary damage to ECU circuit boards during programming.

Universal Compatibility

Supports a broad range of automotive ECU brands and programming protocols.

Professional Workshop Solution

Ideal for:

• ECU repair centers

• Automotive tuning companies

• ECU cloning services

• Bench programming laboratories

Important Notes

LED Operation

• LED operates with a 12V power supply.

• After powering the LED, disconnect the 12V supply while maintaining the probe connection for normal operation.

Probe Pen Color

The colors of the four probe pens are shipped randomly.

PCB Notice

The package does not include ECU PCBs shown in demonstration images.

Frequently Asked Questions

Is this BDM Frame compatible with KTAG?

Yes. The LED BDM Frame is fully compatible with KTAG and supports stable ECU bench programming.

Does it work with KESS?

Yes. It supports KESS bench programming when used with compatible ECU adapters.

Are the probe pens adjustable?

Yes. All four probe pens are fully adjustable to fit different ECU layouts.

Can it be used for Tricore ECUs?

Yes. The included Tricore EDC17/MED17 adapter supports Tricore boot mode programming.

Is the frame suitable for professional workshops?

Absolutely. Its aluminum construction, LED illumination, and comprehensive adapter kit make it an excellent solution for professional ECU tuning and repair environments.

Conclusion

The Latest LED BDM Frame with 22PCS BDM Adapters is a comprehensive ECU programming solution designed for professionals who require precision, reliability, and broad compatibility. Whether you're performing ECU reading and writing, boot mode recovery, chip tuning, or ECU repair, this complete kit delivers dependable performance for a wide range of automotive ECU platforms. Compatible with KTAG, KESS, FGTECH, BDM100, KTM100, CMD, and Dimsport, it is an essential addition to any professional ECU programming workstation.
