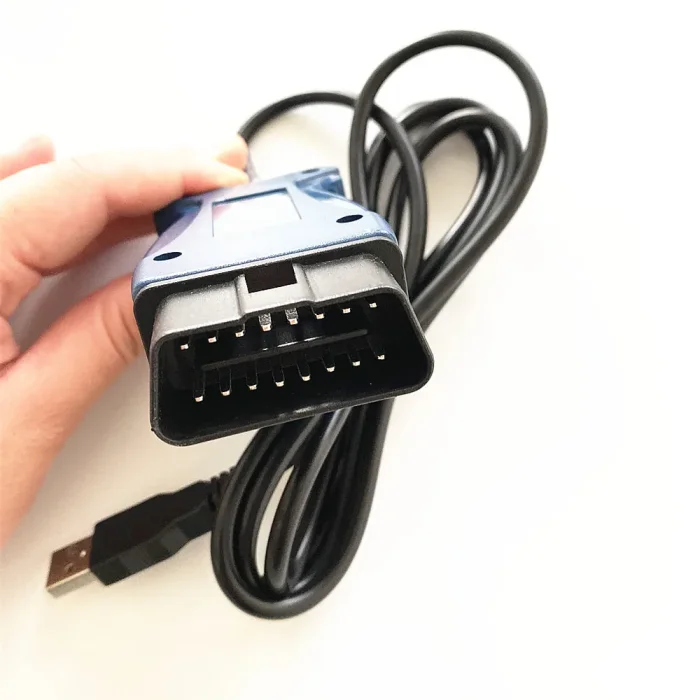

JLR Mangoose SDD V164 Auto Diagnostic ScabTool for Jaguar Land Rover Vehicle Health Check Engine Code Reader

The JLR Mangoose Cable SDD V164 OBD2 Scanner is a professional diagnostic interface designed for Jaguar and Land Rover vehicles from 2005 to 2017. Equipped with the latest SDD V164 diagnostic software, this tool provides comprehensive vehicle diagnostics, including fault code reading, live data monitoring, active tests, utility functions, and vehicle health checks.

Designed for workshops, technicians, and automotive enthusiasts, the JLR Mangoose Cable offers reliable communication with Jaguar and Land Rover ECU systems through multiple vehicle communication protocols.

Unlike basic OBD2 scanners that only read engine fault codes, the JLR Mangoose Cable provides deeper access to vehicle modules, allowing users to perform advanced diagnostics and maintenance operations.

Important Notice:

• Do not connect the device to the internet during use, otherwise the cable may be damaged.
• JLR SDD versions after V137 do not support offline programming.
• The software version cannot be updated.

JLR Mangoose Cable SDD V164 Main Features

Professional Jaguar Land Rover Diagnostic Functions

The JLR Mangoose Cable SDD V164 supports a wide range of diagnostic functions to help users quickly identify and solve vehicle problems.

1. Diagnostic Trouble Codes (DTCs)

The tool can read and clear diagnostic trouble codes from multiple vehicle control modules, helping technicians locate system failures efficiently.

Supported functions include:

• Read ECU fault codes
• Clear trouble codes
• View fault descriptions
• Identify vehicle system problems

2. Data Lists and Live Data Monitoring

The JLR SDD V164 software allows users to view real-time vehicle parameters from different control units.

Live data functions include:

• Engine sensor information
• Transmission data
• Vehicle system status
• ECU communication information

3. Active Tests

With the active test function, technicians can directly control specific vehicle components to check whether they operate correctly.

Examples include:

• Actuator testing
• Component activation
• System operation verification

4. Utility Tests

The utility test function provides additional service procedures for Jaguar and Land Rover vehicles.

It helps users perform:

• Vehicle system checks
• Component calibration
• Maintenance procedures

5. ECU Reprogramming Function

The JLR Mangoose Cable supports ECU reprogramming functions through compatible SDD software.

It can be used for:

• ECU configuration
• Module setup
• Software-related service procedures

Note: JLR software versions after V137 do not support offline programming.

JLR Mangoose Cable SDD V164 Vehicle Compatibility

Jaguar Vehicle Coverage

The JLR Mangoose SDD V164 diagnostic cable supports Jaguar models produced from 2005 to 2017.

Compatible Jaguar vehicle lines include:

• X100
• X150
• X202
• X250
• X350
• X351
• X400

Land Rover Vehicle Coverage

The scanner supports many Land Rover platforms, including:

• L316
• L319
• L320
• L322
• L359
• L538

This makes it suitable for diagnosing various Jaguar Land Rover vehicles equipped with compatible communication systems.

Supported Communication Protocols

The JLR Mangoose Cable communicates with vehicle ECUs through multiple automotive protocols, ensuring stable and reliable diagnostic performance.

J1850PWM / SCP Protocol

Supports older Jaguar and Land Rover communication systems using J1850 PWM and SCP protocols.

ISO9141 / KWP2000 Protocol

Provides compatibility with vehicles using traditional ISO9141 and KWP2000 communication standards.

ROSCO Protocol

Supports ROSCO communication for specific Jaguar Land Rover applications.

Medium Speed CAN

Allows communication with vehicle modules through Medium Speed CAN networks.

CAN Bus Protocol

Supports modern CAN communication standards, including:

• ISO 15765
• GMLAN
• ISO14229

JLR SDD V164 Software Information

Software Version

The included software version is:

JLR SDD V164

The V164 software provides diagnostic coverage for Jaguar and Land Rover vehicles manufactured between 2005 and 2017.

Supported Languages

The JLR Mangoose SDD software supports multiple languages:

• English
• German
• Russian
• French
• Dutch
• Portuguese
• Japanese
• Spanish
• Italian
• Simplified Chinese

Supported Operating Systems

The diagnostic software is compatible with:

• Windows XP
• Windows 7 32-bit

For stable operation, it is recommended to install the software on a dedicated Windows 32-bit computer.

JLR Mangoose Cable SDD V164 Installation Requirements

Computer Requirements

Before installation, make sure your computer meets the following requirements:

Operating System

• Windows XP 32-bit
• Windows 7 32-bit

Software Environment

• Install the included JLR SDD software
• Disable internet connection when using the cable
• Avoid software updates

Internet Connection Warning

The JLR Mangoose Cable is designed for offline diagnostic operation.

Users should:

• Disconnect the internet before using the tool
• Avoid automatic software updates
• Do not connect the device to online update services

Failure to follow these instructions may cause cable damage.

JLR Mangoose Cable SDD V164 Package Contents

The package includes:

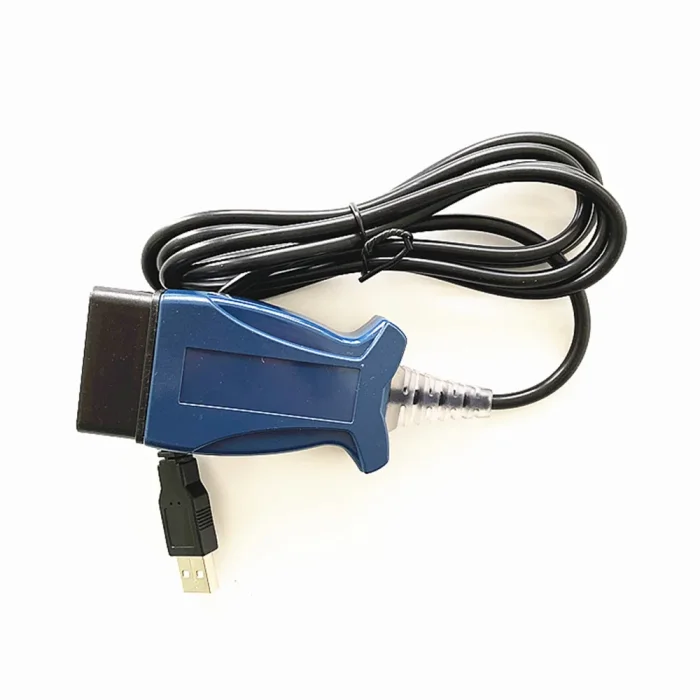

• 1 × JLR Mangoose Diagnostic Cable
• 1 × CD Driver with JLR SDD Software

Why Choose JLR Mangoose Cable SDD V164?

Professional Diagnostic Capability

Compared with ordinary OBD2 code readers, the JLR Mangoose Cable provides deeper diagnostic access to Jaguar and Land Rover systems.

Wide Vehicle Coverage

Supports multiple Jaguar and Land Rover platforms from 2005 to 2017, making it a practical solution for independent workshops and automotive technicians.

Multiple Service Functions

With functions including:

• ECU diagnostics
• Fault code reading
• Active tests
• Live data monitoring
• Utility tests
• Vehicle health checks

the tool helps improve repair efficiency.

Cost-Effective Jaguar Land Rover Solution

For users who need professional-level Jaguar and Land Rover diagnostics without investing in expensive dealer equipment, the JLR Mangoose Cable SDD V164 provides an affordable alternative.

Frequently Asked Questions (FAQ)

What vehicles does JLR Mangoose Cable SDD V164 support?

The tool supports Jaguar and Land Rover vehicles from 2005 to 2017, including various X-series Jaguar platforms and L-series Land Rover platforms.

Can JLR Mangoose Cable SDD V164 be updated online?

No. The software cannot be updated, and connecting the cable to the internet is not recommended because it may damage the device.

Does JLR Mangoose Cable support ECU programming?

The tool supports reprogramming functions through compatible SDD software. However, JLR software versions after V137 do not support offline programming.

What operating systems are supported?

The software works with Windows XP and Windows 7 32-bit systems.

What languages are available in JLR SDD V164?

The software supports English, German, Russian, French, Dutch, Portuguese, Japanese, Spanish, Italian, and Simplified Chinese.

Conclusion

The JLR Mangoose Cable SDD V164 OBD2 Diagnostic Scanner is a powerful diagnostic solution for Jaguar and Land Rover vehicles manufactured between 2005 and 2017. With comprehensive functions such as DTC reading, live data monitoring, active tests, utility tests, and vehicle health checks, it provides professional diagnostic capabilities for workshops and automotive specialists.

For users looking for an affordable and reliable Jaguar Land Rover diagnostic interface, the JLR Mangoose Cable SDD V164 is an excellent choice for daily vehicle troubleshooting and maintenance.
