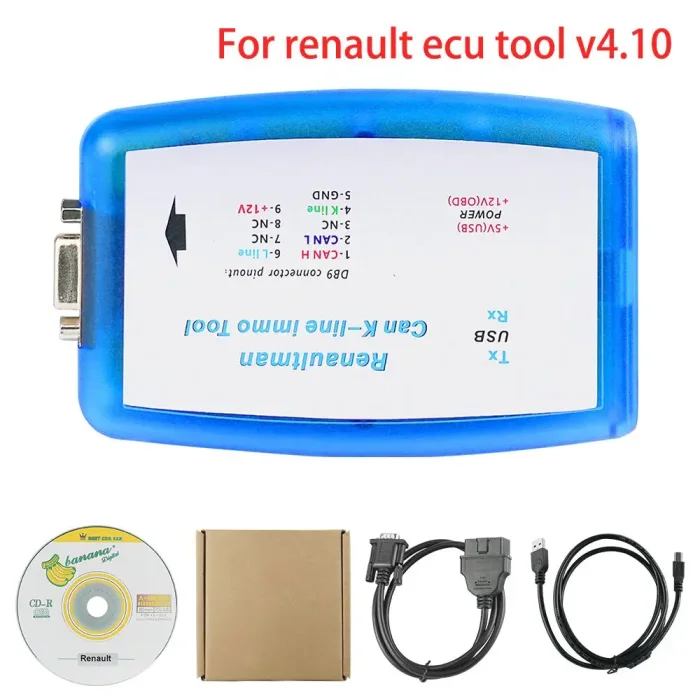

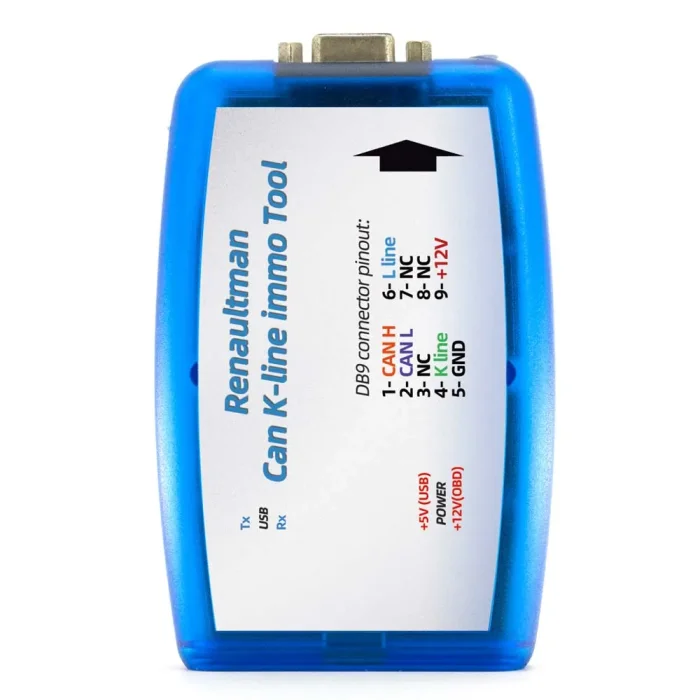

Renaultman Can K-line Immo Tool Support Read/Write EEPROM FLASH Memory Clear Immobilizer Code

Renaultman Can K-line Immo Tool Support Read/Write EEPROM FLASH Memory Clear Immobilizer Code

US$ 269.10 US$ 299.00
Add to Cart
Estimate Shipping Cost
Share:
>

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
Renaultman Can K-line Immo Tool Support Read/Write EEPROM FLASH Memory Clear Immobilizer Code
color:red,size:xxl
Subtotal: US$ 0
View My Cart
Checkout
Detail
    • Product Name: Renaultman Can K-line Immo Tool Support Read/Write EEPROM FLASH Memory Clear Immobilizer Code
    • Item NO.: 28118384
    • Weight: 1 kg = 2.2046 lb = 35.2740 oz
    • Category: ECU-Chip-Tuning
    • Creation Time: 2025-05-23

    The automotive world is increasingly reliant on advanced technologies, and when it comes to electronic control units (ECUs), having the right tools can make all the difference. For Renault car enthusiasts and technicians, the OBDII Tool for Renaultman can k-line immo tool stands out as a powerful solution for managing and modifying ECU internal memory. This article explores its features, functions, and applications in detail.


    This in not a tool for a TOTAL immobilizer disabling. It only clears previously memorized immobilizer code to give ability of using second-hand Engine control Unit (ECU) in particular car or make simple data cloning from one ECU to another.

    What is the Can K-line Immo Tool for Renault ECU?

    The OBDII Tool is a specialized diagnostic and programming tool designed specifically for Renault vehicles. It allows users to modify the internal memory of the car's electronic control unit (ECU) without the need for invasive procedures like de-soldering memory ICs or opening the control unit.

    Key Features:

    1. Read/Write EEPROM or FLASH Memory:
      The tool enables users to access and modify the EEPROM or FLASH memory of the ECU. This is particularly useful for updating or restoring data within the control unit.

    2. Clear Immobilizer Code:
      The immobilizer code clearing function is fully automated. With just the press of a button, the previously programmed immobilizer code is erased, allowing the ECU to accept a new code without requiring further programming.

    3. Read Immobilizer Status:
      The tool provides real-time information about the immobilizer system, helping technicians diagnose issues or confirm successful code clearing.

    4. Program Cards:
      For vehicles that use immobilizer cards or keys, this tool simplifies the process of programming new cards directly through the OBDII connector.

    5. Bench Programming Support:
      While the tool works seamlessly via the OBDII connector, it also supports "on the bench" programming for ECUs that are not installed in the vehicle. This flexibility makes it ideal for workshops and technicians.

    Technical Specifications

    Operating System Compatibility:

    • Windows XP
    • Windows 7
    • Windows 10

    Additional Requirements:

    • Internet Connection: Not required.
    • External Power Supply: Not required.

    What This Renault ECU Tool Cannot Do

    It’s important to note that this tool is not designed for permanently disabling the immobilizer system. Its primary function is to clear previously stored immobilizer codes, allowing users to:

    1. Use second-hand ECUs in specific vehicles.
    2. Clone data from one ECU to another for repair or backup purposes.

    For permanent immobilizer system modifications, additional tools or procedures may be required.

    Applications of the Renaultman Immo Progammer

    1. Second-Hand ECU Integration

    The tool is particularly useful for integrating second-hand ECUs into Renault vehicles. By clearing the existing immobilizer code, technicians can ensure compatibility and smooth operation.

    2. Data Cloning

    For repair shops or enthusiasts looking to transfer data from one ECU to another, this tool simplifies the process. It’s ideal for situations where data backup or duplication is necessary.

    3. Diagnostic and Repair Work

    Technicians can use the tool to diagnose immobilizer-related issues or restore functionality to ECUs that have been locked out due to code conflicts.

    Who Should Use This Tool?

    This OBDII Immo Tool is designed for:

    • Professional Technicians: Renault Automotive repair shops and specialists dealing with Renault vehicles.
    • Enthusiasts: Car owners or DIYers who want to modify or repair their own vehicles.
    • Workshops: Ideal for bench programming and ECU maintenance.


    Newest Software V4.10 supports:


    EDC15C3 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code

    EDC15C13 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code


    SIRIUS 31H - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code


    SIRIUS 32[N] (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code


    SIRIUS 34 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code


    SIRIUS 35 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code


    EMS3132 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code


    EMS3134 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code


    SID301 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code, Clear IMPACT DETECTED, Read stored mileage


    SIM32 - Read/Write EEPROM, Read/Write FLASH from HD64F7055, Clear Immo Code


    SAFIR / SAFIR2 / SFR200 (35 / 55 pin connector) - Read TMS374 EEPROM, Clear Immo Code (carruns without immobilizer code)


    IAW 6R.20 - Read/Write TMS370 EEPROM


    IAW 6R.30- Read TMS370 EEPROM, Clear Immo Code (car runs without immobilizer code)


    VALEO BII for ESPACE III - Read/Write (9)08AZ60 EEPROM, Read/Write mileage, Clear for Replacement, Read transponder data, Emergency Startup


    VALEO IMMOBILIZER for LAGUNA I Ph2 (1998-2000) - Read transponder data, Configure, Reset to VIRGIN


    VALEO IMMOBILIZER for LAGUNA I Ph1 / SAFRANE Ph1 (1995-1996) - Read PINCODE, Reset to VIRGIN


    INSTRUMENT CLUSTER for ESPACE III (1998-2002) - Reset odometer, Erase RF remote programming by instrument cluster connector


    SIEMENS IMMOBILIZER for ESPACE III Ph1 (1996-1998) - Read/Write 68HC05B16 EEPROM, read transponder data


    SIEMENS UCH for MEGANE/SCENIC I Ph2 ('99-'02) - Read/Write 705B32 EEPROM, Read/Write configuration, Learn Keys, Reset to VIRGIN


    SIEMENS UCBIC for MEGANE/SCENIC I Ph1 ('96-'98) - Read/Write 68HC05B16 EEPROM, Read/Write configuration, Resest to VIRGIN


    LAGUNA II, ESPACE IV, VELSATIS Ph1/Ph2 - KeyCard Programming, Change VIN. Reset UCH to VIRGIN, Learn UCH


    MEGANE II, SCENIC II Ph1/Ph2 - Card/UCH/ECM/ESCL Learning, Change VIN, Reset UCH to VIRGIN


    INSTRUMENT CLUSTER for SCENIC II ('04-'08) - Wake-Up by CAN-BUS for repair or to check mileage, Change language and units, Change VIN, KM, Read/Write EEPROM


    INSTRUMENT CLUSTER for MEGANE II ('03-'08) - Wake-Up by CAN-BUS for repair or to check mileage, Change language and units, Change VIN, KM, Read/Write EEPROM


    CLIO II Ph1 - Key Learning, Configuration, Reset BMT to VIRGIN


    CLIO II Ph2-5, KANGOO, TRAFIC, MASTER, VIVARO, MOVANO (-'07) - Read/Write EEPROM 93C66, Key Learning, Change VIN, Reset UCH to VIRGIN, Learn UCH


    KANGOO I, TRAFIC, MASTER, VIVARO, MOVANO ('07-) - Key Learning, Change VIN, Reset UCH to VIRGIN, Learn VIRGIN UCH


    KANGOO II (2007-2012) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM


    MODUS / CLIO III ELECTRIC POWER ASSISTED STEERING (TRW DAE/PAS) - Clear Immo Code, Change VIN by OBDII, erase DF002 from 24C16 dump, repair CRC(IMPROVED!)


    MEGANE/SCENIC III ELECTRIC POWER ASSISTED STEERING (NSK DAE/PAS) - Clear Immo Code, Change VIN by OBDII


    TWINGO III ELECTRIC POWER ASSISTED STEERING (JTEKT DAE/PAS) - Clear Immo Code, Change VIN by OBDII


    CLIO IV ELECTRIC POWER ASSISTED STEERING (JTEKT DAE/PAS) - Clear Immo Code, Change VIN by OBDII


    LAGUNA III (2007-2015) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN


    LAGUNA III / LATITUDE (2007-2015) - Learn BCM / ECM / ESCL in protected mode


    LATITUDE (2010+) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN


    CLIO III / MODUS - Key Programming, Change VIN, Learn ECM in protected mode, Learn BCM, Reset BCM to VIRGIN


    CLIO III - Card/UCH/ECM/ESCL Learning, Change VIN, Reset UCH to VIRGIN


    CLIO IV (2012+)- Card Programming, Change VIN, Reset HFM to VIRGIN, Learn ECM / ESCL/HFM in protected mode


    MASTER III (2010-2014) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM


    TRAFIC II Ph3 (2010-2014) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM


    WIND (2010-2013) - Key Programming, Change VIN, Learn ECM


    TWINGO II (2007-2013) - Key Programming, Change VIN, Learn ECM


    TWINGO (2001-2006), LOGAN (2004-2008), SANDERO I, THALIA, SYMBOL - Key Programming, Change VIN


    LOGAN, SANDERO, THALIA, SYMBOL (2008-2012), Duster (2010-2012) - Key Programming, Change VIN


    LOGAN, SANDERO, DOKKER, SYMBOL, DUSTER (2012+)- Key/ECM/BCM learning, Reset to VIRGIN, Read DataFlash, Change VIN


    MEGANE III / SCENIC III (2009-2015) - Card Programming, Change VIN, Reset BCM to VIRGIN


    MEGANE III / SCENIC III (2009-2015) - Classical Key Programming, Change VIN, Reset BCM to VIRGIN


    MEGANE III / SCENIC III / FLUENCE (2009-2015) - Learn BCM / ECM / ESCL in protected mode


    KOLEOS (2008+) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN, Learn ECM/BCM/ESCL


    EDC17 / MED17 TRICORE EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, repair block CRCs


    EDC16 EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, repair block CRCs


    DELPHI DCM 3.4 EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, Change KM, repair block CRCs (NEW!)


    SID305/306/307/308/309 TRICORE DFLASH DUMP CRC - Search/change KM, repair block CRCs


    MEGANE III / SCENIC III / FLUENCE / LATITUDE AIRBAG (CONTINENTAL)- Erase CRASH DATA by OBDII / direct connection


    LAGUNA III AIRBAG (AUTOLIV RC5) - Erase CRASH DATA by OBDII / direct connection


    TWINGO II (X44) / KANGOO II (X61) AIRBAG (CONTINENTAL)- Erase CRASH DATA by OBDII / direct connection


    MASTER III / MOVANO-B / CLIO III Ph2 / MODUS Ph2 AIRBAG (AUTOLIV)- Erase CRASH DATA by OBDII / direct connection


    AIRBAG MODULE WITH SPC560 MCU (CONTINENTAL)- Erase CRASH DATA by OBDII / direct connection


    MEGANE II / SCENIC II AIRBAG (AUTOLIV ACU4)- Erase CRASH DATA by OBDII / direct connection


    CLIO II X65 AIRBAG (BOSCH AB8) - Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection


    CLIO III Ph1 / MODUS Ph1 AIRBAG (BOSCH AB9.X)- Erase CRASH DATA, Erase fault codes by OBDII / direct connection


    ESPACE III AIRBAG (SIEMENS)- Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection


    LOGAN X90 / DUSTER H79 AIRBAG (TEMIC-CONTINENTAL)- Erase CRASH DATA, Read EEPROM by OBDII / direct connection


    KADJAR / TALISMAN AIRBAG (AUTOLIV AC7 with MCU XC2336)- Erase CRASH DATA by OBDII / direct connection


    CLIO IV Ph2 / CAPTUR Ph2 AIRBAG (CONTINENTAL 985100475R with R7F7010133)- Erase CRASH DATA by OBDII / direct connection



    Conclusion

    The Renault ECU Programmer Tool is a versatile and user-friendly solution for managing ECU memory and immobilizer systems. With its advanced features and ease of use, it’s a must-have tool for anyone working with Renault vehicles. Whether you're integrating a second-hand ECU or simply looking to clear immobilizer codes, this tool delivers reliability and efficiency.

    For more details or to purchase the tool, contact authorized distributors or visit the official website.
