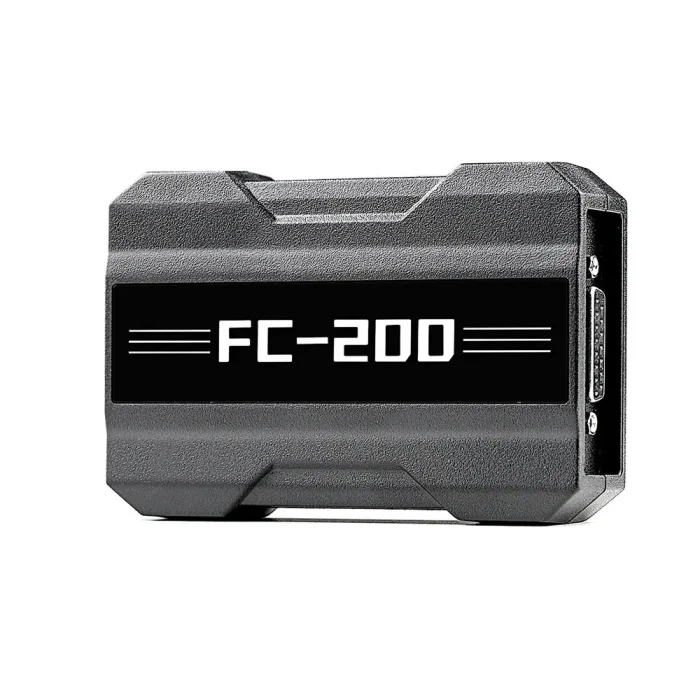

CG FC200 Auto ECU Programmer FC-200 Full Version All License Activated Read and Write Data

The CG FC200 ECU Programmer is a cutting-edge diagnostic tool designed for car technicians and enthusiasts. With its advanced features and extensive compatibility, it has become a go-to solution for ECU programming and module cloning. This article explores the key features, benefits, and usage of the CGDI FC200 Car ECU Programmer, helping you understand why it’s a must-have for modern car maintenance.

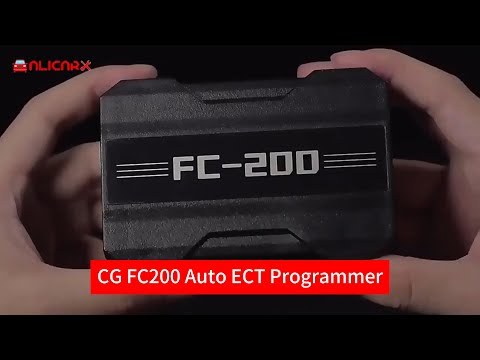

What is the CG FC200 ECU Programmer?

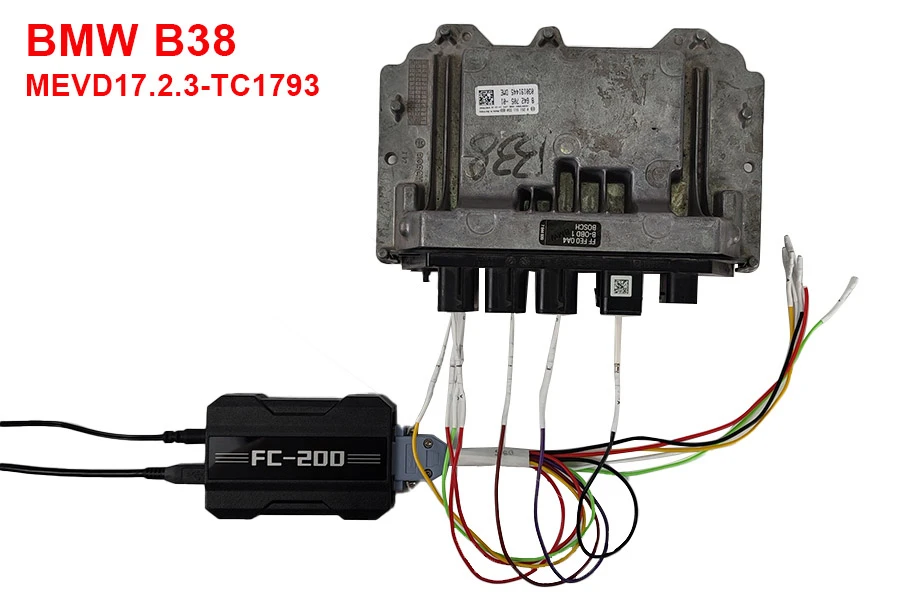

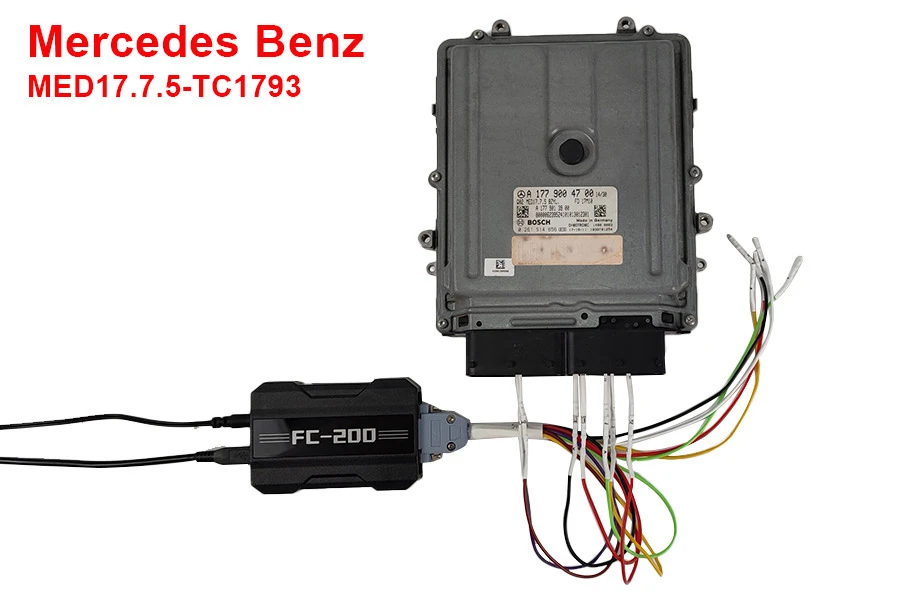

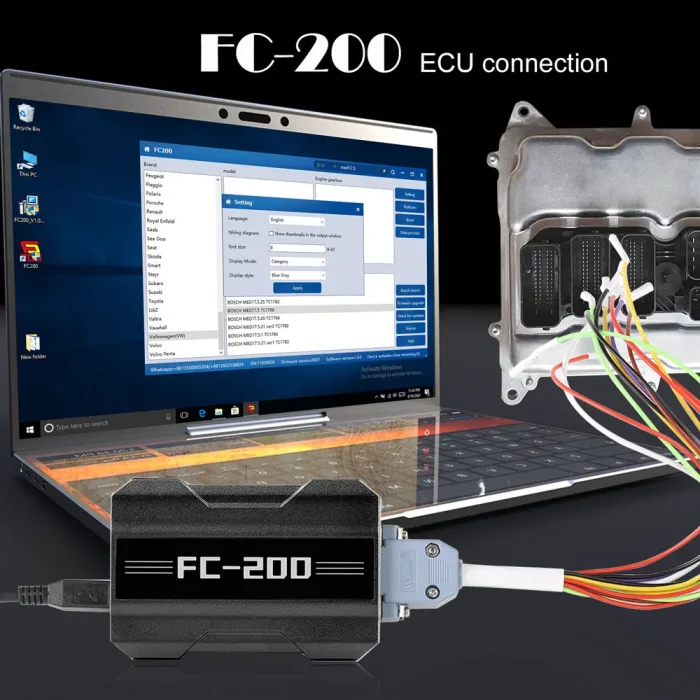

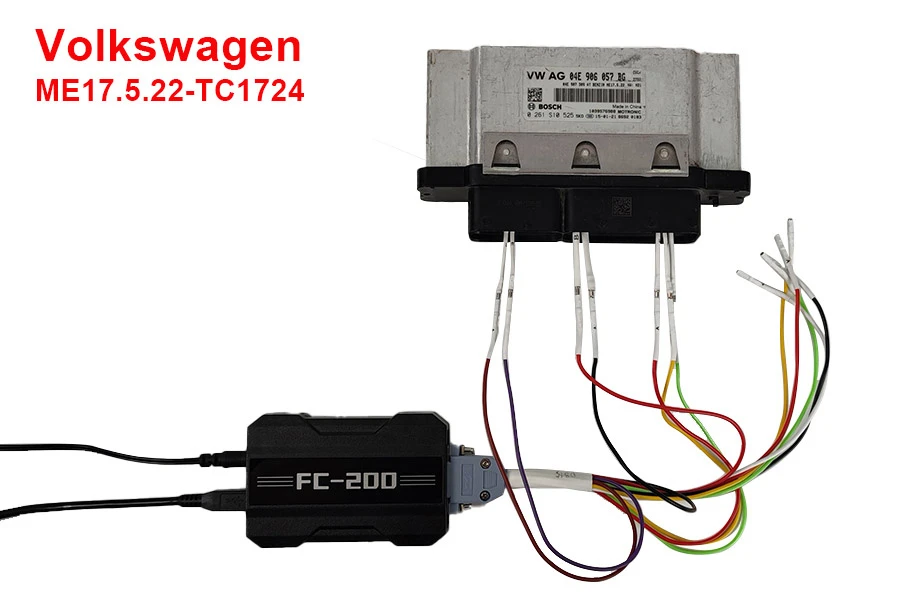

The CG FC200 ECU Programming tool is a full-version, license-activated tool that supports over 3,000 ECUs, including models from BMW, Audi, Volkswagen, and more. It is designed to work seamlessly in both OBD mode and Bench mode, eliminating the need for disassembly or soldering, thus protecting the original car parts.

Key Features of the CG FC200 ECU Programmer

1. Protection of Original Car Parts

• Over 98% of ECUs supported by the FC200 can be programmed via OBD mode or Bench mode.
• No need to open the ECU cover or punch holes, ensuring the original car parts remain intact and undamaged.

2. Intelligent Recognition Function

• The "identification" feature allows users to diagnose ECU communication issues and wiring problems.
• If the ECU module is undamaged and wired correctly, the tool can read out chip information, hardware details, and firmware data.

3. Module Cloning Capability

• Supports ECU data reading and writing, as well as module cloning.
• No synchronization matching or online programming is required, ensuring a seamless and efficient process.

4. ISN Code Reading and Writing

• The FC200 can acquire ISN codes for all BMW series and Mini models.
• This feature is particularly useful for key matching and anti-theft system maintenance.

5. VIN Modification

• Solves issues related to double VIN or VIN mismatch in vehicles.
• Makes vehicle maintenance and diagnostics more convenient and accurate.

6. Data Processing and Analysis

• Supports engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models.
• Enables the shutdown of the Bosch MED/EDC17 series engine computer anti-theft system.
• Offers TPROT off functionality for select BMW, VAG, and Hyundai/Kia models.

7. Multi-Language Support

• Available in English, French, and Simplified Chinese.
• Additional language options (Spanish, Polish, Turkish, and Traditional Chinese) are available at an extra cost.

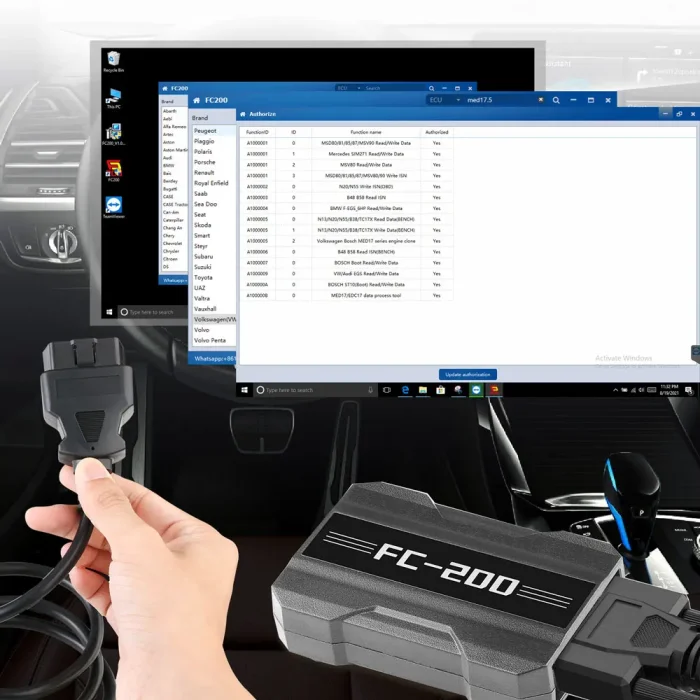

8. Free Updates and Additional Licenses

• The first year of updates is free.
• After the first year, the update service is available for $200 annually.
• Free Denso ECU read/write function (A1000010) and China Delphi MTxx read/write function (A100000F) are included with the purchase.

Technical Specifications of the CG FC200 ECU Programmer

Software Compatibility

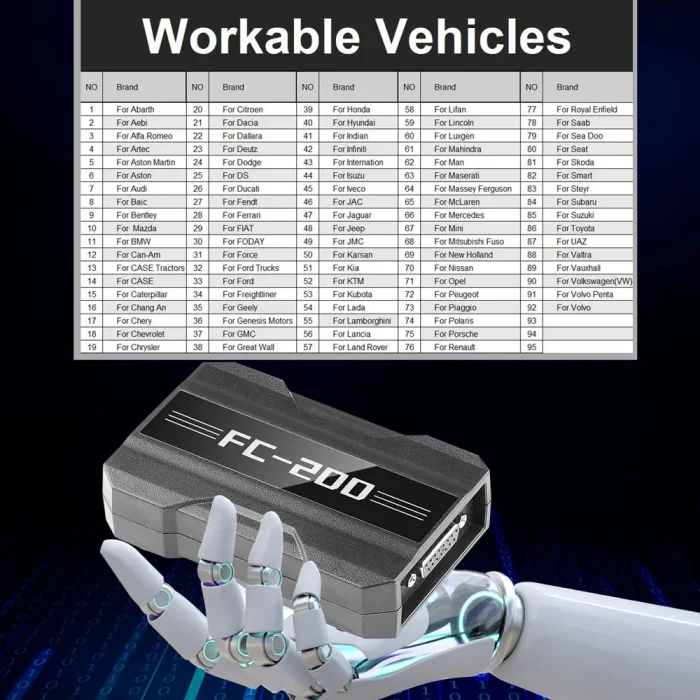

• Works with a wide range of ECUs, including BMW, Audi, Volkswagen, Hyundai, and more.
• Compatible with KTAG, Kess, and Dimsport ECUs.

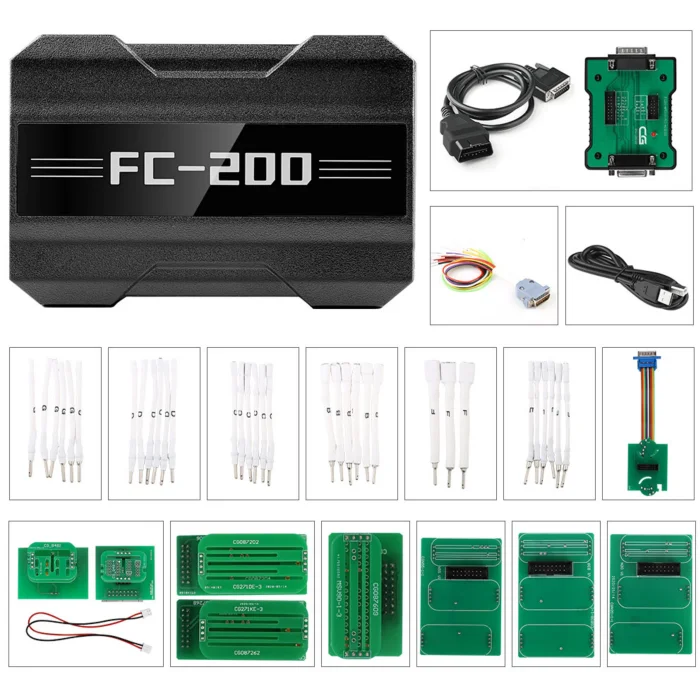

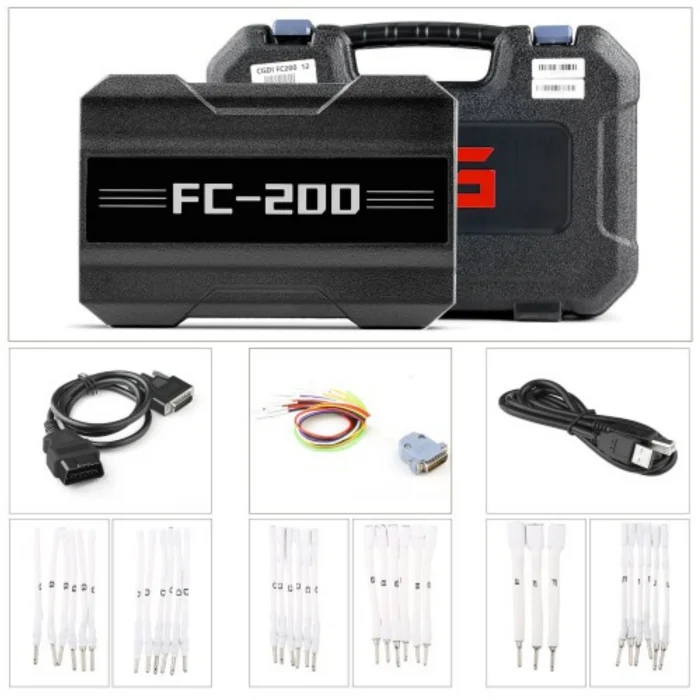

Hardware Adapters

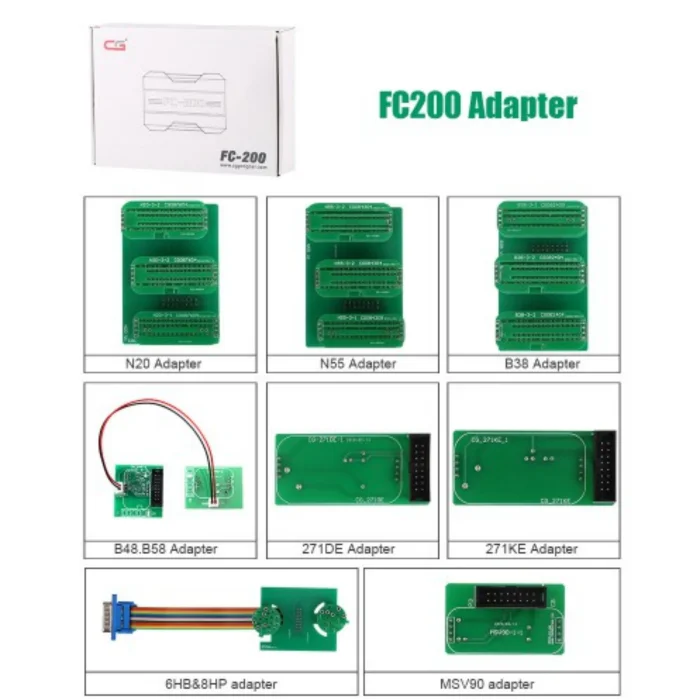

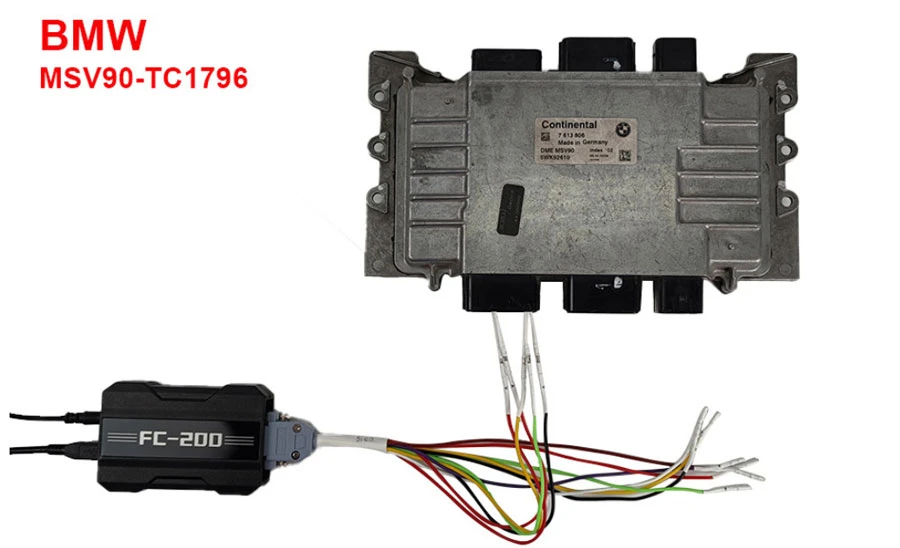

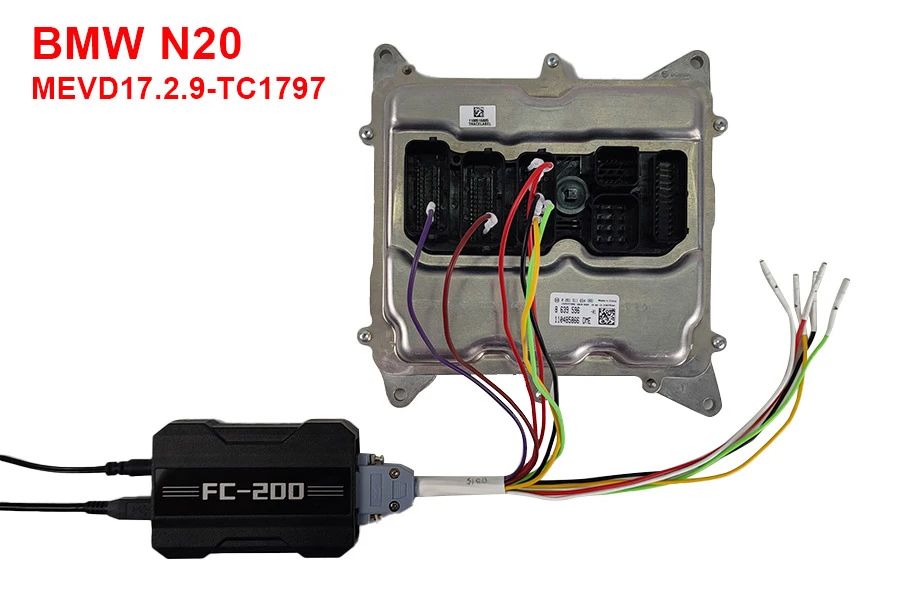

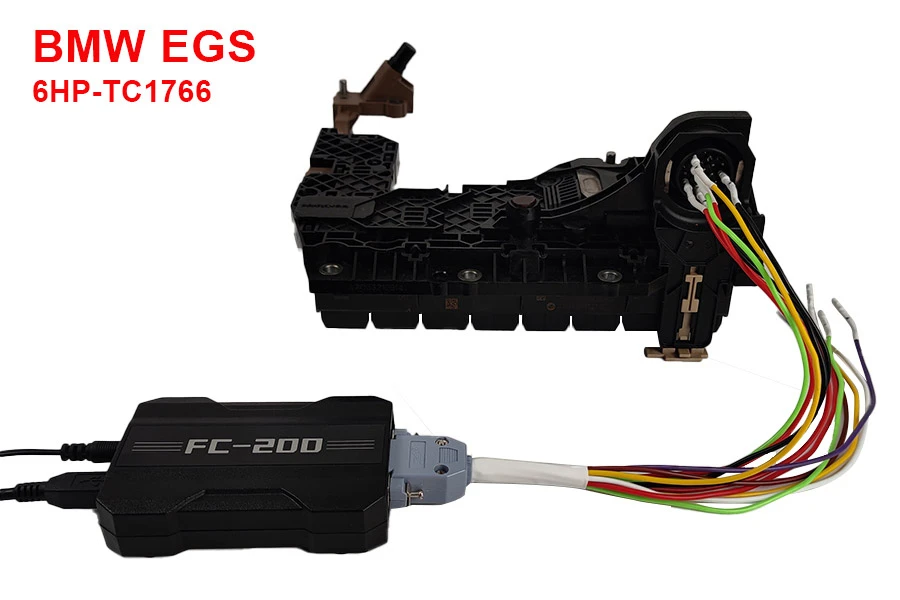

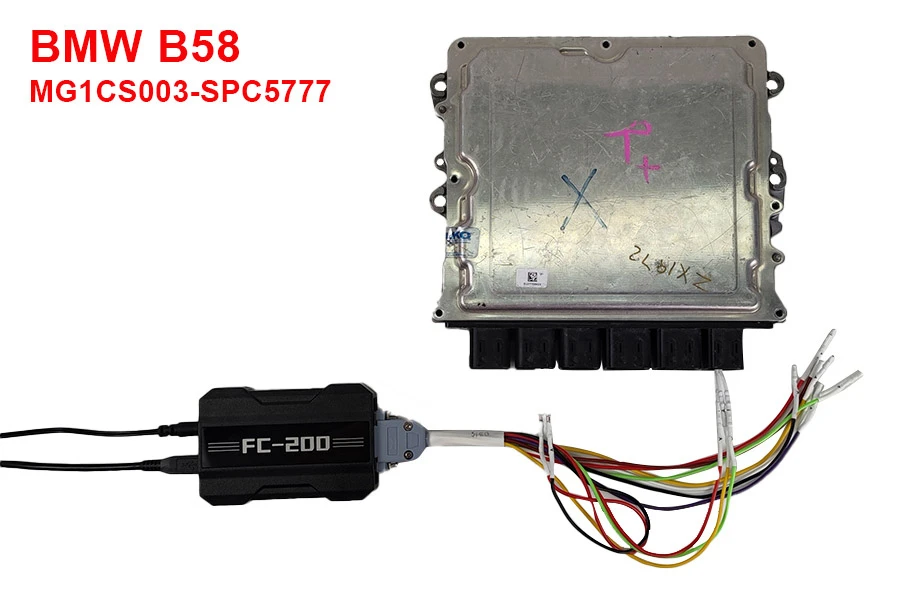

• Includes a comprehensive set of adapters for 6HP & 8HP, MSV90, N55, N20, B48/B58, and more.
• These adapters eliminate the need for disassembly, making the process faster and safer.

Update Service

• Free updates for the first year.
• Annual update service available for $200 after the first year.

Why Choose the CG FC200 ECU Programmer?

• Versatility: Supports over 3,000 ECUs, making it a versatile tool for car technicians.
• Safety: Protects original car parts by avoiding disassembly and soldering.
• Ease of Use: Intelligent recognition and automatic verification features streamline the ECU programming process.
• Cost-Effective: Bundle deals and free updates for the first year make it a budget-friendly choice.

FC200 Latest Update Information:

FC200 V1.2.5.0 Registered Version New (2025.01.06)

New Functions:
1. Added the "Three readiness monitors not ready" function of GM E37\E38\E39\E39A\E78\E80\E83\E84 ECU
2. Added MELCO (Mitsubishi) series BENCH mode ECU:
MELCO E6T6xxxx MH8501F
MELCO E6TAxxxx MPC5746R
MELCO E6T85xxx MH8601 test
MELCO E6T8xxxx MH8115 test
MELCO E6T7xxxx MH8611 test
MELCO E6T86xxx MH8115 test

3. Added BOSCH (Bosch) BENCH mode ECU\TCU:
MG1CS080 TC275TP test
INVCON2.3 TC1797
HV17.4.1 TC1797

4. Added the "Repair of Lovol engine duration" of data processing to Lovol ECU: EDC17C63, EDC17CV54
5. Added the BOOT mode read and write function for GM E83
6. Added the function of reading and writing DFlash, PFlash, Maps, and ExtEEPROM separately for Mercedes-Benz SIM271DE
7. Added the "Unlock" function of VOLVO MB279700-96xx
8. Added "Read Password" function in Hyundai Kia CPEGP2.10.1 boot mode
9. Bug fixes
Optimized the "Turn off anti-theft" function of EDC17C53, EDC17C63, and EDC17C81
Optimized Porsche SDI10.x ECU wiring diagram
Fixed the problem that Mercedes-Benz CRD3P.C0 and CRD3P.D1 can not be read and written
Fixed the problem that DCM2.5 failed to write PFlash
Fixed the problem that M7 failed to recognize but can read and write
Fixed the problem that VGS2-FDTC failed to recognize after the updated version
Optimized the process of M7.9.7, M7.9.7.1, ME7.9.7, ME7.9.7.1 to handle the "Three readiness monitors not ready" function
Fixed the problem that Honda 37820 SH7058 does not communicate with ECU after writing data

CG FC200 V1.2.4.0 Registered Version New (2024.11.25)

1. Added Paypal payment function in non-simplified Chinese version
2. Added DELPHI BOOT mode ECU:
DCM6.2V MPC5674
DCM6.2A MPC5674
DCM6.2C MPC5674
DCM3.5 MPC5565
DCM6.1 TC1797

3. Added MARELLI BOOT mode ECU:
8TDW MPC5553
8TDF MPC5553 test
8GMF MPC5553 test
8F3 MPC5553 test
8DF MPC5553 test
8GMK SPC564A
8GML SPC564A test
8GSF MPC5565 test
8GMF MPC5565 test
8DF MPC5565 test
8F2 MPC5565 test
8F3 MPC5565 test
8GMW MPC5565 test
8GSW MPC5565 test
8DS MPC5565 test
9GF SPC564A test
9GC SPC564A test
9DF SPC5644 test
9DF_HW2 SPC5644 test
10GF SPC564A test
METATRON_MF4 MPC5674F test

4. New GM TCU: ACDelco T87A SPC564A, BOSCH T93 SPC5888

5. Other new ECUs:
CONTINENTAL SID605 SPC564A test (Boot mode)
BOSCH MED17.7.7 (Boot mode)
BOSCH EDC17CV54 (BENCH/Boot mode)
ACDelco E78 MPC5566 (Boot mode)

6. Other new features:
BOSCH EDC17CV54 adds VIN change function
M7, ME7.8.8 adds unlock function
Adds Volkswagen (WV) MED17.1, MED17.5.5 password reading method

7. Bug fixes
Optimized the main interface ECU search function
Solved the PFlash data encryption problem of M7, ME7.8.8
Fixed the MT86 PFlash reading and writing failure problem
Iveco BOSCH EDC17C69 ECU adds BENCH mode connection diagram

Optimized menus, wiring diagrams and other functions

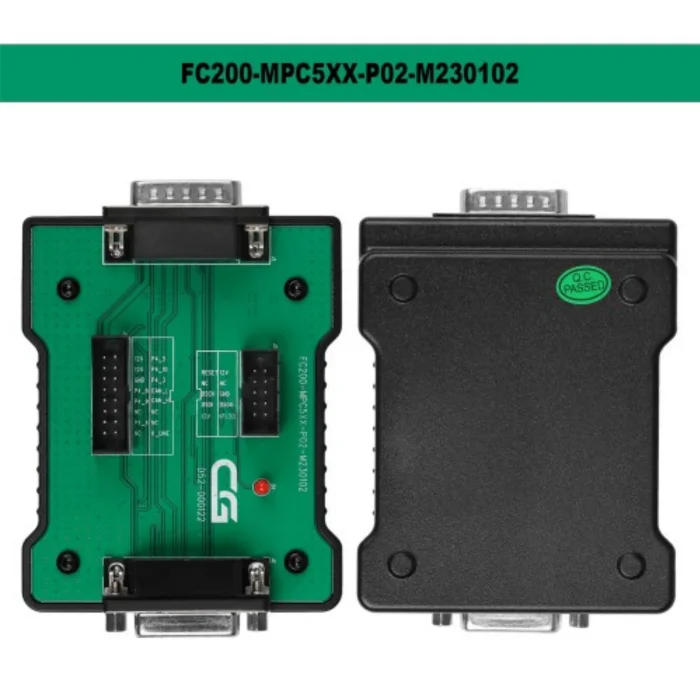

FC200-MPC5XX-P02-M230102 Adapter for BOSCH MPC5xx Read/Write Data on Bench
Support BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
FC200-MPC5XX-P02-M230102 Adapter for BOSCH MPC5xx Read/Write Data on Bench

Description:
CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.

Please refer to our official blog How to Use FC200 with MPC5xx Adapter on BMW EDC16CP35

Product Functions:
Supported ECU Models: ME9.0, MED9.1, MED9.5.10, EDC16C2, EDC16CB, EDC16CP31, EDC16CP35. More models are being upgraded.

Product Features:

Adaptation without disassembly
Stable and safe
Function extension
Data loss prevention
Real-time monitoring
Solid connection

CG FC200 V1.1.3.0 Update Information:

1. Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2. Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8, for this function, will need this extra FC200 MPC5XX Adapter

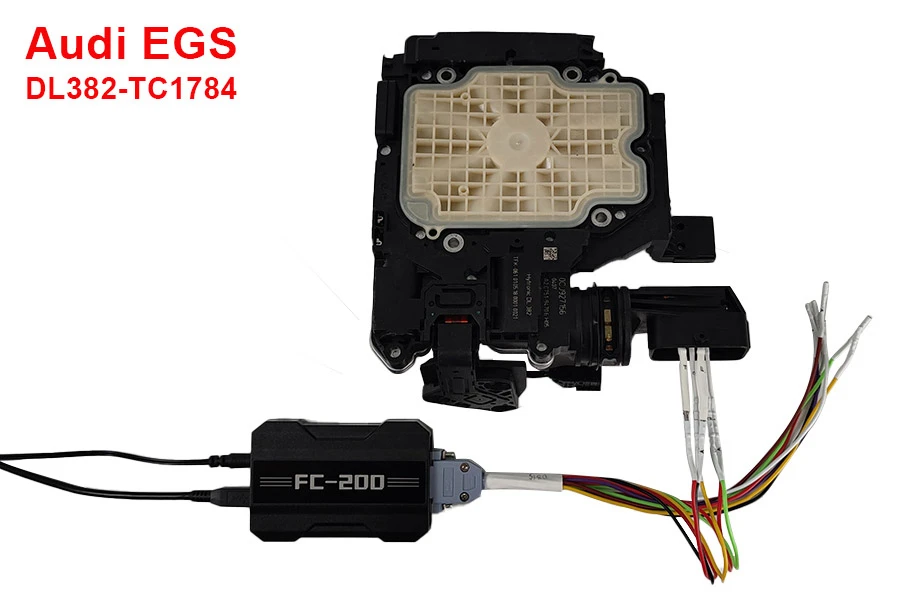

3. New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4. Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5. Add Mercedes Benz CRD2. x MPC556x engine platform mode
6. DELPHI TC17 chip ECU adds PFLASH verification function
7. ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8. GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9. Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions

Conclusion

The CG FC200 ECU Programmer is a powerful and reliable tool for car diagnostics and ECU programming. Its ability to work in OBD and Bench modes, combined with its extensive compatibility and advanced features, makes it an essential tool for professionals in the automotive industry. Whether you're working on BMW, Audi, or Volkswagen models, the FC200 offers unparalleled functionality and convenience.

For more information or to purchase the CG FC200 ECU Programmer, contact us today and take your car maintenance to the next level!
