GODIAG CAS4 & CAS4+ OBDII Test Platform for BMW Key Programming & CAS Module

BMW CAS4 and CAS4+ systems are widely used in modern BMW vehicles for key authentication, immobilizer control, and vehicle security. For locksmiths and automotive electronics engineers, programming and testing CAS4 modules can be time-consuming and risky when performed directly on the vehicle.

The GODIAG CAS4 & CAS4+ OBDII Test Platform provides a professional bench programming solution that allows technicians to program keys, test synchronization, replace immobilizer modules, and diagnose faults without keeping the vehicle occupied. It is an essential tool for BMW key specialists and automotive locksmith businesses.

What Is the GODIAG CAS4 & CAS4+ Test Platform?

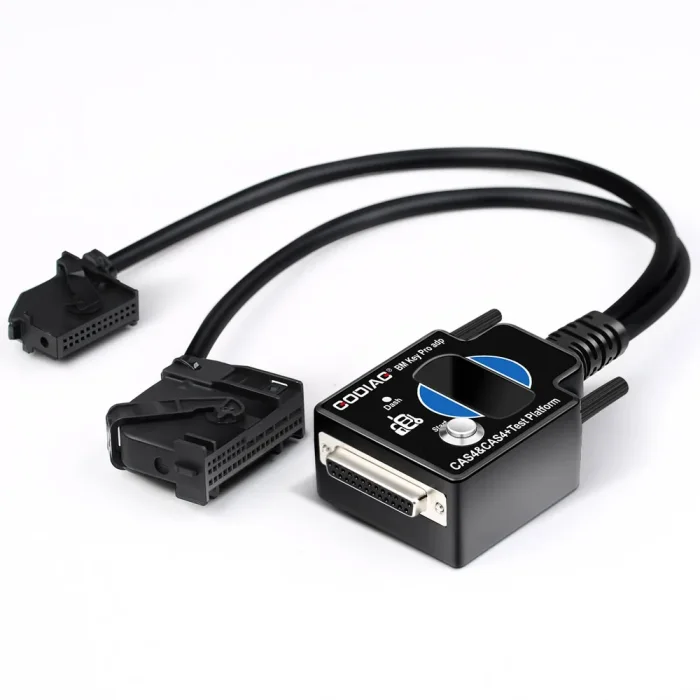

The GODIAG CAS4 & CAS4+ Test Platform is a dedicated workbench testing device designed specifically for BMW CAS4 and CAS4+ modules.

It allows technicians to perform key programming and immobilizer-related operations outside the vehicle while maintaining reliable communication between the CAS module, key, and programming equipment.

The platform features:

• OEM-grade CAS4/CAS4+ connectors
• Built-in ignition simulation
• Integrated status indicator
• Dedicated key sensing area
• Stable power and CAN communication interfaces
• Quick and secure module installation

Key Features of GODIAG CAS4 & CAS4+ Test Platform

Workbench Programming Without Opening the CAS Module

The platform allows BMW CAS4 and CAS4+ key programming through OBD communication on the workbench.

Benefits include:

• No need to open the CAS module housing
• Reduced risk of hardware damage
• No vehicle battery drain
• No vehicle downtime during programming
• Safer data processing and backup

This makes the entire programming process faster and more efficient.

OEM Dedicated Connectors

Unlike traditional wiring methods, the GODIAG platform uses dedicated OEM CAS4 and CAS4+ connectors.

Advantages

• Faster connection setup
• Stable communication
• Reduced wiring errors
• Protection against bent communication pins
• Improved reliability during data operations

User-Friendly Design

The platform is equipped with:

• Start simulation button
• Immobilizer indicator light
• Key recognition area
• High-quality Japanese wiring materials

The intuitive design simplifies operation for both experienced technicians and new users.

Supported Programming Functions

All Keys Lost Programming

When all vehicle keys are lost, the GODIAG CAS4 platform can work with compatible key programming tools to generate and program new keys.

Supported operations include:

• Reading CAS data
• Generating new keys
• Key learning
• Synchronization testing

Add Spare Keys

The platform allows users to add additional keys without installing the module back into the vehicle during testing.

CAS4 and CAS4+ Module Replacement

Technicians can safely perform immobilizer replacement procedures, including:

• CAS4 replacement
• CAS4+ replacement
• Data migration
• Configuration testing

This significantly reduces troubleshooting time after installation.

Compatible Programming Devices

The GODIAG CAS4 & CAS4+ Test Platform is compatible with many popular BMW programming tools.

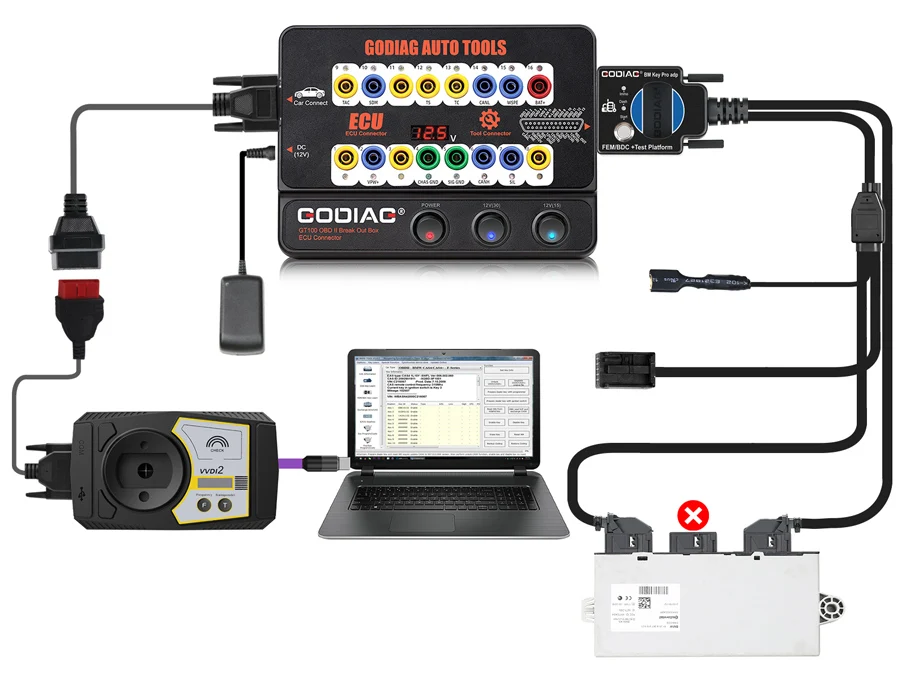

Xhorse VVDI2

VVDI2 users can perform:

• CAS data reading
• Key programming
• Key generation
• Synchronization verification

Autel IM608

The platform works seamlessly with Autel IM608 for advanced BMW immobilizer operations.

Lonsdor K518

Technicians can use Lonsdor K518 for key learning and module matching.

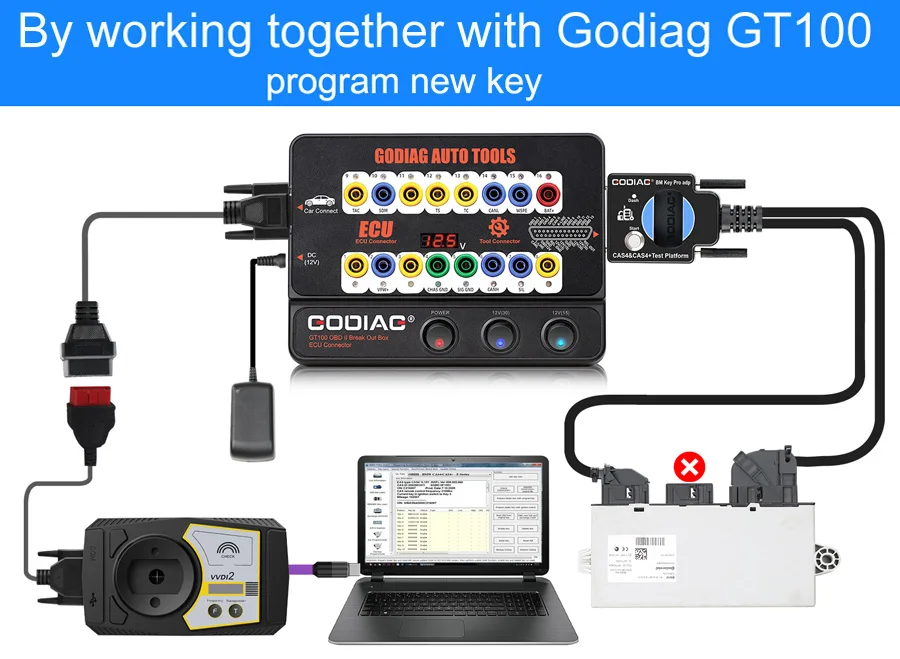

GODIAG GT100

Combined with the GODIAG GT100, the platform provides a complete BMW CAS4 testing and programming environment.

CAS4 Data Reading and Backup

Secure Data Processing

Before replacing a CAS module, technicians can:

• Read EEPROM data
• Backup immobilizer information
• Verify configuration parameters
• Preserve vehicle security data

This reduces the risk of data loss during repairs.

Preprocessing Verification

The platform allows users to verify module information before installation, ensuring successful replacement and programming.

CAS4 and Key Synchronization Testing

One of the most valuable functions of the platform is synchronization testing.

Verify Key Operation Before Installation

Before reinstalling the CAS module into the vehicle, technicians can confirm:

• Key recognition
• Immobilizer communication
• Start authorization
• Synchronization status

This prevents unnecessary vehicle reassembly and repeated troubleshooting.

Improve Repair Efficiency

By validating key functionality in advance, workshops can:

• Save labor costs
• Reduce repair time
• Increase customer satisfaction
• Improve programming success rates

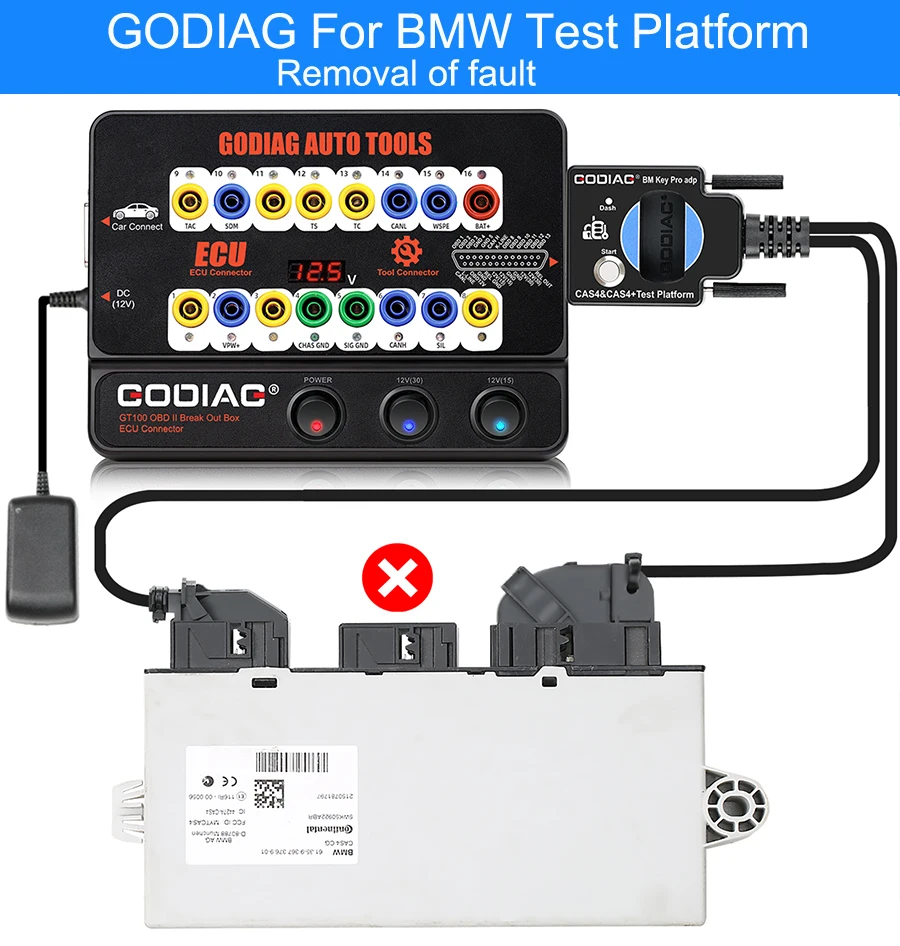

Immobilizer Troubleshooting Made Easy

Diagnose Start Failures

When a BMW key cannot start the vehicle, several causes are possible:

• Damaged key
• Faulty CAS4 module
• Synchronization failure
• Data corruption

The GODIAG platform helps identify the exact source of the problem quickly.

Reduce Diagnostic Time

Instead of repeatedly testing components inside the vehicle, technicians can isolate and verify the CAS module and key directly on the bench.

Ideal Solution for Automotive Locksmiths

Expand Remote Programming Services

The GODIAG CAS4 & CAS4+ Test Platform enables off-site programming services.

A vehicle owner can:

1. Remove the CAS4/CAS4+ module
2. Send it to a locksmith
3. Receive programmed keys
4. Confirm synchronization before installation

This creates new business opportunities for professional locksmiths and BMW specialists.

Increase Workshop Productivity

Because vehicles do not need to remain in the workshop throughout the entire programming process, technicians can serve more customers and improve workflow efficiency.

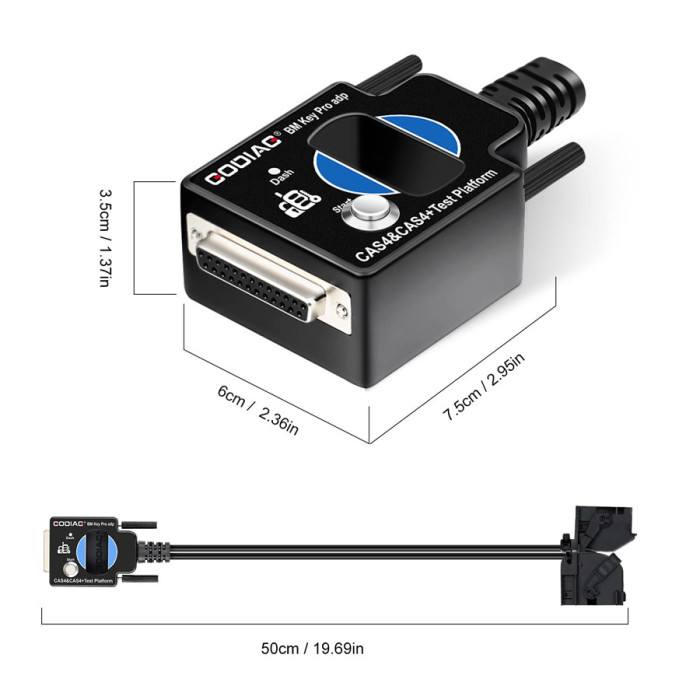

GODIAG CAS4 & CAS4+ Platform Structure Description

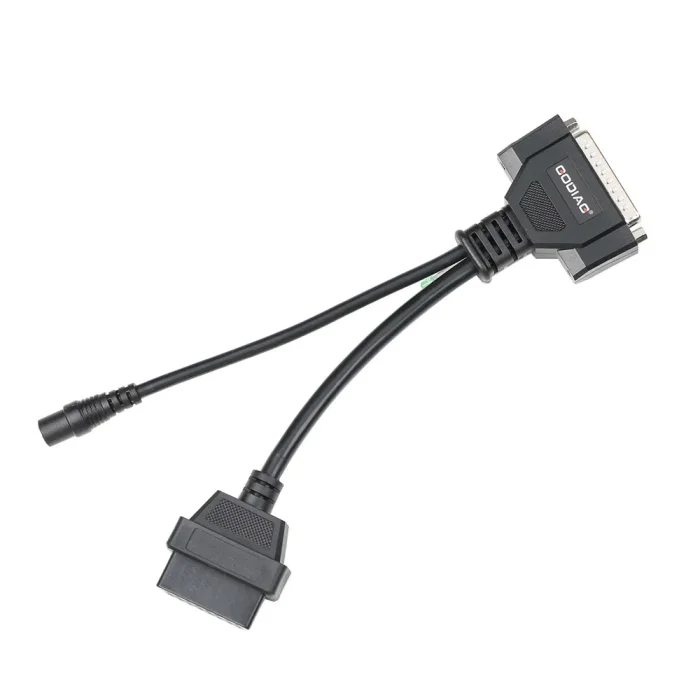

① DB25 Female Connector

Used for connection with:

• GODIAG GT100
• OBDII programming devices

② Ignition Simulation Start Switch

Simulates vehicle ignition and startup functions.

③ Immobilizer Status Indicator

Displays immobilizer communication and operation status.

④ Key Sensing Area

Detects and verifies key recognition.

⑤ Fixing Screw Bolt

Secures the CAS module firmly during operation.

⑥ Dedicated Power and CAN Communication Adapter

Provides stable power and communication channels.

⑦ Dedicated Start Control Adapter

Controls startup simulation and synchronization testing.

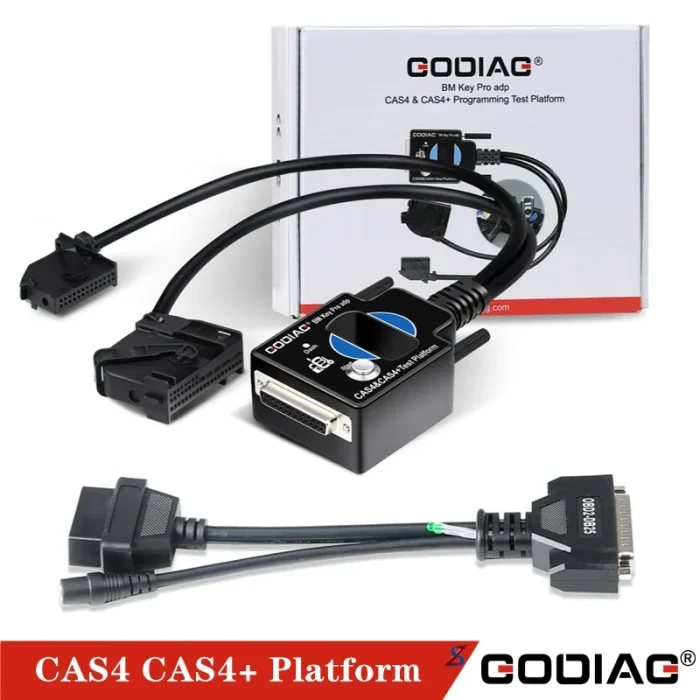

Package Contents

Standard Package Includes

• 1 × GODIAG CAS4 & CAS4+ OBDII Test Platform

Why Choose GODIAG CAS4 & CAS4+ Test Platform?

Professional BMW Solution

Designed specifically for BMW CAS4 and CAS4+ systems.

Reliable and Safe

OEM connectors and stable communication reduce operational risks.

Supports Leading Programming Tools

Compatible with VVDI2, Autel IM608, Lonsdor K518, GODIAG GT100, and other professional equipment.

Improves Programming Efficiency

Perform key programming, module replacement, synchronization testing, and troubleshooting faster and more accurately.

Conclusion

The GODIAG CAS4 & CAS4+ OBDII Test Platform is a powerful and practical solution for BMW key programming, immobilizer diagnostics, and CAS module testing. Whether you are performing all-keys-lost programming, adding spare keys, replacing CAS modules, or diagnosing synchronization problems, this platform provides a safe, efficient, and professional workbench environment.

For automotive locksmiths, BMW specialists, and electronics engineers, the GODIAG CAS4 & CAS4+ Test Platform is an indispensable tool that enhances productivity, improves diagnostic accuracy, and expands service capabilities.
