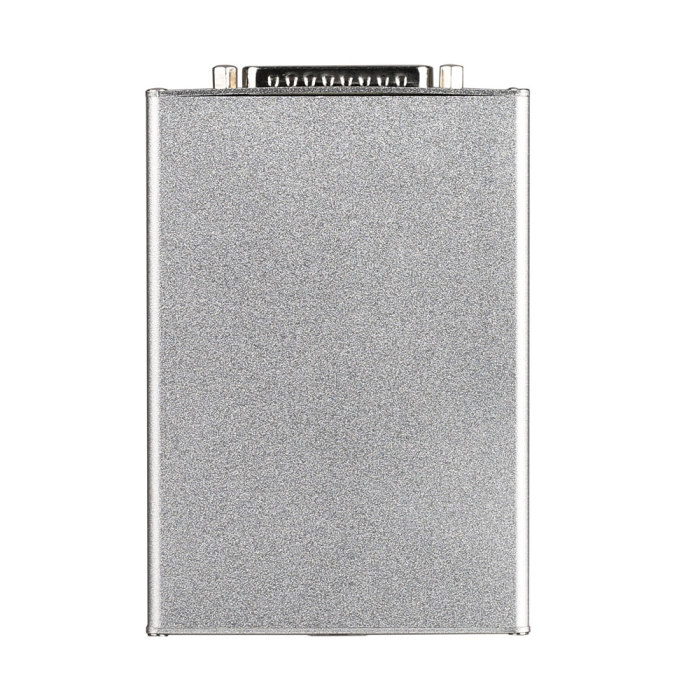

The KTMFLASH KTM BENCH KTM OBD 3-in-1 ECU Programmer is a professional ECU programming tool designed for vehicle ECU chip tuning and electronic control unit programming.

According to the provided product information, the tool combines three programming solutions:

• KTMFLASH
• KTMOBD
• KTM BENCH

It supports ECU chip tuning through OBD for a range of vehicles, including Honda, Toyota, Kia, Hyundai, some Ford models, and Volkswagen/Audi applications. The supplied information also lists gearbox read, write, and clone-related support for Volkswagen and Audi applications.

KTM 3-in-1 Software Versions

The supplied information lists the following software versions:

The package is presented as a KTM 3-in-1 software solution for ECU and gearbox programming applications.

Why Use a 3-in-1 ECU Programmer?

Modern vehicle ECUs can use different communication methods and programming procedures. Depending on the ECU family, a technician may need to work through OBD, bench connections, or boot-level programming.

The KTMFLASH KTMOBD KTM BENCH 3-in-1 approach brings multiple programming functions into one software platform.

OBD ECU Programming

OBD programming allows supported ECUs to be accessed through the vehicle's diagnostic connector.

Depending on the specific ECU and module, the supplied compatibility list includes functions such as:

• ECU reading
• ECU writing
• Checksum correction
• Calibration writing
• EEPROM operations on selected modules
• Bootloader programming on supported ECUs

Not every ECU supports every function, so the exact operation should always be checked against the corresponding module and ECU type.

Bench ECU Programming

Bench programming provides another method for working with compatible ECUs outside the vehicle.

The provided module list includes numerous ECU families that support reading, writing, checksum correction, EEPROM operations, or bootloader functions.

This makes the KTM BENCH ECU programmer particularly useful when a specific ECU cannot be programmed using the normal vehicle OBD connection.

Bootloader and BSL Programming

For certain advanced ECU families, the KTM software supports bootloader or BSL-related operations.

For example, Module 53 covers a large range of Infineon Tricore devices, including TC1762, TC1766, TC1792, TC1796, TC1797, TC1724, TC1728, TC1782, TC1784, TC1791 and TC1793 variants.

Supported operations include reading, writing, and checksum correction for many listed devices.

KTMFLASH 3-in-1 ECU Programmer Supported Functions

The most important functions vary by ECU and module. The supplied compatibility list repeatedly identifies several core operations.

ECU Reading

For supported ECU types, the KTMFLASH software can provide ECU data reading.

Reading may be available for:

• Flash memory
• EEPROM
• Microcontroller memory
• Calibration areas
• Bootloader-related memory

However, the exact memory areas available depend on the ECU hardware and the corresponding software module.

ECU Writing

ECU writing is one of the main functions of the KTMFLASH ECU programmer.

Supported applications in the supplied list include Honda, Ford, Kia/Hyundai, Toyota/Lexus, Mitsubishi, Mazda, VAG, Renault and other ECU families.

Some modules support both reading and writing, while others are specifically listed as write-only.

Checksum Correction

Checksum correction is another frequently listed function.

A number of modules specify:

Reading, writing, checksum correction

This function is available across various ECU families, including selected Ford, Kia/Hyundai, Toyota/Lexus, Mitsubishi, Mazda, VAG and Bosch applications.

EEPROM Programming

Selected modules provide EEPROM reading and writing.

For example, the Denso SH705X Bootloader section lists EEPROM applications for Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Volvo and Opel ECUs.

KTMFLASH ECU Compatibility

The supplied compatibility database covers a wide range of ECU manufacturers and vehicle applications.

Honda and Acura ECU Programming

Honda and Acura applications are covered through multiple modules.

Module 12 includes Honda PGM-FI and AT/CVT/DCT applications using different microcontrollers, including Keihin, Matsushita, Panasonic, Continental and Hitachi ECU families.

Module 13 covers selected Honda and Acura K-Line ECUs, including applications for:

• Honda Accord
• Honda CR-V
• Honda Element
• Honda Legend
• Honda Odyssey
• Honda Ridgeline
• Honda Fit/Jazz
• Acura TSX
• Acura MDX
• Acura TL

The listed functions include writing and checksum correction, with a stock files database included for the specified applications.

Ford ECU Programming

Ford applications represent a significant part of the KTMFLASH compatibility list.

Supported examples include:

• Ford Mondeo
• Ford Focus
• Ford Fiesta
• Ford Fusion
• Ford Kuga
• Ford Explorer
• Ford Escape
• Ford Expedition
• Ford Navigator
• Ford F-150
• Ford Mustang
• Ford EcoSport

Different modules cover different engine and ECU generations.

Ford Mondeo ECU Support

Module 14 includes selected Ford Mondeo 4 petrol engine applications, including 1.6L Sigma Ti-VCT, 2.0L Duratec HE, 2.3L Duratec HE and 2.5L Duratec I5 ECUs.

The listed functions include reading, writing and checksum correction for supported applications.

Ford Focus ECU Support

Module 20 covers selected Ford Focus 2 applications, including Duratec and Duratorq engines.

The supplied list includes SIM28/29, ESU131/411/418, SID202/SID206 and SIM210 ECU families.

Modern Ford MG1 Applications

Module 73 lists several Ford MG1 applications, including selected:

• Ford F-150 3.5L EcoBoost
• Ford Fiesta 8 1.5L EcoBoost
• Ford Focus 4 1.0L/1.5L EcoBoost
• Ford Mustang 6 2.3L EcoBoost
• Ford Mustang 6 5.0L Coyote V8

The listed functions are reading, writing and checksum correction.

Kia and Hyundai ECU Programming

The KTMFLASH 3-in-1 software also provides extensive Kia and Hyundai ECU coverage.

Kia/Hyundai M(G) and ME17 ECUs

Module 19 lists several Kia/Hyundai ECU families, including M(G)7.9.8, M(G)7.9.7, ME17.9.11/12/13, ME(G)17.9.21 and ME17.9.2/ME(D)(G)17.9.8.

Depending on the ECU, the listed functions include writing, reading and checksum correction.

Kia/Hyundai SIM2K ECUs

Module 30 covers several SIM2K applications, including:

• SIM2K-140
• SIM2K-D160
• SIM2K-141
• SIM2K-142
• SIM2K-341
• SIM2K-C201
• SIM2K-240
• SIM2K-241
• SIM2K-242
• SIM2K-245

The listed functions are reading, writing and checksum correction.

Kia/Hyundai Diesel ECUs

The KTMFLASH compatibility list also includes EDC15, EDC16 and EDC17 diesel ECU applications.

Module 34 includes selected EDC15C7 and EDC16C39/CP34 applications, while Module 36 includes EDC17C08, EDC17CP14, EDC17C53 and EDC17C57 applications.

Toyota, Lexus, Scion and Hino ECU Support

Toyota-related applications are covered by several KTMFLASH modules.

Toyota/Lexus/Scion/Hino CAN and K-Line

Module 35 lists 76F-series, MPC565, SH72512 and SH72544 applications across CAN-bus and K-Line systems.

It also lists gearbox and hybrid vehicle control CAN-bus applications. The specified operation is writing and checksum correction.

Toyota/Lexus Second Generation

Module 46 covers selected 76F0196, 76F0198, 76F0199 and 76F0219 applications.

The list includes CAN-bus, P5-CAN-bus and gearbox P5-CAN-bus functions, with reading, writing and checksum correction available for the specified applications.

Toyota/Lexus Generation 3

Module 74 lists the R7F701202 P5-UDS application with reading, writing and checksum correction.

Volkswagen and Audi ECU and Gearbox Programming

The KTMFLASH 3-in-1 system also includes selected Volkswagen and Audi ECU and transmission applications.

VAG SIMOS ECU Programming

Module 57 covers SIMOS 8, SIMOS 10, SIMOS 11 and PCR2.1 applications.

The compatibility list includes selected:

• 2.8L V6 FSI
• 3.2L V6 FSI
• 3.0L V6 TFSI
• 1.2L TSI
• 1.2L MPI
• 1.6L TDI

Depending on the ECU, operations include reading, writing and checksum correction, with certain applications requiring unlocking or BSL procedures.

VAG DSG and CVT Programming

Module 58 provides extensive gearbox coverage.

Listed transmissions include:

• DQ200
• DQ250
• DQ500
• DL501
• DL382
• VL381
• VL300/V30

Different procedures include writing, checksum correction, EEPROM reading/writing and microcontroller operations.

This makes the KTMFLASH system useful not only for engine ECU work but also for selected VAG transmission programming applications.

Bosch MEDC17 and Tricore ECU Programming

For professional ECU programming, Tricore-based Bosch ECUs are an important category.

Infineon Tricore BSL

Module 53 supports multiple Infineon Tricore microcontrollers.

The supplied database includes TC1762, TC1766, TC1792, TC1796, TC1797, TC1724, TC1728, TC1782, TC1784, TC1791 and TC1793 families.

The listed functions include microcontroller and EEPROM reading/writing, with checksum correction available for many supported ECU types.

Bosch MEDC17 Bootloader

Module 71 is dedicated to Bosch MEDC17 bootloader applications.

It includes multiple TC17xx families and supports:

• Flash reading
• Flash writing
• EEPROM reading
• EEPROM writing
• Checksum correction
• MEDC17 BSL password reading

The exact operation depends on the supported ECU and processor.

Mazda, Mitsubishi and Other ECU Applications

The KTMFLASH ECU programmer is not limited to a small number of vehicle brands.

Mazda ECU Programming

Module 72 covers selected Mazda Gen 4 SKYACTIV-G applications.

Listed engines include 1.5L, 2.0L and 2.5L SKYACTIV-G applications using Mitsubishi and Denso ECU variants.

The listed functions are reading, writing and checksum correction.

Mitsubishi ECU and Gearbox Programming

Module 26 covers Mitsubishi diesel CAN-bus applications using Denso SH7058/SH7058S/1MB ECUs.

Module 47 covers selected Mitsubishi gearbox applications, including CVT and automatic transmission systems.

The gearbox section includes applications for Lancer, ASX, Outlander and Pajero Sport, as well as Getrag 6DCT470-related programming.

KTMFLASH ECU Programmer Module Overview

The large compatibility database can be summarized by several major application categories:

This table is a simplified overview. The actual compatibility should always be checked by ECU family, processor, vehicle model, engine, transmission and module.

How to Choose the Correct KTMFLASH ECU Programming Method

Before programming an ECU, technicians should identify the exact ECU and determine which programming method is supported.

Step 1: Identify the Vehicle

Start with the vehicle manufacturer, model, year and engine.

For example, the database contains different Ford Focus, Ford Mondeo and Ford Mustang applications. Therefore, simply knowing that the vehicle is a Ford is not enough.

Step 2: Identify the ECU

The ECU hardware and processor are often more important than the vehicle name.

Check information such as:

• ECU manufacturer
• ECU part number
• Processor
• ECU software family
• Memory type
• Communication protocol

Step 3: Find the Corresponding KTMFLASH Module

The KTMFLASH compatibility list is organized into modules.

Use the module list to find the ECU family and then verify the supported functions.

Step 4: Confirm the Available Operation

Different ECUs can have different functions.

One ECU may support:

Read + Write + Checksum Correction

while another may support:

Write + Checksum Correction

and another may require:

BSL/Bootloader + EEPROM Operations

This distinction is important when planning an ECU programming job.

KTMFLASH 3-in-1 ECU Programmer for Professional Workshops

The wide range of ECU families makes the KTMFLASH 3-in-1 system suitable for technicians who work with multiple vehicle brands and electronic control systems.

Instead of focusing on only one ECU manufacturer, the supplied database covers applications from Honda, Ford, Kia, Hyundai, Toyota, Lexus, Mitsubishi, Mazda, VAG, Bosch, Delphi and other ECU families.

Multi-Brand ECU Coverage

The database includes both Asian and European vehicle applications.

This includes selected:

• Honda and Acura
• Toyota and Lexus
• Kia and Hyundai
• Ford
• Mazda
• Mitsubishi
• Volkswagen
• Audi
• Renault
• Volvo
• Opel
• Great Wall/Haval
• SsangYong

The actual compatibility remains ECU-specific rather than simply brand-specific.

ECU and TCU Applications

Another advantage is that the software includes selected transmission control modules in addition to engine ECUs.

Examples include:

• Honda AT/CVT/DCT
• Toyota/Lexus gearbox CAN systems
• Mitsubishi CVT and automatic transmissions
• VAG DSG/CVT
• Ford/Getrag PowerShift
• Renault DC4

KTMFLASH KTM BENCH KTM OBD 3-in-1 FAQ

What is KTMFLASH KTM BENCH KTM OBD?

It is a 3-in-1 ECU programming solution combining KTMFLASH, KTMOBD and KTM BENCH functions for supported vehicle ECU and transmission applications.

What vehicles does the KTMFLASH ECU programmer support?

The supplied database covers selected Honda, Acura, Ford, Kia, Hyundai, Toyota, Lexus, Mazda, Mitsubishi, Volkswagen, Audi and other applications.

Compatibility depends on the exact ECU or TCU.

Can KTMFLASH read and write ECU data?

Yes. Many listed modules support ECU reading and writing, although some applications are write-only.

Does KTMFLASH support checksum correction?

Yes. Checksum correction is listed for many ECU and transmission applications.

Does KTMFLASH support EEPROM programming?

Yes. Selected modules provide EEPROM reading and writing, including several Denso, Tricore, MEDC17 and VAG applications.

Does KTMFLASH support gearbox programming?

Yes. The compatibility list includes selected Honda transmissions, Toyota/Lexus gearbox systems, Mitsubishi CVT/AT applications, VAG DSG/CVT systems, Ford/Getrag PowerShift and Renault DC4 applications.

What software versions are listed?

The provided information lists KTMFLASH V1.2.0 and KTM BENCH V1.99.

Does every ECU support the same functions?

No. Functions vary by ECU and module. Some support reading and writing, while others provide only writing, checksum correction, EEPROM operations or bootloader programming.

Final Thoughts

The KTMFLASH KTM BENCH KTM OBD 3-in-1 ECU Programmer is designed as a multi-brand ECU programming solution covering a broad range of engine control units and selected transmission control systems.

Its compatibility database includes numerous ECU families from Honda, Ford, Kia, Hyundai, Toyota, Lexus, Mitsubishi, Mazda, Volkswagen, Audi, Bosch, Delphi and other manufacturers. The available functions include ECU reading, ECU writing, checksum correction, EEPROM programming and bootloader/BSL operations on selected applications.

For professional ECU programming, the most important point is not simply whether a vehicle brand appears on the compatibility list. Technicians should verify the exact ECU model, processor, memory configuration, vehicle application and supported programming method before starting a programming operation.

With its combination of OBD, bench and boot-level capabilities across supported modules, the KTMFLASH 3-in-1 ECU programmer provides a broad foundation for ECU chip tuning, ECU replacement, data transfer and electronic control module programming.
