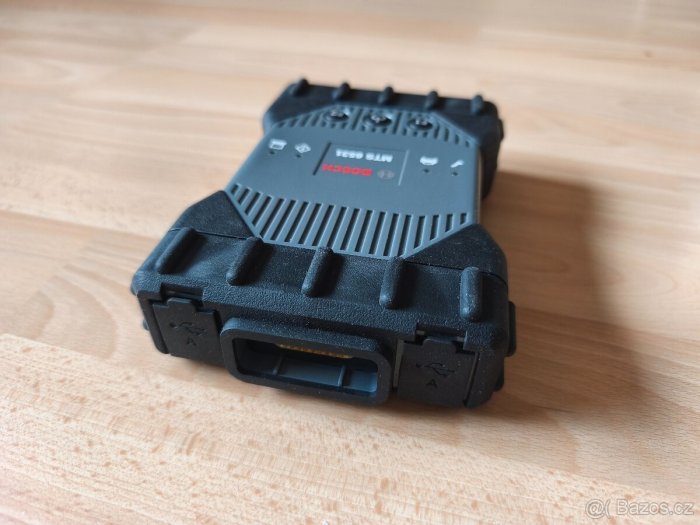

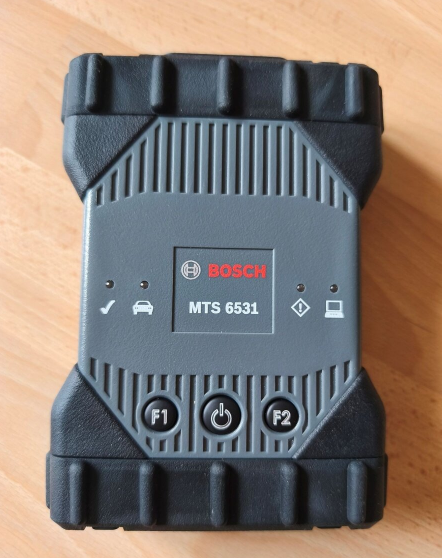

Introduction to Bosch MTS 6531 PassThru VCI

The Bosch MTS 6531 PassThru VCI is a professional-grade Vehicle Communication Interface (VCI) designed for modern automotive diagnostics, ECU programming, and OEM software integration. Built to meet SAE J2534 PassThru standards, this advanced diagnostic interface allows workshops and technicians to connect directly with manufacturer-specific diagnostic applications without requiring multiple brand-specific devices.

With support for advanced communication technologies including DoIP (Diagnostics over IP), CAN FD, D-PDU, and multiple CAN channels, the Bosch MTS 6531 provides a future-ready solution for servicing today's complex vehicle electronic architectures.

Featuring flexible connection options through WiFi, Ethernet, and USB, the MTS 6531 offers high-speed communication, reliable performance, and broad compatibility for passenger vehicles, commercial vehicles, and heavy-duty truck systems.

Note: The original MTS 6516 has been discontinued. The latest replacement is MTS 6531.

Bosch MTS 6531 PassThru Key Features

1. OEM Software Compatibility

The Bosch MTS 6531 is developed according to the J2534 PassThru communication standard, allowing technicians to use original manufacturer diagnostic software for vehicle maintenance and ECU programming.

Seamless OEM Software Integration

With the Bosch MTS 6531 VCI, repair shops can perform:

• ECU software updates
• Module programming
• Vehicle diagnostics
• Configuration procedures
• Security-related programming functions
• Immobilizer system programming

Instead of purchasing separate diagnostic devices for different vehicle brands, technicians can use OEM applications through one professional communication interface.

Ideal Solution for Multi-Brand Workshops

The MTS 6531 PassThru helps workshops reduce equipment costs while increasing diagnostic flexibility by supporting multiple vehicle manufacturers through OEM platforms.

Advanced Communication Protocol Support

Designed for Modern Vehicle Architectures

Modern vehicles rely on increasingly complex electronic systems. The Bosch MTS 6531 supports both traditional and next-generation communication protocols, making it suitable for current and future vehicle platforms.

Support for DoIP Diagnostics

The MTS 6531 supports:

• ISO 13400 DoIP (Diagnostics over Internet Protocol)

DoIP enables faster communication between diagnostic equipment and vehicle ECUs through Ethernet-based networks, especially for newer vehicles equipped with advanced electronic architectures.

CAN FD Support

The interface supports:

• ISO 11898-1 CAN FD

CAN FD provides:

• Higher communication speed
• Larger data transmission capacity
• Improved efficiency for advanced vehicle systems

This makes the MTS 6531 suitable for modern vehicles equipped with high-performance networks.

Multiple CAN Controller Support

The Bosch MTS 6531 includes:

• Three independent CAN controllers

This allows technicians to communicate with multiple vehicle networks simultaneously and improves diagnostic efficiency.

Bosch MTS 6531 Hardware Advantages

High Performance Processor and Fast Communication

The Bosch MTS 6531 features a powerful hardware platform optimized for automotive communication.

Improved Workshop Efficiency

The device delivers:

• Faster startup speed
• Optimized software structure
• Reliable PassThru performance
• Stable ECU communication

These improvements help technicians complete programming and diagnostic procedures more efficiently.

Secure ECU Programming Capability

The MTS 6531 software architecture supports reliable programming strategies for modern vehicle systems.

Immobilizer and Security Programming Support

The interface assists technicians with secure procedures including:

• Immobilizer system programming
• ECU replacement programming
• Security-related configurations

This makes it a valuable tool for professional repair facilities.

Flexible Connectivity Options

Multiple Connection Methods

The Bosch MTS 6531 supports various communication methods:

WiFi Connection

Wireless connectivity allows technicians to work conveniently around vehicles without cable limitations.

Ethernet Connection

Ethernet provides:

• High-speed data transfer
• Stable communication
• Reliable programming connection

USB Connection

USB connectivity offers simple plug-and-play operation for workshop environments.

Wide Vehicle Voltage Compatibility

Support for 12V and 24V Vehicle Systems

The Bosch MTS 6531 supports an input voltage range of:

7V – 32V

This allows compatibility with:

• Passenger cars
• Commercial vehicles
• Light trucks
• Heavy-duty trucks

Professional Truck Diagnostic Support

With 24V system compatibility, the MTS 6531 is suitable for workshops servicing commercial and industrial vehicles.

Extended Durability for Workshop Environments

Industrial-Level Hardware Design

The Bosch MTS 6531 is designed for professional workshop use with enhanced durability features.

Operating Temperature Range

The device supports:

-20°C to 70°C

This allows reliable operation in different workshop environments.

Additional Protection Features

The MTS 6531 includes:

• IP54 ingress protection
• Sleep and wake modes
• Robust automotive-grade design

These features improve reliability during daily diagnostic operations.

Supported Vehicle Communication Protocols

Complete Protocol Coverage

The Bosch MTS 6531 supports a wide range of automotive communication protocols, including current industry standards, OEM-specific protocols, and legacy systems.

CAN and Vehicle Network Protocols

Supported protocols include:

• ISO 11898-1 CAN FD
• ISO 11898-3 Fault-Tolerant CAN
• ISO 15765 CAN Diagnostics
• ISO 13400 DoIP
• SAE J2284 (125/250/500 kbps)
• SAE J2411 GM Single-Wire CAN
• SAE J1939 (3 independent channels)

Legacy Communication Protocols

The MTS 6531 also supports older vehicle communication standards:

• SAE J1708/J1587
• SAE J1850 VPW/PWM
• SAE 2740 GM UART
• SAE J2610
• ISO 9141-2
• ISO 14230 KWP2000
• SAE J2818 KWP1281

OEM-Specific Network Protocols

Additional supported protocols include:

• GMW 3110 GM LAN
• ISO 11992-1 DW CAN

This extensive protocol coverage makes the Bosch MTS 6531 suitable for a wide range of automotive applications.

Applications of Bosch MTS 6531 PassThru VCI

Automotive Repair Workshops

Professional repair shops can use the MTS 6531 for:

• Vehicle fault diagnosis
• ECU programming
• Software updates
• Module replacement
• Advanced troubleshooting

Vehicle Manufacturers and Engineering Facilities

The interface is suitable for:

• Vehicle development testing
• ECU validation
• Engineering diagnostics
• Prototype vehicle communication

Commercial Vehicle Service Centers

Thanks to 24V support and J1939 compatibility, the MTS 6531 is also suitable for:

• Truck diagnostics
• Fleet maintenance
• Heavy-duty vehicle programming

Why Choose Bosch MTS 6531 PassThru VCI?

Future-Proof Diagnostic Solution

As vehicle electronics continue evolving, technologies such as DoIP and CAN FD are becoming essential. The Bosch MTS 6531 provides a future-ready platform that can support the next generation of vehicle communication systems.

One Interface for Multiple Brands

By supporting OEM software through J2534 standards, the MTS 6531 eliminates the need for multiple brand-specific interfaces.

Professional Performance and Reliability

With fast communication, wide protocol coverage, durable hardware, and flexible connectivity, the Bosch MTS 6531 is an ideal choice for professional automotive technicians.

Bosch MTS 6531 PassThru VCI Specifications

Conclusion

The Bosch MTS 6531 PassThru VCI is a powerful and versatile diagnostic communication interface designed for modern automotive service environments. With comprehensive protocol support, OEM software compatibility, advanced DoIP and CAN FD communication, and support for both 12V and 24V vehicles, it provides workshops with a reliable solution for diagnostics and ECU programming.

For professional technicians looking for a future-ready J2534 PassThru diagnostic interface, the Bosch MTS 6531 delivers the performance, flexibility, and reliability required for next-generation vehicle servicing.
