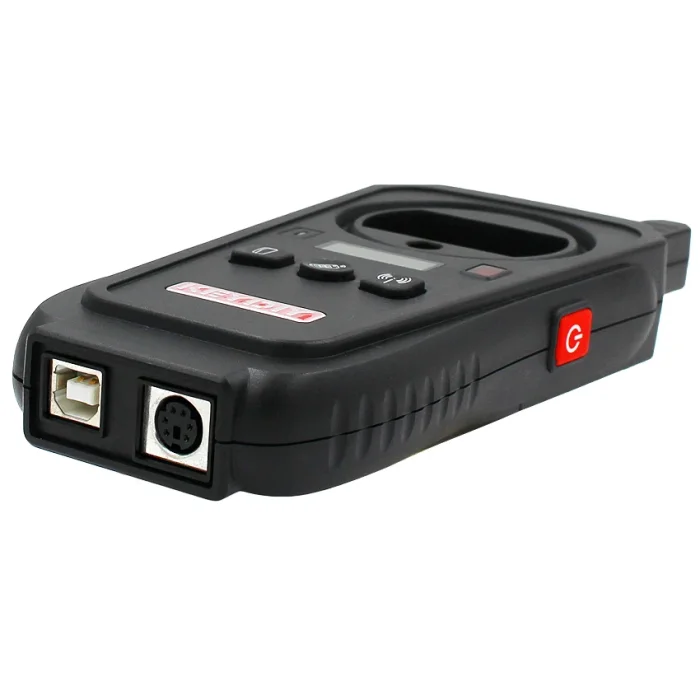

Original KD-X2 Car Key Programmer Auto Remote Maker Unlocker Key Generator/Chip Reader

The KEYDIY KD-X2 is one of the most popular multi-function auto key programmers in the locksmith industry. Known for its compact size and powerful capabilities, it combines transponder cloning, remote generation, and diagnostic functions into a single portable device.

Whether you're a professional locksmith or an automotive technician, the KD-X2 offers a cost-effective and efficient solution for modern key programming tasks.

What Is KEYDIY KD-X2?

The KD-X2 is a multi-functional key programming tool designed to simplify automotive key operations. It supports a wide range of features including:

• Transponder chip cloning
• Remote control generation
• Frequency detection
• Chip reading and writing

Unlike many other tools, it does not require tokens, making it highly attractive for long-term use.

KEYDIY KD-X2 Key Features

Compact Yet Powerful Design

The KD-X2 is built with portability in mind:

• Small size (similar to a smartphone)
• Easy to carry in your pocket
• Ideal for mobile locksmith services

Multiple Connectivity Options

USB & OTG Connection

• Connect to PC via USB-B
• Compatible with iOS and Android via OTG

Bluetooth Integration

• Built-in BLE 4.0
• Works seamlessly with the KD mobile app

Built-in OLED Display

• 0.91-inch OLED screen
• Clear and simple interface
• Real-time operation feedback

Long Battery Life

• 1600mAh / 2600mAh lithium battery
• USB charging (5V/1A)
• Supports hundreds of operations per charge

KEYDIY KD-X2 Core Functions

Transponder & Chip Functions

The KD-X2 supports advanced chip operations:

• Transponder identification
• Chip reading and writing
• Chip generation and editing
• Chip simulation

96-bit ID48 Copy (Free Activation)

• No tokens required
• Supports ID48 (96-bit), ID46, 4D, Toyota chips
• Built-in snoop function for ID46 & ID48

Remote Control Functions

• Remote identification
• Wireless and wired remote generation
• Fixed code and HCS remote copy
• Garage door remote generation

Detection & Diagnostic Tools

The KD-X2 includes useful diagnostic features:

• Frequency detection
• Infrared detection
• Ignition coil signal testing
• Remote button functionality testing

Additional Smart Features

• Mobile phone simulation
• Access card copying
• Remote data backup
• Continuous feature updates

KEYDIY KD-X2 Advantages

No Tokens Required

One of the biggest advantages is that KD-X2 operates without tokens, reducing long-term costs significantly.

Wide Compatibility

Compatible with most chip brands on the market, including:

• Handy Baby
• JMD
• CN
• VVDI

All-in-One Tool

Eliminates the need for multiple devices by combining:

• Cloning
• Programming
• Detection
• Remote generation

KEYDIY KD-X2 V5.0.0 New Updates

The latest version introduces several improvements:

Enhanced Performance

• Improved remote upgrade stability
• Faster download speeds for third-party remotes

Remote Data Optimization

• Upgraded remote data services
• More reliable remote generation

KD Coins System

• Generate remotes to earn KD coins
• Use KD NB remotes for chip copying rewards

New Functionality

• Supports garage door remote generation
• Expanded feature ecosystem

Who Should Use KEYDIY KD-X2?

The KD-X2 is ideal for:

• Professional locksmiths
• Auto repair workshops
• Mobile key programming technicians
• Automotive electronics specialists

KEYDIY KD-X2 Support Car List:
Audi ,Baojun ,Bcahy ,Benjin Auto,  Benz , Besturn , BMW , BYD , Cadillac , Chang an , Changfeng Motors , Changhe,  Chevrolet ,  Chrysler , Citroen , Daihatsu , Dongfeng , Faw , Fiat , Ford , Garage ,  Geely ,  GMC ,Great Wall Automobile , HaiMa , Hawtai Motor , Honda ,  Hyundai ,  Isuzu Iveco ,  Jaguar ,  Jianghua ,  Kia ,  Land Rover ,  Lincoln ,  Mahindra ,  Mazda ,MG ,  Mitsubishi ,  Nissan , Opel , Peugeot  Citroen DS ,  Porsche ,Proton , Renault , Saipa , Samand ,  Seat ,Skoda , Ssangyong ,  Subaru ,  TATA , Toyota for Lexus , Volvo, VW, Zhongxing

The current coverage of the KDX2 includes:
Transponder Identification
The KDX2 can read and identify the following transponder types:
• Fixed code ID 11, 12, 13, 33 and 4C
• Philips Crypto 40, 41, 42, 44, 45, 46, 47, 49 and 4A
• Megamos 48, 48 Canbus
• Texas Crypto 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 6A, 6B, 70, 71, 72, 82, 83, 8C and 8E
• Most smart keys

Transponder Cloning

The KDX2 offers an extensive cloning range with the built-in snoop for ID46 and ID48 cloning.
Currently, the KDX2 can clone keys for:
• 4D/ 4C / 46 / 11 / 12 / 13 / 33 transponder clone
• ID48 (96 Bit) Only
• Fixed code (T5) – ID 11, 12, 13 & 33 using a carbon T5 chip
• Texas TX 4C
• Texas Crypto TX/CR 4D
• Philips Crypto PH/CR 46
• Toyota 80 Bit
• Megamos Crypto

Transponder Production:

The KDX2 also has a good range of transponder production (image generator functions) included.
The transponder production coverage includes:
• ID4D / 60 / Epica60 / 61 / 62 / 63 / 64 / 65 / 66 / 67 / 68 / 69 / 6A / 71 / 72G 4C transponder
• ID48 type: Seat TP22 / VAG TP23 / Skoda TP24 / Audi TP25 / Seat TA22 / VAG TA23 / Skoda
• TA24 / Audi TA25 / Fiat ID48 / Jetta ID48
• ID46 type: Great Wall (STEC) / Zotye (STEC) / Ha/ma (STEC) / Maple (STEC) / Geely (SETC) /
• Cherry (STEC) / Zhonghua230 / Zhonghua530 / VW46 (2007-2008) / X-Trail (2008-2009)
• Renault (Maste.II) / Renault (Trafic II) / Opel (Vivaro) / Opel (Movano) / Renault (Espace IV)
• Renault (Laguna II) / Renault (Velsatis) / Renault (Twingo) / Citroen / Fiat / Lancia / Peugeot (206/307)

Transponder Production coverage continued…

• Mitsubishi / Cruze / Siemens / Changhe / Suzuki / GM / Beidouxing
• T5 type: 11 / 12 / 13 / 33
• ID47 type: Honda
• Id63 ford 80 bit
Signal Test
The KDX2 can check a remote's frequency as well as identify type (i.e. ask or FSK), including:
• Frequency Test (remote, ASK/FSK)
• ECU signal test (check if the coil works or not)

Simulator

The KDX2 allows you to simulate the key before you clone it, to ensure working correctly prior to cloning a chip on:
• ID46
• ID4D
Transponder Edit
The KDX2 allows you to read, write and edit chip data on 4D / 46 / 48 / 47 / 4D DST/8A etc
ID48 Activation is FREE Ready to use on your New KD-X2 Machine
To use the ‘Copy’ function, this is FREE* Or Packs can be Ordered**
FREE* (150 Key DIY Coins are needed for use to clone 1 x ID48 chip)
To use the ‘Copy’ ID48 (96bit) function for FREE you will need to use KD COINS, which are obtained every time you use the machine to generate.
• The more you use the machine – the more FREE KD Coins you received to Copy ID48 (96bit)
• Every 1st time you Generate a “ B “ Remote you receive Free 20 KD Coins
• Every 1st time you Generate a “ NB “ Remote you receive Free 10 KD Coins
o Example 1, for every 7 x “NB” plus 1 x “B” 1st time generation you receive 150 FREE Coins equal to 1 x FREE to Copy ID48 (96bit)
o Example 2, for every 8 x “NB” 1st time generation you receive 160 FREE Coins equal to 1 x FREE to Copy ID48 (96bit) with 10 spare KD Coins
o Example 3, for every 15 x “B” 1st time generation you receive 150 FREE Coins equal to 1 x FREE to Copy ID48 (96bit)
Packs can be Ordered** (150 Key DIY Coins are needed for use to clone 1 x ID48 chip)
If you need to use this function in cases where you cannot wait to generate remotes to receive your FREE to use Copy ID48 (96bit) function, you can look to purchase KD Coins.
• Purchase x1 use Copy ID48 (96bit) for £9.99 each +VAT (equal to 150 Key DIY Coins)
• For more info on KDX2 Coins, please contact the office on 01902 366 448.

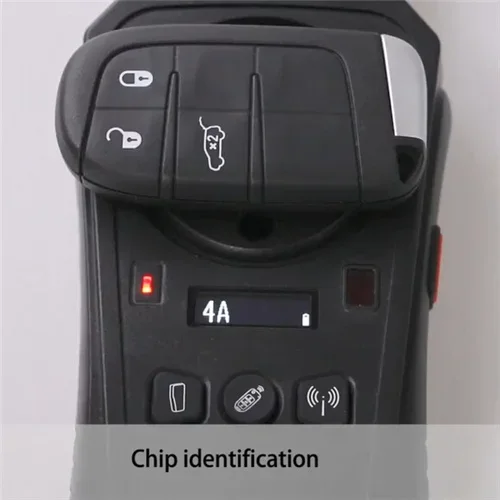

How to Use KEYDIY KD-X2 to Identify Chip Type?

Put the chip you want to identify into the chip slot,then press the "Chip Identification" button.

KD-X2 Key Programmer User Manual

Conclusion

The KEYDIY KD-X2 stands out as a compact, versatile, and cost-efficient key programmer. With powerful cloning capabilities, broad compatibility, and continuous updates, it remains a top choice for locksmith professionals worldwide.

If you're looking for an all-in-one automotive key solution without recurring costs, the KD-X2 is definitely worth considering.
