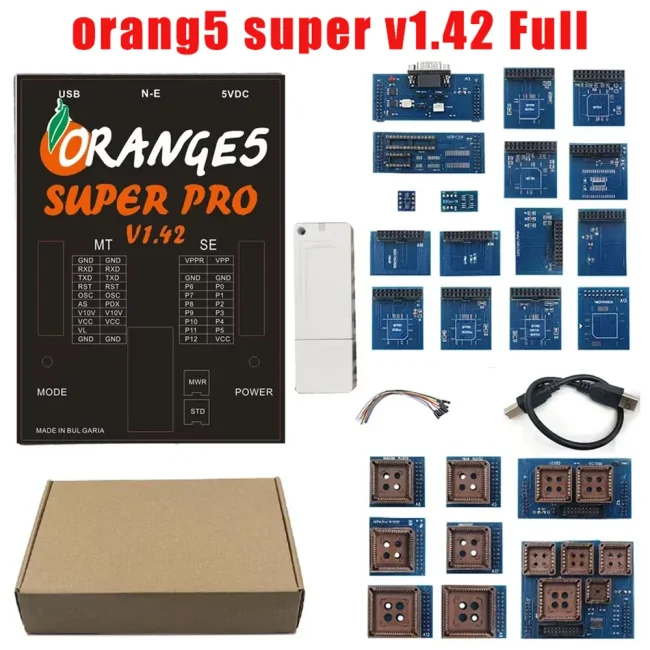

New Orange5 Programmer V1.42 Full Activation Orange 5 Super Prog ECU Programming Device

The Orange5 Programmer Tool V1.45 is a professional memory and microcontroller programming device designed for ECU work, chip tuning, and advanced electronic diagnostics. With expanded chip support, additional activated licenses, and compatibility with previous hardware versions (V1.38 / V1.42), V1.45 is a significant software-level upgrade for professionals in automotive electronics.

This guide covers features, technical specifications, upgrade instructions, supported licenses, and installation details to help you understand whether Orange5 V1.45 is the right programmer for your workshop.

What Is Orange5 Programmer V1.45?

Orange5 Super Pro Programmer is a high-performance programming tool equipped with a built-in macro language that allows users to create custom reading and writing protocols for memory and microcontrollers. This flexibility makes it ideal for ECU programming, immobilizer repair, and chip-level diagnostics.

Key Upgrade Highlights of V1.45

• Updated based on V1.38 and V1.42

• More supported chips and microcontrollers

• More activated software licenses

• Compatible with V1.38 / V1.42 hardware

• Includes V850E2-S BYPASS Adapter

• Requires V1.45 dongle + V1.45 software (must be used together)

Important Compatibility Notes

Before upgrading or purchasing, it is critical to understand the compatibility rules.

Firmware & Software Rules

• V1.38, V1.42, and V1.45 share the same firmware

• Firmware upgrade is NOT possible

• Attempting firmware update will lock the device

• Only software upgrade is supported

• V1.45 software works with V1.38 / V1.42 firmware

Upgrade Instructions for Existing Users

If you already own V1.38 or V1.42:

1. Purchase the V1.45 upgrade kit

2. Do NOT upgrade the main unit firmware

3. Install V1.45 software

4. Plug in the new V1.45 dongle

5. Start using V1.45 features

Orange5 V1.45 Main Features

COM Port & Terminal Support

• Supports any COM port (1–20, including virtual ports)

• Works in ASCII and HEX mode

• File transfer via serial port

• Built-in CnCterm terminal program

• Command list creation for fast editing and sending

• Adjustable exchange rate

• Byte and block delay settings

• “Echo” mode

• DTR, RTS control

• Visual monitoring of DSR, CTS, CD, RI

Data Management Capabilities

• Save files with command and port settings

• Save incoming data in binary format

• Supports emulation mode

• No installation required (portable software)

Orange5 Technical Specifications

Power & Protection

• USB 2.0 / 3.0 power supply (5V only)

• Overcurrent protection

• Overvoltage protection

• Protection against overload voltage

⚠️ Important:
Orange5 must only use 5V USB power supply.
Do NOT connect external 12V power.
Doing so may permanently damage the board.

Hardware Capabilities

• Universal ZIF16 socket panel for EEPROM

• Contact control in sockets

• Two expansions compatible with Orange4 and Omega MTRK

• Built-in 32-bit virtual machine

• CDC USB device emulation

Voltage & Signal Control

• Adjustable supply voltage: 2.0V – 5.0V

• Programming voltage: 2.0V – 21.0V

• Additional static 10V for microcontrollers

• High-speed bidirectional pin drivers (2.0V – 5.0V)

• Wave cycle generator up to 24MHz

Supported Interfaces

Orange5 V1.45 supports multiple communication protocols:

• I2C

• SPI

• MicroWire

• JTAG

• UART

• BDM

• ISO7816

• K-LINE (via adapter)

• CAN (via adapter)

This wide protocol compatibility makes it suitable for automotive ECU programming, immobilizer repair, dashboard correction, and microcontroller flashing.

Supported Operating Systems

• Windows 7

• Windows 10

• Windows XP (32-bit)

• Windows 8.1 (limited support)

Languages supported:

• English

• Russian

Software Licenses Included

Orange5 V1.45 includes more activated licenses compared to previous versions.

Base Licenses

• MTRK (included in base)

• TMS (included in base)

Additional Licenses

• M08V NEW

• Immo HPX 9V0

• NEC V850ES/SJ3 / V850ES/SG3 UART

• NEC V850E2 NEW

• V850E2-S BYPASS Adapter Support

These licenses significantly expand ECU and immobilizer programming capabilities.

Why Choose Orange5 V1.45?

Professional-Level Control

The built-in macro language allows fast development of new microcontroller protocols, making it adaptable to evolving ECU technologies.

Safe Upgrade Path

If you already own V1.38 or V1.42, you do not need new hardware — just upgrade the software and use the new dongle.

Full Activation Version

V1.45 includes additional activated licenses, offering broader coverage compared to earlier versions.

Frequently Asked Questions

Can I update firmware?

No. Firmware updates are not supported and may lock the device.

Can I use 12V external power?

No. Only 5V USB power supply is allowed.

Is V1.45 compatible with V1.38 hardware?

Yes. It is fully compatible, provided firmware is not changed.

Does the software require installation?

No. The program runs without installation.

Conclusion

The Orange5 Programmer Tool V1.45 is a powerful and flexible ECU programming device suitable for professional automotive technicians and electronics engineers. With expanded chip support, more activated licenses, compatibility with previous hardware versions, and advanced voltage control capabilities, it remains one of the most versatile memory programmers available.

If you are upgrading from V1.38 or V1.42, the V1.45 upgrade kit provides a safe and efficient path to enhanced functionality without changing hardware.

For workshops focused on ECU repair, immobilizer programming, and microcontroller development, Orange5 V1.45 delivers precision, flexibility, and professional-grade performance.
