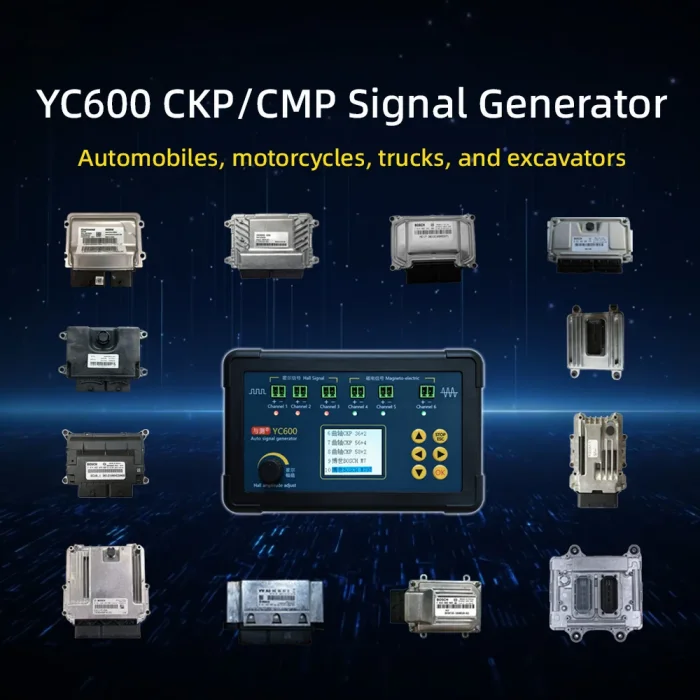

YC600 Auto CKP CMP Signal Generator ECU Computer Maintenance Tester Six Channels Sensor Simulator

The YC600 six-channel Auto CKP CMP signal generator is a specialized automotive diagnostic and training tool designed to simulate engine crankshaft (CKP) and camshaft (CMP) position sensor signals. It is mainly used to provide precise engine phase signals to an engine control unit (ECU) without needing a running engine or physical sensors.

This device allows technicians, engineers, and trainers to test and analyze ECU behavior under different engine conditions in a safe, controlled environment. By outputting accurate and adjustable waveform signals, the YC600 is ideal for ECU repair, bench testing, and educational demonstrations.

Core Functions and Working Principle

The primary function of the YC600 is to generate electronic signals that imitate real engine position sensors so the ECU “thinks” the engine is operating.

Key functional points:

• It simulates CKP and CMP signals that correspond to crankshaft and camshaft rotation, including tooth patterns, missing teeth, and synchronization relationships.

• The signal frequency can be adjusted to represent different engine speeds, such as idle, medium speed, and high speed, which helps in observing how the ECU responds to varying RPM conditions.

• The YC600 can output different types of waveforms commonly used by modern vehicles, such as Hall-effect and inductive sensor styles, making it compatible with many ECU systems.

In practical use, the outputs of the YC600 are connected to the ECU pins that normally receive sensor inputs. When powered on and configured, the generator sends continuous or programmed signals so that technicians can observe ignition, injection, and other ECU-controlled outputs on a test bench.

Six-Channel Design and Signal Flexibility

One of the standout features of the YC600 is its six-channel output architecture.

This multi-channel design offers several advantages:

• Multiple channels allow simultaneous simulation of more than one sensor, for example, crankshaft signal plus one or more camshaft signals for multi-cylinder engines.

• Channels can be configured with specific tooth counts, angles, and phase relationships, helping reproduce a wide variety of manufacturer-specific trigger patterns.

• The synchronized output ensures that CKP and CMP signals maintain accurate timing relationships, which is critical for testing ECU logic related to ignition timing, injection timing, and variable valve timing functions.

By providing such flexibility, the YC600 can adapt to different engine models and control strategies, making it a versatile tool in workshops and labs that deal with multiple vehicle brands and ECU types.

Typical Applications in ECU Diagnostics and Repair

The YC600 is widely used in automotive electronics diagnostics, ECU repair, and technical education.

Common applications include:

• ECU bench testing: Technicians can connect the ECU to a test bench, use the YC600 to simulate engine signals, and verify whether the ECU outputs correct commands for ignition coils, injectors, and other actuators.

• Fault finding and verification: When a vehicle has issues such as no start, misfire, or irregular injection, the ECU can be removed and tested with simulated signals to confirm whether the fault is in the ECU or in wiring/sensors on the vehicle.

• Software and calibration development: Engineers can use the YC600 during ECU software development or tuning to simulate different RPM and timing scenarios without running a real engine.

• Training and education: In vocational schools and training centers, the YC600 helps instructors demonstrate sensor signal principles, engine synchronization, and ECU control strategies in a clear and repeatable way.

Because no actual engine rotation is needed, the YC600 reduces risk, noise, and fuel consumption while enabling detailed observation of ECU behavior.

Benefits for Workshops, Labs, and Training Centers

Using a YC600 six-channel Auto CKP CMP signal generator brings several important benefits to automotive professionals and educators.

Major benefits include:

• Higher diagnostic efficiency: Technicians can quickly reproduce and simulate engine conditions on the bench, speeding up fault isolation and repair decisions.

• Reduced reliance on complete vehicles: Many ECU tests can be done without mounting the unit back into a car, saving time and simplifying complex wiring checks.

• Improved safety and control: All testing happens in a controlled environment, avoiding risks associated with running engines, such as moving parts, exhaust, and overheating.

• Better teaching outcomes: Students can repeatedly observe the relationship between CKP/CMP signals and ECU outputs, which helps them build a solid understanding of modern engine management systems.

With its combination of six-channel flexibility, adjustable frequency, and compatibility with multiple sensor types, the YC600 is a powerful tool for anyone who needs to diagnose, repair, design, or teach engine control electronics.
