Newest FC200 DB15 Harness Adapter CGDI CG 16 PIN Jumper Cable For ECU Bench and Boot Programming

What Is the FC200 DB15 Harness Adapter?

The FC200 DB15 Harness Adapter, also known as the CGDI FC200 16-pin jumper cable or adapter cable, is a dedicated bench connection harness designed for use with the CGDI FC200 ECU Programmer.

Its main purpose is to convert the DB15 interface of the FC200 programmer into multiple flexible ECU signal connections. This allows technicians to connect the programmer directly to a removed ECU for Bench or Boot mode operations, including ECU data reading, writing, cloning, and other supported programming functions.

FC200 DB15 Harness as a Signal Bridge

In simple terms, the FC200 DB15 Harness Adapter works as a signal bridge between the FC200 programmer and the ECU.

The FC200 programmer handles communication, power supply, and programming commands, while the DB15 harness transfers the required electrical signals to the correct ECU pins.

Depending on the ECU, these signals may include:

• 12V power
• Ground
• CAN-H
• CAN-L
• K-Line
• GPT control signals
• 12V Control

This flexible design makes the harness especially useful when an ECU has been removed from the vehicle and needs to be operated separately on a workbench.

Why Is a DB15 Harness Needed for FC200 ECU Programming?

Traditional vehicle diagnostics are usually performed through the vehicle's OBD diagnostic socket while the ECU is installed in the car. However, some ECU programming and repair tasks require direct access to the ECU.

ECU Bench Programming

With bench programming, the ECU can be removed from the vehicle and connected directly to the FC200 programmer.

This can be useful when technicians need to:

• Read ECU data
• Write ECU data
• Back up ECU information
• Clone supported ECUs
• Perform supported ECU repair operations
• Work with an ECU outside the vehicle

Flexible Pin-to-Pin Connection

Different ECU manufacturers and ECU models use different pin layouts. Therefore, a universal plug-and-play connection is not always possible.

The FC200 DB15 harness provides individual jumper wires, allowing technicians to connect the required signals according to the ECU wiring diagram and FC200 software instructions.

Main Signals of the FC200 DB15 Harness Adapter

The newer version of the FC200 DB15 Harness provides several signal lines for different ECU communication and control requirements.

Power and Ground Connections

Red wire – 12V Power

The red wire is generally used to provide 12V power to the ECU.

Black wire – GND

The black wire is the ground connection. Proper grounding is essential for stable communication between the FC200 and ECU.

CAN Communication Lines

Green wire – CAN-H

CAN-H is one of the two main lines used for CAN communication.

Yellow wire – CAN-L

CAN-L works together with CAN-H to establish CAN bus communication between the ECU and programmer.

Why CAN-H and CAN-L Must Be Connected Correctly

CAN-H and CAN-L should be connected according to the specific ECU pinout. Incorrect wiring can result in communication failure and may potentially damage the ECU or programming equipment.

K-Line and GPT Signals

Not all ECUs use the same communication protocol. Some supported ECUs require K-Line communication, while certain Bosch ECU platforms may require GPT signals for specific programming or wake-up procedures.

K-Line

White wire – K-Line

The white wire is used for K-Line communication when required by the ECU and FC200 software.

K-Line is found on various automotive electronic control systems and may be required for certain older ECU architectures.

GPT Control Signals

The FC200 DB15 harness can also provide multiple GPT control lines.

Typical newer-harness configurations include:

• Brown – GPT-0: typically 5V control signal
• Purple – GPT-1: typically 5V control signal
• Pink – GPT-2: typically 3.3V control signal
• Blue – GPT-3: typically 3.3V control signal
• Gray – GPT-4: typically 3.3V control signal

GPT Signal Compatibility

GPT signals may be required by certain ECU types when entering specific programming or communication modes.

Because ECU requirements vary by hardware version and ECU manufacturer, technicians should always follow the connection diagram provided by the FC200 software rather than connecting GPT lines based only on wire color.

What Is the 12V Control Wire?

One difference between some older and newer FC200 DB15 harness versions is the addition of a 12V Control line.

Orange Wire – 12V Control

The orange wire can be used for specific ECU power or ignition-control functions depending on the ECU and programming procedure.

The addition of this line helps the newer harness support more ECU applications and newer FC200 software functions.

New vs. Older FC200 DB15 Harness

Older DB15 harness versions may not include:

• 12V Control
• GPT-4

Newer versions add these connections to improve compatibility with updated FC200 software and additional ECU types.

For this reason, technicians working with newer ECU applications should confirm whether the FC200 software requires the newer harness version.

What Can You Do With the FC200 DB15 Harness?

The FC200 DB15 Harness is primarily a connection accessory rather than an independent diagnostic device.

ECU Data Reading and Writing

When used with a compatible CGDI FC200 programmer, the harness can provide the physical connections required for supported ECU reading and writing operations.

ECU Cloning

For supported ECU models, the FC200 system can be used for ECU data-related operations such as cloning.

The exact functions available depend on the ECU hardware, software version, communication method, and FC200 coverage.

Bench and Boot Operations

The harness is particularly useful for ECU Bench and Boot programming.

Bench Mode

In Bench mode, technicians typically connect the required ECU power and communication lines externally without relying on the vehicle's OBD socket.

Boot Mode

For supported ECU applications, additional control signals such as GPT may be required to place the ECU into a specific programming mode.

The exact wiring and procedure vary significantly between ECU models.

Benefits of Using the FC200 DB15 Harness Adapter

1. Convenient ECU Bench Connection

The harness makes it easier to connect a removed ECU directly to the FC200 programmer.

2. Flexible Wiring

Individual jumper wires allow technicians to adapt the connection according to the ECU pinout.

3. Supports Multiple Communication Methods

Depending on the supported ECU, the harness can provide connections for:

• CAN
• K-Line
• GPT
• Power
• Ground
• 12V Control

4. Useful for ECU Repair and Replacement

A bench harness can be especially useful when working with removed ECUs, replacement modules, or supported ECU cloning applications.

5. Supports Newer FC200 Applications

The newer DB15 harness configuration, including GPT-4 and 12V Control, is designed to accommodate additional applications supported by updated FC200 software.

How to Use the FC200 DB15 Harness Correctly

Before connecting the harness, technicians should identify the exact ECU model and hardware information.

Step 1: Identify the ECU

Check the ECU manufacturer, hardware number, software information, and connector/pin configuration.

Step 2: Check the FC200 Software

Open the corresponding FC200 software procedure and check the recommended connection diagram.

Step 3: Connect the Required Signals

Connect only the required wires, such as:

• 12V
• GND
• CAN-H
• CAN-L
• K-Line
• GPT
• 12V Control

Always Follow the ECU Pinout

Wire colors are useful for identification, but they should not replace the official connection diagram.

Different ECU applications may require completely different pin connections.

Step 4: Power the ECU

Use a stable power source suitable for the ECU and programming procedure.

Step 5: Perform the FC200 Operation

After confirming the wiring and power supply, use the FC200 software to perform the supported reading, writing, or other ECU operation.

Important Precautions When Using the FC200 DB15 Harness

The FC200 DB15 Harness is not a universal plug-and-play ECU adapter.

Check the Wiring Before Applying Power

Incorrectly connecting power, ground, CAN, K-Line, or GPT wires may cause communication problems and, in serious cases, may damage the ECU or programmer.

Use a Stable 12V Power Supply

Some Bosch ME, MED, EDC and other ECUs may require relatively high current during bench operation.

A stable power supply with suitable current capacity and over-current protection is recommended.

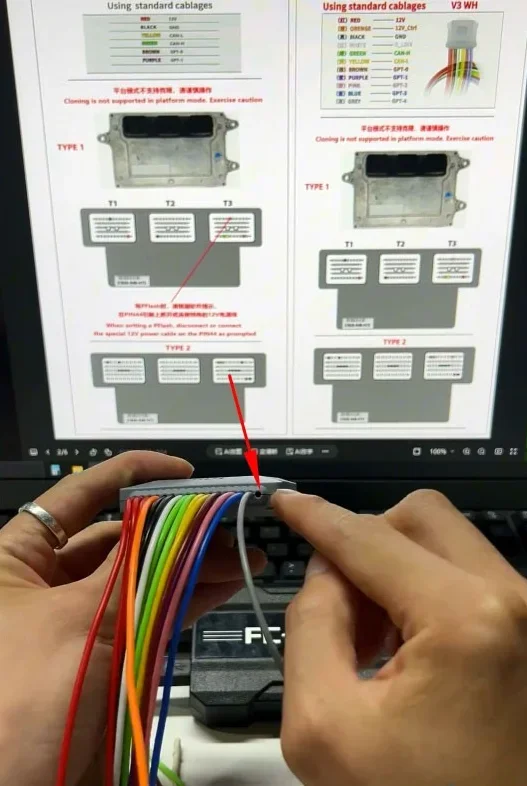

External 12V Power Connection

For certain applications, the newer harness may allow an external 12V source to be connected through its dedicated 12V interface when the FC200's internal power supply is insufficient.

The exact requirements depend on the ECU and programming procedure.

Avoid Power Interruption During Writing

Do not disconnect the power supply, move the wiring, or interrupt communication during an ECU writing procedure.

An unexpected power loss during programming may cause ECU software or data corruption.

Confirm Harness Version

Before starting a newer FC200 software procedure, check whether it requires the latest DB15 harness.

Older harness versions may lack GPT-4 and 12V Control, which can affect compatibility with some newer applications.

FC200 DB15 Harness Adapter FAQ

Is the FC200 DB15 Harness a programmer?

No. The DB15 Harness Adapter is a connection accessory for the CGDI FC200. The actual ECU programming functions are performed by the FC200 programmer and its software.

Can the FC200 DB15 Harness work with every ECU?

No. ECU compatibility depends on the FC200 software, ECU hardware, supported programming method, and required pinout.

What is the difference between Bench and Boot mode?

Bench mode generally allows an ECU to communicate through external connections while it is removed from the vehicle. Boot mode may require additional control signals and specific procedures to place a supported ECU into a programming state.

Does the new FC200 harness have GPT-4?

The newer DB15 harness configuration described here includes a GPT-4 line, while some older harness versions do not.

Does the FC200 harness support CAN and K-Line?

Yes. The described harness configuration provides CAN-H, CAN-L, and K-Line connections for supported ECU applications.

Final Thoughts

The FC200 DB15 Harness Adapter is an important accessory for technicians using the CGDI FC200 ECU Programmer for bench and boot ECU operations. Rather than being a standalone diagnostic tool, it provides the flexible electrical connections needed between the FC200 programmer and an individual ECU.

With connections for 12V power, GND, CAN-H, CAN-L, K-Line, GPT signals, and 12V Control, the newer harness can accommodate a wider range of supported ECU programming applications.

For safe and reliable operation, always check the FC200 software instructions and the exact ECU pinout before connecting the harness. Correct wiring, stable power, and the appropriate harness version are essential for successful ECU communication and programming.
