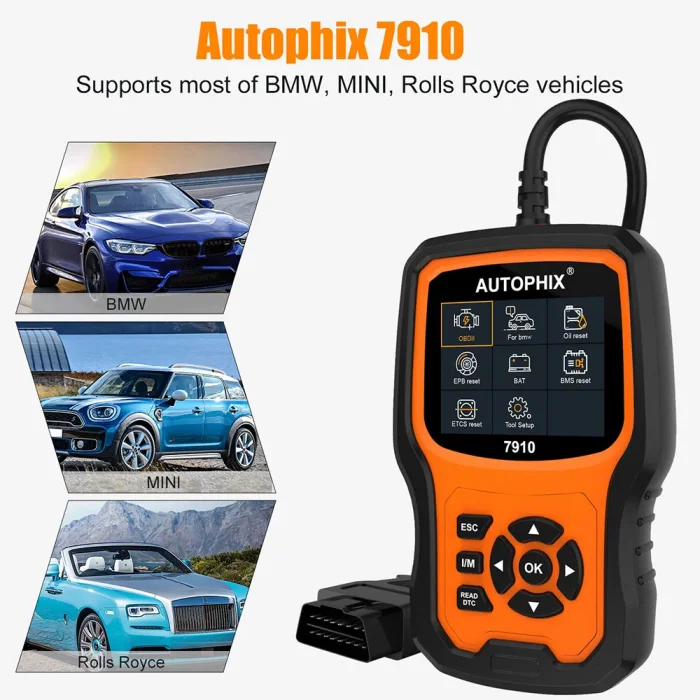

Autophix 7910 BMW Scanner Full-System Diagnostics for BMW, MINI and Rolls-Royce

The Autophix 7910 is a professional handheld diagnostic scanner designed specifically for BMW, MINI and Rolls-Royce vehicles. Unlike a basic OBD2 code reader that focuses mainly on the engine system, the Autophix 7910 provides access to multiple electronic control systems and supports a wide range of service and maintenance functions.

It can diagnose systems such as DME/DDE, EGS, ABS/DSC, ACSM/airbag, EPB, battery management and RDC/TPMS, making it suitable for both DIY BMW owners and professional automotive repair shops.

The scanner also supports standard OBD2/EOBD functions for other vehicle brands, allowing users to read and clear engine-related diagnostic trouble codes even when working on non-BMW vehicles.

What Is the Autophix 7910?

The Autophix 7910 is a dedicated BMW diagnostic tool that combines all-system diagnostics, special functions and standard OBD2 diagnostics in one handheld device.

For BMW, MINI and supported Rolls-Royce models, the scanner can communicate with multiple vehicle control modules instead of being limited to the engine ECU.

Key Features of the Autophix 7910

• Full-system diagnostics for supported BMW and MINI vehicles
• Support for selected Rolls-Royce diagnostic and maintenance functions
• BMW engine, transmission, ABS/DSC and airbag diagnostics
• BMW battery registration and battery management
• BMW oil service and maintenance reset
• EPB electronic parking brake functions
• Steering-angle sensor adjustment
• ABS/ASC/DSC special functions
• TPMS/RDC ECU reset
• DME/DDE special functions
• EGS adaptation reset
• DPF regeneration and replacement functions
• Standard OBD2/EOBD engine diagnostics
• 2.8-inch TFT 262K true-color display
• Rugged drop-resistant housing
• 10-language menu support
• Lifetime free online software updates

Why Choose Autophix 7910 for BMW Diagnostics?

A basic OBD2 scanner is useful for checking generic engine fault codes, but BMW vehicles contain numerous electronic modules that require more advanced diagnostic coverage.

The Autophix 7910 is designed to provide deeper access to supported BMW systems and service functions.

BMW Full-System Diagnostic Capability

The scanner can communicate with multiple electronic control systems, including:

• CAS
• DME/DDE
• EGS
• MRS/ACSM
• ABS/DSC
• IHKA
• KOM/INSTR
• EMF
• RDC/TPMS

This allows users to locate faults beyond the engine control system.

BMW Special Functions

In addition to reading and clearing diagnostic trouble codes, the Autophix 7910 supports several maintenance and adjustment procedures.

These functions can be particularly useful after replacing components or performing routine vehicle maintenance.

Designed for DIY Users and Repair Shops

The straightforward menu system makes the scanner relatively easy to operate, while its broader BMW system coverage gives professional technicians access to functions that are normally unavailable through basic code readers.

Autophix 7910 BMW Service and Maintenance Functions

One of the main advantages of this scanner is its range of BMW-specific service functions.

BMW CBS Maintenance Reset

The scanner supports CBS-related maintenance reset and correction functions for supported BMW vehicles.

Supported Maintenance Items

Depending on vehicle configuration, supported maintenance items can include:

• Engine oil
• Spark plugs
• Front brakes
• Rear brakes
• Coolant
• Diesel particulate filter
• Brake fluid
• Microfilter
• Vehicle inspection
• Exhaust emission inspection
• Vehicle check

After completing scheduled maintenance, technicians can use the scanner to reset the corresponding service information.

Maintenance Interval Reset

The Autophix 7910 can also reset maintenance interval information, including:

• Oil service
• Inspection
• Time interval
• Follow-on service
• Service interval status

This helps keep the vehicle's maintenance reminder synchronized with completed service work.

BMW Oil Service Reset

The engine oil life system monitors vehicle usage and determines when maintenance is required.

After an oil and filter replacement, the service interval should be reset so the vehicle can correctly calculate the next maintenance period.

How Does BMW Oil Reset Work?

A typical service procedure involves:

1. Perform the engine oil and filter replacement.
2. Connect the Autophix 7910 to the vehicle's diagnostic port.
3. Select the appropriate BMW model and chassis.
4. Enter the maintenance or service reset function.
5. Select the oil service option.
6. Follow the on-screen instructions.
7. Confirm that the service interval has been reset.

The exact procedure and available options depend on the vehicle model and control system.

BMW Battery Registration and Battery Management

Battery replacement on many modern BMW vehicles may require battery registration.

The Autophix 7910 provides battery management functions designed to help technicians perform supported BMW battery service procedures.

BMW Battery Registration

The battery service functions can include:

• Register battery replacement
• Evaluate battery charge state
• Monitor closed-circuit current
• Perform battery-related analysis

After installing a new battery, the scanner can be used to register the replacement according to the supported vehicle procedure.

How to Register a BMW Battery with Autophix 7910

A typical battery replacement procedure is:

Step 1: Remove the Old Battery

Safely remove the existing battery following the vehicle manufacturer's recommended procedure.

Step 2: Install the New Battery

Install the replacement battery with the correct specifications for the vehicle.

Step 3: Connect the Autophix 7910

Connect the diagnostic scanner to the BMW's OBD diagnostic connector and turn the ignition on as required.

Step 4: Select Battery Registration

Navigate to the BMW battery management function and select the appropriate battery replacement or registration procedure.

Step 5: Enter Required Battery Information

Where required by the vehicle procedure, enter the requested battery information accurately.

The supplied product information specifies a 12-digit battery code for the applicable procedure. Incorrect information may affect the accuracy of the registration.

BMW ABS, ASC and DSC Diagnostic Functions

ABS, ASC and DSC are important parts of BMW's braking and stability-control systems.

The Autophix 7910 supports selected special functions for these systems.

ABS/ASC/DSC Functions

Supported procedures can include:

• Brake bleeding routine
• Brake-line related checks
• Mix-up checks
• Steering-angle sensor adjustment

These functions can be useful after brake-system repairs, hydraulic work or steering-related service.

Steering Angle Sensor Adjustment

After certain steering or suspension repairs, the steering-angle sensor may require calibration.

The Autophix 7910 provides a supported adjustment function that can help technicians perform this procedure through the vehicle's diagnostic system.

BMW DME/DDE Engine Special Functions

The DME/DDE control systems are responsible for important engine-management functions.

The Autophix 7910 provides several special functions for supported BMW models.

Supported DME/DDE Functions

Depending on vehicle configuration, these may include:

• IQA
• Idle-speed adjustment
• Fuel injection rate
• CO adjustment
• Clear adaptations
• Learn Valvetronic limit positions
• Exhaust gas recirculation functions
• DPF regeneration
• DPF replacement

These functions allow technicians to perform more than simply reading engine fault codes.

BMW EGS Transmission Adaptation Reset

The EGS controls the electronic transmission system in applicable BMW vehicles.

The Autophix 7910 supports EGS adaptation clearing on supported models.

When Is EGS Adaptation Reset Useful?

An adaptation reset may be required as part of certain transmission service or repair procedures.

However, the exact requirements vary by BMW model, transmission and repair procedure, so technicians should follow the manufacturer's service instructions before performing an adaptation reset.

BMW EPB Electronic Parking Brake Functions

The electronic parking brake system may need to enter a service or replacement mode during brake maintenance.

The Autophix 7910 supports selected EPB procedures.

EPB Service Functions

These can include:

• Matching procedures
• Repair-shop mode
• Brake pad replacement procedures
• Initialization

This makes the scanner useful when performing supported rear-brake maintenance on BMW vehicles equipped with electronic parking brakes.

BMW TPMS and Airbag ECU Reset

The Autophix 7910 also provides selected ECU reset functions for BMW vehicles.

TPMS/RDC ECU Reset

The scanner supports RDC/TPMS ECU reset on applicable vehicles.

This can be useful when performing supported tire-pressure monitoring system service procedures.

ACSM/Airbag ECU Reset

The scanner also supports ACSM/airbag ECU reset for applicable BMW vehicles.

Because airbag systems are safety-critical, technicians should always follow the manufacturer's repair procedures and safety precautions.

BMW Fuel Pump and ECU Reset Functions

The Autophix 7910 includes additional BMW-specific reset functions.

These include:

• F-Chassis fuel pump reset
• ECU reset
• ACSM/airbag ECU reset
• RDC/TPMS ECU reset

The availability of individual functions depends on the specific vehicle chassis and control module.

Standard OBD2/EOBD Diagnostics for Other Vehicles

Although the Autophix 7910 is primarily designed for BMW, MINI and Rolls-Royce diagnostics, it also works as a universal OBD2/EOBD scanner for other vehicle brands.

Six OBD2 Diagnostic Modes

The scanner supports common OBD2 functions such as:

• Read diagnostic trouble codes
• Clear diagnostic trouble codes
• View live data
• View vehicle information
• Check I/M readiness
• EVAP system testing

It can retrieve supported generic and manufacturer-specific codes, including common P0, P1, P2, P3 and U-series codes.

Important OBD2 Limitation

For non-BMW vehicles, the universal OBD2 functionality is primarily intended for engine-related diagnostics.

The deeper all-system BMW functions should not be interpreted as universal full-system diagnostics for every other vehicle brand.

Autophix 7910 Display and Hardware Design

The Autophix 7910 uses a compact handheld design intended for practical workshop use.

2.8-Inch TFT Color Display

The scanner features a 2.8-inch TFT 262K true-color LCD display.

The screen displays diagnostic results, fault codes, live data and menu options clearly during testing.

Silicone Keypad

The physical silicone keypad provides direct access to diagnostic menus and functions.

This can be convenient when working in a workshop environment where technicians prefer physical controls over touchscreen-only operation.

Rugged Protective Housing

The scanner features a rugged, drop-resistant housing designed to provide additional protection during everyday automotive service work.

Autophix 7910 Language Support

The Autophix 7910 supports 10 menu languages:

1. English
2. French
3. Spanish
4. German
5. Russian
6. Swedish
7. Portuguese
8. Finnish
9. Norwegian
10. Danish

This makes the diagnostic interface accessible to users in different regions.

BMW, MINI and Rolls-Royce Vehicle Coverage

The Autophix 7910 supports a wide range of BMW chassis and models.

BMW 1 Series

Supported chassis include:

• E81
• E82
• E87
• E88
• F20
• F21
• F52

BMW 2 Series

Supported chassis include:

• F22
• F23
• F45
• F46
• F87

BMW 3 Series

Supported chassis include:

• E30
• E36
• E46
• E90
• E91
• E92
• E93
• F30
• F31
• F34
• F35
• F80
• G20

BMW 4 Series

Supported chassis include:

• F32
• F33
• F36
• F82
• F83

BMW 5 Series

Supported chassis include:

• E28
• E34
• E39
• E60
• E61
• F07
• F10
• F11
• F18
• F90
• G30
• G31
• G38

BMW 6 Series

Supported chassis include:

• E24
• E63
• E64
• F06
• F12
• F13
• G32

BMW 7 Series

Supported chassis include:

• E23
• E32
• E38
• E65
• E66
• E67
• E68
• F01
• F02
• F03
• F04
• G11
• G12

BMW 8 Series

Supported chassis include:

• E31
• G14
• G15
• G16

BMW X Series

The scanner covers multiple X-series chassis, including:

• X1 E84/F48/F49
• X2 F39
• X3 E83/F25/G01
• X4 F26/G02
• X5 E53/E70/F15/F85/G05
• X6 E71/E72/F16/F86
• X7 G07

BMW Z Series

Supported Z-series chassis include:

• Z1
• Z3
• Z4
• Z8
• E36
• E52
• E85
• E86

BMW i Series

Supported i-series chassis include:

• i3 / I01
• i8 / I12

MINI Diagnostic Coverage

The Autophix 7910 also supports multiple MINI generations.

Supported MINI Chassis

Coverage includes:

• R50
• R52
• R53
• R55
• R56
• R57
• R58
• R59
• R60
• R61
• F54
• F55
• F56
• F60

For exact diagnostic functions, users should verify compatibility according to the specific MINI model and production year.

Rolls-Royce Diagnostic Coverage

The Autophix 7910 supports selected Rolls-Royce models and chassis.

Supported Rolls-Royce Chassis

Coverage includes:

• RR1
• RR2
• RR3
• RR4
• RR5

For the listed Rolls-Royce chassis, the supplied product information specifies Maintenance Function A support.

Autophix 7910 vs. Basic OBD2 Scanner

The biggest difference between the Autophix 7910 and a conventional OBD2 code reader is diagnostic coverage.

For BMW owners who need more than basic engine-code reading, the Autophix 7910 provides considerably broader functionality.

Who Should Buy the Autophix 7910?

The Autophix 7910 can be a practical option for several types of users.

BMW DIY Owners

If you maintain your own BMW, the scanner can help with routine service functions such as oil resets, battery registration and supported system diagnostics.

Independent Repair Shops

Independent workshops that regularly service BMW and MINI vehicles can benefit from its dedicated BMW system coverage.

Professional Technicians

Technicians working with supported BMW chassis can use the scanner for fault-code diagnosis, live data and selected service procedures.

BMW Enthusiasts

For BMW enthusiasts who frequently work on different generations of BMW vehicles, broad chassis coverage can make one diagnostic tool more useful than a basic generic OBD2 reader.

Autophix 7910 Online Updates

The Autophix 7910 supports lifetime free online software updates according to the supplied product information.

Keeping diagnostic software updated can help maintain compatibility with supported vehicle systems and improve the scanner's diagnostic database over time.

Users should connect the device to the internet and follow the manufacturer's update procedure when updates are available.

Frequently Asked Questions

Is Autophix 7910 a BMW-specific scanner?

Yes. The Autophix 7910 is primarily designed for BMW, MINI and selected Rolls-Royce vehicles, while also providing standard OBD2/EOBD engine diagnostics for other compatible vehicles.

Can Autophix 7910 register a BMW battery?

Yes. It supports BMW battery management functions including battery replacement registration on applicable vehicles.

Can Autophix 7910 reset BMW oil service?

Yes. It supports BMW oil service and CBS maintenance reset functions on compatible models.

Does Autophix 7910 support BMW ABS and DSC?

Yes. Selected BMW ABS/ASC/DSC special functions are supported, including procedures such as brake bleeding and steering-angle sensor adjustment on applicable vehicles.

Can it diagnose BMW airbags?

The scanner supports selected MRS/ACSM and airbag-related diagnostic and reset functions on compatible BMW vehicles.

Does Autophix 7910 support TPMS?

Yes. The scanner supports RDC/TPMS ECU reset functions on applicable BMW vehicles.

Can it diagnose MINI vehicles?

Yes. It supports multiple MINI R-series and F-series chassis.

Can it diagnose Rolls-Royce vehicles?

Yes, but Rolls-Royce coverage is more limited than BMW coverage. The supplied specifications list RR1 through RR5, with Maintenance Function A specified for those chassis.

Does it work with non-BMW vehicles?

Yes. The Autophix 7910 provides standard OBD2/EOBD functions for other vehicle brands, primarily for engine-system diagnostics.

Final Verdict: Is Autophix 7910 a Good BMW Diagnostic Tool?

The Autophix 7910 is more than a basic OBD2 code reader. Its main advantage is the combination of BMW full-system diagnostics and service functions in a compact handheld scanner.

For supported BMW models, it provides access to important functions such as oil service reset, CBS maintenance reset, battery registration, ABS/DSC functions, EPB service, DME/DDE functions, EGS adaptation clearing, TPMS/RDC reset and airbag/ACSM functions.

Its support for multiple BMW generations, MINI vehicles and selected Rolls-Royce models also makes it a versatile option for workshops and BMW enthusiasts.

For users who primarily need BMW diagnostics, maintenance resets and selected special functions without investing in a much more complex professional programming platform, the Autophix 7910 offers a practical balance between functionality and ease of use.

Note: Diagnostic functions and vehicle coverage can vary by chassis, model year, ECU version and software version. Always verify the exact vehicle compatibility and supported function before performing a service procedure.
