Car Voltage Circuit Probe Tester CP03 0.8V-100V Resistance Digital Test with Backlight Flashlight

Diagnosing automotive electrical problems requires a reliable testing tool that delivers clear readings and helps technicians identify potential circuit issues efficiently. The OBDResource CP03 Car Voltage Circuit Probe Tester is designed for automotive electrical testing, combining DC voltage measurement, resistance testing, continuity checking, and battery polarity detection in one compact device.

With a DC voltage testing range of 0.8–100V, an automatic smart measurement mode, a backlit digital display, and audible alerts, this automotive circuit tester is suitable for checking a variety of vehicle electrical circuits. It can help technicians, mechanics, and DIY users inspect lighting systems, fuse connections, wiring circuits, and other low-voltage electrical components.

Whether you work in an automotive repair shop or maintain your own vehicle, the CP03 provides a practical solution for everyday electrical troubleshooting.

Key Features of the OBDResource CP03 Automotive Circuit Tester

1. Wide 0.8–100V DC Voltage Testing Range

The CP03 automotive voltage tester supports DC voltage testing from 0.8V to 100V, making it suitable for a wide range of low-voltage electrical testing applications.

It can be used to check automotive electrical circuits, including lighting systems, turn signals, taillights, fuse connections, and other compatible DC wiring.

The wide testing range also makes the device useful for certain non-automotive DC circuits within its specified operating range.

Key benefits:

• Measures DC voltage from 0.8V to 100V.

• Helps identify voltage presence and polarity.

• Supports routine automotive electrical troubleshooting.

• Suitable for inspecting compatible low-voltage DC circuits.

2. Smart Measurement Mode for Convenient Testing

The OBDResource CP03 features a default smart measurement mode that automatically identifies supported electrical measurement types, including DC voltage, polarity, resistance, and continuity.

Instead of requiring users to switch between multiple measurement modes for every basic test, the tester helps simplify the testing process by displaying recognized results on its screen in real time.

This feature is particularly useful for technicians who regularly inspect different automotive electrical circuits and want a straightforward testing workflow.

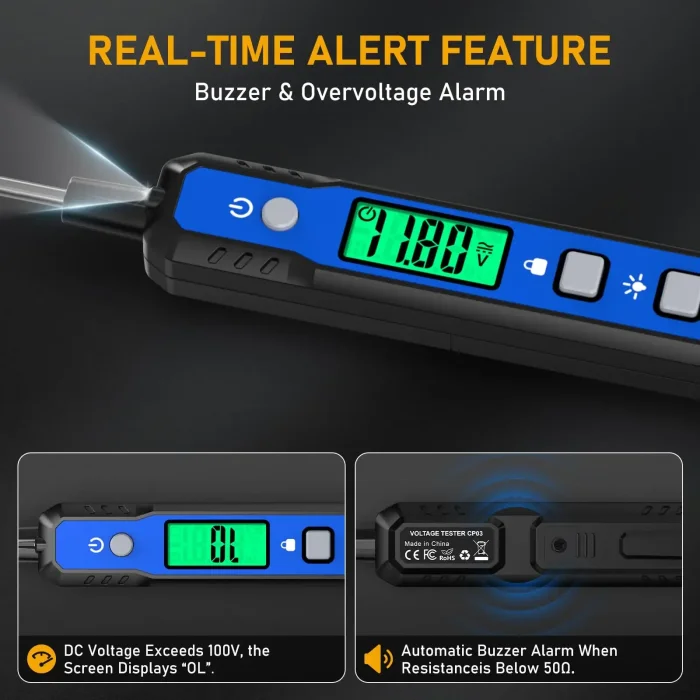

3. Buzzer Alerts and Overvoltage Warnings

Electrical testing becomes more convenient when abnormal conditions are easy to recognize. The CP03 includes a built-in buzzer and an overvoltage warning function to provide additional feedback during testing.

The buzzer sounds when the resistance measurement falls below 50Ω, according to the product specifications. When the detected DC voltage exceeds 100V, the display shows "OL" as an overrange indication.

These alerts help users recognize certain testing conditions without relying exclusively on visual readings.

Important: The "OL" indication means the measured voltage is beyond the tester's specified range. Stop the test and verify the circuit voltage before proceeding.

4. Clear LCD Display with Green Backlight

The CP03 is equipped with a digital LCD display and a green backlight to make measurement results easier to read in different working environments.

The backlight is helpful when inspecting wiring beneath dashboards, checking fuse boxes, or working in dimly lit garages.

A built-in flashlight provides additional illumination when inspecting electrical components in darker areas.

The display, backlight, and flashlight make the tester a convenient choice for routine automotive electrical inspections.

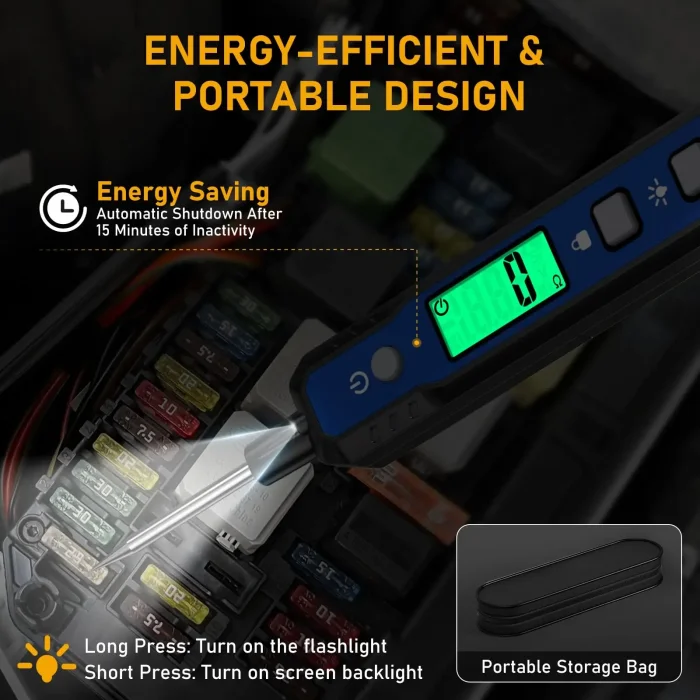

5. Automatic Power-Off to Save Battery Power

The tester automatically shuts down after approximately 15 minutes of inactivity, helping reduce unnecessary battery consumption.

It operates using one 1.5V AAA battery, which is not included in the package.

This simple power-saving function makes the CP03 practical for occasional troubleshooting as well as regular workshop use.

6. Durable Housing and Portable Storage Case

The CP03 uses ABS and glass-fiber-reinforced nylon materials, according to the product description. Its housing is designed for durability and everyday handling during automotive electrical testing.

A probe protection cap helps protect the probe tip when the tool is not in use, while the included storage case keeps the tester and its accessories organized.

The compact design makes it easy to store in a toolbox, workshop drawer, or vehicle maintenance kit.

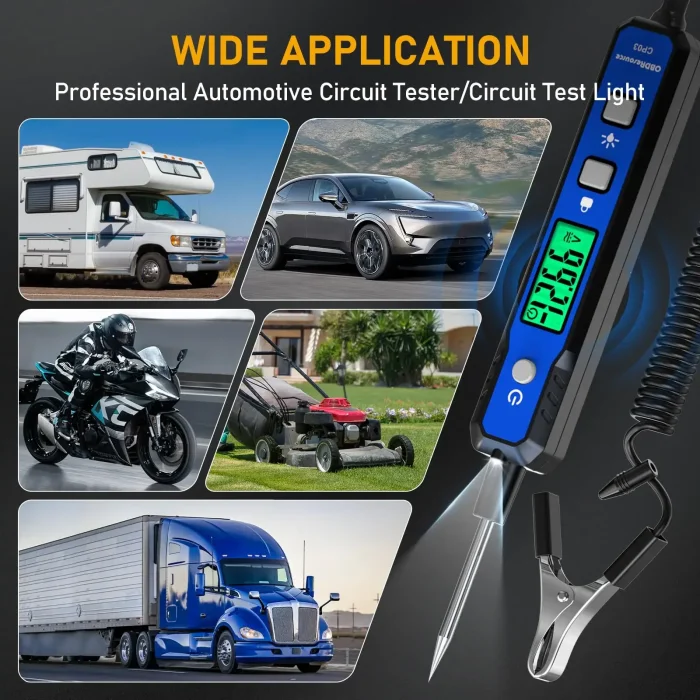

What Can You Test with This Car Voltage Circuit Probe Tester?

The OBDResource CP03 is designed for common electrical testing tasks involving compatible DC circuits. It can help users check voltage, resistance, continuity, and battery polarity.

Automotive Lighting Circuits

Use the tester to inspect compatible DC lighting circuits when troubleshooting problems such as lights that fail to illuminate or suspected electrical connection issues.

Typical applications include:

• Headlight circuits.

• Turn signal circuits.

• Taillight circuits.

• Other compatible vehicle lighting connections.

Always consult the vehicle wiring diagram and follow the correct testing procedure before probing a circuit.

Fuse Connections and Electrical Wiring

The CP03 can help technicians investigate fuse connections and wiring circuits when diagnosing electrical faults.

For example, if a lighting circuit is not working, checking voltage at appropriate test points can help determine whether power is present. Additional diagnostic steps may be needed to identify a blown fuse, damaged wire, poor connection, or faulty component.

The tester supports the troubleshooting process but does not automatically identify the exact cause of an electrical fault.

Resistance and Continuity Testing

Resistance and continuity testing can help assess whether an electrical path is connected as expected.

The CP03 supports resistance measurement and continuity-related testing, with a buzzer indication specified for resistance below 50Ω.

When Should You Perform a Continuity Test?

Continuity testing is useful when checking suitable disconnected wires, connectors, and other passive electrical paths.

Safety note: Disconnect power from the circuit before measuring resistance or continuity. Never perform resistance or continuity measurements on an energized circuit.

Battery Polarity Detection

The tester can identify battery polarity, helping users distinguish positive and negative connections during compatible DC electrical checks.

Correct polarity identification is important when inspecting wiring, checking connections, or preparing to test an electrical component.

Always confirm the correct connection points and operating procedure for the vehicle or circuit being tested.

Technical Specifications of the OBDResource CP03

The following table summarizes the product specifications provided for the CP03 automotive circuit tester.

How to Use an Automotive Circuit Probe Tester

Using a circuit tester correctly helps produce more reliable results and reduces the risk of damaging electrical components.

Step 1: Prepare the Tester

Check the probe, insulation, protective cap, and housing for visible damage. Install a suitable 1.5V AAA battery and confirm that the tester powers on correctly.

Review the vehicle wiring diagram and identify the correct circuit test points before beginning.

Step 2: Identify the Circuit and Test Point

Determine whether you need to measure DC voltage, resistance, continuity, or polarity.

For voltage measurements, the circuit may need to be powered under the appropriate conditions. For resistance and continuity measurements, disconnect power and isolate the circuit as necessary.

Step 3: Perform the Measurement

Place the probe on the appropriate test point using the recommended testing procedure. Allow the display to register the result and observe any buzzer alerts or warning indications.

Avoid shorting adjacent terminals or allowing the probe to contact unintended conductive surfaces.

Step 4: Interpret the Results

Compare the reading with the expected value for the circuit under test.

An unexpected voltage reading, an open circuit, or an abnormal resistance measurement may indicate a problem, but further checks may be necessary to confirm the cause.

If the tester displays "OL," verify that the circuit voltage does not exceed the specified 100V DC measurement range.

Step 5: Store the Tester Safely

After completing the test, remove the probe from the circuit, switch off the device if applicable, and fit the protective cap. Store the tester in its case to help protect the probe and keep the tool ready for the next job.

Why Choose the OBDResource CP03 Car Electrical Tester?

The CP03 combines several useful testing functions in a compact tool, making it a practical addition to an automotive technician's electrical diagnostic kit.

Multiple measurement functions: Check DC voltage, resistance, continuity, and battery polarity with one device.

Smart measurement mode: Simplify routine testing with automatic recognition of supported measurement types.

Clear digital readings: The backlit LCD helps make results easier to read in different lighting conditions.

Audible alerts: A built-in buzzer provides additional feedback during supported resistance and continuity-related checks.

Portable design: The protective cap and storage case help keep the tool organized between jobs.

Broad DC testing range: The 0.8–100V range supports a variety of compatible automotive electrical testing applications.

For mechanics, automotive electricians, and DIY vehicle owners, these features make the CP03 a useful tool for routine electrical inspection and troubleshooting.

Frequently Asked Questions (FAQ)

What is a car voltage circuit probe tester used for?

A car voltage circuit probe tester is used to check electrical conditions in compatible automotive circuits. Depending on the model, it can measure voltage, check resistance and continuity, and identify polarity. The CP03 supports these functions for DC circuits within its specified operating limits.

What is the voltage range of the OBDResource CP03?

The CP03 supports DC voltage testing from 0.8V to 100V. Do not use it to measure circuits exceeding its rated voltage range.

Can this automotive circuit tester check 12V car circuits?

Yes. Its 0.8–100V DC measurement range includes typical 12V automotive electrical circuits, provided the test conditions and connections are appropriate.

Can the CP03 test 24V vehicle electrical systems?

Its specified DC voltage range includes 24V, so it can be used for compatible 24V DC voltage checks. Always verify the circuit voltage and follow the vehicle manufacturer's testing procedures.

Does the tester support resistance and continuity testing?

Yes. The CP03 supports resistance and continuity-related testing, including a buzzer indication when resistance falls below 50Ω. Resistance and continuity tests must be performed on circuits that are disconnected from power.

What does "OL" mean on the display?

"OL" indicates that the detected DC voltage is above the tester's specified 100V range. Stop testing and verify the circuit voltage before continuing.

Does the CP03 require batteries?

Yes. The tester uses one 1.5V AAA battery, which is not included in the package. You will need to purchase the battery separately.

Does the tester turn off automatically?

Yes. The CP03 automatically shuts down after approximately 15 minutes of inactivity to help conserve battery power.

Is this tester suitable for beginners?

The smart measurement mode and digital display make routine testing more straightforward. However, users should understand basic electrical safety, identify the correct test points, and follow the appropriate procedures before testing vehicle circuits.

What is included in the package?

The package includes one smart circuit tester. A probe protection cap and portable storage case are specified as included accessories in the product description.

Order the OBDResource CP03 Automotive Circuit Tester

The OBDResource CP03 Car Voltage Circuit Probe Tester is a practical choice for automotive electrical troubleshooting, offering DC voltage measurement, resistance and continuity testing, polarity detection, audible alerts, and a clear backlit display in one compact tool.

Its 0.8–100V DC testing range supports a variety of compatible automotive circuits, while the automatic shutdown function, flashlight, protective cap, and storage case add convenience for everyday use.

If you need a versatile automotive circuit tester for inspecting lighting circuits, fuse connections, wiring, and other compatible DC electrical systems, the CP03 is worth considering for your workshop or personal tool kit.

Choose the OBDResource CP03 to make routine automotive electrical testing more convenient and organized.
