Topdiag P180 Car Battery Tester 6-30V with Breakpoint Detection Digital Voltage Test Auto Car Diagnostic Tool AC RMS

The TopDiag P180 is a versatile diagnostic tool designed to simplify automotive electrical troubleshooting. Operating in a voltage range of 9 to 30 volts, it supports detection and testing across a wide variety of 12-24V vehicle electrical systems, including cars, pickups, SUVs, motorcycles, and even industrial equipment. With comprehensive features, multiple language support, and a one-year warranty, the TopDiag P180 is a valuable addition to any auto repair shop or DIY enthusiast’s toolkit.

Key Features and Benefits

Breakpoint Detection (Positioning)

• Accurate pinpointing: Quickly locate open conductors by plugging the probe tip into an open wire, sending a sonic signal, and tracing the line with the P181 wire finder.
• Efficient troubleshooting: Dramatically reduces diagnostic time by exposing the exact breakpoint location.

Circuit Breaker Protection

• Safety-first design: Built-in short-circuit protection; internal breakers will trip to prevent damage during testing.
• Durable performance: Helps protect both the tester and vehicle electronics during high-current scenarios.

Comprehensive Measurement Modes

• AC RMS: Suitable for measuring AC voltages and any AC or pulse waveform where RMS voltage is required.

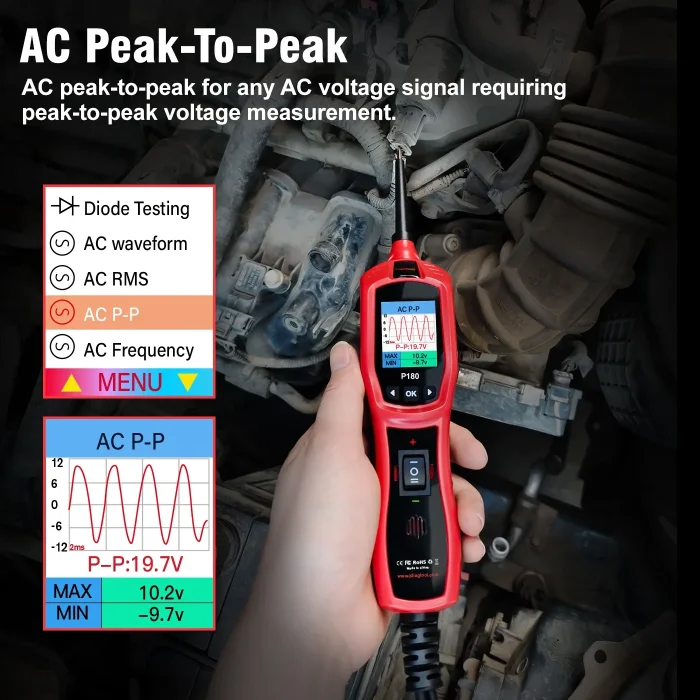

• AC Peak-To-Peak: Measures peak-to-peak values for AC signals, delivering a complete waveform snapshot.
• AC Frequency: Frequency counter mode for testing sensors (e.g., MAF, wheel sensors) and other AC-driven signals.
• DC Voltage Measurement: Ultra-wide range from 0V to 200V for DC circuits.
• Resistance Testing: 0.1 Ω to 1 MΩ for continuity and resistance checks.
• Diode Testing: Essential for verifying diode health in power circuits.

Component Activation and Injectors Test

• Activate Components: Can drive starting systems, fuel pumps, solenoids, fans, headlights, and more for functional testing.
• Injectors Test: Detailed injector circuit data display for quick assessment of injector performance.

Battery Diagnostics and Multilingual Support

• Battery diagnostics: Multiple detection modes for safer, more accurate travel and maintenance decisions.
• Language coverage: English, Simplified/Traditional Chinese, Japanese, Korean, French, German, Italian, Turkish, Polish, Indonesian, Spanish, Portuguese, Russian, Vietnamese, Thai, Arabic, and more.

Product Functions

• AC Voltage Measurement
• Components Activation
• Battery Diagnostics
• Injector Test
• DC Voltage Detection
• Resistance Testing
• Diode Testing

Technical Specifications

• AC Voltage Measurement: -100 VAC to +100 VAC
• DC Voltage Measurement: 0V to 200V
• Display: TFT color display, 160 x 128 DPI
• Frequency Range: 1 Hz to 1 MHz
• Power Supply: 9-30V DC
• Resistance Range: 0.1 Ω to 1 MΩ
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Trip Current (Protection): 8 AMPS for 1 hour; 12 AMPS for under 1 hour; 16 AMPS for under 5 seconds
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

What’s in the Package

• 1 x Circuit tester
• 1 x Wire finder
• 1 x Cigarette lighter cable
• 1 x Probe
• 1 x Clip cable to connect battery
• 1 x Extension cable

Applications and Use Cases

• Automotive electrical system diagnostics across 12-24V platforms
• Troubleshooting open circuits and locating breakpoints quickly
• Verifying sensor signals (e.g., MAF, wheel speed sensors) through precise AC measurements
• Safe activation of vehicle components for functional testing
• Injector circuit analysis for fuel system diagnostics
• Battery health assessment and safety-oriented testing in various environments

Why Choose TopDiag P180?

• Wide voltage coverage (9-30V) for most vehicle electrical systems
• Versatile measurement modes that cover common automotive diagnostics needs
• Built-in protection to guard against short circuits and overcurrent
• One-year warranty for peace of mind
• User-friendly design with a clear TFT display and multilingual support

Frequently Asked Questions (FAQ)

• Q: What vehicles is the TopDiag P180 compatible with?
  • A: It supports detection for 12-24V vehicle electrical systems across cars, pickups, SUVs, motorcycles, and more, including some industrial equipment.
• Q: Can I use the P180 to activate components like fuel pumps or fans?
  • A: Yes, the Activate Components feature lets you drive various components for testing.
• Q: What is the voltage range for DC measurements?
  • A: DC Voltage Measurement ranges from 0V to 200V.
• Q: Does the device provide injector testing data?
  • A: Yes, the Injectors Test mode provides a complete display of injector circuit data.
