TOPDON AB101 6V/12V Car Battery Voltage Tester Auto Charger Analyzer 2000CCA Cranking Charging Circut Testing

The TOPDON AB101 is a versatile 12V car battery tester designed to simplify battery diagnostics for both DIY enthusiasts and professional technicians. It delivers rapid, actionable insights on battery health, cranking capability, charging system performance, and more, all in a compact, easy-to-use device. Below is a detailed overview of its features, testing capabilities, and practical tips to get the most out of this powerful tester.

Key Features

• Battery Health Assessment: The AB101 performs a benchmark battery health test and provides clear recommendations on whether a replacement is advisable, while also including start-up testing and charging system evaluation to give a full picture of battery readiness.

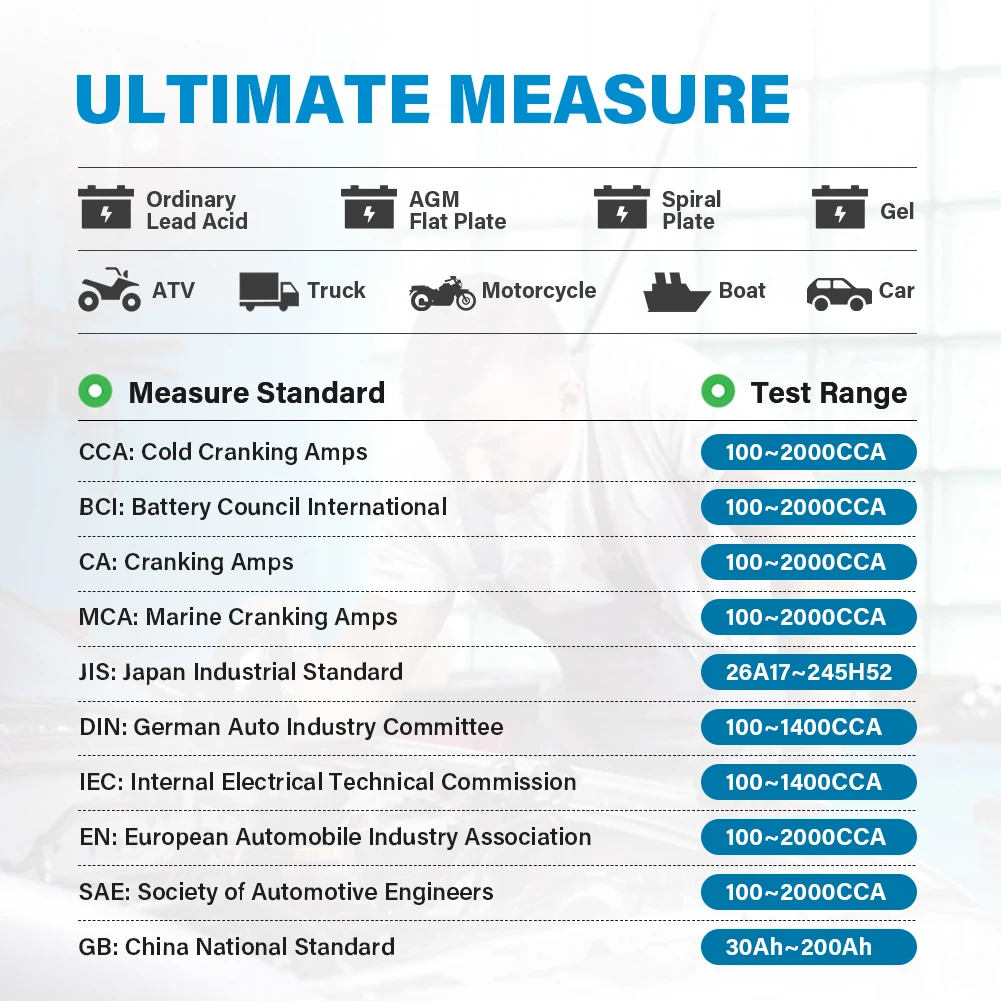

• Broad Compatibility: Designed to work with most 12V battery types, including ordinary flooded batteries, AGM flat plates, AGM spiral batteries, and gel batteries. It adheres to standard rating systems (CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB) to ensure accurate results across brands and models.
• Fast Start and Charging Tests: Test results are displayed in under 5 seconds. The AB101 inspects the 12V charging system end-to-end: generator output, rectifier diode function, and charging current regulation.
• User-Friendly Design: Lightweight and durable, with a straightforward, menu-driven interface suitable for both beginners and experienced users.
• Multilingual Support: Language options include English, Russian, Spanish, French, German, and Italian, enabling broader accessibility.

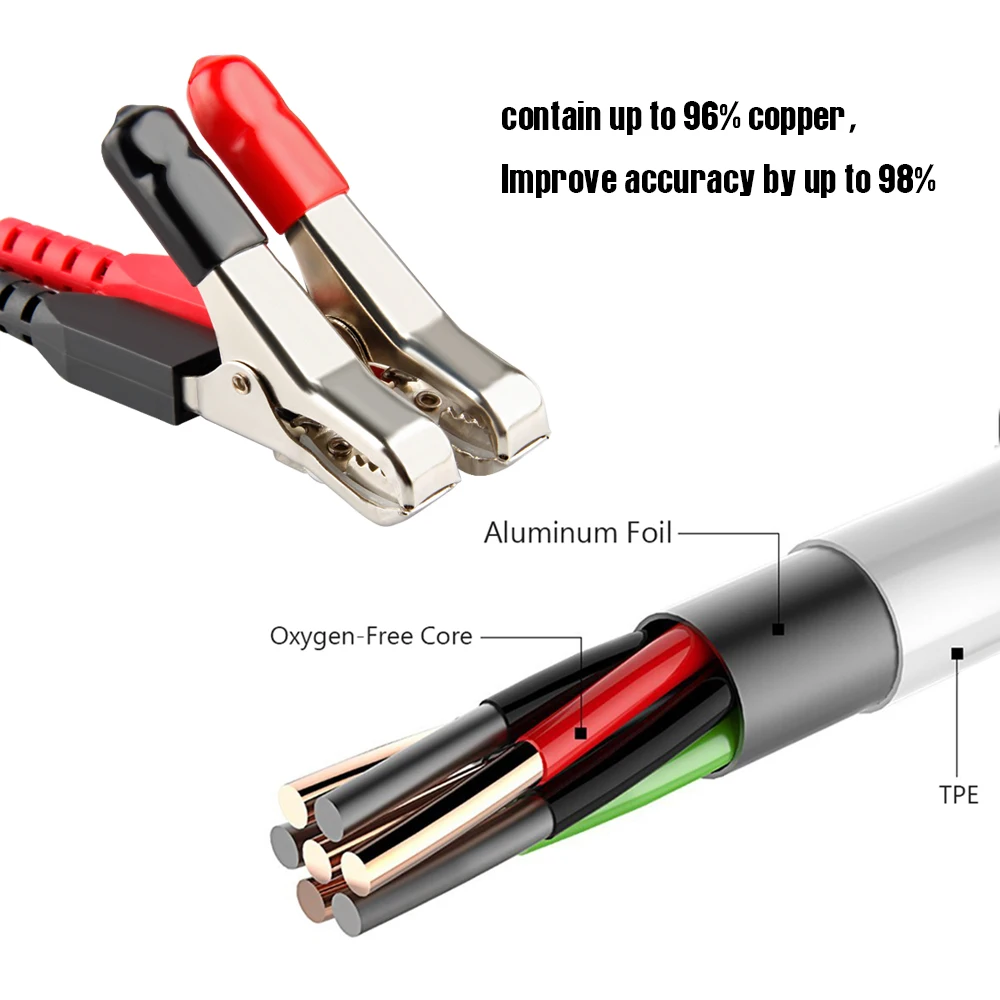

• Safety Features and Warranty: Rubber-coated protective covers on alligator clips for safe handling, plus a 1-year warranty.

In-Depth Testing Capabilities

• Five-Test Battery Health Framework: Battery test results fall into five categories—Good Battery, Good-Recharge, Replace, Bad Cell-Replace, Charge-Retest—providing nuanced guidance on whether to replace, recharge, or retest.
• Charging System and Ripple Analysis: The Charging Test evaluates ripple status, load voltage, and overall charging system health. Ripple Analysis checks the charging current ripple to assess diode health and the overall electrical performance.
• Cranking Test for Starting System Health: Cranking Test criteria specify that a cranking voltage above 9.6V is considered OK; below that suggests possible issues with the starting system or battery.

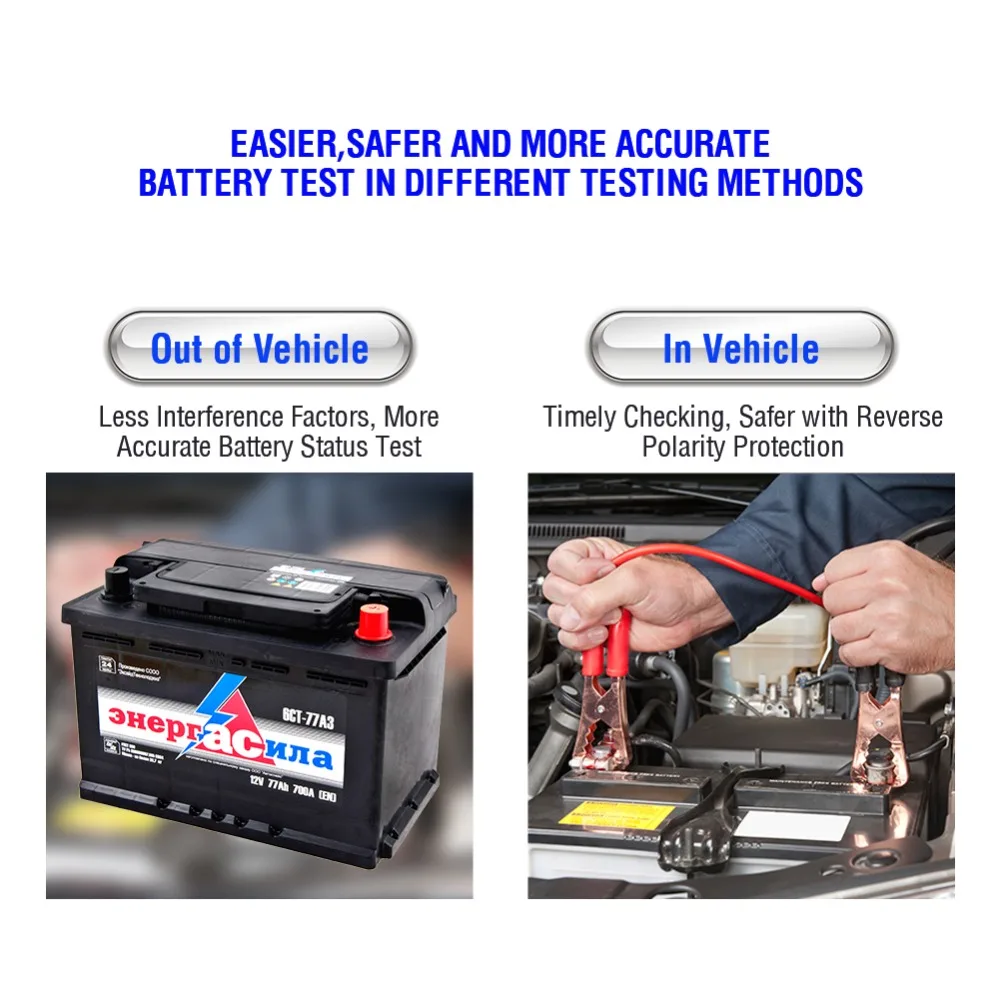

• In-Vehicle and Out-Of-Vehicle Testing: The AB101 can test batteries directly whether connected to a vehicle or standalone, offering great flexibility.
• No Software Updates Required: The device powers up automatically once clamps are correctly connected, with no need for firmware updates.

One-Button Multi-Test Execution

• Execute Auto Battery Test, Cranking Test, Charging Test, State of Health, State of Charge, and Ripple Analysis with a single button press, delivering a comprehensive snapshot of battery health quickly.

Usage and Interpretation

• Quick Start Results: Interpret the results to determine the health of the starting system and charging circuit, enabling informed maintenance decisions.
• Safety and Setup Tips: Ensure clamps are securely attached to battery terminals, check for terminal corrosion, and be aware that very low temperatures (below 14°F / -10°C) may affect results. Remove any strong magnetic interference if present.
• Quick FAQ: AB101 does not require software updates, supports both vehicle-connected and standalone testing, supports multiple 12V battery types, and delivers results in about 5 seconds.

Portability and Build

• Compact, lightweight, and durable design tailored for on-site diagnostics or tasks in tight spaces. Built-in safety features provide reliable daily use.

Technical Specifications at a Glance

• Battery Types: 12V flooded, AGM (flat and spiral), and gel batteries
• CCA Range: 100–2000 CCA
• Test Results: Good Battery, Good-Recharge, Replace, Bad Cell-Replace, Charge-Retest
• Tests Included: Auto Battery Test, Cranking Test, Charging Test, State of Health, State of Charge, Ripple Analysis
• Power: No software updates required; auto-start after correct clamp connection
• Language Options: English, Russian, Spanish, French, German, Italian
• Warranty: 1 year

Market Position and Use Cases

• Competing brands: KONNWEI, AUTOOL, ANCEL. The AB101 stands out with its all-in-one test suite, speed, and multilingual capability, making it suitable for DIY users and professional workshops.
• Real-World Applications:
  • Fleet maintenance: Quickly assess hundreds of vehicles to decide which batteries need replacement or charging-system service.
  • DIY vehicle owners: An easy-to-use tool that provides actionable results without technical expertise.
  • Service centers: Efficiently perform cranking and charging diagnostics with precise ripple analysis to improve diagnostic accuracy and customer trust.

Frequently Asked Questions (FAQ)

• Does AB101 require a firmware update? No. It auto-starts when clamps are correctly connected.
• Can I test a battery outside a vehicle? Yes; AB101 supports both in-vehicle and out-of-vehicle testing.
• What battery types are supported? 12V flooded, AGM (flat and spiral), and gel batteries.
• How fast are the test results? Start and charging tests appear in about 5 seconds.
• What does the ripple test indicate? Ripple analysis checks the charging current ripple to determine if diodes and the charging circuit are functioning properly.

Conclusion
The TOPDON AB101 Car Battery Tester is a rugged, portable, and feature-rich diagnostic tool that delivers rapid, actionable insights into battery health, cranking strength, and charging system integrity. With broad battery compatibility, multilingual support, and a focus on user-friendly operation, AB101 helps drivers and professionals keep vehicles reliable and safe.
