MASTFUYI FY8912A Car Battery System Tester 12V 24V Car Motorcycle Truck System Analyzer 50-2000CCA Charging Cranking Test Tool

The MASTFUYI FY8912A is a versatile battery system tester designed to diagnose a wide range of 12V and 24V lead-acid storage batteries. With its comprehensive testing capabilities, it helps technicians and DIY enthusiasts quickly assess battery health, performance, and replacement needs. This article covers the device’s features, specifications, testing workflow, and how to interpret results for optimal vehicle reliability.

Key Features and Benefits

• Broad compatibility: Works with 12V and 24V lead-acid storage batteries used in cars, motorcycles, electric vehicles, forklifts, and more. Note: not suitable for lithium batteries.

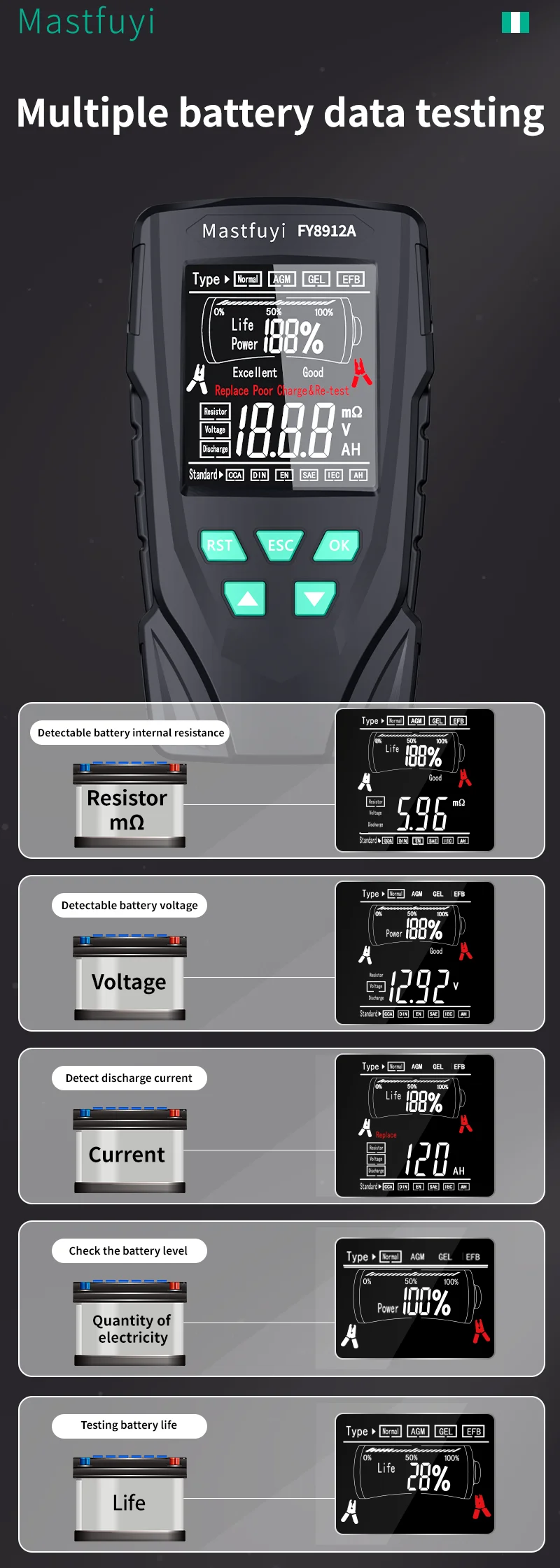

• Comprehensive data detection: Measures internal resistance, voltage, discharge current, battery power, and available battery life status.
• Multiple test standards and modes: Supports several industry standards to ensure accurate results across regions.
• User-friendly workflow: Simple four-step process guiding you from setup to measurement and interpretation.

Model Specifications and Parameters

• Battery Specifications: 12V/24V lead-acid storage batteries (not suitable for lithium batteries).
• Voltage Range: 8V to 36V, accommodating a wide variety of battery sizes and conditions.
• Scope of Application: Suitable for all kinds of car, motorcycle, electric car, forklift, and other vehicle batteries.

Important Note

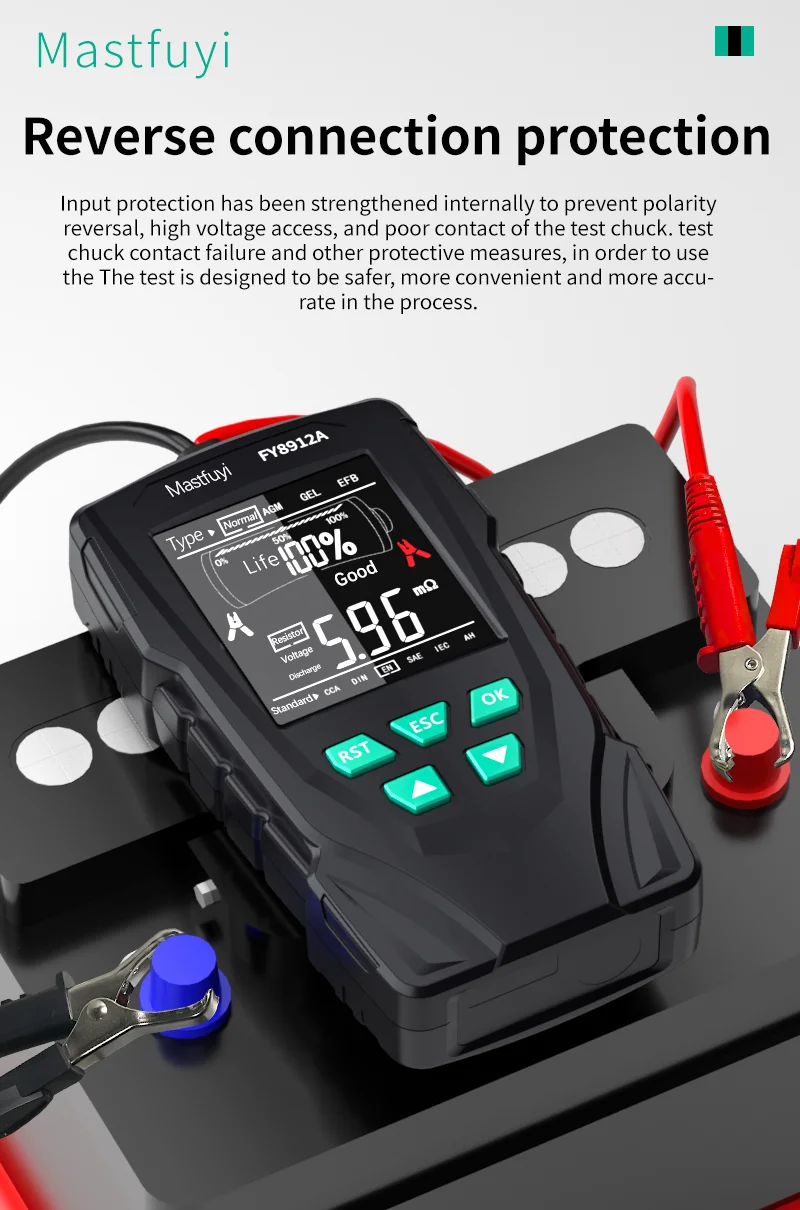

Always follow safety precautions when testing batteries, including wearing protective gear and avoiding contact with battery terminals during testing. Do not test lithium-based batteries with this device.

Step-by-Step Testing Process

The FY8912A follows a structured testing workflow to ensure accurate and repeatable results. Here is the typical four-step process:

Step 1: Enter Battery Type (P1)

• Power on the device and wait for the display to illuminate.
• Use the up and down keys to select the battery type.

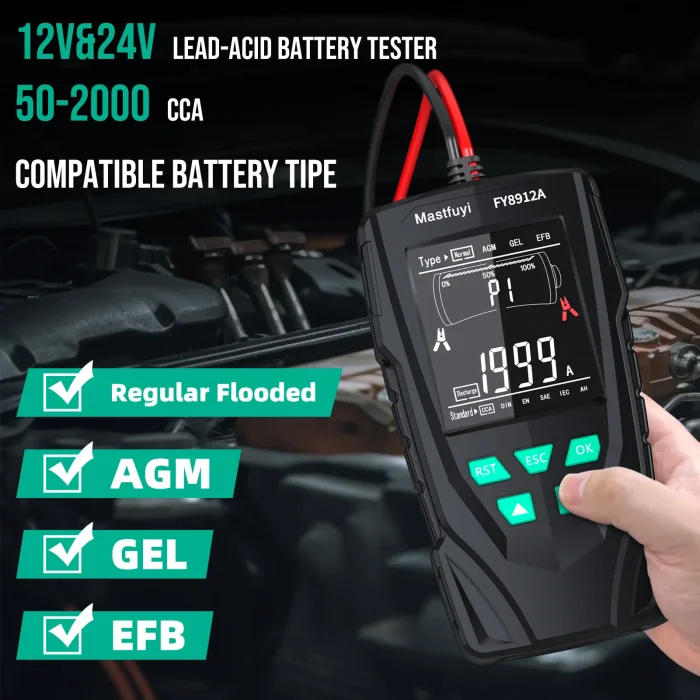

• Available categories: Normal, AGM, GEL, EFB.
• After selecting, press the confirmation key (OK) to proceed to the next state.

Step 2: Select Test Standard (P2)

• In P2, use the up and down keys to choose the test standard.
• Six categories are available: CCA (Cold Start Current), DIN (German Standard), EN (European Standard), SAE (American Standard), IEC (International Electrotechnical Code), AH (Starting Current).
• After selecting, press OK to move on to the next step.

Step 3: Set Maximum Discharge Current (P3)

• Enter P3 to adjust the maximum discharge current for the battery under test.
• Use the up and down keys to set the value. Long-press to continuously adjust the setting.
• Once set, press OK to enter the measurement state (P4).

Step 4: View Measurement Results (P4)

• The device will display measurement results after a brief initialization (approximately 2–3 seconds).

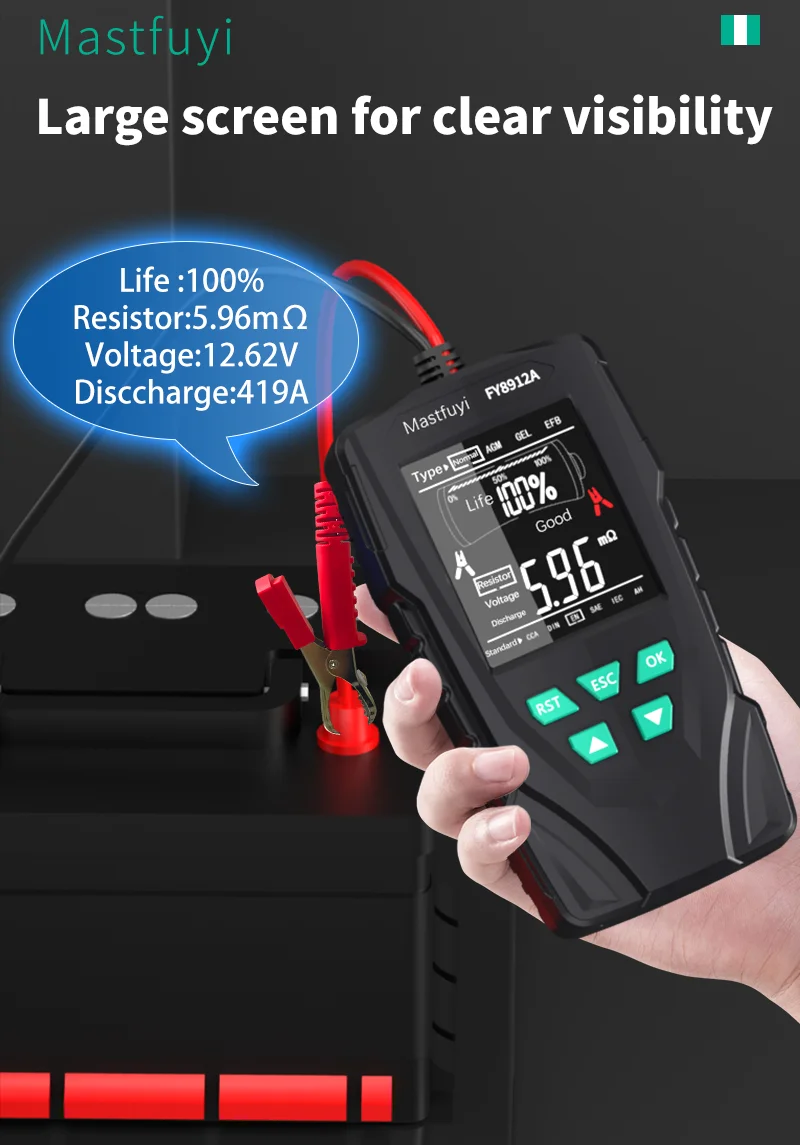

• Use the up and down keys to cycle through observed data: internal resistance, voltage, and discharge current.
• The display will also show corresponding battery life and power data.
• The tester provides a judgment/recommendation based on the results, such as Excellent, Good, Poor, Replacement, or Charging (followed by retesting to confirm the state of the battery).

Interpreting Results

• Internal Resistance: A low resistance generally indicates a healthy battery, while a high resistance suggests aging or failure.
• Voltage: Adequate voltage indicates a healthy charge state; consistently low voltage may indicate a charging or health issue.
• Discharge Current: Helps assess how the battery behaves under load; abnormal discharge patterns can signal problems.
• Battery Life and Power: A holistic indicator of remaining capacity and overall health.
• Judgment Categories:
  • Excellent: Battery health is strong; no immediate action needed.
  • Good: Battery is healthy but monitor for future signs of wear.
  • Poor: Battery performance is diminishing; consider maintenance or replacement.
  • Replacement: Battery has likely reached end of life.
  • Charging: Battery may benefit from charging and retesting to confirm stabilization.

SEO-Friendly Overview

• The MASTFUYI FY8912A is a reliable, multi-vehicle battery analyzer that supports 12V and 24V lead-acid batteries.
• It provides critical battery metrics including internal resistance, voltage, discharge current, and power, enabling proactive maintenance.
• The device supports standard testing methods from CCA to AH, making it suitable for international use.
• A straightforward four-step workflow makes it accessible for technicians and enthusiasts alike.

Why Choose the FY8912A?

• Versatility: Handles a wide range of vehicles and battery configurations.
• Clarity: Clear measurements with actionable insights and battery health judgments.
• Practicality: Simple four-step procedure that minimizes test time while maximizing diagnostic value.

Pointers for Best Results

• Ensure batteries are in a stable state before testing (cool, non-frozen, and not recently topped up with water beyond manufacturer guidelines).
• Use the device within its stated voltage range (8V–36V) for accurate results.
• Always cross-check results with vehicle symptoms and, if needed, perform retesting after charging.

Frequently Asked Questions

• Q: Can I test lithium batteries with this device?
  • A: No. The FY8912A is designed for lead-acid storage batteries and should not be used with lithium batteries.
• Q: What standards are supported?
  • A: The device supports CCA, DIN, EN, SAE, IEC, and AH standards for compatibility with global testing norms.
• Q: How long does a typical measurement take?
  • A: Measurement results appear within a few seconds (approximately 2–3 seconds after starting the P4 state).

Conclusion

The MASTFUYI FY8912A Car Battery System Tester is a robust, user-friendly tool for diagnosing the health of 12V/24V lead-acid batteries across a variety of vehicles. By providing essential metrics and a clear health verdict, it helps users make informed decisions about maintenance and replacements, ensuring vehicle reliability and safety.
