Modern fuel injection systems require accurate diagnostics to maintain engine efficiency, fuel economy, and reliable performance. The CMTOOL Automobile Fuel Injector Tester is designed to help automotive technicians and DIY mechanics quickly identify injector faults by testing injector pulse signals, drive circuits, and injector operation without complicated equipment.

Featuring 8 pulse modes, dual injector simultaneous testing, 6 universal injector adapters, and multiple safety protections, this professional fuel injector diagnostic tool is suitable for most 12V gasoline vehicles, motorcycles, ATVs, and boats.

H2 What Is the CMTOOL Fuel Injector Tester?

The CMTOOL Fuel Injector Tester is a professional diagnostic instrument that generates injector pulse signals to activate fuel injectors outside the engine. It allows users to evaluate injector performance, diagnose electrical problems, and assist in injector cleaning procedures.

Unlike conventional multimeters, the tester simulates ECU injector pulse signals, making it much easier to verify whether an injector operates correctly before replacing expensive components.

Main applications include:

• Fuel injector pulse testing
• Injector drive signal diagnosis
• Injector cleaning assistance
• Injector performance comparison
• ECU output verification
• Injector circuit troubleshooting

H2 Key Features of the CMTOOL Fuel Injector Tester

H3 1. Simultaneous Dual Injector Testing

One of the biggest advantages of the CMTOOL injector tester is its ability to test two injectors simultaneously.

Benefits include:

• Compare injector performance side by side
• Identify weak injectors
• Improve diagnostic efficiency
• Reduce troubleshooting time

This feature is particularly useful for professional repair shops diagnosing multi-cylinder engines.

H3 2. Eight Professional Pulse Modes

The tester offers 8 injector pulse modes covering both low-power (5V) and high-power (12V) applications.

H4 Mode 0 – Standby

• No output
• Safe idle mode

H4 Mode 1 – Single Pulse (Low Power)

• Single injector activation
• Ideal for quick response testing

H4 Mode 2 – Short Pulse (Low Power)

• 50 pulses
• Approximately 7 ms pulse width

H4 Mode 3 – Long Pulse (Low Power)

• 100 pulses
• Approximately 3.5 ms pulse width

H4 Mode 4 – Continuous Pulse (Low Power)

• Continuous injector activation
• Approximately 50 pulses every 1450 ms

H4 Mode 5 – Single Pulse (High Power)

• Single pulse
• Approximately 255 ms pulse width

H4 Mode 6 – Short Pulse (High Power)

• 50 pulses
• Approximately 7 ms pulse width

H4 Mode 7 – Long Pulse (High Power)

• 100 pulses
• Approximately 3.5 ms pulse width

H4 Mode 8 – Continuous Pulse (High Power)

• Continuous pulse output
• Suitable for extended injector testing

These multiple pulse options allow technicians to simulate various engine operating conditions.

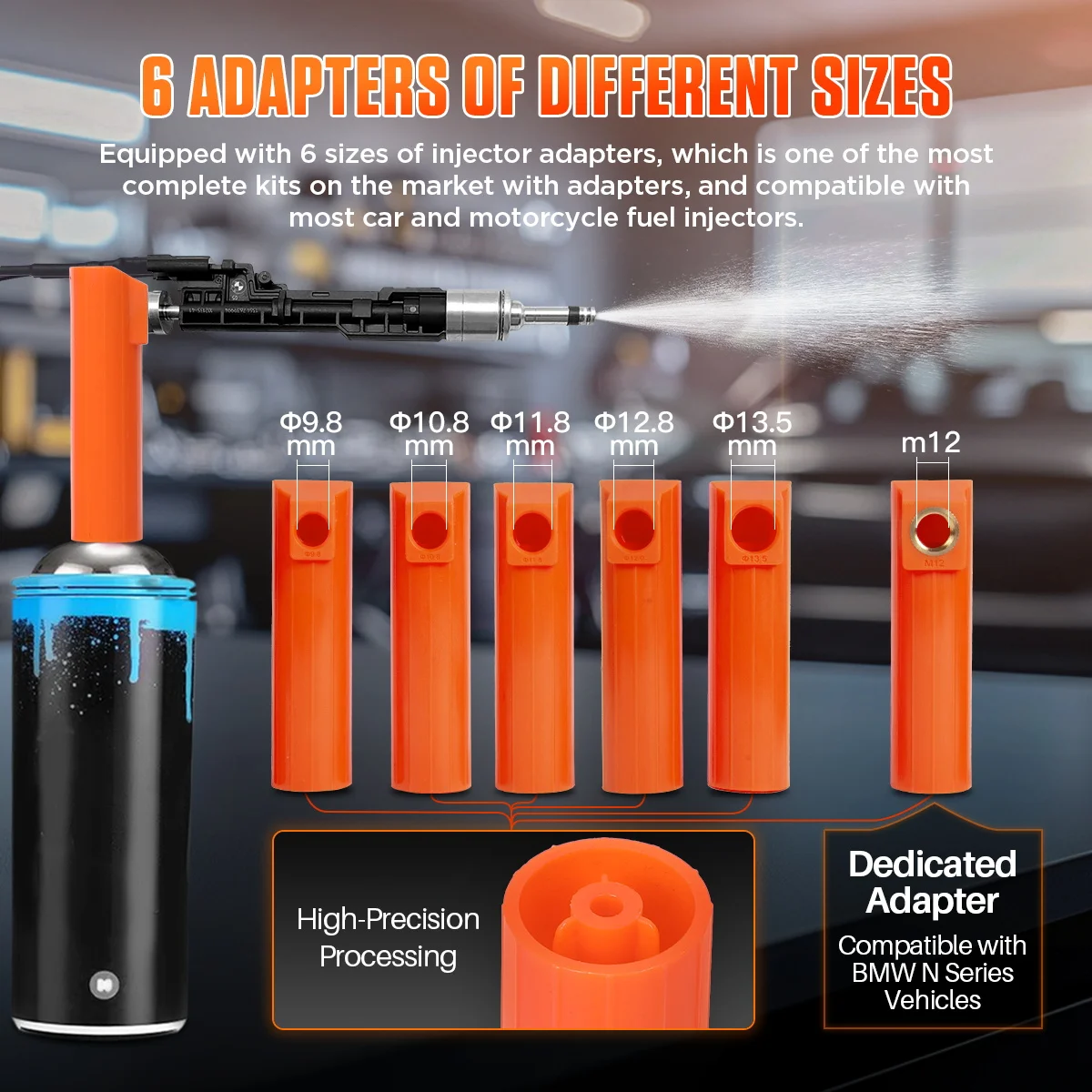

H3 3. Six Universal Injector Adapters

Compatibility is one of the strongest features of the CMTOOL tester.

The package includes six injector adapters designed to fit a wide range of injector connectors found in:

• Passenger cars
• Motorcycles
• ATVs
• Marine engines
• Small gasoline engines

The adapter kit makes the tester compatible with many popular injector types without requiring additional accessories.

H3 4. Long 52-Inch Test Cable

The 52-inch extra-long cable provides greater flexibility when working around crowded engine compartments.

Advantages include:

• Easier access
• Comfortable operation
• Improved workspace organization
• Better reach for difficult injector locations

H3 5. Multiple Safety Protection Functions

Safety is critical when working with automotive electrical systems.

The CMTOOL tester includes:

• Reverse polarity protection
• Short circuit protection
• Stable wired operation
• Reliable signal output

These protections help prevent accidental damage to both the tester and vehicle components.

H2 Wide Vehicle Compatibility

The CMTOOL Fuel Injector Tester supports most 12V fuel injection systems, including:

• Passenger cars
• SUVs
• Pickup trucks
• Motorcycles
• ATVs
• Boats
• Small gasoline engines

Its broad compatibility makes it an excellent tool for home garages, professional workshops, and mobile repair technicians.

H2 Benefits of Using a Fuel Injector Tester

Fuel injectors play a critical role in engine performance. A faulty injector can lead to:

• Rough idle
• Engine misfires
• Poor fuel economy
• Hard starting
• Reduced engine power
• Increased exhaust emissions

Using a dedicated injector tester helps technicians quickly determine whether the problem originates from:

• The injector itself
• The wiring harness
• The ECU driver circuit
• Electrical connectors

This significantly reduces unnecessary parts replacement.

H2 How to Use the CMTOOL Fuel Injector Tester

H3 Step 1: Connect the Power Supply

Attach the tester to a compatible 12V power source.

H3 Step 2: Select the Correct Adapter

Choose one of the six injector adapters that matches the injector connector.

H3 Step 3: Connect the Injector

Securely attach the injector to the tester cable.

H3 Step 4: Select the Pulse Mode

Choose the appropriate pulse mode depending on the diagnostic requirement.

H3 Step 5: Observe Injector Operation

Listen for injector clicking sounds or observe spray patterns if performing cleaning or bench testing.

H3 Step 6: Compare Results

When testing two injectors simultaneously, compare their operation for consistency.

H2 Typical Applications

The CMTOOL Fuel Injector Tester is widely used for:

• Injector performance verification
• Fuel injector cleaning support
• Injector pulse signal diagnosis
• ECU injector driver testing
• Preventive maintenance
• Used vehicle inspections
• Automotive repair shops
• DIY garage maintenance

H2 Why Choose the CMTOOL Fuel Injector Tester?

Compared with basic injector testers, the CMTOOL model offers several professional advantages:

The combination of professional functionality and user-friendly operation makes it suitable for both experienced mechanics and automotive enthusiasts.

H2 Frequently Asked Questions

H3 Can this tester clean fuel injectors?

The tester generates pulse signals that help operate injectors during external cleaning procedures. It does not perform ultrasonic cleaning by itself but works well alongside injector cleaning equipment.

H3 Is it compatible with diesel injectors?

This tester is primarily designed for 12V gasoline fuel injectors. Compatibility with diesel injectors depends on the injector type and electrical specifications.

H3 Can I test injectors without removing them?

In many diagnostic situations, electrical pulse testing can be performed while the injector remains installed, although bench testing provides more comprehensive evaluation.

H3 Is professional experience required?

No. The tester features straightforward controls and multiple preset pulse modes, making it suitable for both DIY users and professional technicians.

H2 Final Thoughts

The CMTOOL Fuel Injector Tester is a reliable and versatile diagnostic solution for anyone working with automotive fuel injection systems. With dual-injector testing capability, eight programmable pulse modes, six universal adapters, comprehensive safety protection, and compatibility with a wide range of 12V vehicles, it provides an efficient way to diagnose injector issues, verify ECU signals, and support injector cleaning.

Whether you're an automotive repair professional or a DIY enthusiast, investing in a quality fuel injector pulse tester can save valuable time, reduce unnecessary parts replacement, and help maintain optimal engine performance.
