WOYO CTB007 PRO OBD-II Breakout Box: A Professional CAN Tester for 12V/24V Diagnostics, Bench Testing, and ECU Development

What is the WOYO CTB007 PRO OBD-II Breakout Box?

Woyo CTB007 Pro Key Features and Benefits

12V/24V Compatibility and Robust Circuit Testing

• Supports 12 V and 24 V systems, making it suitable for a wide range of vehicles, including commercial fleets.
• Rugged design intended for professional use, with protection against overload and reverse polarity.

Real-time OBD-II Pin Voltage Monitoring

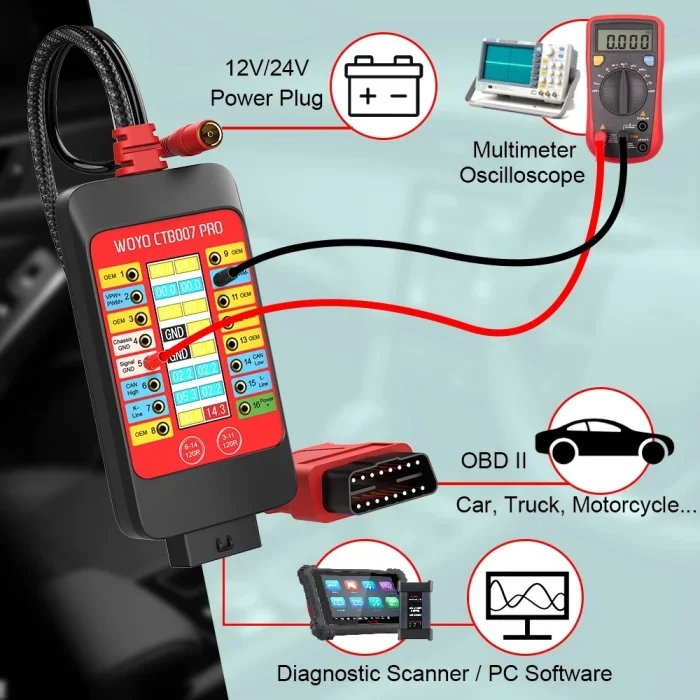

• VRMS / true RMS voltage monitoring for each OBD-II pin, enabling quick checks of power and ground integrity (e.g., pin 16 (+B) and pins 4/5 grounds).
• Live CAN/K-Line bus activity visualization with a green background to indicate dynamic levels, helping technicians quickly assess wiring health.

CAN Termination and Signal Integrity

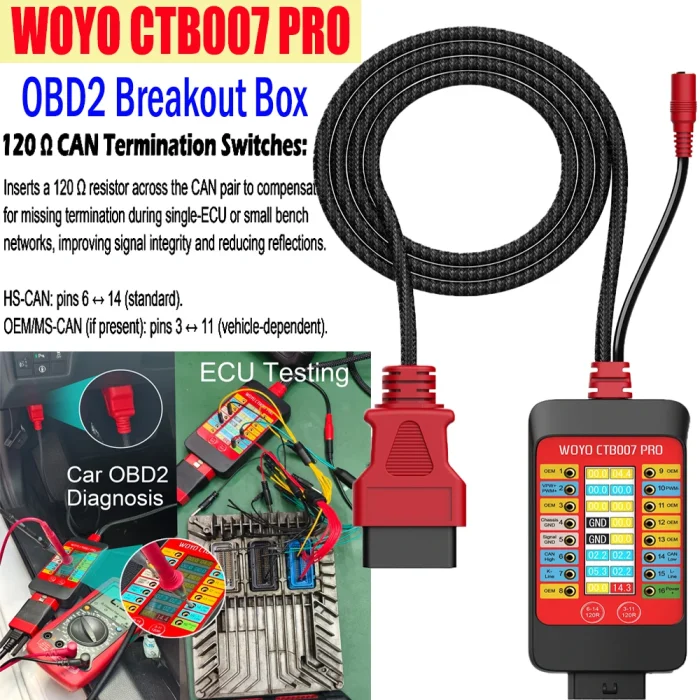

• 120 Ω CAN termination switch to insert a resistor across the CAN pair when terminating for bench or small network scenarios, reducing reflections.
• HS-CAN (pins 6 ↔ 14) standard termination, and OEM/MS-CAN (pins 3 ↔ 11) if the vehicle uses CAN on these pins. Termination is recommended for bench testing or missing terminators and should be OFF during normal vehicle operation to avoid over-termination.

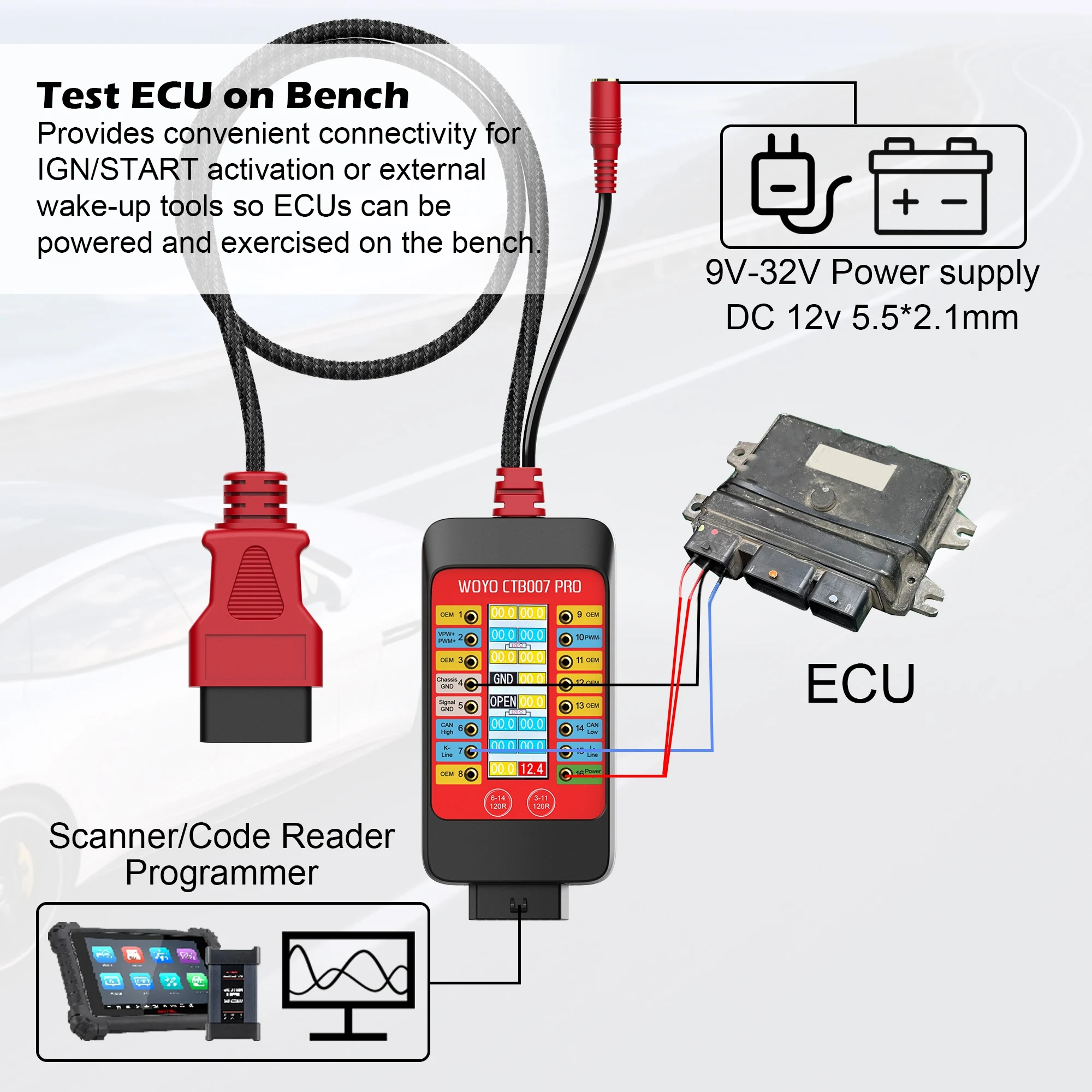

Bench Testing and Wake-up Support

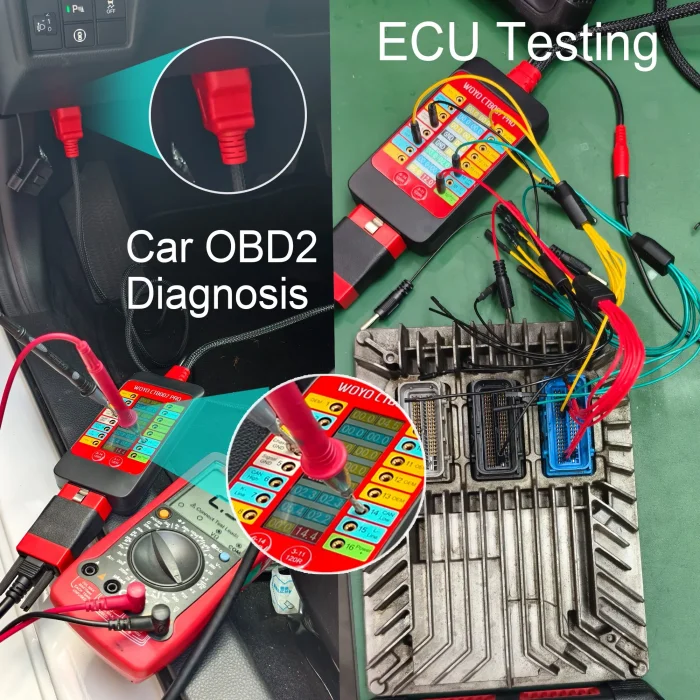

• Facilitates IGN/START activation and external wake-up tools to power and exercise ECUs on the bench, enhancing development and debugging workflows.

Status Indicators and Alarms

• Signal status with a flashing green background indicates dynamic signals.
• Audible alarms alert to voltage conditions: slow beep for low voltage thresholds and fast beep for high voltage thresholds (e.g., low: 12V systems < 11.8 V, 24V systems < 23.6 V; high: 12V > 15.5 V, 24V > 31 V).

Ground Status and Quick Jumper

• Ground status indicators show OPEN when no ground is detected and GND when a valid ground is present.
• Quick jumper feature enables a trained technician to bridge selected OBD pins for OEM-approved procedures through current-limited pathways.

Battery Replacement Memory Saver

• Maintains vehicle power during battery changes, preserving settings and reducing risk of data loss.

Connectivity and Power Options

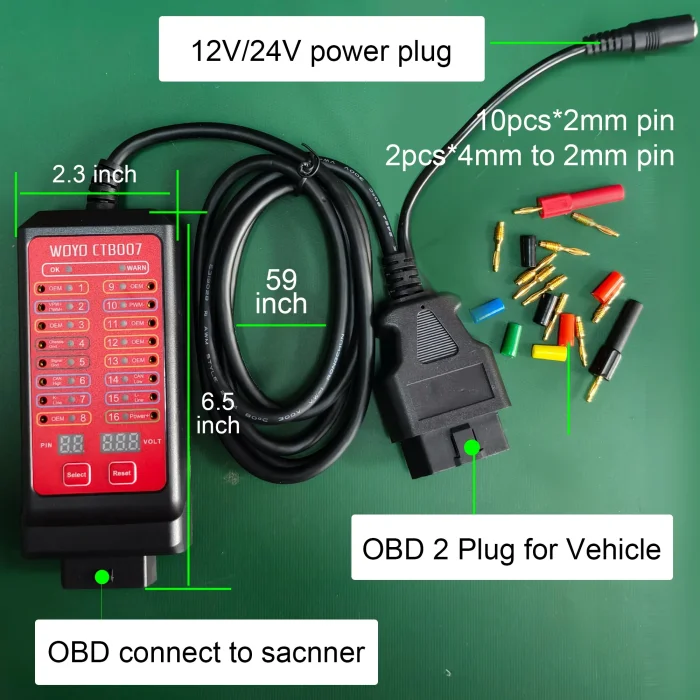

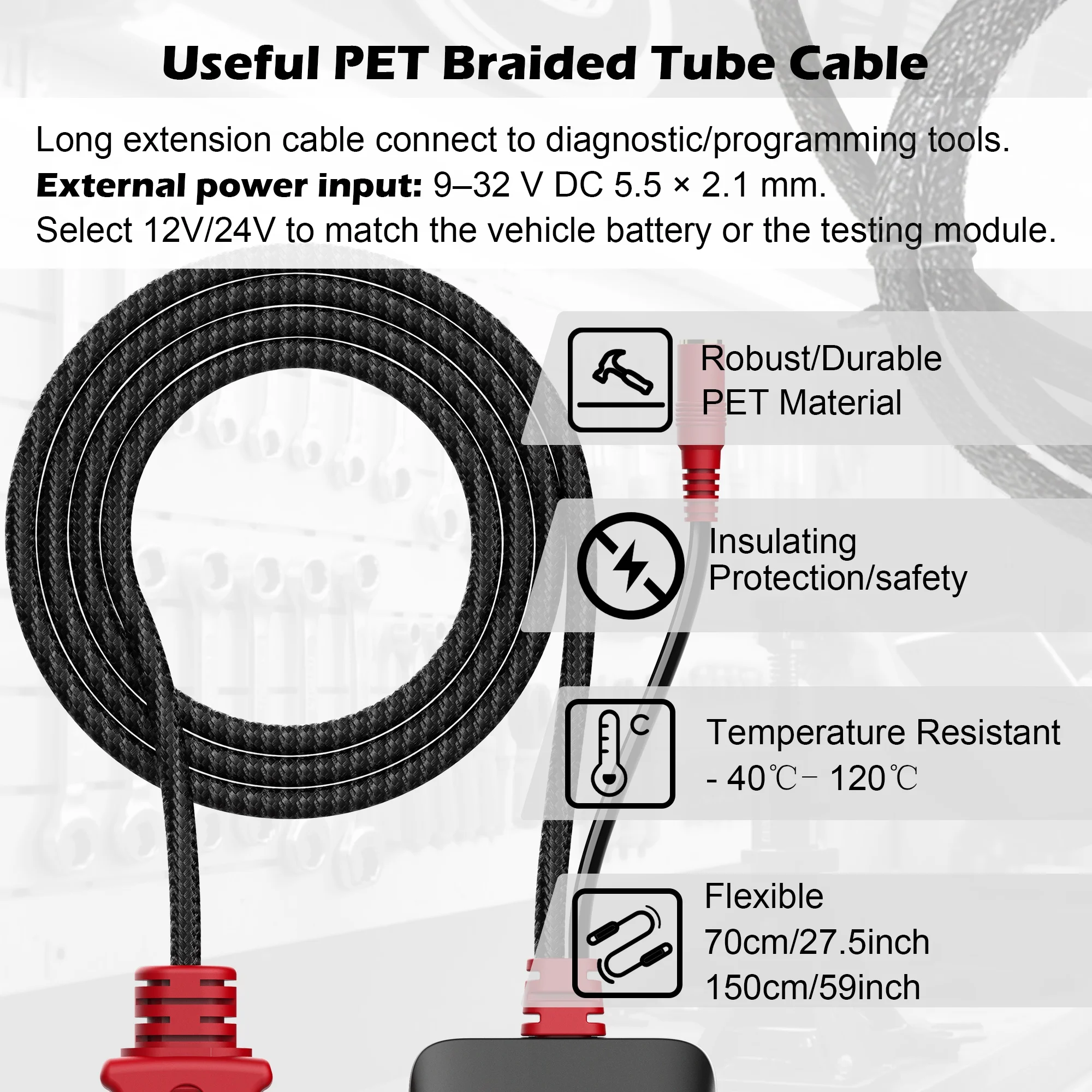

• Comes with a 70 cm extension lead for rapid hookup to other diagnostic tools.
• External power input accepts 9–32 V DC; selectable 12 V or 24 V to match the vehicle or test setup.
• Banana plug compatibility (1 mm / 2 mm / 4 mm) provides flexible connection options.
• OBD cable lengths available: 27 inches (70 cm) or 59 inches (150 cm).
• Power cable connector: 5.5 × 2.1 mm.

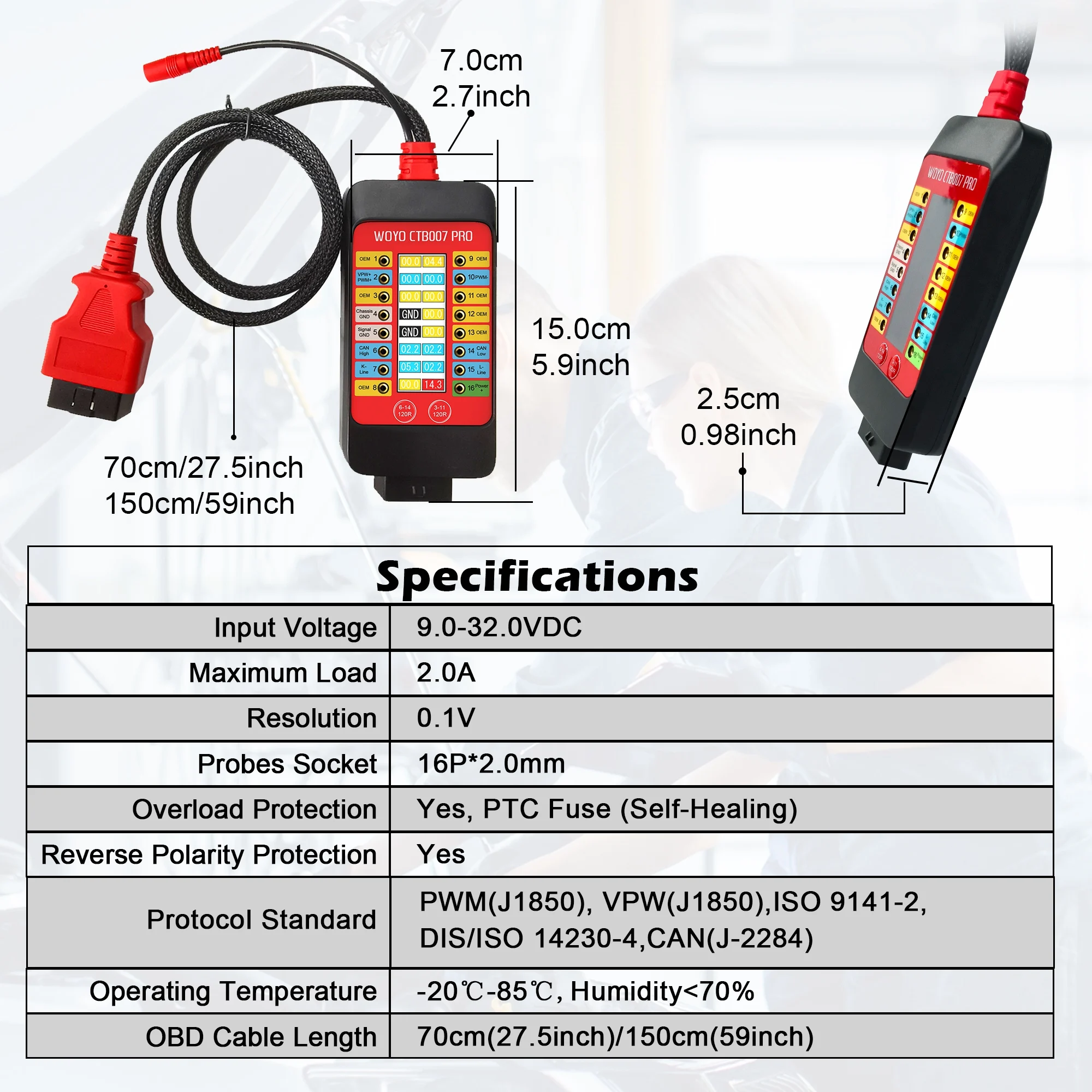

Technical Specifications at a Glance

• Input Voltage: 9.0–32.0 V DC
• Maximum Load: 2.0 A
• Resolution: 0.1 V
• Overload Protection: PTC self-healing fuse
• Reverse Polarity Protection: Yes
• Protocol Standards: PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, CAN (J-2284)
• Operating Temperature: -20°C to 50°C; Humidity < 70%
• Banana Socket: 2 mm × 10; 2 mm to 4 mm × 2
• OBD Cable Length: 27" / 70 cm or 59" / 150 cm
• Power Cable Connector: 5.5 × 2.1 mm

How to Use the WOYO CTB007 PRO Safely and Effectively

Setup and Connection

• Ensure the vehicle or bench supply is within the 9–32 V DC range.
• Select the correct voltage mode (12 V or 24 V) to match your test scenario.
• Connect the OBD harness and any diagnostic tools via the 70 cm extension lead for flexibility.

Using CAN Termination

• Activate the 120 Ω termination for bench or single-ECU tests to improve signal integrity.
• Ensure MS-CAN termination (pins 3 ↔ 11) is used only if the vehicle actually employs CAN on those pins.

Monitoring and Alarms

• Observe the LCD display for VRMS values and the status indicator (green background for dynamic signals).
• Heed audible alarms to avoid damaging ECUs due to under- or over-voltage conditions.

Safety Considerations

• This is a professional-use device; incorrect pin bridging or termination can cause ECU or wiring damage.
• Use the Quick Jumper only for OEM-approved procedures and within current-limited limits.
• Always verify ground presence before performing measurements to avoid erroneous readings.

Who Should Consider the WOYO CTB007 PRO?

• Automotive diagnostics technicians performing vehicle diagnostics and ECU development.
• Engineers and technicians engaged in bench testing, ECU programming, and prototype validation.
• Shops and fleets needing a versatile 12V/24V testing instrument with CAN capabilities and robust protection features.

Why Choose WOYO CTB007 PRO Over Other Tools?

• Full exposure of all OBD-II pins with real-time VRMS monitoring for quick health checks.
• Built-in CAN termination switch and ground/power integrity monitoring.
• Bench-friendly features like ignition wake-up support and memory saver for battery changes.
• Flexible connectivity with multiple banana plug sizes and two OBD cable lengths.

Final Thoughts

H4: Frequently Asked Questions (FAQs)

• Can I use this tool on both 12V and 24V systems? Yes, it supports both voltage levels and allows you to select the appropriate mode.
• What does the green background on the CAN/K-Line display indicate? It indicates dynamic, changing signal activity rather than static levels.
• Is CAN termination always required? Termination is recommended for bench/missing-terminator scenarios but should be OFF during normal vehicle use to avoid over-termination.
• How long are the OBD cables? Options are 70 cm or 150 cm, depending on your setup.
• Does it replace an oscilloscope? No, the real-time voltage view is a health check and does not replace an oscilloscope for waveform analysis.
