Sinotruck Diagnostic Scanner tool Weichai SINOTRUK Sitrak Truck Heavy Duty Diagsmart Cnhtc Chinese Diesel Engine

The Sinotruck EOL OBD Diesel Truck Scanner is the latest diagnostic tool designed for HOWO A7/T7H, Sitrak, and Hohan trucks. This advanced scanner supports Weichai Diagsmart, offering unparalleled functionality for engine diagnostics, data flashing, and maintenance.

With wireless connectivity and multi-language support, this tool is a must-have for technicians and fleet managers working with Chinese diesel engines.

Key Features of the Sinotruck EOL OBD Scanner

1. Enhanced Functionality

The new model includes two significant upgrades:

• Wireless Support: Enables seamless diagnostics without cumbersome cables.
• Compatibility with Weichai Diagsmart: Integrates with Weichai’s advanced diagnostic system for comprehensive engine analysis.

2. Multi-Language Support

The tool supports 7 languages, making it accessible globally:

• Arabic, Chinese, English, French, Portuguese, Russian, Spanish

3. Comprehensive Diagnostics

• Reading and clearing fault codes
• Data monitoring and parameter setting
• Active testing and signal monitoring
• Flashing and updating control units
• Removing speed limits

Technical Specifications

Hardware Details

• Operating System: Linux
• Processor: Dual-core Cortex-A7 + Cortex-M7
• Memory: 256MB
• Storage: 8GB
• Power Supply: DC9V-36V
• Connectivity: USB 2.0 (Type B), Wi-Fi (2.4G/5GHz)
• Weight: 310g
• Working Temperature: -10℃ to 50℃

Supported Protocols

Compliant with J2534 and RP1210 standards, the scanner supports:

• CANBUS, CAN-FD, ISO 15765
• DOIP, J1850, BTSJ1708

Package Contents

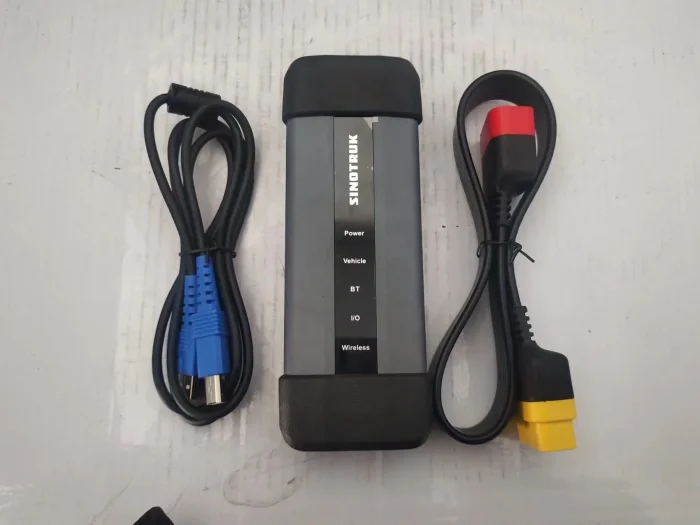

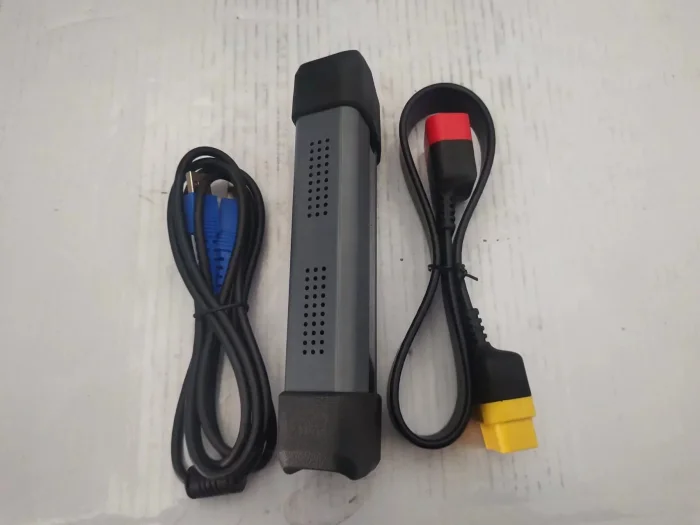

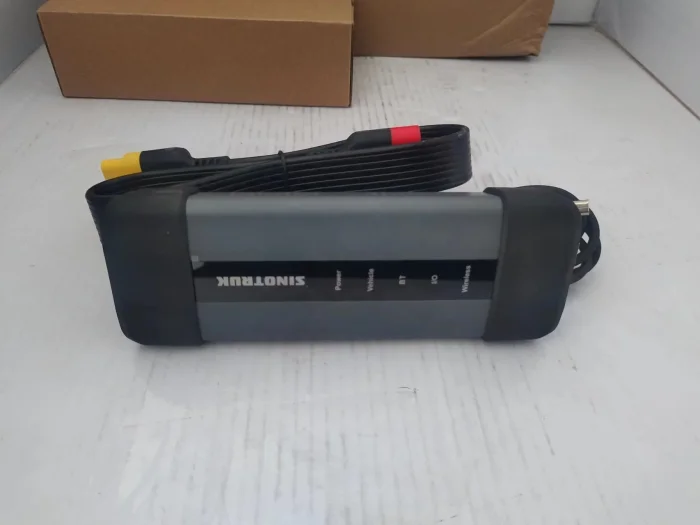

The CF19 Sinotruck Kit includes:

1. HOWO Interface ×1
2. OBD Cable ×1
3. USB Cable ×1
4. Optional: Panasonic CF19 Laptop (pre-installed with the latest software)

Panasonic CF19 Laptop Specifications (Optional)

• Model: CF-19
• Processor: Intel Core i5-3320
• Memory: 4GB RAM (3.89GB usable)
• Storage: 256GB SSD
• Condition: Used

Software and Support

• Latest Software Version: 1.883
• Download Link: Sinotruck Software Download
• Account Provision: Purchasers receive a login account for software access.

Why Choose This Diagnostic Tool?

• Wide Application: Covers SINOTRUK, Sitrak, HOWO, Weichai, SHACMAN, and Denso vehicles.
• Portable and Powerful: Compact design with robust diagnostic capabilities.
• Affordable: Competitive pricing for advanced features.

Conclusion

The Sinotruck EOL OBD Diesel Truck Scanner is a cutting-edge diagnostic tool for HOWO, Sitrak, and Weichai engines. With wireless support, multi-language compatibility, and comprehensive diagnostics, it’s an essential tool for modern truck maintenance.

For more details or to purchase, visit the official software download page or contact the supplier for account setup.
