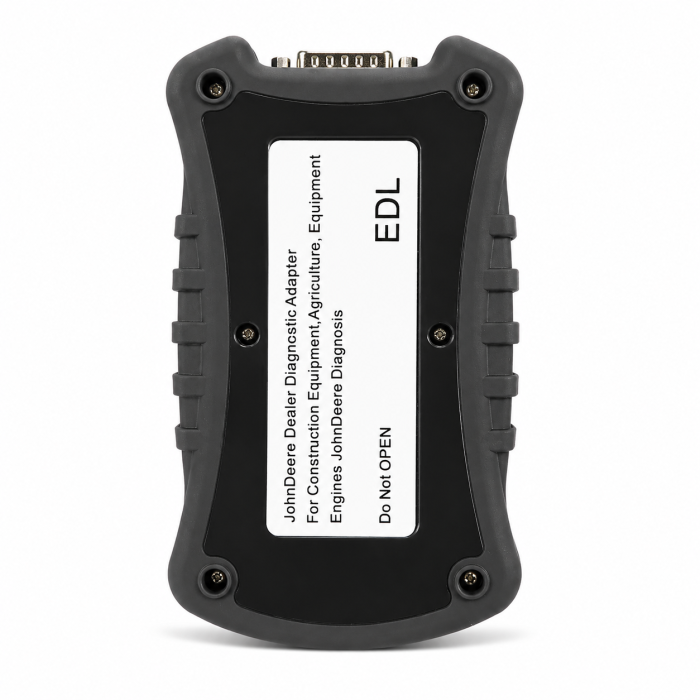

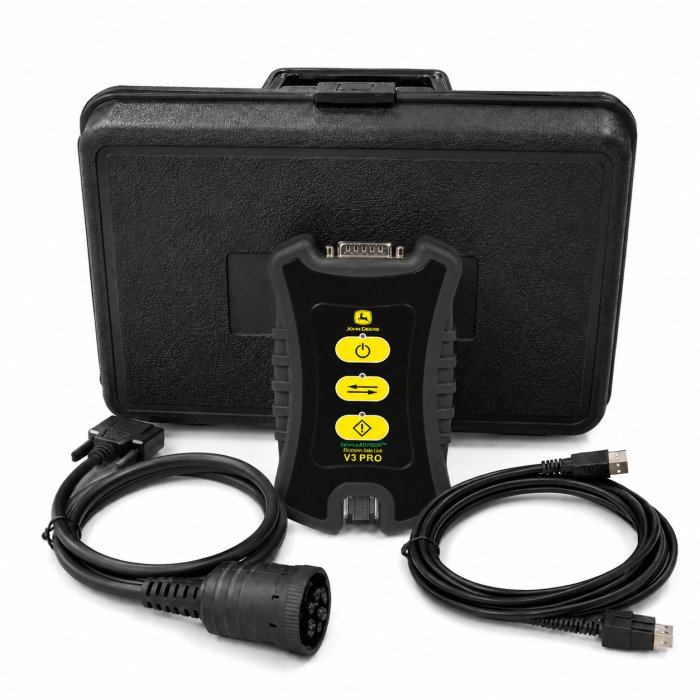

Newest John Deere EDL V3 Pro Diagnostic Scanner Agricultural Building Electronic Data Link with Internal Service Advisor AG & CF

The John Deere EDL V3 Pro is the latest dealer-level diagnostic adapter designed for John Deere agricultural, construction, forestry, and commercial equipment. Combined with John Deere Service Advisor 5.4.84 AG & CF software, it provides complete diagnostic, calibration, programming, troubleshooting, and repair capabilities for machines manufactured through 2026.

Whether you are a dealer, repair workshop, fleet manager, or independent technician, the John Deere EDL V3 Pro diagnostic tool delivers professional-grade functionality equivalent to dealer service systems.

What is John Deere EDL V3 Pro?

The John Deere EDL V3 Pro (Electronic Data Link Version 3 Professional) is an advanced communication interface that connects John Deere equipment to Service Advisor software.

It allows technicians to:

• Read and clear fault codes
• Perform ECU diagnostics
• Execute calibrations
• Run interactive tests
• Program controllers
• Access technical manuals
• View hydraulic and electrical schematics
• Monitor live machine data

The EDL V3 Pro replaces older EDL V2 adapters and introduces improved wireless communication, faster processing, and enhanced CAN Bus support.

Key Features of John Deere EDL V3 Pro

Dealer-Level Diagnostics

The John Deere EDL V3 Pro provides the same diagnostic capabilities used by authorized dealerships.

Functions include:

• Diagnostic Trouble Code (DTC) reading
• ECU programming
• Controller configuration
• System troubleshooting
• Component activation tests
• Performance monitoring

Wireless Connectivity

Compared with previous generations, the EDL V3 Pro offers:

• Built-in WiFi communication
• Extended wireless operating range
• Faster Bluetooth 2.1 EDR connection
• Stable J1939 communication

Enhanced Hardware Design

The latest adapter includes:

• Automotive-grade locking USB connector
• Upgraded communication processor
• Increased RAM memory
• Improved CAN Bus recording capability
• Higher data transfer speeds

John Deere EDL V3 Pro vs EDL V2

Hardware Improvements

EDL V3 Pro

• Original V3 hardware platform
• WiFi enabled
• Increased RAM
• Faster communication processor
• Extended wireless range
• Enhanced Bluetooth performance

EDL V2

• Older hardware design
• No integrated WiFi
• Standard communication processor
• Limited wireless functionality

Software Compatibility

Both adapters support:

• John Deere Service Advisor AG
• John Deere Service Advisor CF

However, the John Deere EDL V3 Pro provides better communication stability and improved support for modern equipment.

Compatible John Deere Service Advisor Software

Service Advisor AG 5.4.84

Agriculture coverage includes:

Tractors

• 1 Series
• 2 Series
• 3 Series
• 4 Series
• 5 Series
• 6 Series
• 7 Series
• 8 Series
• 9 Series

Harvest Equipment

• Combines
• Headers
• Cotton Harvesters
• Sugar Cane Harvesters

Planting Equipment

• Seeders
• Planters
• Precision Agriculture Systems

Crop Care Equipment

• Sprayers
• Tillage Equipment
• Hay & Forage Machines

Service Advisor CF 5.4.84

Construction & Forestry coverage includes:

Construction Equipment

• Excavators
• Skid Steers
• Wheel Loaders
• Backhoes
• Crawlers
• Motor Graders

Forestry Equipment

• Harvesters
• Forwarders
• Skidders
• Feller Bunchers
• Delimbers
• Log Loaders

Commercial Equipment

• Utility Vehicles
• Commercial Turf Equipment
• Consumer Lawn Equipment

Diagnostic Functions of John Deere EDL V3 Pro

Fault Code Diagnostics

The system can:

• Read active fault codes
• Read stored fault codes
• Clear diagnostic codes
• Analyze system failures

ECU Programming

Supported programming operations include:

• Controller replacement
• Software updates
• Parameter configuration
• Module initialization

Calibration Procedures

Common calibrations include:

• Hydraulic systems
• Transmission systems
• Steering systems
• Sensor calibrations

Interactive Testing

Technicians can perform:

• Injector tests
• Solenoid tests
• Fan control tests
• Hydraulic valve tests
• Electrical system tests

Technical Documentation Included

The John Deere EDL V3 Pro package provides access to:

Repair Manuals

Complete workshop repair procedures.

Service Manuals

Dealer-level service instructions.

Wiring Diagrams

Detailed electrical schematics.

Hydraulic Diagrams

Complete hydraulic circuit documentation.

Assembly & Disassembly Procedures

Step-by-step repair guidance for:

• Engines
• Transmissions
• Hydraulic systems
• Major machine components

Supported Operating Systems

Windows Compatibility

The software supports:

• Windows 10 64-bit
• Windows 11 64-bit

Storage Requirements

Available SSD options:

• 512GB SSD
• 1TB SSD

Latest database coverage extends through:

• AG Database 2026
• CF Database 2026

Why Choose John Deere EDL V3 Pro?

Professional-Level Solution

The John Deere EDL V3 Pro offers functionality equivalent to dealership diagnostic systems.

Latest Equipment Coverage

Supports John Deere equipment up to 2026 database releases.

Multi-Language Support

Available languages:

• English
• French
• Italian
• Spanish
• Portuguese
• German
• Russian

John Deere Service Advisor Supported Models

1. Agriculture Equipment

Tractors

20 Series:

• 5620, 5720, 5820

5000 Series:

• 5105, 5205, 5210, 5220, 5225, 5300, 5310, 5320, 5325, 5400, 5410, 5420, 5425, 5500, 5510, 5520, 5525, 5603, 5625, 5725

5000M Series:

• 5065M, 5075M, 5085M, 5095M, 5105M

5000E Series:

• 5045D, 5045E, 5055D, 5055E, 5065E, 5075E, 5083E, 5093E, 5101E

3000 Series:

• 3005, 3032E, 3036E, 3038E, 3120, 3203, 3320, 3520, 3720

4000 Series:

• 4010, 4100, 4105, 4110, 4115, 4120, 4200, 4210, 4300, 4310, 4320, 4400, 4410, 4500, 4510, 4520, 4600, 4610, 4700, 4710, 4720

Compact Tractors:

• 2210, 2305, 2320, 2520, 2720

Classic Models:

• 655, 755, 770, 790, 855, 870, 955, 970, 990HC, 1050, 1070

Combines & Harvesters

• Combines, Headers, Cotton Harvesters, Sugar Cane Harvesters

Planting & Seeding

• DB84, DB96

Sprayers

• HD200 Sprayer

Precision Agriculture / Electronics

• GPS Receiver, Guidance, Display, Telematics, Information Management

2. Construction Equipment

Excavators

D Series:

• 17D, 27D, 35D, 50D, 60D

ZTS Series:

• 17ZTS, 27ZTS, 35ZTS, 50ZTS

CZTS Series:

• 27CZTS, 35CZTS, 50CZTS

Skid Steers

D Series:

• 318D, 319D, 320D, 323D, 326D, 328D, 329D, 332D, 333D

Older Models:

• 240, 250, 260, 270, 280, 317, 320, 325, 328, 332

Loaders

• 244J, 304J, Compact Loader, Landscape Loader, 4WD Loader

Other Construction Machines

• Backhoe, Crawler, Motor Grader, Scraper, Compactor, Forklift, Utility Vehicles

3. Forestry Equipment

• Delimber, Feller Buncher, Harvester, Harvester Head, Log Loader, Logger, Forwarder, Skidder, Tree Harvester, Winch

4. Turf & Lawn Equipment

X Series Mowers

• X110, X120, X130R, X140, X300, X304, X320, X324, X340, X360, X500, X520, X530, X534, X540, X700, X720, X724, X728, X729, X740, X744, X748, X749

Z Zero-Turn Mowers

• Z225, Z245, Z425, Z445, Z465, Z510A, Z520A, Z710A, Z720A, Z810A, Z820A, Z830A, Z840A, Z850A, Z860A, Z910A, Z920A, Z925A, Z930A, Z950A, Z960A, Z970A

LA Series

• LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175

LT / LX Series

• LT133, LT150, LT155, LT160, LT166, LT170, LT180, LT190
• LX172, LX173, LX176, LX178, LX186, LX188, LX255, LX266, LX277, LX277AWS, LX279, LX280, LX280AWS, LX288, LX289

5. Gator / Utility Vehicles

• 4x2, 4x2E, 6x4, 6x4D, HPX, XUV 4x4 Gas, XUV 4x4 Diesel, XUV Trail 4x4 Gas, 620i, 625i, 825i, 850D

6. Attachments

Mower Attachments

• 42C, 48C, 54C, 62C, 64C, 72C

Front Loaders

• 300, 300X, 300CX, 553

Trencher / Backhoe Attachments

• BH7, BH8, BH9, BH11

Snow Blowers

• SB60, SB72, SB78, SB84

Rotary Tillers

• RT52, RT55, RT66

7. Power & Electronics

Engines

• OEM Engines, Commercial Engines

Electronics

• Display, Telematics, Information Management, Guidance, GPS Receiver

Hydraulics & Transmission

• Hydraulic Power Pack, Transmission, Axles, PTO

Frequently Asked Questions

Does John Deere EDL V3 Pro support Service Advisor 5.4.84?

Yes. The adapter is fully compatible with Service Advisor 5.4.84 AG and CF versions.

Can the EDL V3 Pro program ECUs?

Yes. It supports ECU programming, controller replacement, calibration, and software updates.

Is the John Deere EDL V3 Pro compatible with construction equipment?

Yes. It supports John Deere Construction & Forestry equipment, including excavators, loaders, skid steers, and forestry machines.

Does it include repair manuals?

Yes. Service Advisor provides repair manuals, wiring diagrams, hydraulic diagrams, and service procedures.

Conclusion

The John Deere EDL V3 Pro is the most advanced diagnostic adapter available for John Deere agricultural and construction equipment. Combined with Service Advisor 5.4.84 AG & CF, it delivers dealer-level diagnostics, ECU programming, calibration, troubleshooting, and technical documentation for machines through 2026. For professional workshops and service technicians, the John Deere EDL V3 Pro remains the preferred solution for comprehensive John Deere diagnostics.
