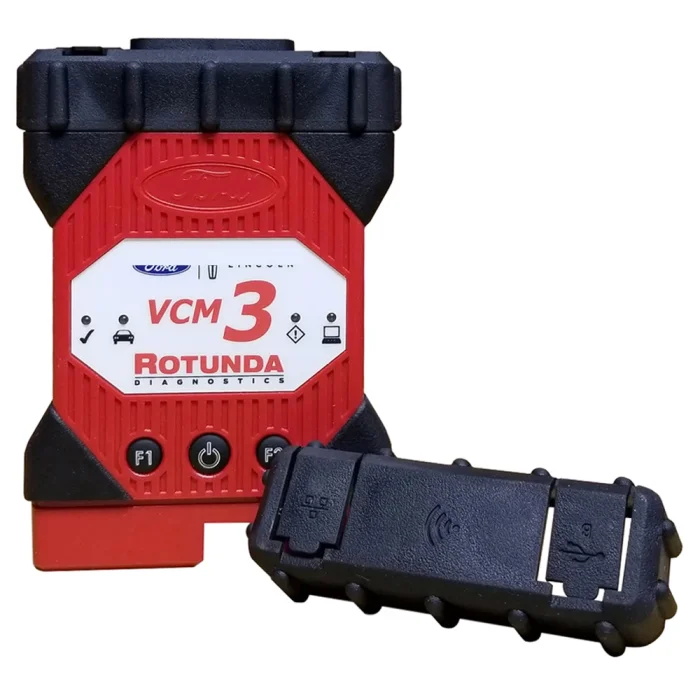

Original Ford VCM3 Diagnostic Tool Your Comprehensive Solution for Ford and Mazda Vehicles

The Original Ford VCM3 Diagnostic Tool is an essential interface designed for professional mechanics and automotive technicians working with Ford and Mazda vehicles. This Ford diagnostic tool supports a wide range of diagnostic functions, programming capabilities, and is compatible with original software drivers, ensuring exceptional performance and accuracy.

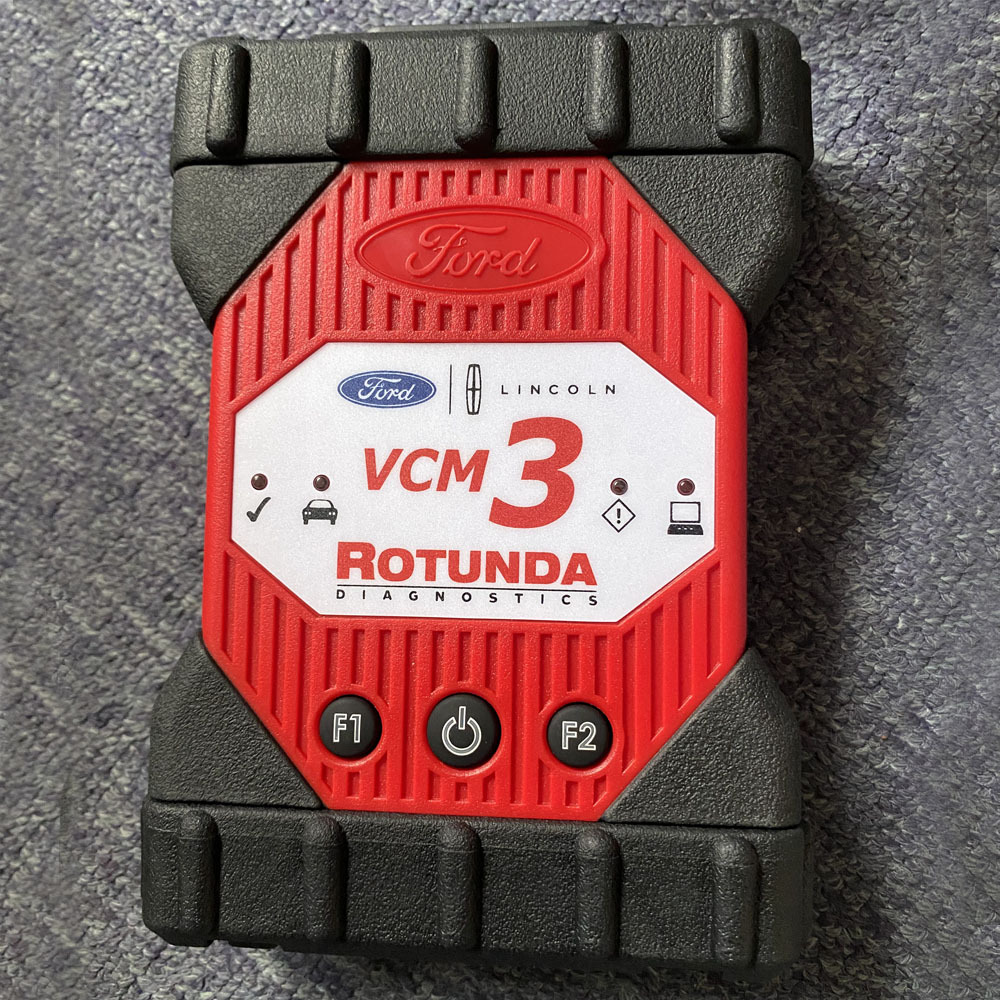

Overview of the Ford VCM3

The Ford VCM3 interfaces seamlessly with the Ford IDS and Mazda IDS diagnostic applications on Windows PCs to facilitate thorough diagnostics for Ford, Lincoln, and Mercury vehicles. This means you can perform dealer-level diagnostics and take advantage of its full 16-pin OBD-II capabilities.

Ford VCM3 Key Features

1. Broad Vehicle Compatibility:

   • Supports Ford vehicles from 1996 to 2023+
   • Compatible with Mazda vehicles from 1996+ to 2023+

2. Advanced Communication Protocols:

   • Supports CAN FD and DoIP communication, ensuring efficient data transfer.
   • Allows for diagnostics and programming of new Ford models and pickup trucks.

3. Multiple Connection Methods:

   • USB connection
   • WIFI direct connection
   • Wireless LAN connection

4. Enhanced Wireless Functionality:

   • Improved 802.11 wireless connectivity reduces dependency on infrastructure.
   • SmartPower Management system safeguards against extreme environmental conditions.

5. User-Friendly Interface:

   • Four LED indicators and signaling devices provide continuous visual and audible feedback on operating status.

Diagnostic Functions

The ford VCM3 offers a comprehensive range of functions including:

• Automatic Vehicle Recognition: Quickly identifies vehicle details.
• Read & Clear Diagnostic Trouble Codes (DTCs): Efficiently manages error codes.
• Live Data-stream Recording: Stream and playback live data from main ECUs.
• Guided Fault Finding: Simplifies troubleshooting.
• Re-flashing Software: Update existing ECUs with new software.
• Programming New Keys: Set up new keys with ease.
• Injector Coding and DPF Regeneration: Essential for maintenance tasks.
• Advanced Systems Programming: Program and install ECUs including PCM, ABS, and more.
• All Dealer Functions: Full access to dealer-level functionalities.

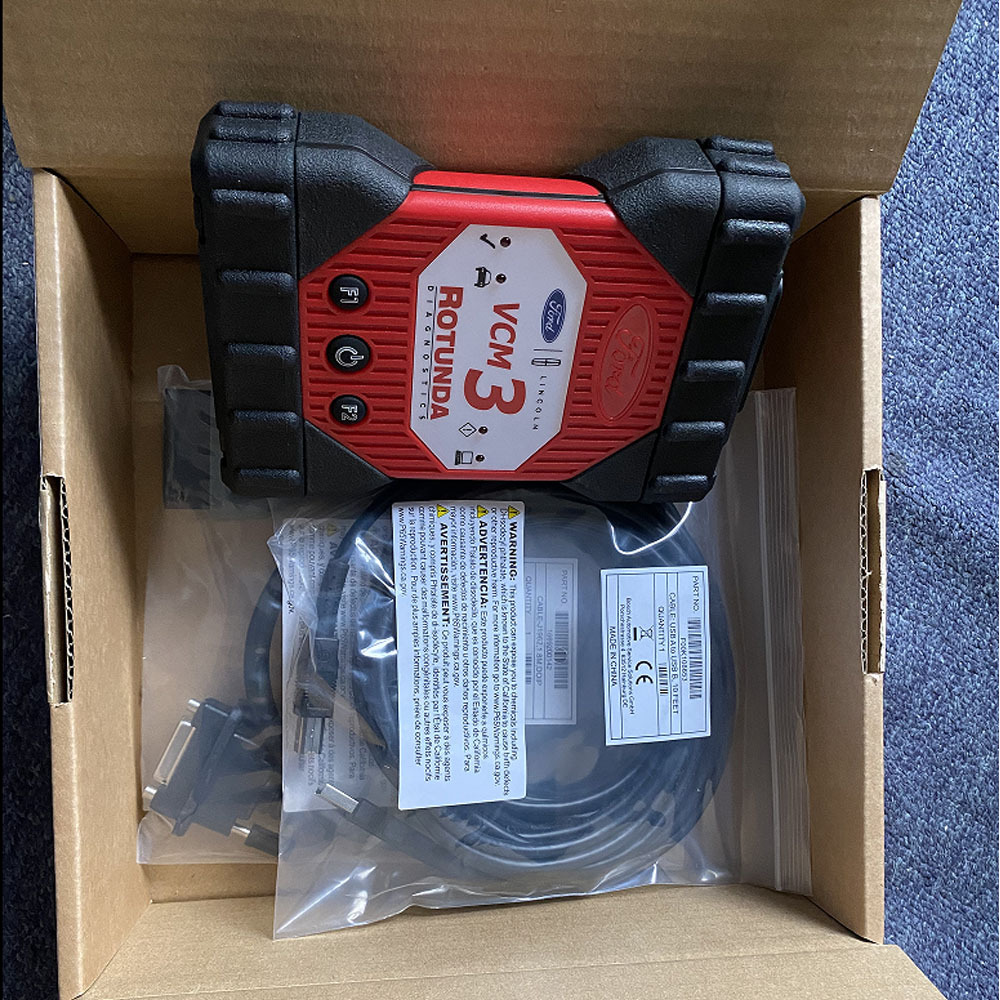

Packing List

The original Ford VCM 3 Diagnostic Tool package includes:

• 1pc × Ford VCM3 Interface (Part No. R6419865)
• 1pc × DLC Cable
• 1pc × USB Type-B Cable
• 1pc × Wireless Adapter
• 1pc × User Manual
• 1pc × Packing Box

Compatible Software

Please note that while the VCM3 ford supports software like Ford IDS, FDRS, and Mazda IDS, these must be purchased separately.

Ford VCM 3 vs Ford VCM 2 Detailed Comparison

Many technicians still rely on VCM II, but its aging hardware is being phased out, with VCM 3 as Ford's official Rotunda replacement and dealer standard. Here's a breakdown of key improvements:

Conclusion

In summary, the Original Ford VCM3 Diagnostic Tool is a robust solution for anyone servicing Ford and Mazda vehicles. Its compatibility with advanced communication protocols and a wide range of diagnostic functions makes it an invaluable tool for automotive professionals.
