    • Product Name: Newest Opel Opcom V1.99 sanner with PIC18F458 FTDI Chip CAN OBD2 Diagnostic Tool covers almost for all For Opel cars
    • Item NO.: 1005007032940596
    • Weight: 0.2 kg = 0.4409 lb = 7.0548 oz
    • Category: Car Diagnostic Tools > For Ford/GM/Opel/Saab
    • Creation Time: 2024-05-28
    • Top Quality V1.99 OPcom PIC18F458 FTDI Chip 200603a Op-com OBD2 Car Diagnostic Tool for Opel OPCOM flash update 2024 OPCOM V1.99



    OPcom V1.99 with PIC18F458 FTDI op-com OBD2 Auto Diagnostic tool for Opel OPCOM can be flash update 2020 high quality OP COM


    Newest OPcom V1.99 Description :


    V1.99 Opcom Obd2 Scan Tool With Pic18F458 chip and FTDI Chip covers almost for all FOR Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.


    Opcom OP-Com  Firmware V1.99 Highlights:


    1. Language: English

    2.Software Version: V2014

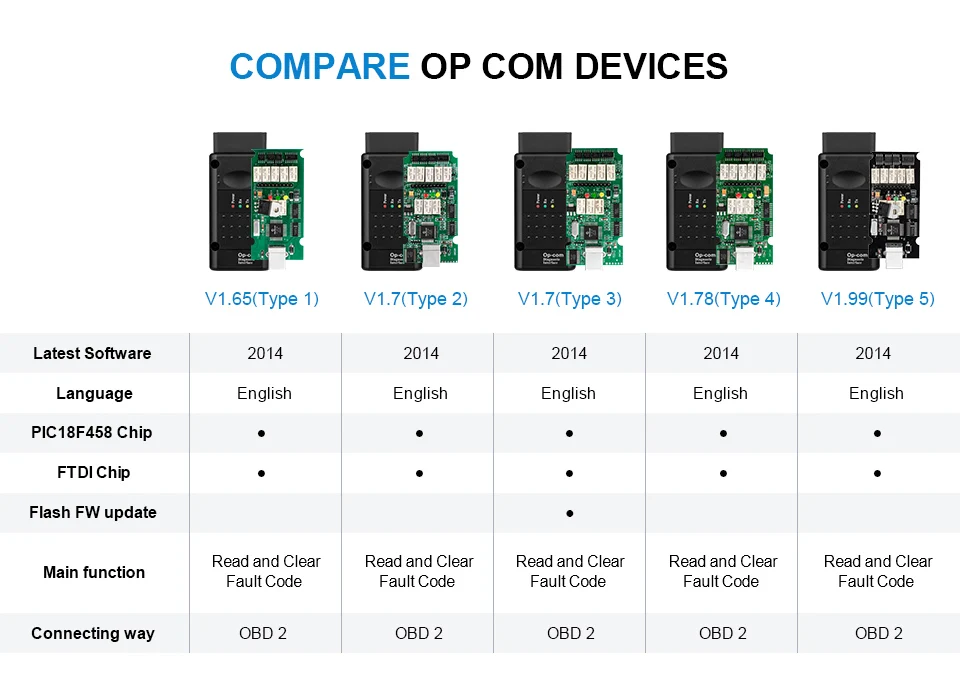

    Hardware Version: V1.99 / 1.65/ V1.7/V1.78

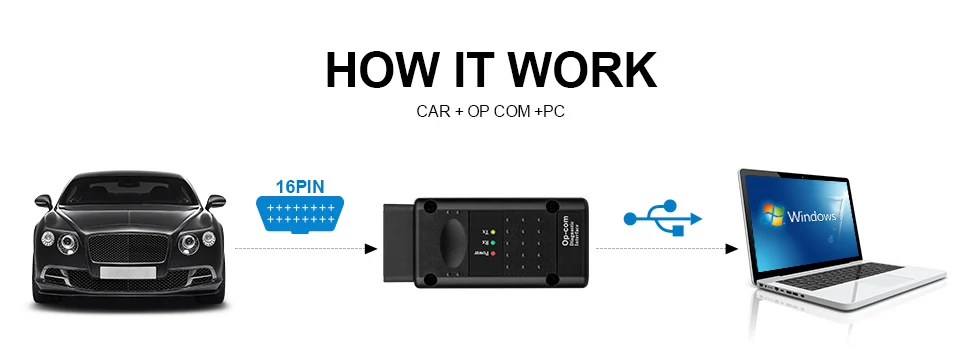

    3. OP-COM - PC based FOR Opel diagnostic tool, work on FOR Opel till year 2014

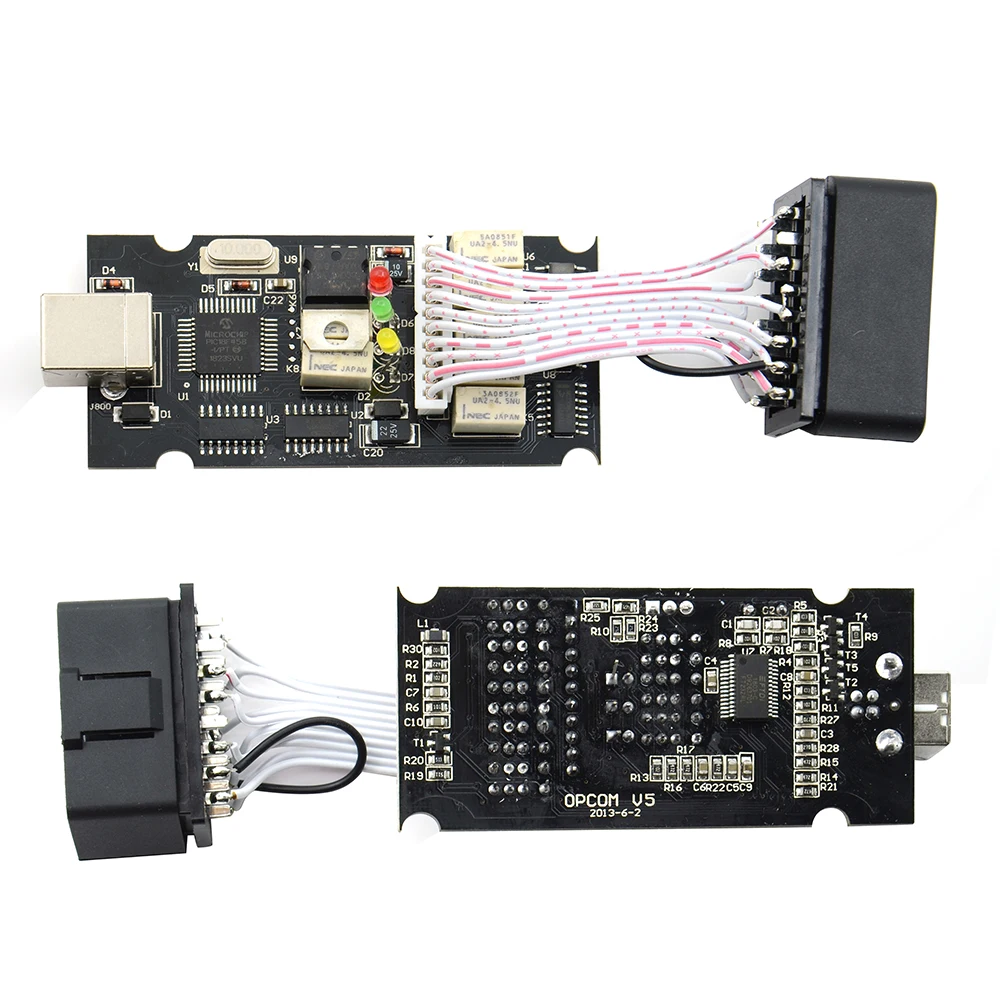

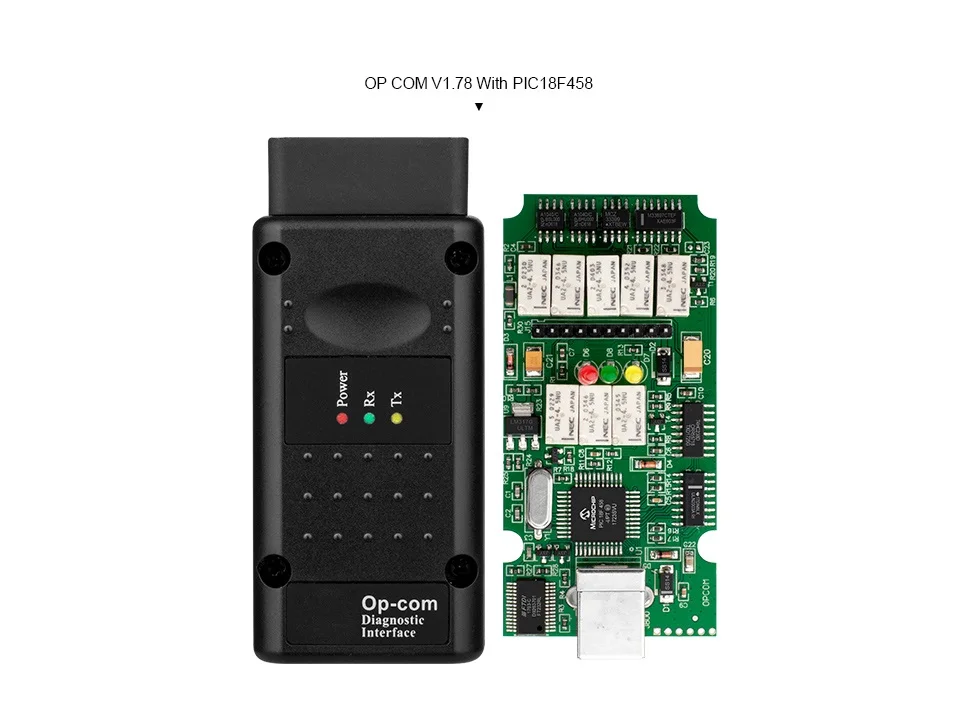

    4. With PIC18F458 FT232RL Chip, work more stable

    5. It can work on both Windows XP and 7 32bit now(close anti-virus program)


    OPCOM Function:

    1. It covers almost all FOR Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

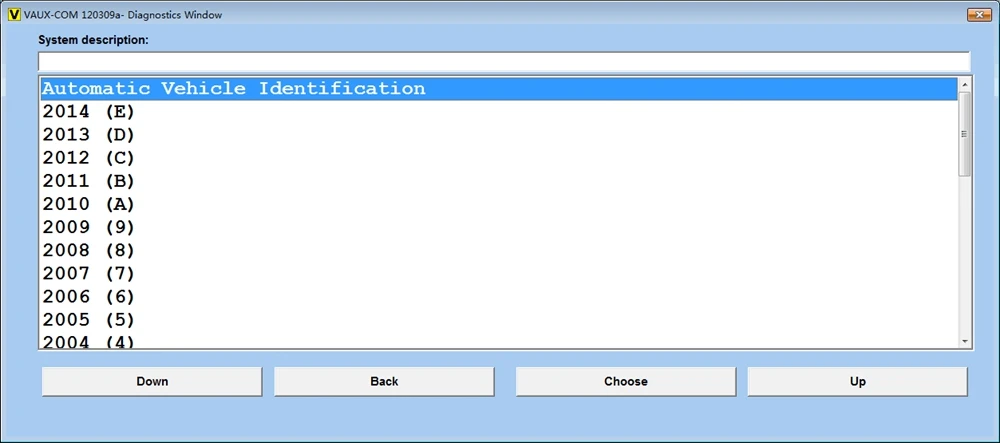

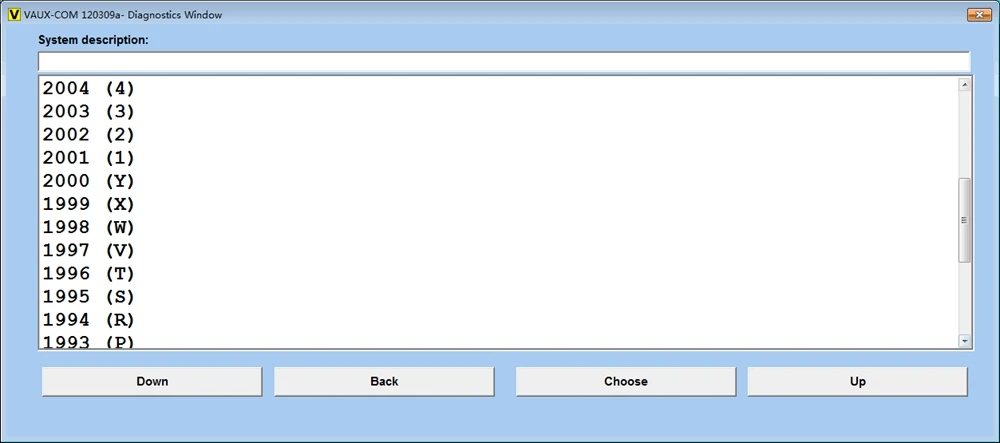

    2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

    3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

    4. Since FOR Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

    PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

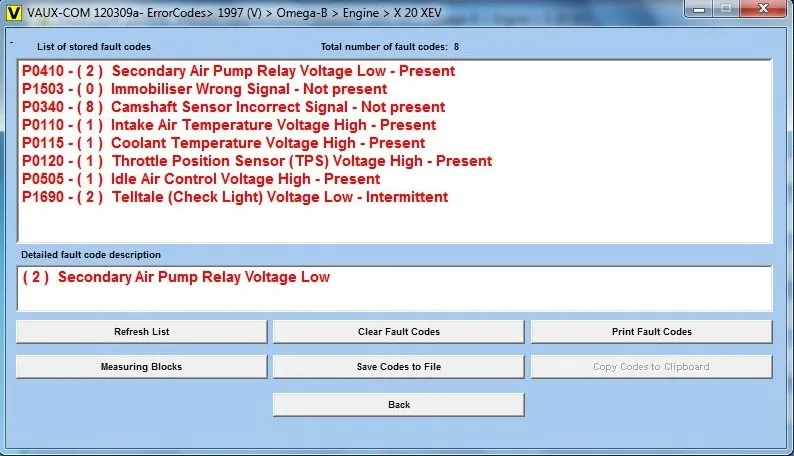

    5. Fault codes will be shown with all available information




    Full fault code text description:

    1) Full status information (Present, Not present, Intermittent)
    2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
    3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.
    4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!



    You can also run output tests on many controllers:


    PIN6-PIN14
    PIN3-PIN11
    PIN1
    HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
    MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
    SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

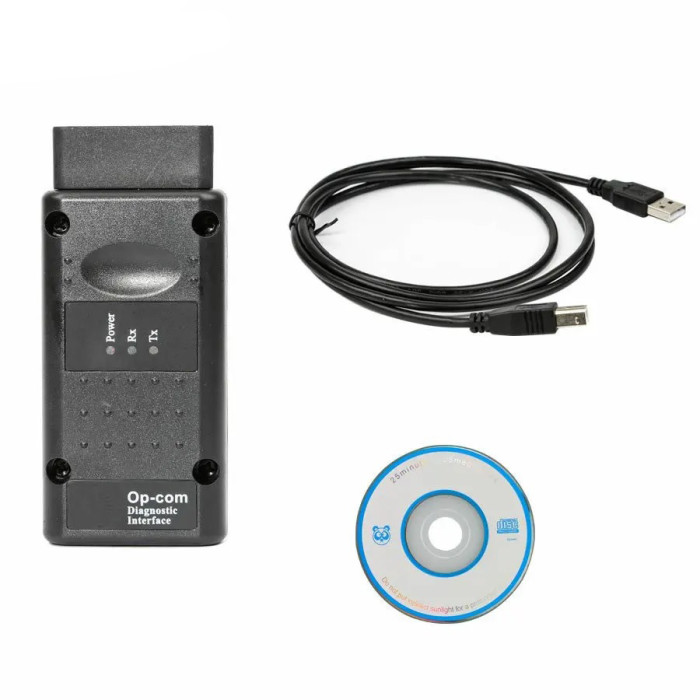

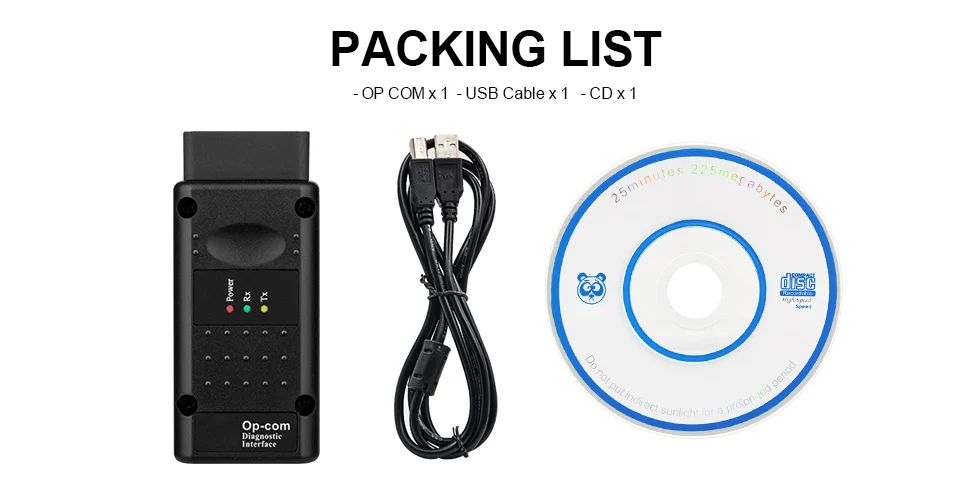

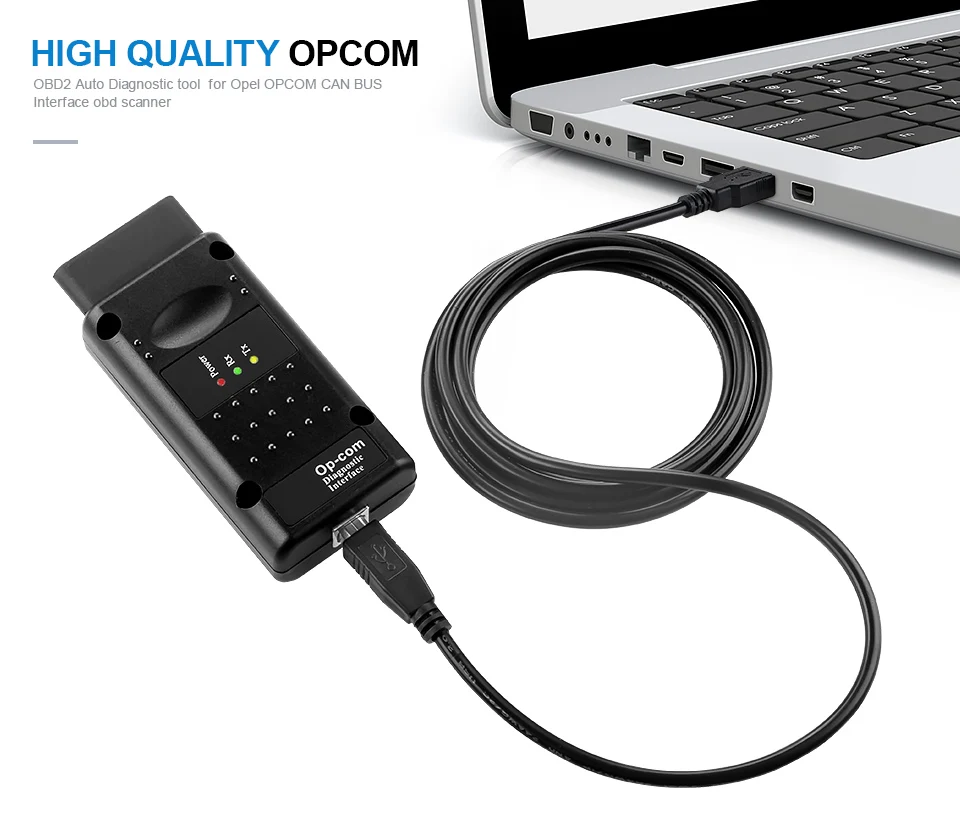

    Opel CAN OBD2 Diagnostic Tool OPCOM Package List:


    1pc × OPCOM Interface

    2pc × USB Cable

    3pc × Software and Drivers CD


    Note:If buyer received unreadbale CD or damaged,please feel free ask me to send you download link .Do not open dispute or leave negative feedback . Thank you very much.


    Opel Opcom V1.99 list

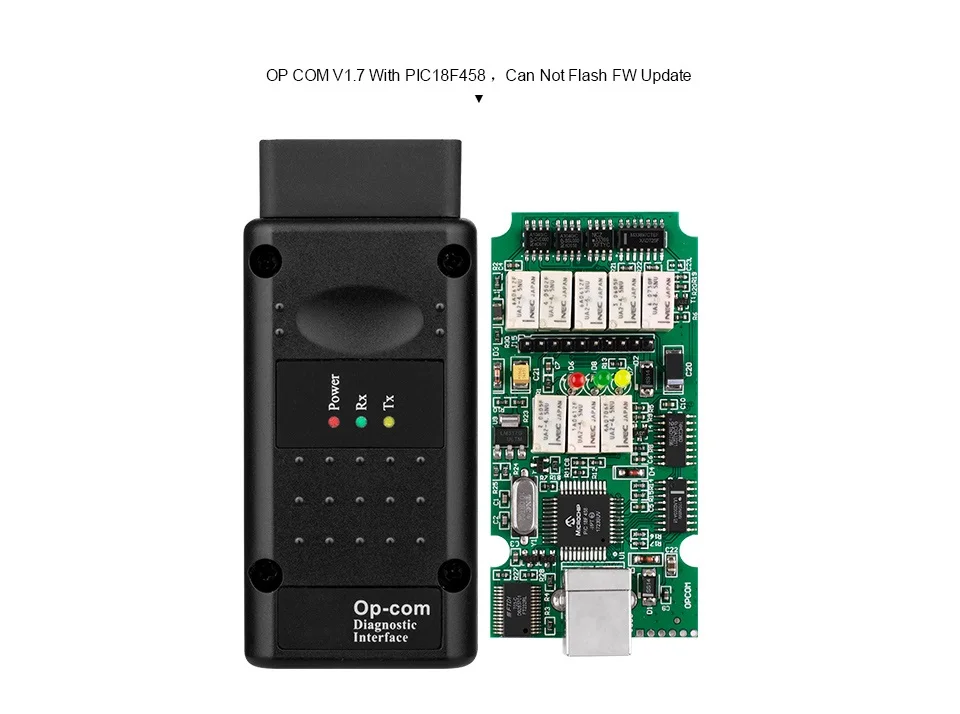

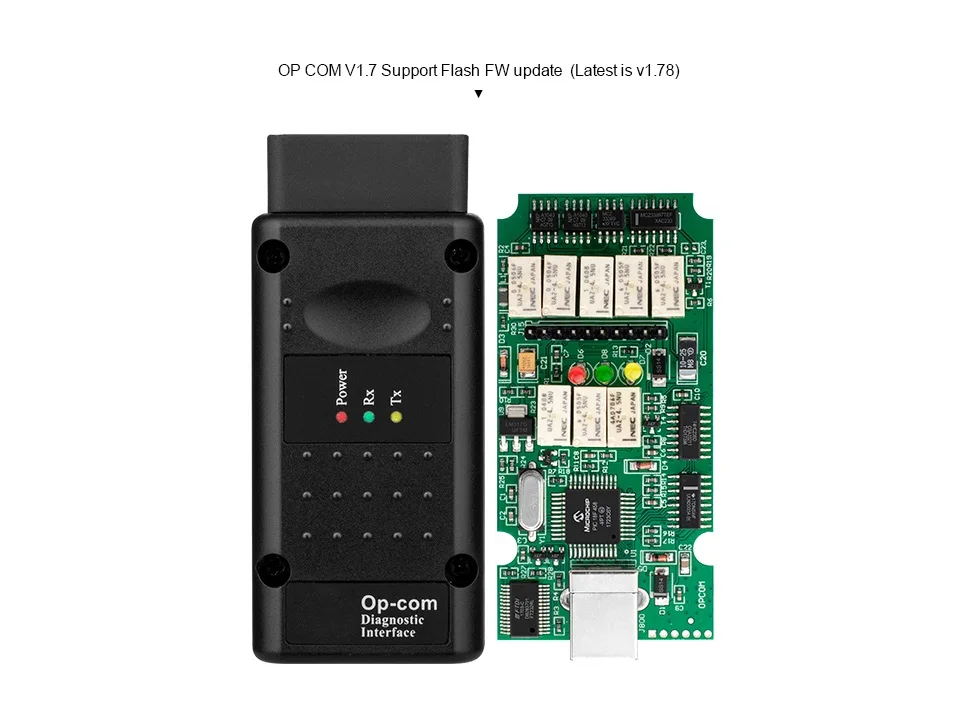

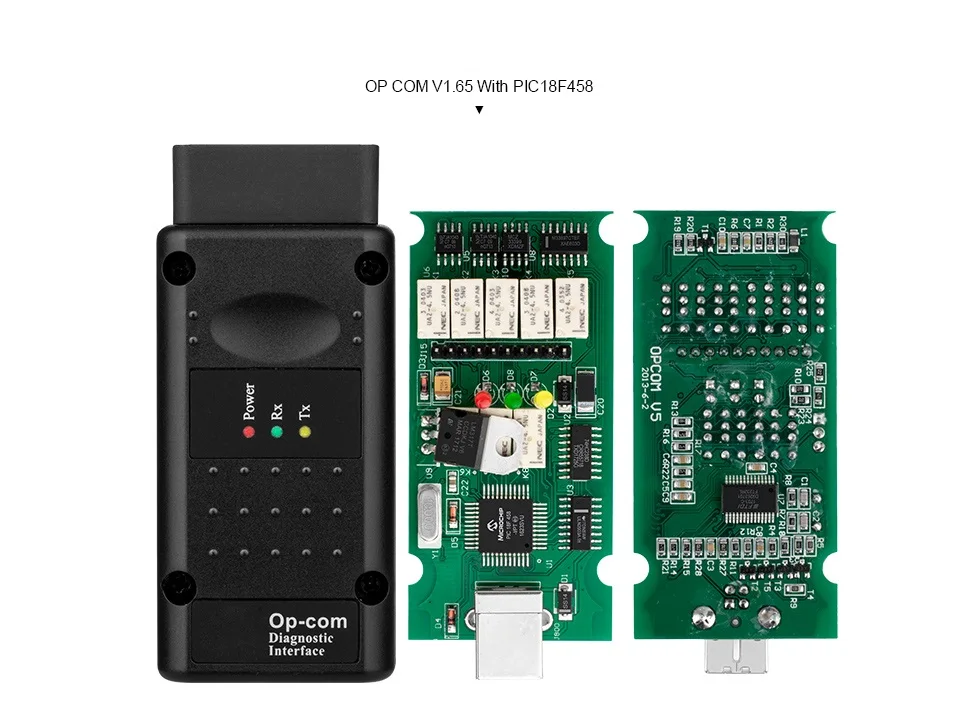

    OP COM v1.7OP COM V1.65
