Autel MaxiTPMS TS508WF TPMS Programming Tool Activate All Sensors Scan Read Clear DTCs Reset

The Autel MaxiTPMS TS508WF is a cutting-edge diagnostic and service tool designed for professionals and enthusiasts alike to manage Tire Pressure Monitoring Systems (TPMS) efficiently. With its advanced features, intuitive interface, and seamless Wi-Fi updates, this tool stands out as a must-have for modern automotive servicing.

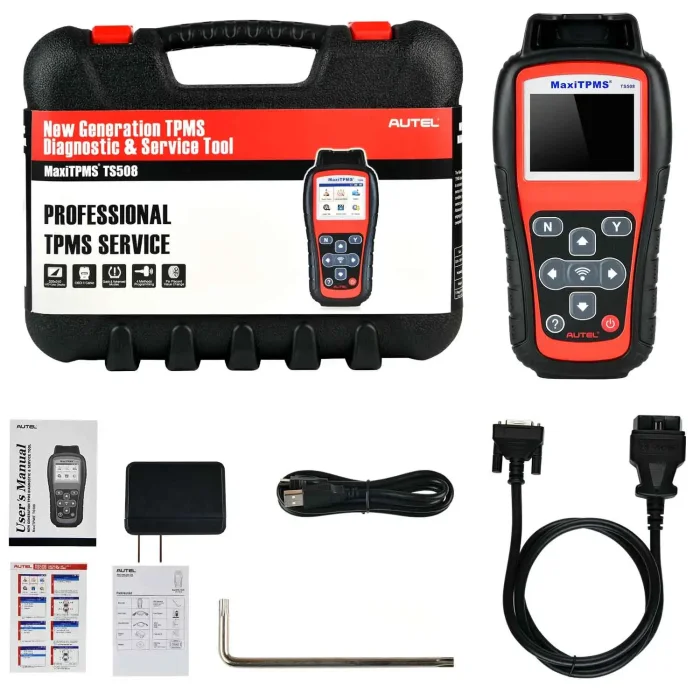

Overview of Autel MaxiTPMS TS508WF

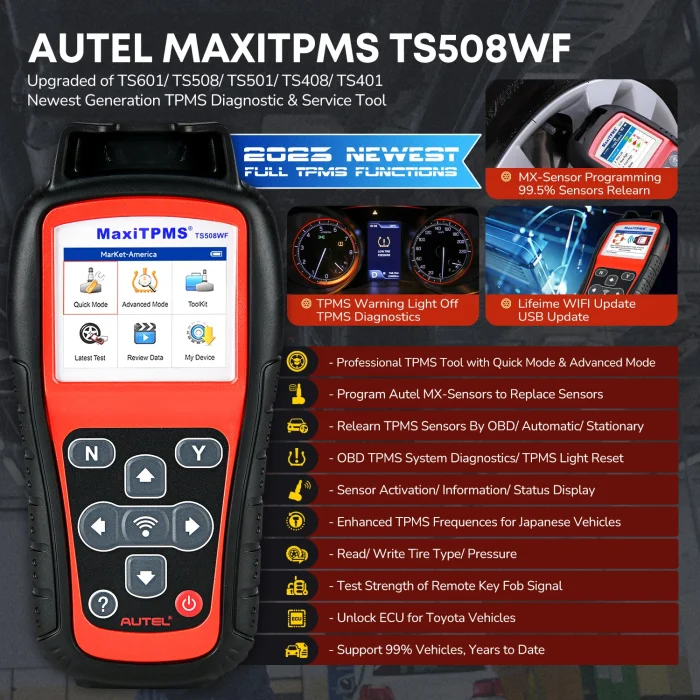

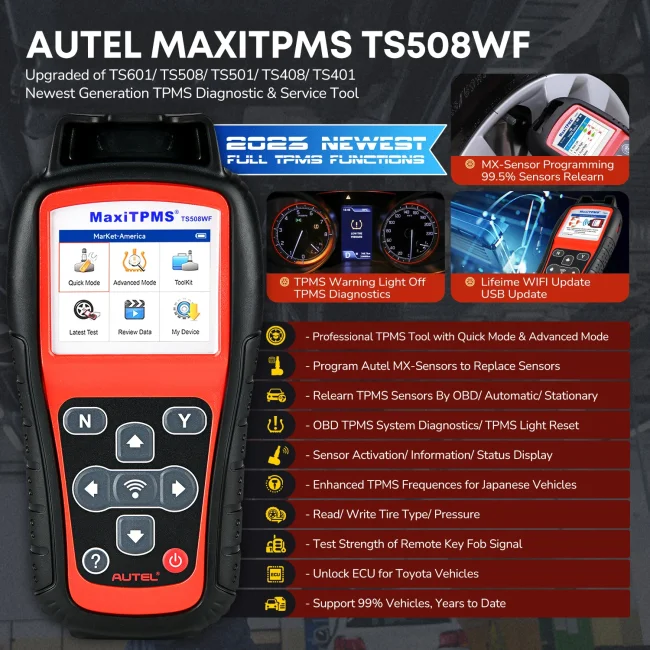

The TS508WF is part of Autel's latest generation of TPMS tools, offering a comprehensive solution for activating, diagnosing, and servicing TPMS sensors. Whether you're a tire shop professional, a repair shop technician, or a car enthusiast, this tool is designed to streamline TPMS-related tasks.

Key Features of the Autel MaxiTPMS TS508WF

• Wi-Fi and USB Updates: Enjoy convenient updates via Wi-Fi or USB, ensuring your tool stays up-to-date with the latest software and vehicle databases.
• Dual-Mode Operation: Choose between Quick Mode for fast installs and Advanced Mode for detailed diagnostics.
• Vehicle-Specific Database: Supports domestic, Asian, and European vehicles with detailed relearn procedures for OE and aftermarket sensors.
• Batch Programming: Program up to 16 sensors at once, saving time and effort.
• Advanced Diagnostics: Read and clear TPMS DTCs, reset the malfunction indicator light, and retrieve sensor data such as pressure, temperature, and battery status.

How the Autel MaxiTPMS TS508WF Works

The TS508WF is built to handle all aspects of TPMS servicing, from activation to relearn procedures. Here’s a breakdown of its functionality:

1. TPMS Activation and Diagnostics

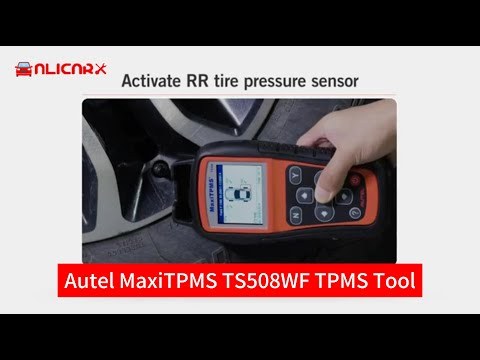

The TS508WF can wirelessly activate all known TPMS sensors, including magnetic, frequency, and tire deflation-triggered sensors. It supports both 315MHz and 433MHz frequencies, ensuring compatibility with a wide range of vehicles.

• Sensor Activation: Activates sensors using 125KHz continuous or modulated signals.

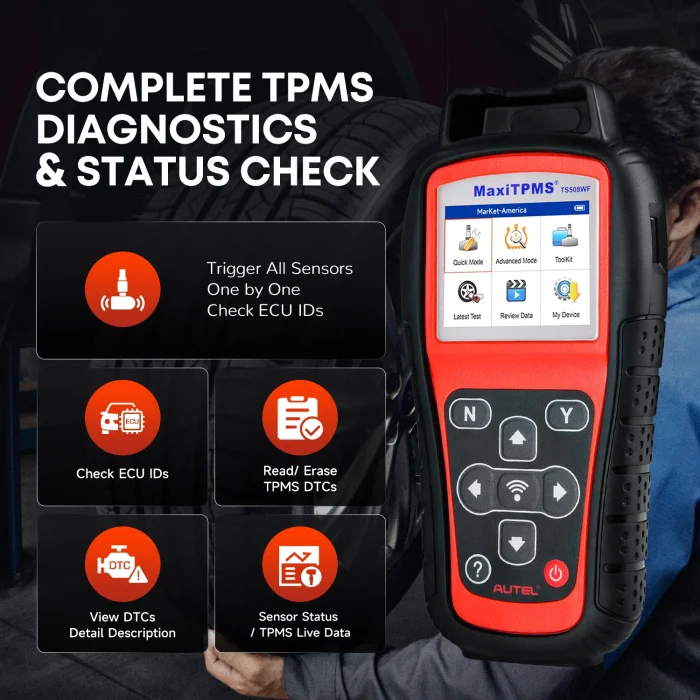

• Sensor Data Reading: Displays real-time data, including tire pressure, temperature, battery status, and sensor ID.

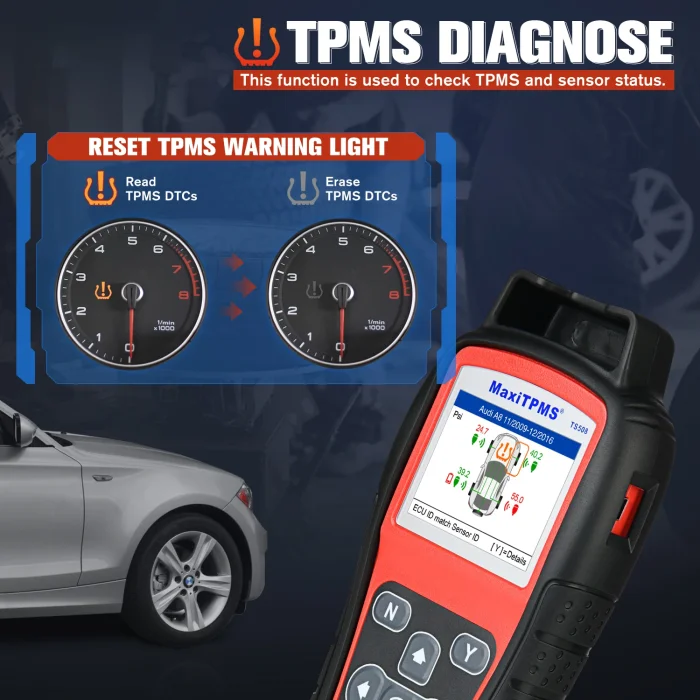

• DTC Management: Reads and clears TPMS-related codes, helping you diagnose and resolve issues efficiently.

2. TPMS Relearn Procedures

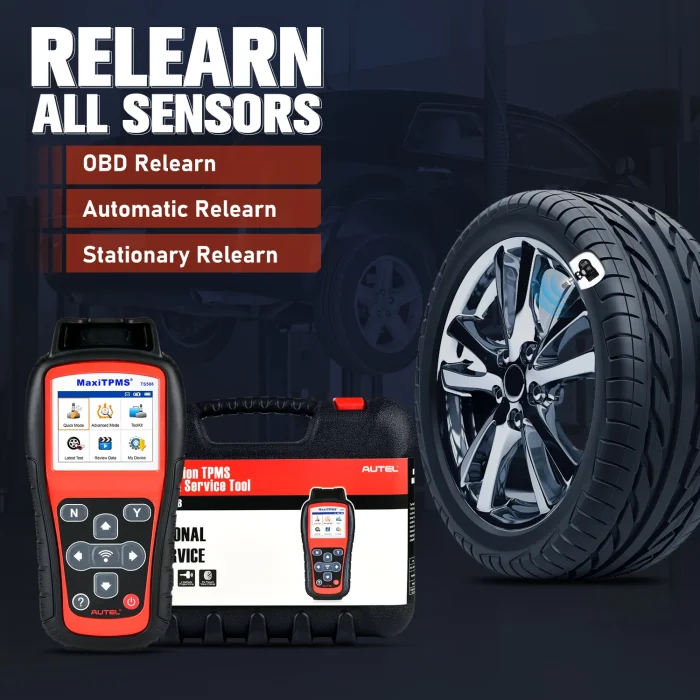

The TS508WF simplifies the process of relearning TPMS sensors to the vehicle’s ECU. It offers three methods:

• Stationary Relearn: Ideal for most vehicles, this method is quick and straightforward.
• Automatic Relearn: Designed for vehicles that require dynamic relearn during a drive.
• OBD Relearn: A convenient option for modern vehicles, added exclusively to the TS508WF model.

3. Programming MX-Sensors

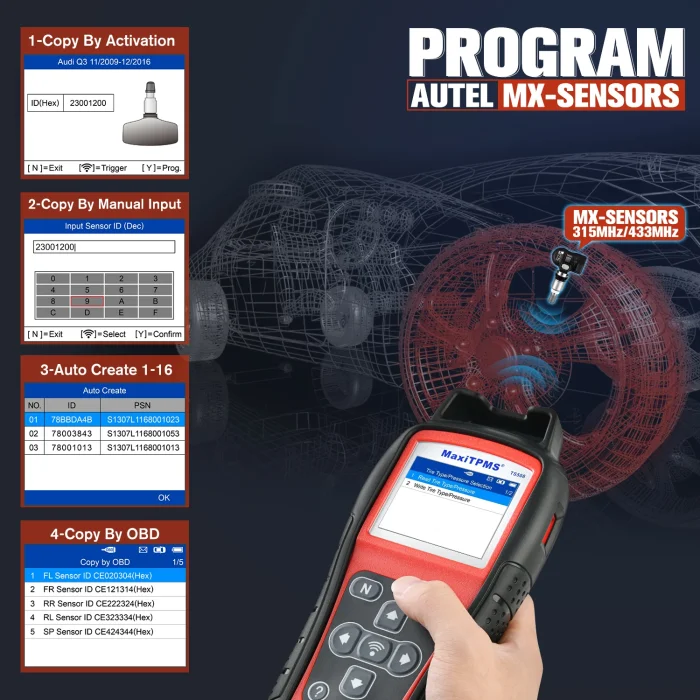

The TS508WF allows wireless programming of Autel MX-Sensors, offering four programming options:

• Copy by Activation: Clone sensor data directly from an activated sensor.
• Copy by Manual Input: Manually input sensor IDs for programming.
• Auto Create: Automatically generate sensor IDs based on the vehicle’s ECU data.
• Copy by OBD: Retrieve and program sensor IDs via OBD connection.

4. Battery Management and Alerts

The TS508WF includes a low sensor battery indicator, ensuring you’re alerted to sensors with dwindling battery life. This helps prevent future issues and ensures optimal TPMS performance.

Why Choose the Autel MaxiTPMS TS508WF?

The TS508WF is more than just a TPMS tool—it’s a comprehensive solution for modern automotive servicing. Here are some reasons why it stands out:

1. Efficiency and Convenience

• Quick Mode: Streamlined for fast installations, perfect for tire and wheel shops.
• Advanced Mode: Detailed diagnostics for repair shops and technicians.
• Batch Programming: Program up to 16 sensors at once, saving valuable time.

2. Intuitive Design

• Ergonomic Build: Durable housing with a protective rubber boot for on-the-job reliability.
• High-Resolution Display: 8.0" LED capacitive touchscreen with 1024x766P resolution for crystal-clear navigation.
• Multilingual Support: Available in English, French, Spanish, and more, catering to a global audience.

3. Advanced Update Options

The TS508WF offers Wi-Fi updates, eliminating the need for a computer connection. Simply connect to a Wi-Fi network and update your tool in minutes.

4. Compatibility and Versatility

• Vehicle Coverage: Compatible with domestic, Asian, and European vehicles, including popular models from major manufacturers.
• Sensor Compatibility: Works with both OE and aftermarket sensors, including Autel MX-Sensors.
• Frequency Support: Operates on both 315MHz and 433MHz frequencies for universal coverage.

Technical Specifications

Here’s a detailed look at the TS508WF’s technical capabilities:

• Operating Frequency: 315MHz and 433MHz
• Sensor Activation: 125KHz continuous or modulated signals
• Display: 8.0" LED capacitive touchscreen, 1024x766P resolution
• Battery: Built-in rechargeable 3.7V Li-polymer battery with automatic power-off
• Update Methods: Wi-Fi and USB
• Languages: English, French, Spanish, and more
• Weight: Lightweight and portable for easy use

Frequently Asked Questions

1. What sensors are compatible with the TS508WF?

The TS508WF is compatible with all OE and aftermarket TPMS sensors, including Autel MX-Sensors.

2. Can I update the tool without a computer?

Yes, the TS508WF supports Wi-Fi updates, allowing you to update anywhere with a Wi-Fi connection.

3. Does the TS508WF support relearn via OBD?

Yes, the TS508WF includes OBD relearn, a feature not available in the previous TS408 model.

4. Is the tool suitable for beginners?

While the TS508WF is powerful, its intuitive interface and step-by-step instructions make it accessible to users of all skill levels.

Conclusion

The Autel MaxiTPMS TS508WF is a game-changer for anyone working with TPMS systems. With its advanced features, dual-mode operation, and Wi-Fi updates, it’s an essential tool for professionals and enthusiasts alike. Whether you’re diagnosing issues, relearning sensors, or programming MX-Sensors, the TS508WF delivers unparalleled convenience and efficiency.

Upgrade your TPMS servicing experience today with the Autel MaxiTPMS TS508WF.
