FOXWELL T2000 PRO Auto Tire Pressure TPMS Relearn Activate Sensors Programming Tool
-
- Product Name: FOXWELL T2000 PRO Auto Tire Pressure TPMS Relearn Activate Sensors Programming Tool
- Item NO.: 28093934
- Weight: 1 kg = 2.2046 lb = 35.2740 oz
- Category: ALicar Vehicle Tools > Code Reader Scanner
- Creation Time: 2025-05-19
FOXWELL T2000 Pro TPMS Relearn Tool, Activate/Relearn All Sensors, TPMS Scan Tool Read/Clear DTCs, Read Sensor Data, TPMS Programming Tool Only for T10 Sensors (315/433MHz)
About This Item:
1. [One-stop TPMS Service Tool]: Newest FOXWELL T2000 Pro TPMS scan tool offer faster and smarter TPMS repairs for mechanics/DIYERs. T2000 Pro TPMS programming tool can perform TPMS diagnostic and comprehensive TPMS health check, turn off TPMS MILs, Read Sensor ID by OBD, Sensors Relearn & Activation, TPMS Programming (!!!only T10 sensor and the package does not include T10 sensor!!!), Tire Type/Pressure Selection, etc. Let you know the state of the tyres, do-it-yourself to get auto TPMS sensors analyzed and replaced, and can always adjust the tyres to the best condition for driving.
2. [Have you Encountered Many Issues when Changing Your Tires?]: T2000 Pro TPMS reset tool can activate all known TPMS sensors, quickly get all sensor data like sensor ID, tire pressure, tire temperature, battery status, sensor position, frequency, etc. Allows you find out sensor-related problems, deflation in the tires and the rotation of wheels. And with TPMS diagnostics, easily can read or clear codes, ECU information, live data, etc. It can help you find out problems with TPMS system faster, monitor wheel conditions and ensure driving safety.
3. [Relearn All Known TPMS Sensors]: After a tyre change, tyre repositioning or TPMS sensor replacement, the system needs to relearn or calibrate the position of each tyre and the corresponding sensor information. This TPMS Tool offers 3 ways to relearn sensors. 1)Stationary Relearn: vehicle in learning mode to trigger sensors and learn sensor. 2)Auto Relearn: can be completed by driving. 3)OBD Relearn: use the T2000 Pro TPMS relearn tool to write sensor IDs to the ECU via the OBD interface.
4. [Key Fob Testing Tool ]:precisely test 315MHz and 433MHz key fobs to ensure whether it is perfectly running
5. [ Full OBD II Function]:OBD II menu lets you access all OBD service modes. According to ISO 9141-2, ISO 14230-4, and
SAE J1850 standards, the OBD application is divided into several sub programs, called ‘Service
$xx’.
6. [More Advanced Features]: 1. OE menu can query for models by OE Number/Vehicle Model/Manufacture/Print Number. 2. Before testing the TPMS, you can select the area you work(Sales region-Asia/America/Europe), then the area will appear on each screen. 3. T2000 Pro tire pressure relearn tool supports 18 languages.
7. [Stay Ahead]: FOXWELL T2000 Pro TPMS sensor tool can be updated via WiFi and USB, providing users faster and more convenient updating experience, abandoning the traditional SD card update ways. And this tire sensor programmer comes with lifetime f-ree software updates for continuously fast-growing vehicle coverage. Not sure about compatibility? Please provide us with the VIN for verification.
8. [Easy to Use]: This TPMS scan tool comes in a nice case with USB cable, a standard OBD cable to connect to your vehicle. Menus were so easy to follow, even novices can quickly learn to use them. Recommend this to anyone who rotates tires or switches between winter and summer wheels.Programming FOXWELL TPMS Sensors
Note:
This TPMS programming function can only work with FOXWELL T10 sensor.
With this TPMS programming tool, you can program FOXWELL exclusive T10-sensor to meet the specifications of a particular vehicle before new sensor installation and relearn. Therefore, the healthy T10 Sensors can measure tire pressure and temperature accurately, allowing you to know tire health conditions, which can replace more than 95% of the original or OEM sensors. 3 different sensor programming methods are supported by This FOXWELL TPMS programming tool T2000 Pro: Copy by Activation; Manual Create; Automatic Create; Copy By OBD. (Note: T2000 Pro only program a replacement sensor only if it is the FOXWELLT10 sensor.)
Copy by Activation
If your original sensor works and can be activated. You could use this method to program a new sensor. It will clone the original ID to the new FOXWELL T10 sensor.
The Clone By Activation function lets users automatically write in the retrieved original sensor data to the FOXWELL Sensor which is used after the original sensor is triggered. 1)Highlight TPMS from the Main Menu and select the vehicle model as need. 2) Select Programming--Clone by Activation from the available menu. 3)Place the T2000 Pro tool near the original sensor to be copied and press Activate to continue. 4)After trigger successfully, press Y to continue. 5)Place a new FOXWELL sensor near the TPMS tool (around 0-20 cm).6)Press Y to start the programming when the tool detect the sensor.7) Press N to exit after the programming successfully.Copy by Manual Input:
If you know the original sensor ID, you could input the ID to program new sensor.
The Manual Create function lets users to input the sensor ID manually. Input sensor ID. 1)Highlight TPMS from the Main Menu and select the vehicle model as need. 2)Select Programming--Manual Create from the available menu.3)Input the sensor ID in the dialog box and press Y to continue.4)Place a new FOXWELL sensor near the TPMS tool (around 0-20 cm).5)Press Y to start the programming when the tool detect the sensor.6)Press N to exit after the programming successfully.Auto Create 1-16 Sensors
If you don't know the original sensor ID or your original sensor was bad, you could choose this method. Intall new sensor ID--program new sensor-->perform tpms learning and let the car recognize new sensorAfter programming the new sensor, you need to perform tpms learning function to learn the new sensor ID to your car. The tpms learning method will vary on specific car models.(the car shown in our video is cadillac XT5, and it's using static learning method.) The tpms tool will show you what kind of learning method you car will apply.
The Automatic Create function is to program FOXWELL sensors by applying random IDs created according to the test vehicle when it is unable to obtain the original sensor ID.1) Highlight TPMS from the Main Menu and select the vehicle model as need.2) Select Programming--Automatic Create from the available menu.3) Place new FOXWELL sensors(1-16) near the TPMS tool (around 0-20 cm).4) Press Y to start the programming when the tool detect the sensor. 5) Press N to exit after the programming successfully.Note:
T2000 Pro only program a replacement sensor only if it is the FOXWELL brand.Almost all tpms programming tool in thie field have the same limitation. For example, if you purchase tpms programming tool from B brand, you should also purchase B brand sensor to peform this TPMS programming function.
Copy By OBD
This function lets users to write in the saved sensor information to Foxwell sensors after performing Read IDs from Vehicle in Learning function.
To create sensor ID manually:
1)Highlight TPMS from the Main Menu and select the vehicle model as you need.
2)Select Programming--Clone by OBD from the available menu.
3)Connect the TPMS tool with the vehicle via OBDII cable and turn the ignition on.
4)Select the sensor ID to be copied after reading ID information successfully and press Y to continue
5)Place a new Foxwell sensor near the TPMS tool (around 0-20cm)
6)Press F3 to start the programming when the tool detect the sensor.
7)Press F1 to exit after the programming successfully.Activate Almost All TPMS Sensors
This FOXWELL TPMS scan tool T2000 Pro enables you to activate 98% known OEM/Universal TPMS sensors in the market. You can rapidly and accurately trigger and decode sensors to read their ID, pressure, temperature, battery, frequency and OE Part number before servicing the tires/wheels or when you are performing programming or relearn. No need to purchase a separate activation tool. The sensor activation will be finished in seconds through two methods: in All wheel mode and in Single wheel mode.
how to perform sensor activation function and how to read the OEM sensor information? Firstly, choose correct menu according to the car make/model/year and click menu "sensor activate". Then, put the T2000 Pro tpms tool near to the tire sensor and click "trigger" button to begin the activation.
Q: for example, if the car is 2017 Cadillac XT5, how can I locate the correct menu to perform sensor activation? A: choose "TPMS"---"USA"---"Cadillac"---"CT5"--->
2016/01-2021/06(433 MHz)(13598773)
2018/01-2021/12(433 MHz)(13516165)
2017/01-2019/12(315 MHz)(13589597)
2018/01-2020/06(315 MHz)(13516164)
There are 4 menu options and how to choose the right one? Firstly, you could exclude two menus if you know your key fob frequency. For example, if your key fob frequency is 433 MHz, you could exclude the last two menu with 315 MHz, and the right menu will be located on the first two. Then you could try both first two menus with 433 MHz and see which one will work for your car. If you don't know the key fob frequency, you could also try all the four menus to see which one will work on your car.
Tips: during the activation, remember to place the T2000 Pro near the tire sensor or it will fail to receive the singal. If one menu option fails to work on your car, kindly try other menu options or contact for support.FOXWELL T2000 Pro three types of TPMS sensor relearn
FOXWELL T2000 Pro TPMS Relearn Tool can be served as a professional TPMS relearn scanner, to relearn almost all known sensor IDs, which is compatible with 99% vehicle with TPMS system and extremely popular among car repair ships and DIY car owners. To ensure T2000 Pro compatible with different vehicles , 3 types for TPMS sensor relearning are offered : 1) Stationary Relearn; 2) Auto Relearn ; 3) OBD Relearn.
Stationary Relearn
vehicle in learning mode to trigger sensors and learn sensor.
Auto Relearn
can be completed by driving.
OBD Relearn
T2000 Pro allows the new TPMS sensor IDs to be transferred without driving a vehicle. You can trigger the sensors when the vehicle is in learn mode by our TPMS Tool T2000 Pro.
Notice:
1.If your old sensors are dead or cannot be scanned, this function may fail.
2.If you need to perform sensor cloning function, you should know your old sensor ID first. If no, you could use other scanner to scan the old sensor ID first, then use FOXWELL T2000 Pro to perform sensor cloning.FOXWELL T2000 Pro TPMS Health Maintenance Expert
The TPMS Diagnose function lets users retrieve/clear TPMS DTCs, read live data, OBD learning and perform special functions, helping technicians to quickly find out faulty TPMS and turn off MILs.
Full OBDII Function
OBD II menu lets you access all OBD service modes. According to ISO 9141-2, ISO 14230-4, and SAE J1850 standards, the OBD application is divided into several sub programs, called ‘Service $xx’. Below is a list of OBD diagnostic services:
● Service $01 - request current powertrain diagnostic data
● Service $02 - request powertrain freeze frame data
● Service $03 - request emission-related diagnostic trouble codes
● Service $04 - clear/reset emission-related diagnostic information
● Service $05 - request oxygen sensor monitoring test results
● Service $06 - request on-board monitoring test results for specific monitored systems
● Service $07 - request emission-related diagnostic trouble codes detected during current or last completed driving cycle
● Service $08 - request control of on-board system, test or component
● Service $09 - request Vehicle Information
When OBD II application is selected from Home screen, the scanner starts to detect the communication protocol automatically. Once the connection has established, a menu that lists all of the tests available on the identified vehicle displays. Menu options typically include:
● System Status
● Read Codes
● Freeze Frame Data
● Clear Codes
● Live Data
● I/M Readiness
● O2 Sensor Test
● On-board Monitor Test
● Component Test
● Vehicle Information
● Modules Present
● Code LookupSpecifications
Display: Backlight, 240*320 TFT color display
Working Temperature: 0 to 55 ℃ (32 to 140℉)
Storage Temperature: -20 to 70℃ (-4 to 158℉)
Power Supply: 3.7V/2200mAH Li-polymer battery, 3.3V USB power
Dimensions (L*W*H): 200*100*38mm
Gross Weight: 1.3kg
Radio reception: 315 MHz and 433MHzKEY FOB Testing
This TPMS tool FOXWELL T2000 Pro is capable of testing RF Remote Keyless Entry Key Fob, which can precisely test 315MHz and 433MHz key fobs to ensure whether it is perfectly running, being super easy for users to identify the key fob condition with the loud and clear audio and visual indication. Instead of going to dealership., it will be of great assistance and save your time and money.
1. Scroll with the UP/DOWN arrow keys to highlight RKE & RF Monitor from the Main Menu and press the YES key to start.
2.Hold the Key Fob close to the tool, and press the function buttons on the FOB. If the button works and the FOB is sending a signal, the tool will beep and the following screen displays.
3. Press the NO key to exit.Keep your Previous Test Record
Latest Test leads to screens for activating the sensor by using the same wave signal of the latest trigger event. The TPMS relearn tool remembers the latest tested vehicle and makes it much easier to trigger sensors of the same vehicle.
Cover 80+ Car Makes
Compared with other similar products, this FOXWLEL T2000 Pro will be compatible with more models.
compatible with Buick/ Cadillac/Chevrolet/Chrysler/Dodge/Ford/GMC/Jeep and etc...Package list

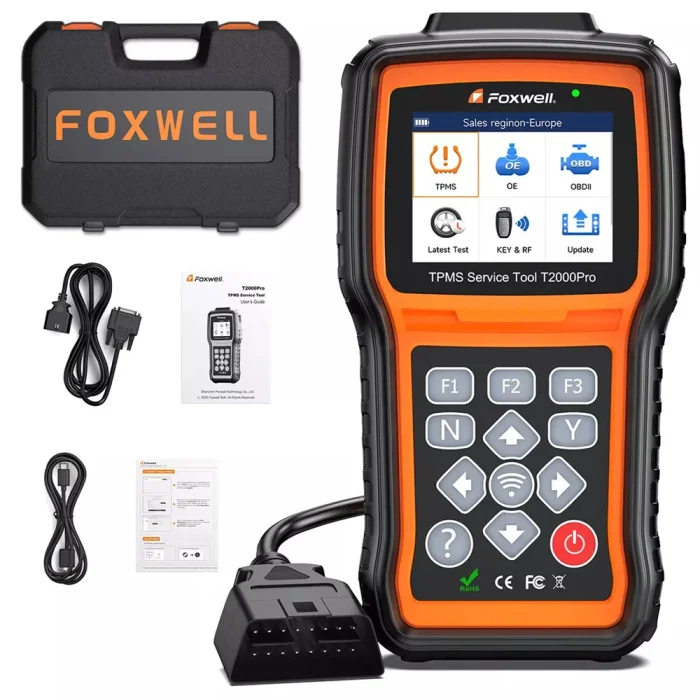

1*T2000 Pro Main Unit
1*USB Cable
1*Battery Charger
1*Quick Start Guide
1*Blow Molding Case
1*User Manual
