VXDIAG VCX-FD for GM & Ford/Mazda – Next-Generation 2-in-1 Intelligent Diagnostic Interface

VXDIAG VCX-FD for GM and for Ford/Mazda 2-in-1 Intelligent Diagnostic Interface

VCX-FD intelligent vehicle diagnostic interface represents the next generation of diagnostic technology. The product adopts a newly upgraded dual-core high-speed processor, fully supports multi-channel CAN-FD/DoIP and traditional diagnostic protocols, and is compatible with more original diagnostic software. Vxdiag VCX-FD tool also supports local and super remote dual-mode diagnostics, providing users with an excellent diagnostic experience.

Updated international standard API interface

SAE-J2534-1/2 PassThru V04.04 & V05.00
ISO-22900 D-PDU API for MVCI
RP-1210A/B/C API for VDA
Full platform API interface available (Windows / Linux / Android)

J2534 original ECU programming function

ECU software upgrade and calibration.
ECU replacement renewal and programming.
J2534 controllable programmable voltage output.

Product Features:

Dual cores work together to achieve stronger communication performance
The 550MHz ARM protocol processor supports CAN-FD and all traditional vehicle bus protocols.
560MHz MIPS network processor supports DoIP Super Diagnostic Gateway.
Dual-core processor communicates via 100M Ethernet, high bandwidth and low latency
The diagnostic communication speed is several times higher than that of the previous generation product.

Brand new appearance design

It adopts an all-in-one design with integrated OBD-II interface, making it easy to plug and play.
The reinforced Type-C interface prevents shaking and falling off, making the connection more reliable.

Dual operating systems, the software runs more stably

The RTOS real-time operating system ensures multi-task and high-concurrency communication of the vehicle bus protocol.
The Open Wrt network operating system flexibly connects multiple network interfaces and vehicles.

More comprehensive original vehicle diagnostics

VCX-FD is currently compatible with 15 original factory diagnostic model brands.
After the hardware update, it fully supports new models and new original factory diagnostic software based on CAN-FD and DoIP.
A variety of advanced diagnostics and programming functions reach factory level, even faster than original devices.
Supports one-click installation, uninstallation and upgrade of original factory supported drivers, easy to use.
We do not provide software, software can be found on the Internet yourself, if you can not find we can help to find!Note: We do not provide software, software can be found online!!

Product Functions:

Supported original vehicle diagnostic functions:
for FORD:
for FORD IDS
for MAZDA:
for MAZDA IDS
for GM(for Chevrolet,for Buick, for Cadillac, for Opel, for Holden):
for GM GDS2 & Tech2Win & RDS
VXDIAG VCX FD vs VCX DoIP vs VCX SE vs VCX NANO Series

Dual-mode intelligent remote diagnosis

Super remote diagnosis only requires the device to be connected to the Internet to achieve original factory online diagnosis.
Compatible with remote diagnosis, it can support remote diagnosis of a variety of devices with special functions.
The device supports one-click network distribution function and quick access to the remote diagnosis platform.

Support a more complete vehicle bus protocol

Integrated OBD smart protocol multiplexer chip, all pins can intelligently switch any protocol.
Supports 3-channel CAN-FD multi-channel concurrent communication, supporting up to 5M Bps high-speed communication.
Supports ISO-13400 standard dual-channel DoIP interface Option 1 and Option 2.

Flexible and easy-to-use connection methods

The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.
Built-in wireless routing mode, the diagnostic computer can be directly connected to the device wirelessly.
Supports wireless workstation mode, the device can be connected to a wireless LAN, and any computer can connect to the device.
Supports mapping vehicle DoIP Ethernet to WLAN for wireless DoIP diagnostics.

Advanced ECU Coding / Configuration

VCX FD can perform many advanced features with OEM software, such as refresh hidden functions, disable the annoying functions, enhance vehicle performance, customize OE-settings, reprograms the adaptive data for certain components after repairs or replacements, customized configurations for high-end models and so on to enhance fuel efficiency and ensure safe driving.

We don't provide the original online account for coding.

J2534 ECU Programming

VCX FD J2534 Pass-Thru ECU Programming Tool can be used with PC to perform ECU programming features. It helps you program blank ECUs, refresh high-end functions, update vehicle ECU software etc., greatly improving the applicability of vehicles.
Work with PC, VCX FD is fully compliant with SAE J2534-1 & J2534-2 standards, supporting major OEM diagnostic tools, it speeds up reprogramming and diagnostics, saving time and boosting efficiency.

We don't provide the original online account for programming.

Complete Services

For various scheduled service and maintenance include Maintenance Light Reset, throttle learning, steering angle learning, brake pad reset, tire pressure reset, ABS exhaust,battery matching,gear information learning,injector coding, DPF regeneration,headlight matching, gearbox learning, suspension matching ,Sunroof initialization, A/F adjustment, electronic pump start, release transportation mode, tire modification, door and window calibration, urea reset, NOx reset,start-stop setting, language setting, seat calibration, shielding failure, etc.

Active Test ( BI-Directional Control )

Full bi-directional control ability, to send commands to vehicle's systems/components, to verify system input/output without using the vehicle's controls, e.g. turn on the radiator fan, modulate the throttle, open/close windows, operate mirrors, Injector Buz Test,turn on interior & exterior lights, sound horn, test door lock actuators and such.

OE-Level ALL Systems Diagnostic for your car

Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions. powerful diagnostic functions, and precise test result.
Automatically identify VIN upon connection to the vehicle for intelligent diagnosis.which provides a perfect solution to various defects resulting from step-by-step menu selection. In addition, user can also check the historical repair records online through this module.
Support System Including : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ,Air Conditioning System,Transmission System, ect all Systems .

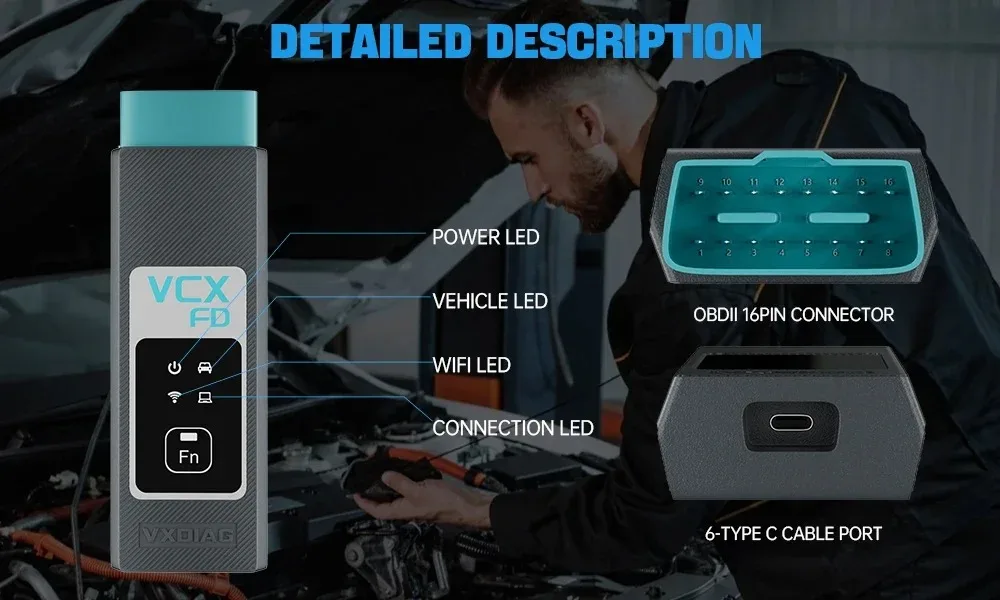

Port Details Every Panel

1-Power LED: Equipment Working Status: RED
Breathing flash when starting normally
Flash rapidly during hardware failure
2-Vehilcle LED: Vehicle communication Status: TWO-COLOR
Flash blue during traditional protocol
Flash green during DoIP protocol
3-WiFi LED: Wireless Network Status: BLUE
Flash quickly during wireless communication
Flash slowly during wireless distribution
4-Conection LED: Host Communication Status: TWO-COLOR
Flash BLUE during USB communication
Flash GREEN during LAN communication
-Fn Button: Remote Diagnostic Status: GREEN
Flash slowly after remote connection
Flash quickly during remote diagnosis
5-OBDII 16Pin Connector: Connect to vehicle's OBD2 port
6-Type C Cable Port: Connect to PC via cable

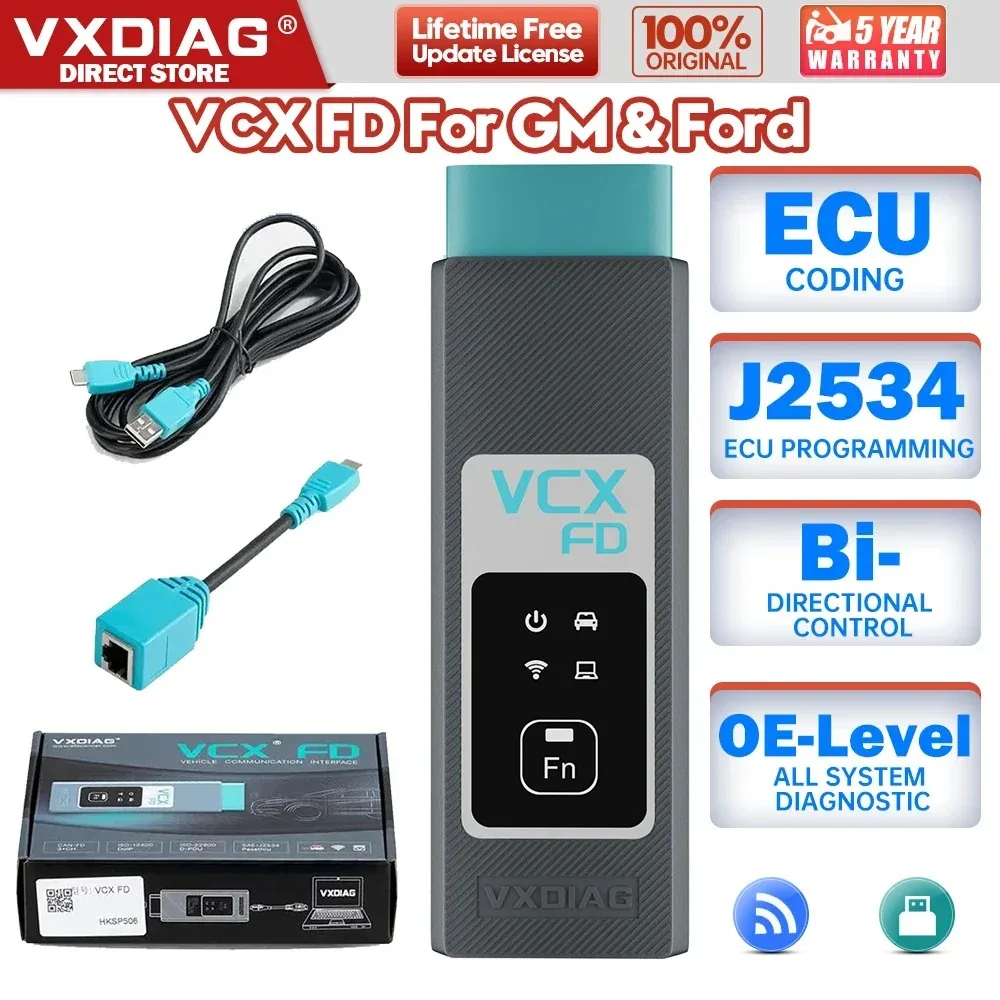

Package Includes:

1pc x VCX-FD device
1pc x USB cable
1pc x RJ45 Ethernet adapter
