TopDiag P350 Circuit Probe Tester 9-30V Automotive Battery AC DC Voltage Testing

The TopDiag P350 is a comprehensive automotive electrical diagnostic tool designed to simplify complex electrical troubleshooting. Built for 9-30V vehicle electrical systems, it helps professionals and hobbyists quickly locate faults, activate components, and assess battery health. Its user-friendly design, rugged construction, and versatile features make it a reliable companion for automotive maintenance and repair.

Core Features and Benefits

Pathfinding Test for Precise Breakpoint Location

• The device includes a Pathfinder accessory that enables pathfinding along a wire.
• Connect the probe tip to an open circuit wire and emit a sound wave signal.
• Move along the wire using the P18l probe to locate breakpoints and hidden faults with high accuracy.
• Benefit: Reduces diagnostic time and minimizes the need for invasive inspections.

Circuit Breaker with Overload Protection

• Built-in circuit breaker provides short-circuit protection.
• The internal breaker trips automatically when an overload is detected.
• Benefit: Protects sensitive electrical circuits, preventing unnecessary fault losses and damage.

Activate Components Directly in DC Voltage Mode

• In DC voltage mode, you can energize automotive components by connecting the probe tip to an auxiliary ground wire.
• Suitable for energizing fuel pumps, solenoids, blowers, cooling fans, headlights, and other critical parts.
• Benefit: Facilitates functional testing without removing components from the circuit.

Continuity Test in Resistance Mode

• Quick assessment of wiring and component states to verify on/off conditions.
• Useful for verifying wiring integrity and identifying open circuits.
• Benefit: Fast, non-destructive troubleshooting across the vehicle’s electrical network.

Comprehensive Battery Diagnostics

• All-round battery data detection for safer and more reliable travels.
• Benefit: Helps ensure dependable starting power and overall battery health.

Wide DC Voltage Range

• Ultra-wide voltage support from 0 to 150V DC.
• Benefit: Compatible with a broad range of automotive electrical systems and equipment.

Dual Probes for Flexible Access

• The tester comes with bendable and stretchable dual probes.
• Designed to reach tight spaces and hard-to-view test areas.
• Benefit: Improves accessibility and accuracy in cramped engine bays and dashboard circuits.

Broad Vehicle Type Compatibility

• Designed to test 9-30V vehicle electrical systems.
• Suitable for cars, trucks, excavators, and marine vessels.
• Benefit: A versatile tool for professionals who work with diverse fleets.

What’s Included in the Package

Included Accessories

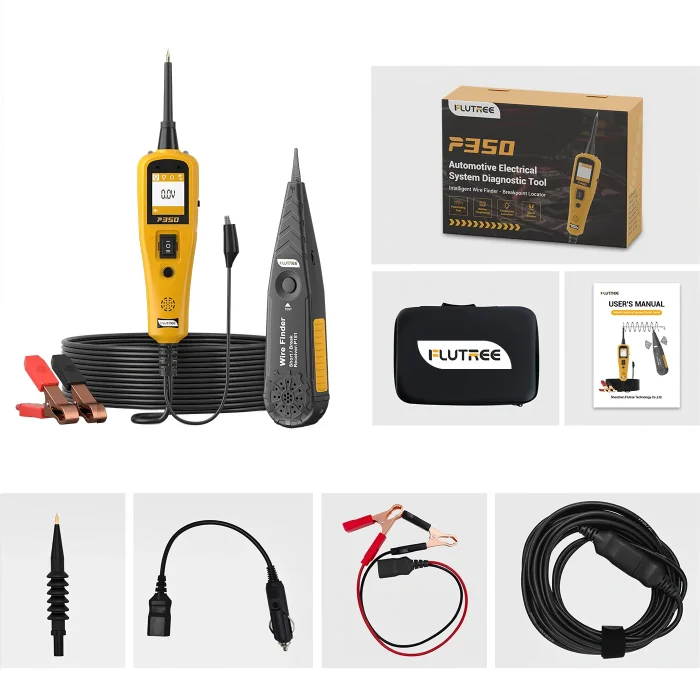

• TopDiag P350 Circuit Probe Tester: 1
• Bendable probe: 1
• Pathfinder (P18l) kit: 1
• Cigarette lighter adapter: 1
• Clip wire: 1
• 6M external cable: 1
• Customer support and documentation: included

How to Use the TopDiag P350 Safely and Effectively

Preparing for Measurement

• Ensure the vehicle’s ignition is off and the electrical system is de-energized before connecting probes.
• Inspect cables and probes for wear or damage; replace if necessary.

Performing a Pathfinding Test

• Connect the Pathfinder probe to an open circuit wire.
• Activate the sound signal and methodically move along the wire with the P18l probe to pinpoint breakpoints.
• Confirm findings with gentle continuity checks.

Activating Components for Functional Testing

• In DC voltage mode, connect the probe tip to an auxiliary ground wire to energize targeted components.
• Observe component behavior and monitor for expected operation.

Conducting Continuity and Battery Tests

• Use the resistance mode for quick continuity checks of wires and components.
• Run battery diagnostics to assess voltage, current capability, and overall health.

Practical Applications and Use Cases

Automotive Electrical Troubleshooting

• Fault localization in wiring harnesses, sensors, and actuators.
• Quick verification of suspected short circuits or open circuits.

Fleet Maintenance and Marine Applications

• Suitable for diverse vehicle types, including trucks and marine vessels, thanks to the 9-30V operating range.

Why Choose the TopDiag P350?

• All-in-one diagnostic capability: continuity, pathfinding, component activation, and battery health checks.
• Safe operation: built-in circuit protection prevents damage from overloads.
• Flexible access: bendable dual probes reach tight spaces for comprehensive testing.
• Broad compatibility: 9-30V systems cover a wide range of vehicles and equipment.

Specifications at a Glance

• Voltage range: 0-150V DC
• Supported systems: 9-30V automotive electrical networks
• Probes: Dual bendable probes
• Accessories: Pathfinder, cigarette lighter, clip wire, 6M external cable
• Applications: Cars, trucks, excavators, marine vessels

Maintenance and Care Tips

• Keep connectors clean and dry to ensure reliable readings.
• Store the device and probes in a protective pouch to prevent damage.
• Periodically inspect the circuit breaker and probes for wear and replace as needed.

Where to Buy and Support

• Availability: Generally sold as a complete kit including all accessories.
• Support: Manufacturer documentation and customer service for setup, troubleshooting, and warranty details.

Conclusion

The TopDiag P350 Circuit Probe Tester is a robust, versatile tool tailored for automotive electrical diagnostics. With features like pathfinding, circuit protection, direct component activation, and comprehensive battery testing, this tester helps technicians and enthusiasts diagnose electrical issues faster, safely, and more accurately. Its broad vehicle compatibility and flexible probes make it a practical investment for maintaining the electrical health of cars, trucks, excavators, and marine vessels.
