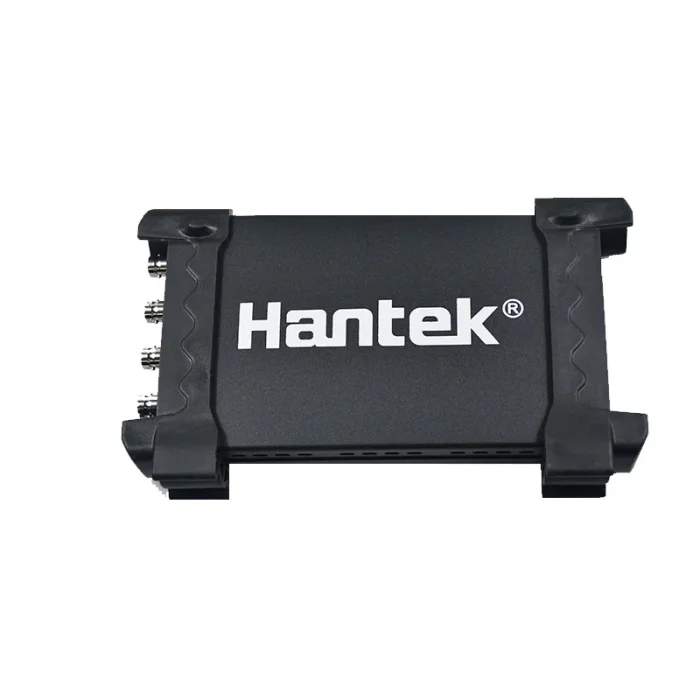

Oscilloscopes Hantek 6074BE 6074BC 6074BD HT201 Digital Storage Oscilloscopes PC USB Portable

The Hantek 6074 Series (6074BE, 6074BC, 6074BD) and 6254 Series (6254BD, 6254BE) are advanced USB digital storage oscilloscopes designed for automotive diagnostics, electronics testing, and industrial applications. With 4 isolated channels, 70MHz bandwidth, and 1GSa/s real-time sampling, these portable oscilloscopes deliver precision and versatility for professionals and hobbyists alike.

Key Features

1. Automotive Diagnostic Powerhouse

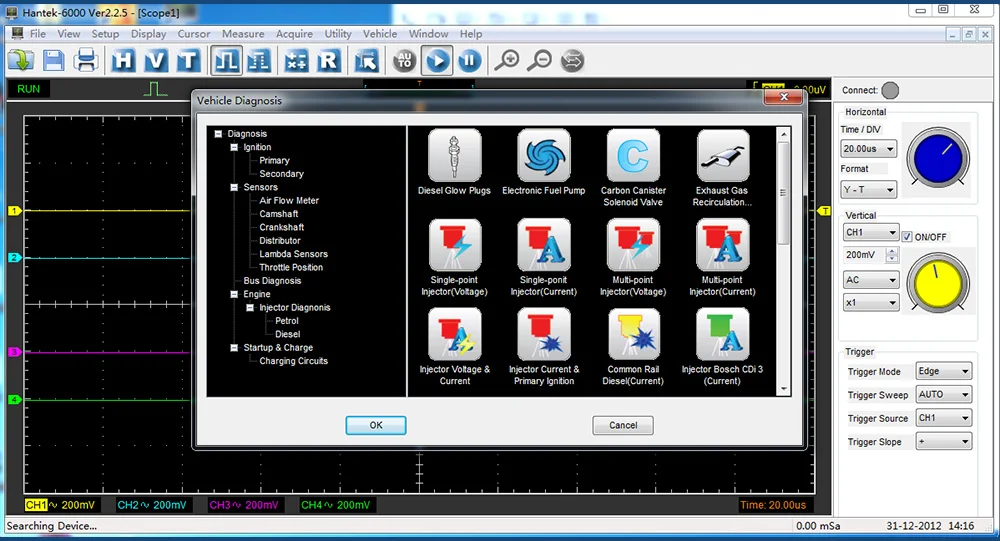

• 80+ built-in automotive measurement functions, including:

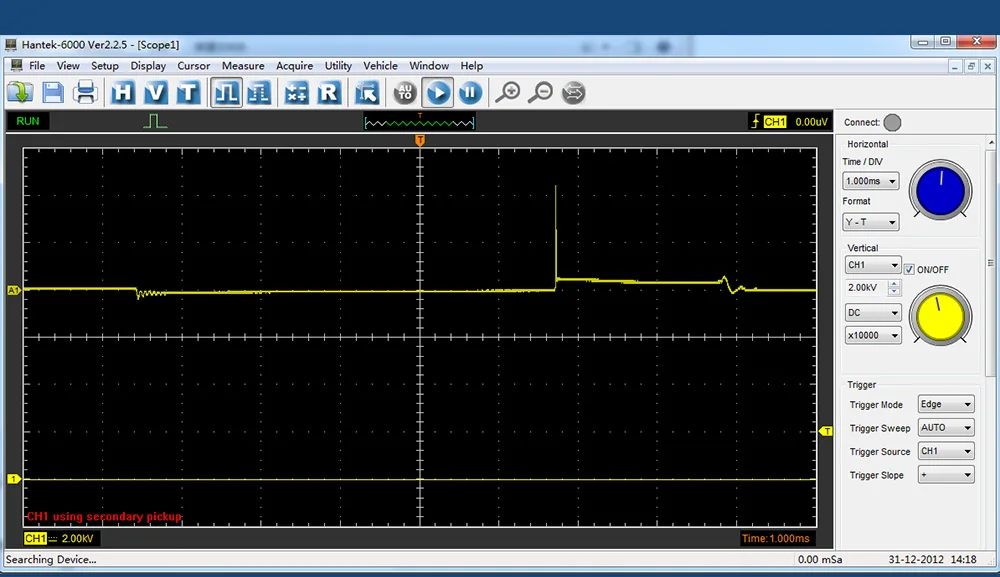

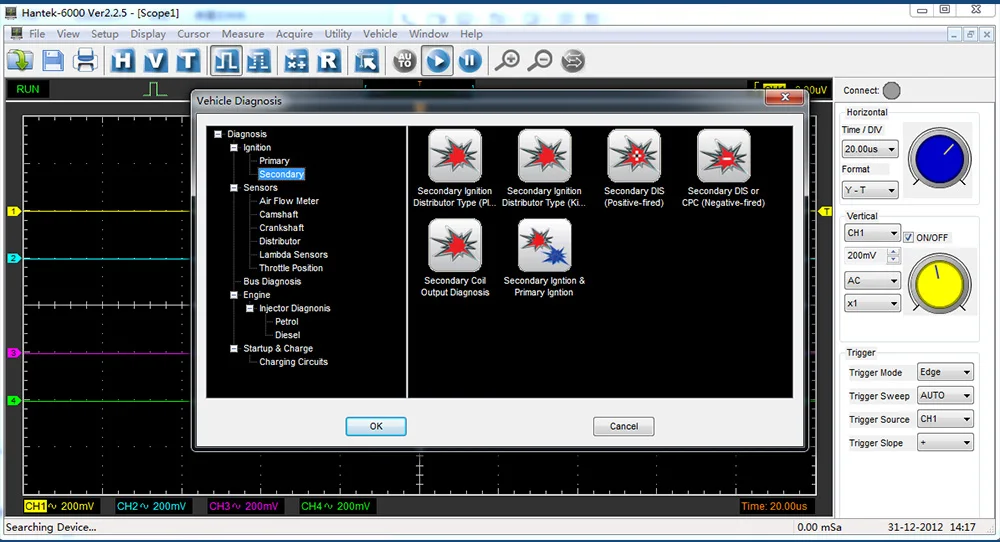

  • Ignition Analysis: Primary/secondary ignition, intake manifold vacuum, idle exhaust.
  • Sensor Testing: Airflow meter, camshaft, crankshaft, throttle position, Lambda sensor.
  • Bus Diagnostics: CAN bus signal integrity, LIN bus, long-term CAN data acquisition.
  • Performance Testing: Petrol/Diesel engine analysis.

2. Portable & Plug-and-Play Design

• USB 2.0 interface—no external power required.
• Compatible with Windows 10/8/7 and tablet PCs.
• Lightweight anodized aluminum casing (iPad-grade material) for durability and heat resistance.

3. Advanced Oscilloscope Functions

• 1GSa/s sampling rate and 2mV–10V/div sensitivity.

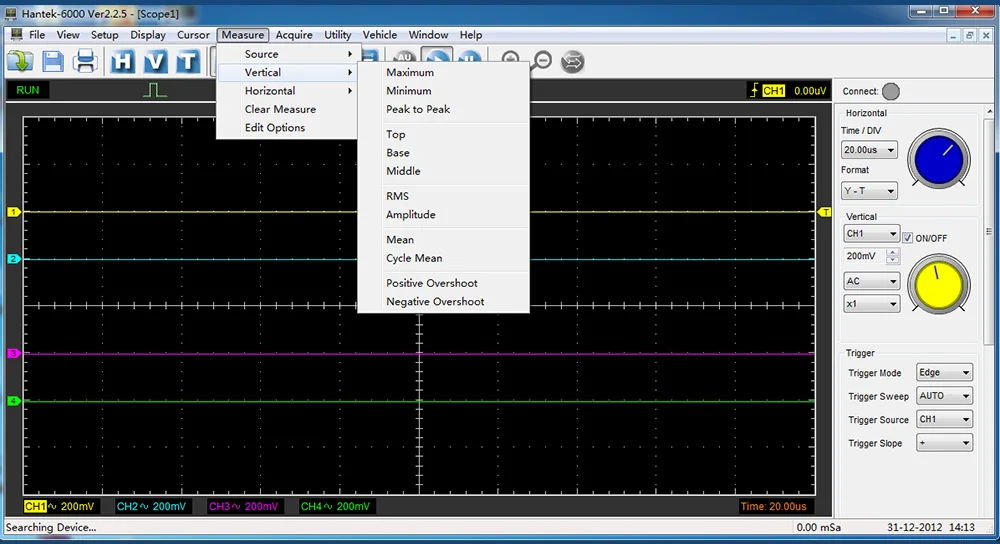

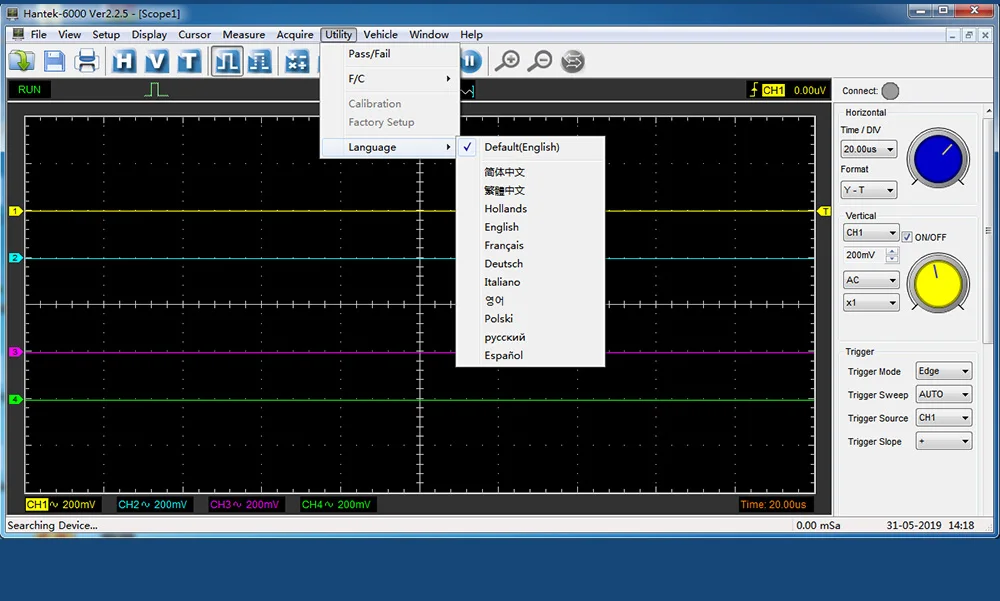

• Waveform recording/replay, dynamic cursor tracking, and PASS/FAIL checks.
• FFT spectrum analyzer and X-Y display mode.
• Export data to Excel, BMP, or JPG.

4. Expandable & Developer-Friendly

• Connect multiple oscilloscopes to one PC for expanded channels.
• Includes DLL library and development examples for LabVIEW, VB, VC, and QT.

Model Comparison

Hantek 6074BE vs. 6074BC

Note: The 6074BC lacks automotive test options but retains all other features.

6254BD vs. 6254BE

• Similar to the 6074 series but with potential hardware/software refinements.

Why Choose Hantek 6074/6254?

• Cost-effective: Free software upgrades and high performance-to-price ratio.
• Versatile: Ideal for fieldwork, labs, and automotive workshops.
• User-friendly: Intuitive interface with USBXI support for easy operation.

Conclusion

The Hantek 6074 and 6254 Series are top-tier USB oscilloscopes for professionals needing portability, precision, and automotive diagnostics. Whether you’re a mechanic, engineer, or educator, these tools offer unmatched flexibility and performance.

Shop now and experience the power of 70MHz 4-channel oscilloscopes!
