BX100 Breakout Box OBD2 Protocol Detector Car CAN Test Compatible for VW Golf Audi A4 Ford

The OBD2 BX100 Breakout Box is an advanced diagnostic tool designed to streamline automotive troubleshooting and programming. With its robust features and intuitive design, it has become an essential tool for professionals and enthusiasts alike. This article explores the key features, functions, and applications of the OBD2 BX100 Breakout Box, providing a detailed overview of its capabilities and benefits.

Introduction to the OBD2 BX100 Breakout Box

What is an OBD2 Breakout Box?

An OBD2 Breakout Box is a diagnostic tool that replicates the 16-pin OBD2 interface, allowing technicians to monitor, test, and analyze various aspects of a vehicle’s communication system. The BX100 model stands out for its advanced features, including voltage monitoring, communication protocol analysis, and short-circuit protection.

Why Do You Need the OBD2 BX100 Breakout Box?

The BX100 Breakout Box is a must-have tool for diagnosing and programming modern vehicles. It supports both 12V and 24V systems, making it compatible with a wide range of vehicles. Its ability to monitor CAN bus signals, K-line communication, and other protocols ensures that it can handle complex diagnostic tasks.

Key Features and Benefits of the OBD2 BX100

1. Voltage Monitoring and Display

The BX100 Breakout Box provides real-time voltage monitoring for each pin of the OBD2 interface. This feature is crucial for identifying voltage drops, shorts, or open circuits that can disrupt communication between the vehicle’s ECU and diagnostic tools.

• Voltage Display: Each pin’s voltage value is displayed, allowing technicians to quickly identify abnormal readings.
• Voltage Ranges:
  • For 12V systems: Low voltage (11.5V) and high voltage (15.5V).
  • For 24V systems: Low voltage (23V) and high voltage (31V).

2. Communication Protocol Support

The BX100 Breakout Box supports various communication protocols, including:

• CAN Bus: For modern vehicles using controller area network (CAN) communication.
• K-Line: For older vehicles or systems using K-line communication.
• Private Protocols: It can also handle some private communication protocols used by specific manufacturers.

3. Short-Circuit and Open Protection

The BX100 Breakout Box is equipped with robust protection features to prevent damage from short circuits or open circuits. This ensures the device remains functional even in challenging diagnostic environments.

• Short Protection: Alerts if a short circuit is detected in the OBD socket, ECU socket, or jump cable.
• Open Protection: Detects open circuits and provides clear feedback through LED indicators and alarms.

4. Constant Voltage Tool for ECU Programming

One of the standout features of the BX100 Breakout Box is its ability to provide a constant 13.8V output during ECU programming. This ensures stable power supply, which is critical for successful programming.

• Programming Mode: Press the "Programming" button to activate the constant voltage output.
• Status Indication:
  • A steady green light indicates the device is in programming mode.
  • A flashing green light signals a programming failure.

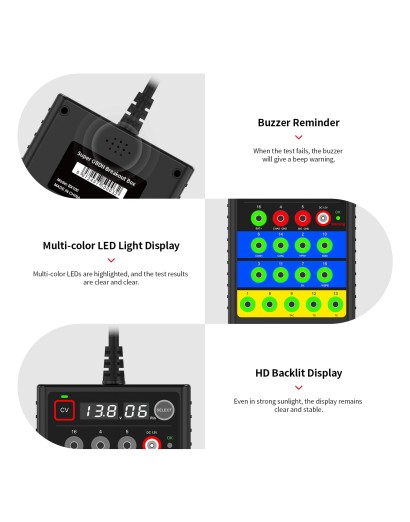

5. LED Status Indication and Alarms

The BX100 Breakout Box features 18 LED indicators and a buzzer to provide real-time feedback during diagnostics. These indicators help technicians quickly identify issues such as:

• Power supply abnormalities.
• Ground wire reversal.
• Communication errors.

How Does the OBD2 BX100 Breakout Box Work?

Step 1: Connecting the Device

1. Locate the OBD2 interface in the vehicle (usually under the steering wheel or on the driver’s side).
2. Connect the OBD2 male connector to the vehicle’s OBD2 socket.
3. Use the 4mm banana plugs to connect a multimeter or oscilloscope for further measurements.

Step 2: Monitoring Pins and Voltage

• Use the LED indicators to monitor the status of each pin.
• Press the "Select" button to switch between pins and view their voltage values.

Step 3: Diagnostics and Testing

• Test for open and short circuits by observing the LED indicators (Pins #4 and #5).
• Verify the communication protocol (CAN, K-line, etc.) and ensure proper signal transmission.

Step 4: ECU Programming

• Activate programming mode to ensure a stable 13.8V output.
• Monitor the LED indicators to confirm successful programming.

Why Choose the OBD2 BX100 Breakout Box?

1. Universal Compatibility

The BX100 supports both 12V and 24V systems, making it compatible with a wide range of vehicles.

2. Advanced Safety Features

• Over-voltage and low-voltage alarms.
• Short-circuit and open protection.

3. Versatile Applications

• Diagnostics and troubleshooting.
• ECU programming and reprogramming.
• CAN bus and K-line communication testing.
• Voltage monitoring and analysis.

4. User-Friendly Design

• Intuitive interface with LED indicators for quick status updates.
• Super-bright LEDs for visibility in bright environments.

Common Applications and Use Cases

1. Automotive Diagnostics

The BX100 Breakout Box is ideal for diagnosing communication issues, voltage drops, and faulty connections in a vehicle’s OBD2 system.

2. ECU Programming

Technicians rely on the BX100 for stable voltage output during ECU programming, ensuring successful reprogramming without power fluctuations.

3. CAN Bus Testing

For vehicles using CAN bus communication, the BX100 provides a reliable way to monitor and analyze CAN signals.

4. Educational and Training Purposes

The BX100 is a valuable tool for teaching automotive diagnostics and programming in technical schools and workshops.

Troubleshooting and Maintenance Tips

1. Checking Power and Ground

• Ensure the power and ground wires are connected correctly to avoid reversed connections.
• Verify the power indicator (OK/Warning light) is green for normal voltage.

2. Resolving Short Circuits

• If a short circuit is detected, disconnect the device and inspect the jump cables and OBD socket.

3. Updating Firmware (If Applicable)

• Regularly update the firmware to access new features and improved performance.

4. Cleaning the Connectors

• Use compressed air or a soft cloth to clean the connectors and maintain optimal connectivity.

Conclusion

The OBD2 BX100 Breakout Box is a powerful and versatile tool that simplifies automotive diagnostics, programming, and troubleshooting. Its advanced features, such as voltage monitoring, communication protocol support, and short-circuit protection, make it an essential addition to any technician’s toolbox. Whether you’re working on modern CAN bus systems or older K-line vehicles, the BX100 Breakout Box ensures accurate diagnostics and reliable results.

For professionals and enthusiasts alike, the OBD2 BX100 Breakout Box is a worthwhile investment that enhances efficiency and precision in automotive diagnostics and repair.
