GODIAG GT107+ Adapter DSG Gearbox Universal Jumper For Benz/BMW with G-A ECU/TCU Cable

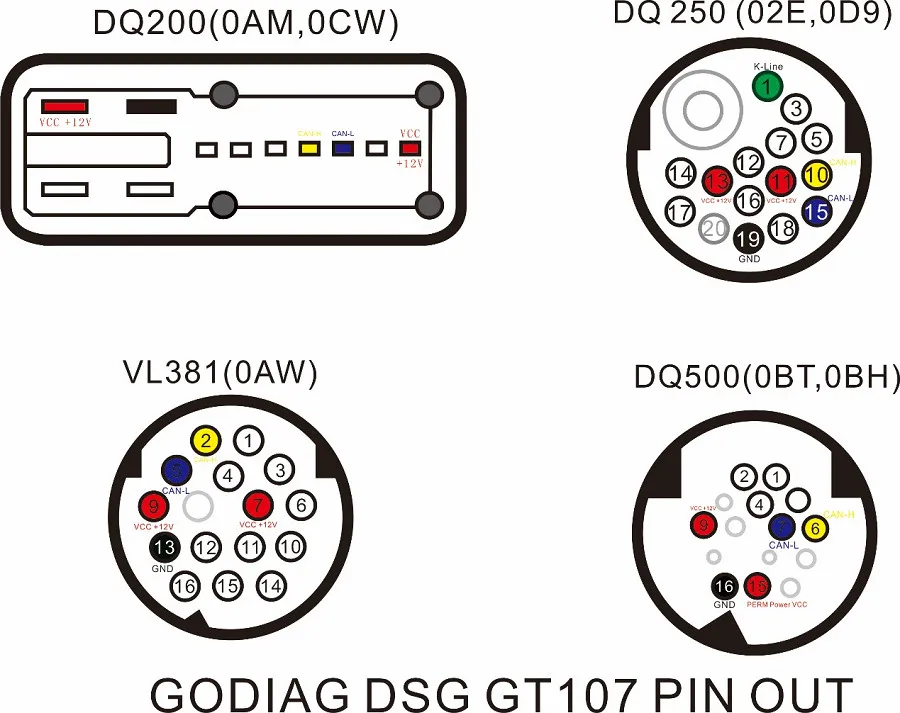

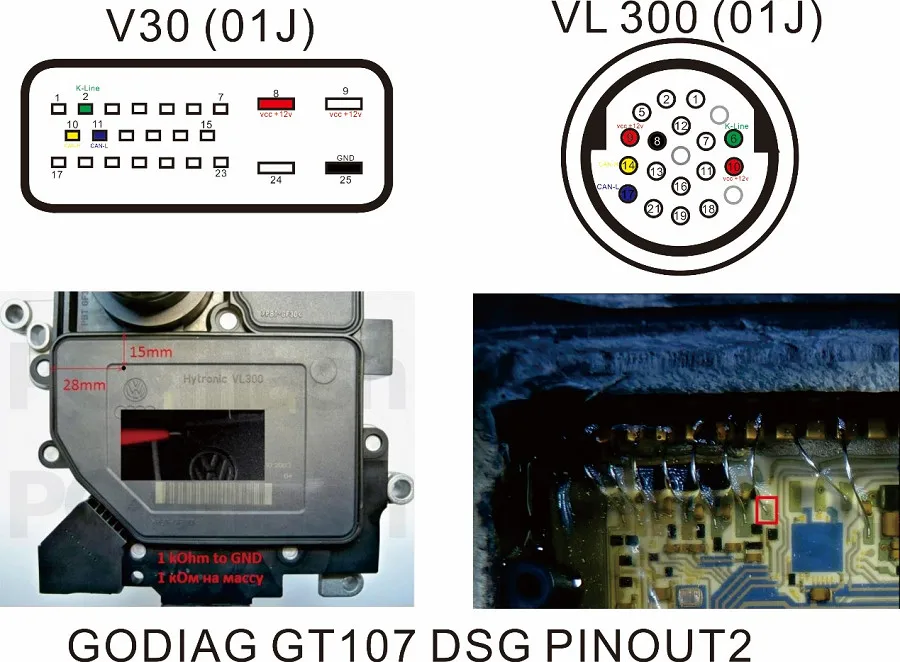

The GODIAG GT107+ ECU Prog Adapter is a cutting-edge tool designed for automotive professionals and enthusiasts working with DSG (Direct-Shift Gearbox) systems. This versatile adapter supports a wide range of gearbox ECUs, including DQ250, DQ200, VL381, VL300, DQ500, and DL501, making it indispensable for diagnostics, cloning, and ECU reprogramming.

Key Features of the GODIAG GT107+ Adapter

1. Wide Compatibility

The adapter is engineered for VAG series gearbox ECUs and extends support to brands like BMW, Benz, Renault, and Honda. It ensures seamless integration with popular software tools such as PCMFlash, PCMTuner, and Kessv2.

2. Real-Time Voltage and Current Monitoring

• Voltage Display: Monitors the operating voltage of the gearbox ECU, helping detect short circuits or wiring issues.
• Current Display: Tracks the working current of the ECU, providing insights into its operational health.

3. Advanced Communication Indicators

• CANbus K-Line Status: The built-in communication indicator displays real-time data transfer status, ensuring reliable connectivity.

4. Flexible Power Options

• Manual/Automatic Mode Switch: Choose between Auto for data reading/writing or Manual for diagnostics.
• 120 Ohm Switch: Enhances compatibility with various ECU protocols.
• Battery-Powered Operation: The included power cord with battery clips allows direct power sourcing from the vehicle battery.

5. DIY-Friendly Design

• Detachable Gold-Plated DB9 Interface: Enables custom connection ports for specialized applications.
• Boot Mode Cable & Probe: Simplifies troubleshooting and development tasks.

How to Use the GODIAG GT107+ Adapter

With PCMTuner

1. Connect the Adapter:

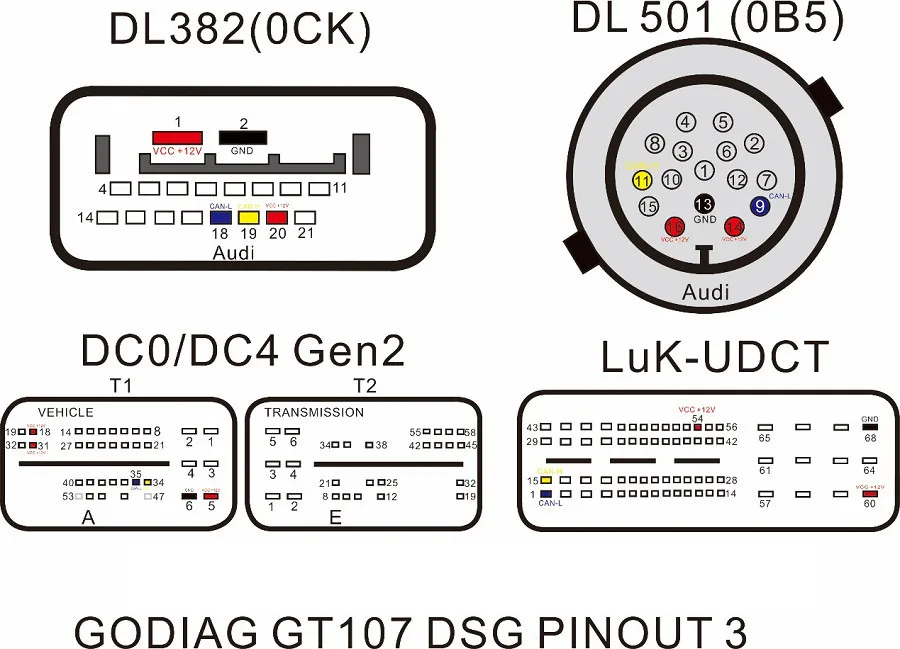

   • Link the GT107+ to the gearbox ECU using the wiring definition for your model (e.g., VAG DQ250, Renault DC0/DC4, Honda LUK UDCT).
2. Power Up:
   • Connect a 12V 2A DC power supply (ensure function buttons are popped up before powering on).
3. Select Mode:
   • Auto Mode: For data reading/writing (ignition switch unpressed).
   • Manual Mode: For diagnostics (ignition switch pressed).
4. Launch Software:
   • Open PCMFlash, PCMTuner, or J2534passthru and proceed with ECU operations.

On-Vehicle Operation

1. Wiring Setup:
   • Follow the gearbox ECU’s wiring diagram to connect the GT107+.
2. Power Connection:
   • Use the 12V 2A power supply or the vehicle battery.
3. Mode Selection:
   • Choose Auto or Manual based on your task.
4. Diagnostics/Programming:
   • Use compatible software to read, write, or adjust ECU data.

With KESSV for DQ200, DQ250, DQ500

1. ECU Connection:
   • Attach the GT107+ to the gearbox ECU as per the wiring definition.
2. Power Supply:
   • Connect the 12V 2A power source.
3. Manual Mode Activation:
   • Press the ignition switch to enable Manual Mode for diagnostics.
4. Device Integration:
   • Link an OBD2 reader or diagnostic tool to perform ECU operations.

Why Choose the GODIAG GT107+ Adapter?

• Universal Compatibility: Works with multiple DSG gearbox models and brands.
• Precision Diagnostics: Real-time voltage, current, and communication monitoring.
• User-Friendly: Auto/Manual modes cater to both beginners and experts.
• DIY Flexibility: Detachable DB9 interface and probe for custom setups.

For automotive technicians and gearbox specialists, the GODIAG GT107+ is a must-have tool for efficient and accurate ECU programming and diagnostics.
