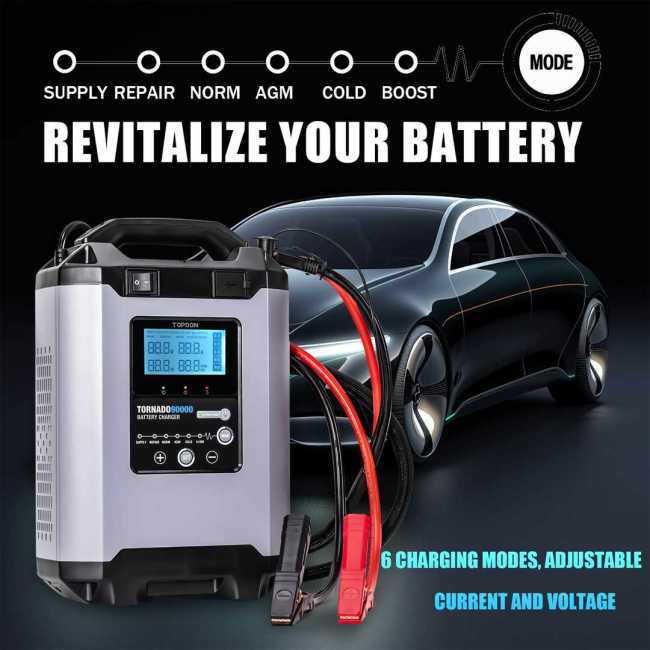

TOPDON Tornado90000 Battery Charger Power Supply & Smart Charger for 12V Cars and 24V Trucks

What Is the TOPDON Tornado 90000 Battery Charger?

The TOPDON Tornado 90000 (T90A) is a professional-grade battery charger and intelligent programmable power supply designed for modern automotive repair shops, dealerships, fleet maintenance companies, and battery service centers. Combining powerful charging performance with advanced battery management technology, it supports a wide range of 12V and 24V lead-acid batteries, including AGM, GEL, WET, MF, CAL, and EFB battery types.

Unlike conventional battery chargers, the Tornado 90000 integrates charging, battery maintenance, battery repair, and stable DC power supply into one versatile device. Its intelligent charging system helps maximize battery performance while protecting sensitive vehicle electronics during diagnostics, ECU programming, and ADAS calibration.

Professional Features Built for Automotive Technicians

90A High-Speed Charging Performance

Designed for heavy-duty applications, the TOPDON Tornado 90000 delivers impressive charging power for professional workshops.

It offers:

• Up to 90A output for 12V batteries

• Up to 45A output for 24V batteries

• Adjustable charging current from 5A to 90A

• Fast charging for passenger vehicles, trucks, motorcycles, boats, and commercial equipment

This powerful output significantly reduces charging time while maintaining optimal battery health through intelligent charging management.

Adjustable Voltage and Current

Different batteries require different charging parameters. The Tornado 90000 allows technicians to customize charging settings according to battery specifications and service requirements.

Voltage Adjustment

• 11V–15.8V for 12V batteries

• 22V–31.6V for 24V batteries

Current Adjustment

• 5A–90A (12V)

• 5A–45A (24V)

These programmable settings provide exceptional flexibility for both charging and voltage stabilization tasks.

Advanced 9-Step Smart Charging Technology

The TOPDON Tornado 90000 utilizes an advanced 9-step intelligent charging process that automatically optimizes every stage of battery charging and maintenance.

Battery Diagnosis and Repair

Before charging begins, the charger analyzes the battery's condition and checks for sulfation or reduced capacity.

Using intelligent pulse charging technology, it helps to:

• Reduce sulfation

• Recover battery capacity

• Improve charging efficiency

• Extend battery lifespan

Although severely damaged batteries cannot always be restored, Repair Mode can often improve the performance of batteries suffering from mild sulfation.

Intelligent Charging Process

Throughout the charging cycle, the Tornado 90000 continuously monitors battery status and automatically adjusts charging current and voltage.

The intelligent control system considers:

• Battery condition

• Charging progress

• Ambient temperature

• Battery temperature

This dynamic adjustment maximizes charging efficiency while protecting the battery from unnecessary stress.

Automatic Maintenance Mode

After reaching full charge, the Tornado 90000 automatically switches to maintenance mode.

Instead of continuously applying full charging current, it intelligently maintains battery capacity through trickle charging, preventing overcharging while keeping the battery fully charged and ready for use.

Six Intelligent Charging Modes for Every Application

The Tornado 90000 provides six specialized charging modes designed to accommodate different battery types and professional service requirements.

NORMAL Mode

NORMAL Mode performs the complete 9-step smart charging process for standard lead-acid batteries.

This mode is suitable for routine battery charging and maintenance.

AGM Mode

AGM Mode is optimized specifically for Absorbent Glass Mat batteries commonly used in modern start-stop vehicles, luxury cars, and high-performance automobiles.

COLD Mode

When operating below 0°C (32°F), COLD Mode automatically adjusts charging parameters to compensate for low-temperature conditions and improve charging efficiency.

REPAIR Mode

REPAIR Mode delivers pulse charging to help restore older or sulfated batteries by reducing internal crystal buildup.

This mode is ideal for extending battery service life whenever possible.

BOOST Mode

BOOST Mode provides rapid charging through constant voltage output, allowing batteries to recharge within approximately 2 to 8 hours, depending on battery capacity and condition.

SUPPLY Mode

SUPPLY Mode transforms the Tornado 90000 into a stable programmable DC power supply.

This feature is particularly valuable for:

• ECU programming

• Vehicle coding

• Software updates

• ADAS calibration

• Long-term diagnostics

• Vehicle maintenance

The charger maintains stable voltage throughout the entire operation, helping prevent interruptions caused by battery voltage fluctuations.

Stable Power Supply for ECU Programming

Modern vehicles require stable voltage during programming and calibration procedures. Even small voltage drops can cause programming failures or damage expensive control modules.

The TOPDON Tornado 90000 is specifically engineered to provide reliable voltage support throughout these critical operations.

Professional technicians have successfully used the charger during ECU programming for vehicles including:

• Nissan

• Chrysler

• MINI

It also performs exceptionally well during ADAS calibration for brands such as Toyota and Honda, where voltage stability is essential for successful sensor calibration.

Intelligent Temperature Management

Charging large automotive batteries generates considerable heat, especially at high current levels.

To ensure safe operation, the Tornado 90000 incorporates advanced temperature management features.

Built-In Temperature Sensor

The integrated temperature sensor continuously monitors battery temperature throughout the charging process.

When excessive heat is detected, the charger automatically adjusts charging output or temporarily stops charging to protect both the battery and the charger.

Efficient Cooling Fan

An internal cooling fan provides continuous airflow during operation, effectively dissipating heat and improving long-term reliability.

This cooling system allows the charger to maintain stable performance even during extended high-current charging sessions.

Large LCD Display for Easy Monitoring

The Tornado 90000 features a bright LCD display that allows technicians to monitor charging progress in real time.

Displayed information includes:

• Battery voltage

• Charging current

• Charging mode

• Battery status

• Charging progress

The clear display remains easy to read even in dim workshop environments, making operation simple and convenient.

Multiple Safety Protection Features

Safety is one of the key advantages of the TOPDON Tornado 90000.

Its intelligent protection system safeguards both the charger and the connected battery throughout every charging cycle.

Reverse Polarity Protection

Prevents damage caused by incorrect battery cable connections.

Reverse Charging Protection

Ensures electrical current flows safely in the correct direction.

Short Circuit Protection

Automatically detects abnormal electrical conditions and immediately protects the system.

Overvoltage Protection

Protects sensitive vehicle electronics from excessive charging voltage.

Overheat Protection

Continuously monitors operating temperature to prevent overheating during high-output charging.

Automatic Overcharge Protection

Once charging is complete, the Tornado 90000 automatically enters maintenance mode to prevent battery overcharging and maximize battery lifespan.

Wide Compatibility for Multiple Battery Types

The TOPDON Tornado 90000 supports virtually every common lead-acid battery technology currently used in the automotive industry.

Compatible battery types include:

• AGM

• GEL

• WET

• MF

• CAL

• EFB

Its broad compatibility makes it suitable for numerous applications.

Supported vehicles include:

• Passenger cars

• SUVs

• Pickup trucks

• Trucks

• Motorcycles

• Boats

• ATVs

• Agricultural machinery

• Commercial vehicles

• Industrial equipment

More Than Just a Battery Charger

In addition to battery charging, the Tornado 90000 functions as a stable external power supply.

It can safely power automotive accessories such as:

• Tire inflators

• Car refrigerators

• Diagnostic equipment

• Workshop electronics

This added versatility makes it an essential piece of equipment for professional service facilities.

Why Automotive Professionals Choose the TOPDON Tornado 90000

Professional technicians value the Tornado 90000 for its combination of power, reliability, and intelligent control.

Key advantages include:

Reliable Voltage During Programming

Stable voltage minimizes the risk of programming failures caused by battery voltage drops.

Fast Installation

The included battery cables and Allen wrench allow installation in less than one minute.

Improved Workshop Efficiency

By reducing charging time and preventing voltage-related programming issues, the Tornado 90000 helps improve workflow while reducing costly repair delays.

What's Included in the Package?

Each TOPDON Tornado 90000 package includes everything needed for immediate operation:

• TOPDON Tornado 90000 Battery Charger

• Heavy-duty battery cables

• User Manual

• Allen Wrench

The included installation tools make setup quick and straightforward.

Frequently Asked Questions

Can the TOPDON Tornado 90000 charge both 12V and 24V batteries?

Yes. The charger is fully compatible with both 12V and 24V lead-acid batteries, including AGM, GEL, WET, MF, CAL, and EFB battery types.

Is SUPPLY Mode suitable for ECU programming?

Absolutely. SUPPLY Mode delivers stable DC voltage that is ideal for ECU programming, coding, diagnostics, and ADAS calibration.

Can Repair Mode restore old batteries?

Repair Mode uses intelligent pulse charging to reduce sulfation and improve battery performance whenever possible. Results depend on the battery's overall condition.

Does the charger stop automatically after charging?

Yes. Once the battery reaches full capacity, the Tornado 90000 automatically switches to maintenance mode, preventing overcharging while keeping the battery fully charged.

Who is the TOPDON Tornado 90000 designed for?

The charger is ideal for professional automotive technicians, repair shops, dealerships, battery retailers, fleet maintenance companies, and experienced DIY vehicle owners seeking professional-grade battery management.

Final Thoughts

The TOPDON Tornado 90000 (T90A) is far more than a conventional battery charger. It is a complete battery management and power supply solution engineered for today's demanding automotive service industry. With 90A high-speed charging, an advanced 9-step intelligent charging system, six specialized charging modes, programmable voltage and current settings, and comprehensive safety protections, it provides the reliability professionals need for battery maintenance, diagnostics, ECU programming, and vehicle servicing.

Whether you're maintaining a fleet, operating a professional repair workshop, or performing advanced vehicle programming, the TOPDON Tornado 90000 delivers the intelligent charging performance, stable power output, and dependable protection needed to keep vehicles running efficiently while extending battery life.
