NEW Topdiag M60 OBD2 Scanner for Motorcycle and Vehicle Fault Code Read Free ECU Reset DTC Lookup

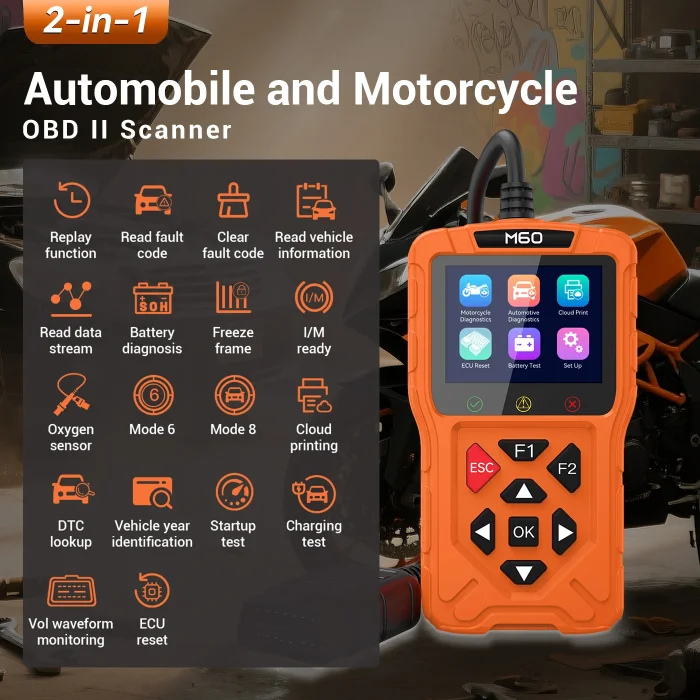

The Topdiag M60 is a versatile, all-in-one diagnostic tool designed to work with all OBD-II compliant vehicles and motorcycles that use a standard 16-pin DLC connector. It combines car and motorcycle diagnostics in one device, delivering fault code reading/clearing, live data, ECU information, and more. With broad protocol support, I/M readiness checks, cloud printing, and multilingual capability, the M60 is ideal for professional workshops and DIY enthusiasts alike.

Motorcycle Diagnostics

• Read Fault Code and Clear Fault Code: Identify issues quickly and reset the codes after repair.
• Battery Test and Battery Voltage Monitoring: Assess battery health and monitor voltage in real time.
• Freeze Frame: Capture data snapshots when a fault occurs.
• Live Data: Real-time engine and system parameters.
• DTC Lookup: Quick reference for fault codes.
• ECU Information and ECU Reset: Access ECU details and reset the ECU to clear adaptive learning values.
• Motor Year Identification: Determine the manufacturing year for accurate diagnostics.

Car Diagnostics

• Read Fault Code and Clear Fault Code: Manage engine faults efficiently.
• Battery Test and Battery Voltage Monitoring: Check battery health and monitor system voltage.
• Freeze Frame: Save data snapshots at fault occurrence.
• I/M Status: Check emissions system readiness for OBD-II vehicles.
• Component Test and In-Vehicle Monitoring Test: Run targeted component tests and access monitor tests identified by MID/CID.
• Oxygen Sensor (O2 Sensor): Diagnose sensor performance.
• Cloud Printing: Print diagnostic results from the cloud (where supported).
• Live Data: Real-time vehicle data streams.
• DTC Lookup: Access fault code definitions quickly.
• ECU Information: Retrieve ECU data for supported modules.
• Vehicle Year Identification: Determine the model year for accurate diagnostics.

Supported Protocols

The Topdiag M60 supports a wide range of OBD-II protocols:

• ISO 9141-2 (5 baud init, 10.4 Kbaud)
• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (fast init, 10.4 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 250 Kbaud)

Multifunctional Capabilities

• Data Analysis: In-depth analysis of diagnostic data.
• Real-Time Viewing: Live data streams from car and motorcycle systems.
• Engine Data: Key engine parameters displayed in real time.
• Vehicle Health Overview: Clear, at-a-glance status of vehicle conditions.
• Design Focus: Built to protect and extend the life of your vehicle.

ECU Reset and Fault Light Management

• ECU Reset: Clears fault codes and adaptive learning values, allowing the ECU to relearn from scratch.
• Clear Fault Light: Quickly read faults and clear the engine fault indicator.

I/M Readiness and In-Vehicle Monitoring

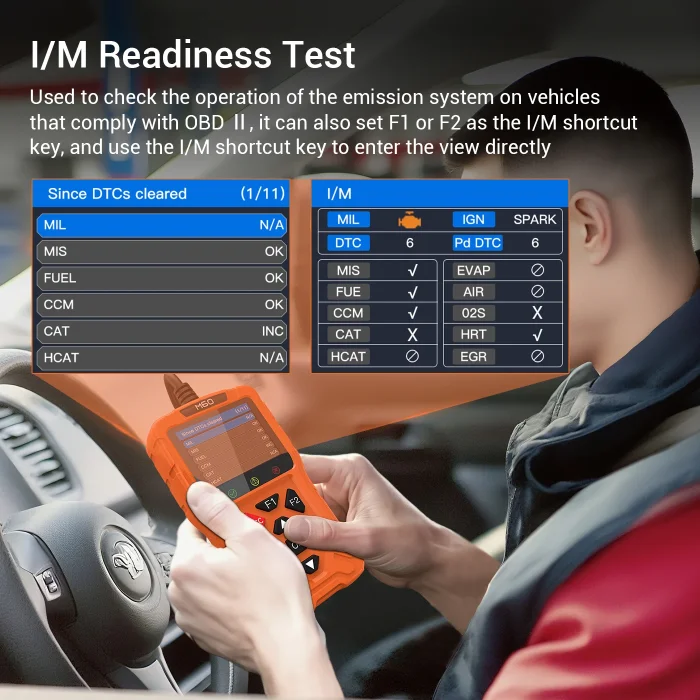

• I/M Readiness Test: Check emission system readiness for OBD-II vehicles. Supported models allow F1 or F2 to be set as an I/M shortcut key.

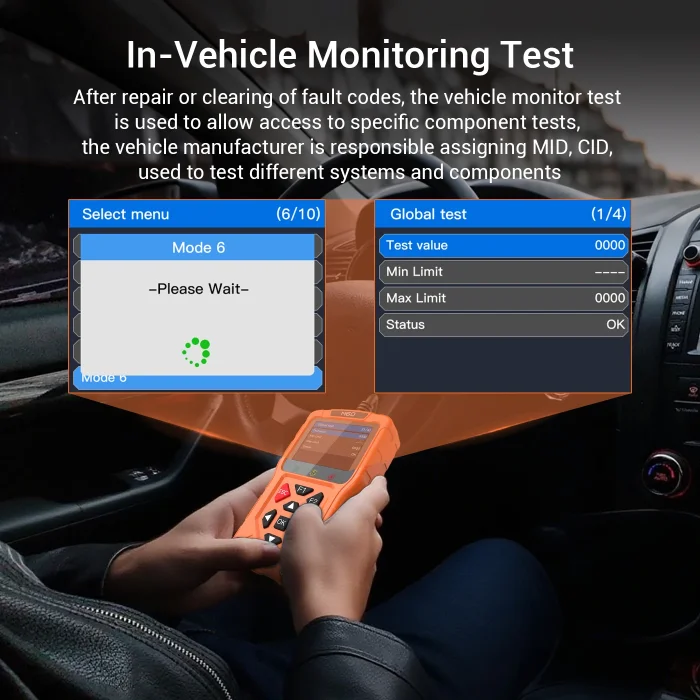

• In-Vehicle Monitoring Test: After repairs or code clearing, access vehicle monitors to verify system functionality. MID/CID identifiers are vehicle-manufacturer assigned for different tests.

User-Friendly Experience

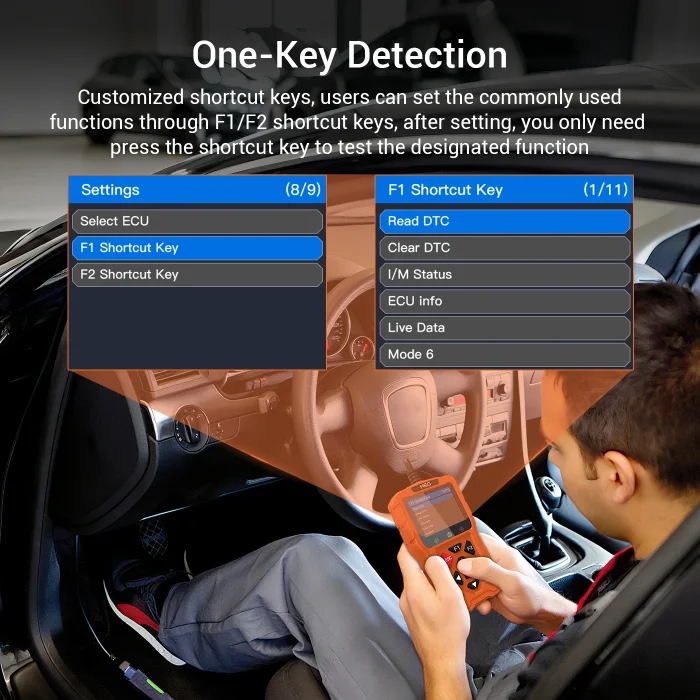

• One-Key Detection: Customize F1/F2 shortcut keys for frequently used functions for quick access.

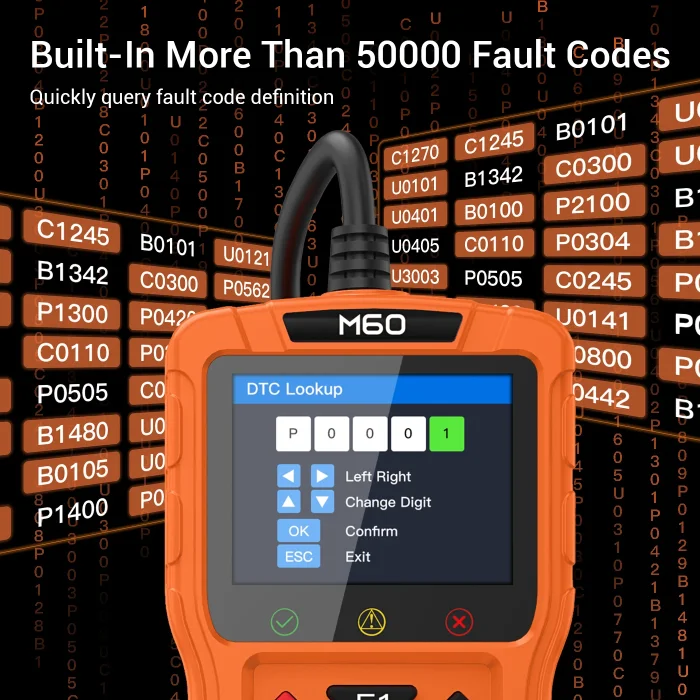

• Built-In Fault Code Library: Access a database of over 50,000 fault codes and definitions.
• Firmware Upgrade: Upgrade via PC software using a USB-C connection to stay current.
• 93 cm Extended Cable: Longer cable for easier reach in tight spaces.

Language Support

• English, German, Chinese, Polish, Spanish, Dutch, French, Italian, Russian, Portuguese, Japanese, Indonesian, Turkish.

Why Choose the M60

• Broad protocol compatibility enables diagnosis across a wide range of vehicles and motorcycles.
• Comprehensive feature set includes fault code management, live data, ECU information, I/M readiness, and cloud printing.
• Upgradable firmware keeps the tool current with evolving vehicle technology.

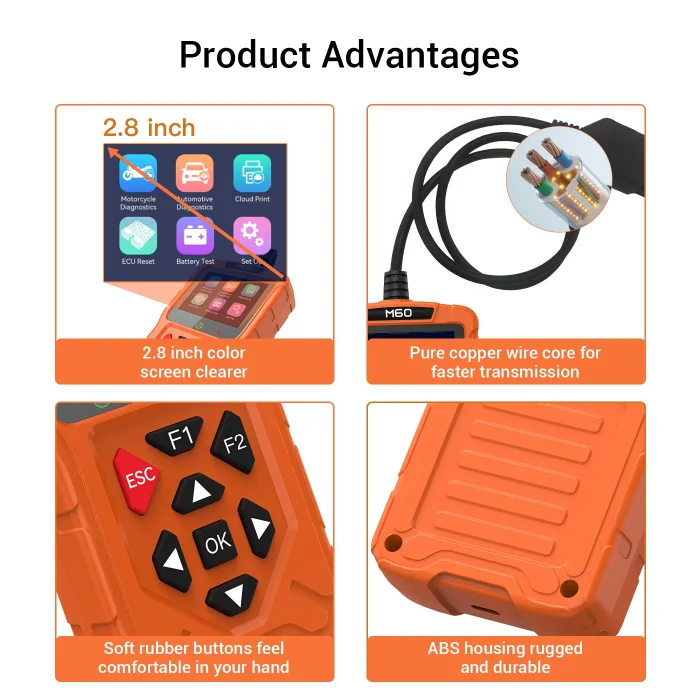

• Ergonomic design and extended cable improve usability in tight spaces.

What’s Included and Upgrades

• Included: M60 device, 93 cm extended cable, USB-C for firmware upgrades.
• Upgrades: Regular firmware updates, potential cloud printing enhancements, and language packs.

Getting Started

• Step 1: Connect the M60 to the vehicle’s OBD-II port using the extended cable.
• Step 2: Power on the device and select your preferred language.
• Step 3: Choose the diagnostic function (Read Fault Code, Live Data, I/M Readiness, etc.).
• Step 4: Review fault codes, perform necessary maintenance, and use ECU Reset if required.
• Step 5: Upgrade firmware via the PC-end software with USB-C when needed.
