The McLaren MDS Diagnostic Tool Kit is a professional-grade diagnostic solution designed for McLaren vehicles. It integrates a certified Vehicle Communication Interface (VCI) with preinstalled McLaren MDS software, enabling advanced vehicle diagnostics, ECU programming, system calibration, and workshop-level maintenance functions.

This system is designed for specialists, workshops, and advanced automotive users who require factory-level access to McLaren electronic systems.

H2: What is the McLaren MDS Diagnostic System?

The McLaren MDS (McLaren Diagnostic System) is a dealer-level diagnostic platform used to interface with McLaren vehicle electronic control units (ECUs).

It allows users to perform:

Full vehicle system diagnostics
ECU coding and programming
Fault code reading and clearing
Software updates and reprogramming
Guided maintenance procedures

The system connects via a Vehicle Communication Interface (VCI) and operates through dedicated McLaren diagnostic software installed on a rugged workstation or tablet platform.

H2: Core Components of the McLaren MDS Kit

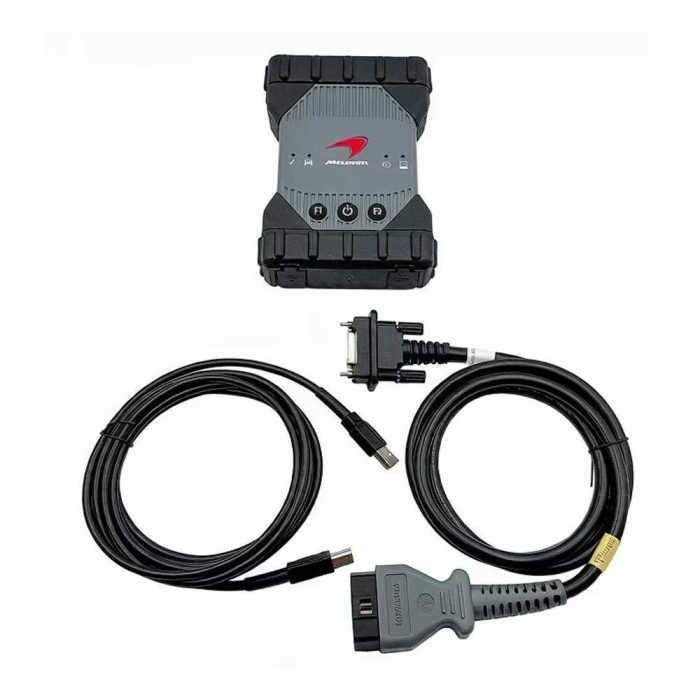

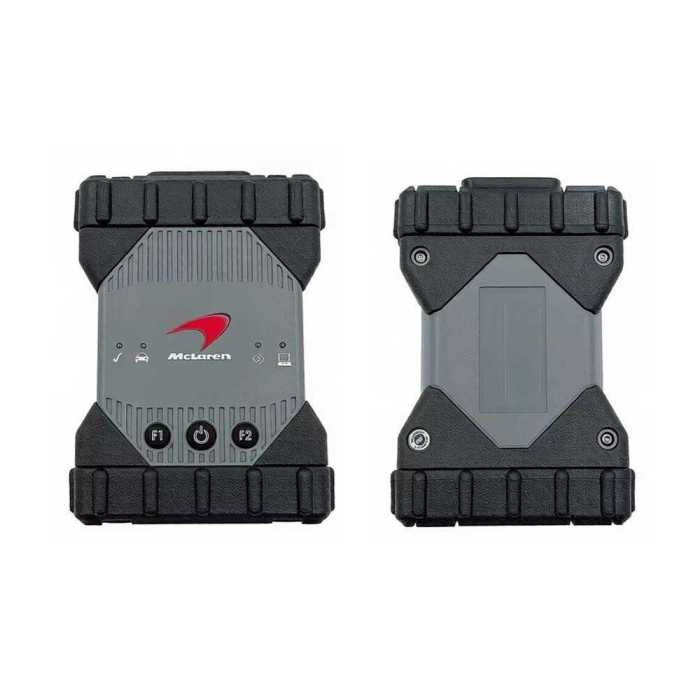

H3: 1. Certified McLaren VCI Interface

The VCI acts as the communication bridge between the vehicle and the diagnostic software. It enables:

CAN network communication
ECU data exchange
Programming and flashing operations

H3: 2. Preinstalled Diagnostic Laptop / Tablet

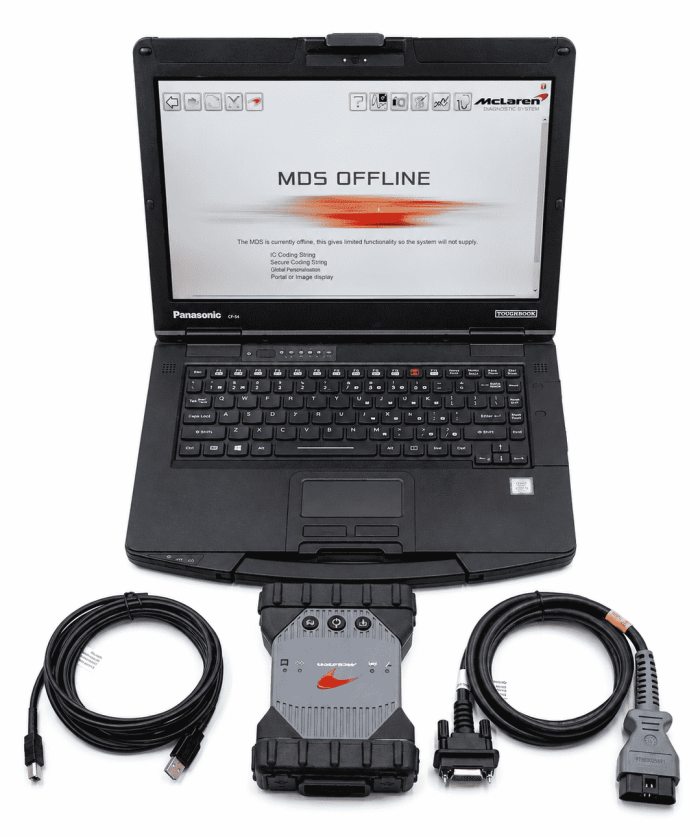

The kit typically includes a rugged Panasonic CF-D series or equivalent device preconfigured with:

McLaren MDS software (v18.0.0.0056)
VCI Manager
Softing DTS7 communication layer
System configuration tools

H3: 3. McLaren Online Workshop Manual (Bonus Access)

Users also receive access to a web-based workshop manual, offering:

Repair reference data
System operation guides
Diagnostic workflows
Component location and technical information

Access is provided as a complimentary digital bonus.

H2: Key Features of McLaren MDS Diagnostic Tool

H3: Full System Diagnostics

The MDS tool provides deep access to all vehicle ECUs, allowing technicians to:

Read and clear DTCs (Diagnostic Trouble Codes)
Identify ECU status and software versions
Analyze fault conditions in real time

H3: ECU Programming and Coding

The system supports:

ECU reprogramming
Software flashing
Module adaptation
Configuration updates

This enables precise vehicle customization and repair-level control.

H3: Live Data Monitoring

Technicians can monitor real-time parameters such as:

Engine temperature
Sensor outputs
Pressure and voltage readings
Vehicle speed and performance data

H3: Calibration and Adaptation Functions

MDS allows calibration of critical systems including:

Engine management systems
Brake control modules
Transmission adaptation
Battery management systems (BMS)

H3: Service and Maintenance Functions

The tool includes essential workshop functions such as:

Oil service reset
Service interval reset
Component activation tests
End-of-line procedures

H2: Advanced Diagnostic Capabilities

H3: Data Logging and Reporting

The system records long-term vehicle performance data, enabling:

Trend analysis
Fault prediction
Workshop reporting
Historical diagnostics

H3: Remote Diagnostic Functions

MDS supports off-site diagnostic capabilities, reducing vehicle downtime and improving efficiency.

H3: Configuration Management

Technicians can store and manage vehicle configurations, ensuring consistency across multiple diagnostic sessions.

H2: Software Architecture of MDS System

H3: Softing DTS7 Integration

The system uses Softing DTS7 as a backend communication layer that:

Converts ECU hexadecimal data into readable values
Ensures accurate diagnostic interpretation
Supports stable communication between ECU and software

H3: VCI Manager System

VCI Manager is used for:

Device pairing
Network configuration
Wi-Fi communication setup
Interface diagnostics

H3: MDS Application Interface

The MDS software interface is launched via the main diagnostic module and provides:

Vehicle overview dashboard
ECU status overview
Work package selection
Diagnostic workflow navigation

H2: Vehicle Coverage and Compatibility

The McLaren MDS Diagnostic Tool supports McLaren models up to 2022/2023, depending on system configuration.

Supported Functions Include:

ECU diagnostics
Coding and programming
Fault analysis
System calibration

Known Limitations:

IC Coding String (read-only)
SCUG Coding String (read-only)
Limited guided functions
No full support for newest models such as Artura (depending on version)

H2: Key Diagnostic Functions Overview

H3: Fault Diagnosis (DTC Management)

Read fault codes
Clear error logs
Perform root cause analysis

H3: Control Unit Identification

Identify ECU hardware/software versions
Verify module configuration

H3: Actuator Testing

Activate components manually
Test system responses in real time

H3: Reprogramming Functions

ECU flash updates
Software version upgrades
Manufacturer-level updates

H2: Usage and Support Policy

Basic operational guidance is provided to help users understand:

Software navigation
Tool operation
Interface setup

However, detailed mechanical repair support or step-by-step vehicle repair instructions are not included.

H2: Conclusion

The McLaren MDS Diagnostic Tool Kit is a comprehensive dealer-level diagnostic system designed for advanced automotive diagnostics, ECU programming, and workshop-level vehicle management.

With its integrated VCI interface, preinstalled software environment, and extensive diagnostic functions, it provides a professional solution for McLaren vehicle servicing up to 2022/23 models.

For workshops and specialists requiring deep system access, the MDS platform represents a complete diagnostic ecosystem for McLaren vehicles.
