JFIND JF700 Pro OBD2 Scanner Check Engine Code Reader With Battery Performance Testing For VW

The JFIND JF700 Pro OBD2 Scanner is a powerful and versatile diagnostic tool designed for modern vehicles. Compatible with 98% of OBDII-compliant cars, it offers a comprehensive suite of features, including battery performance testing, fault code reading, real-time data streaming, and cloud printing. Whether you're a professional mechanic or a DIY car enthusiast, this tool provides everything you need for accurate vehicle diagnostics.

Key Features of the JFIND JF700 Pro

1. Battery Performance Testing

The JF700 Pro includes advanced battery testing capabilities to ensure your vehicle’s battery is in optimal condition.

Startup Test

• Detects the current starting performance of the battery.
• Helps determine the battery’s health and remaining lifespan.

Charging Test

• Quickly diagnoses charging system faults.
• Identifies issues with the alternator or voltage regulator.

Load Test

• Records real-time voltage fluctuations during load changes.
• Accurately assesses the battery’s overall health.

2. OBD PIN Voltage Test

• Diagnoses OBD port voltage issues when the scanner fails to connect.
• Helps pinpoint electrical faults in the vehicle’s diagnostic system.

3. Multi-Language Support

The JF700 Pro supports 16 languages, including:

• English, German, French, Spanish, Italian, Polish, Dutch, Portuguese, Russian, Turkish, Malay, Vietnamese, Thai, Filipino, Indonesian, Japanese, and Chinese.

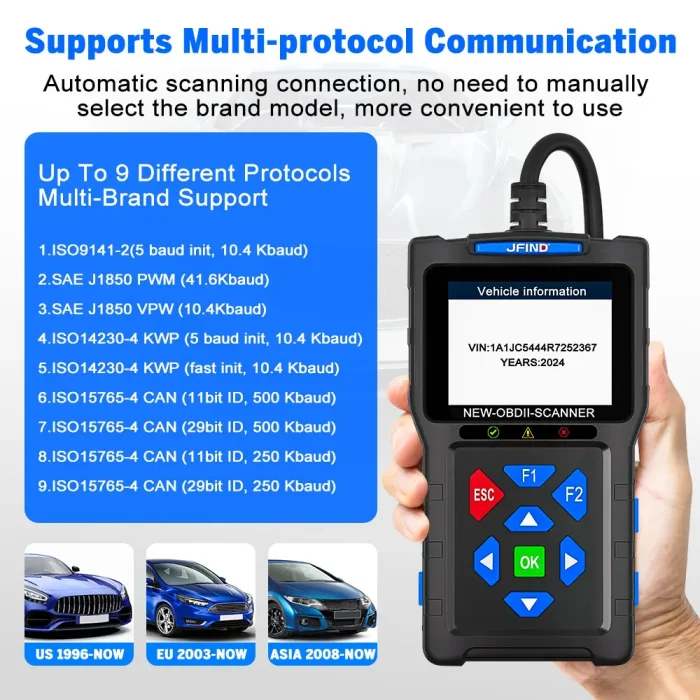

4. Multi-Protocol Communication

The scanner automatically detects and connects to vehicles using 9 different protocols, including:

• ISO9141-2
• SAE J1850 PWM/VPW
• ISO14230-4 KWP
• ISO15765-4 CAN (11-bit and 29-bit, 250/500 Kbaud)

Advanced Diagnostic Functions

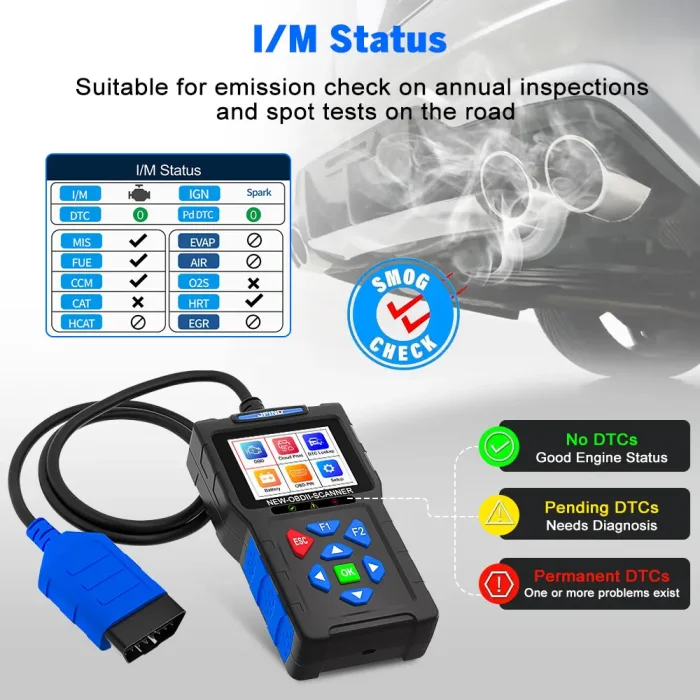

I/M Readiness Status

• Checks emission system readiness for annual inspections and roadside tests.

Live Data Streaming

• Displays real-time vehicle data (e.g., RPM, coolant temperature, fuel pressure).
• Allows custom data selection for detailed analysis.

Engine Troubleshooting

• Reads and clears fault codes to turn off the check engine light.

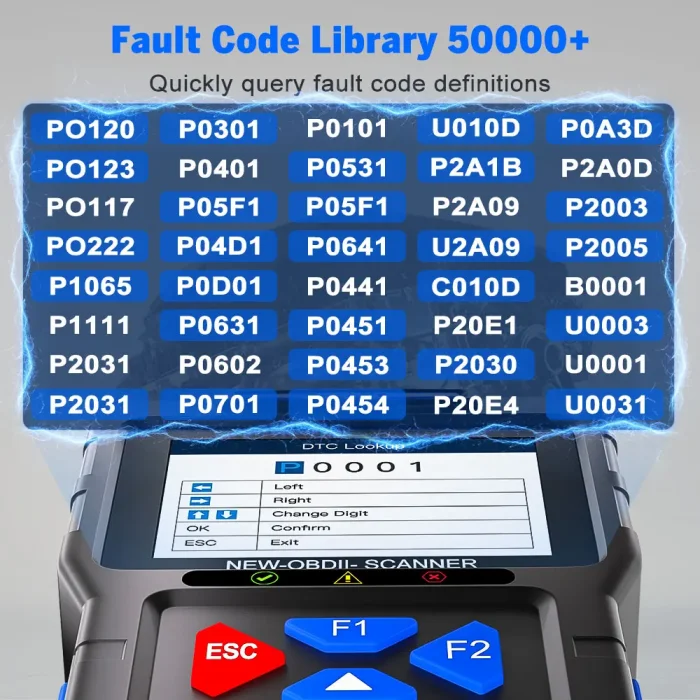

• Accesses a database of 50,000+ fault codes for quick troubleshooting.

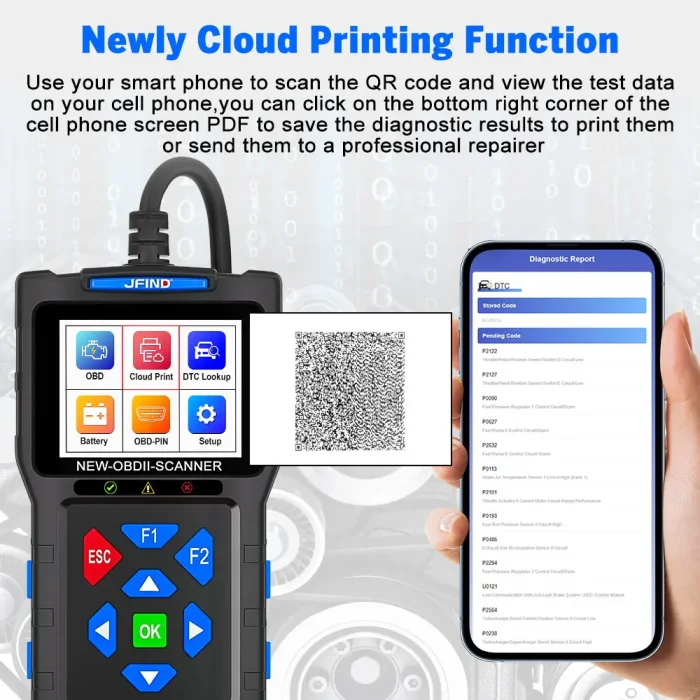

Cloud Printing Function

• Scan a QR code to view diagnostic results on your smartphone.
• Save or print reports as PDFs for sharing with repair professionals.

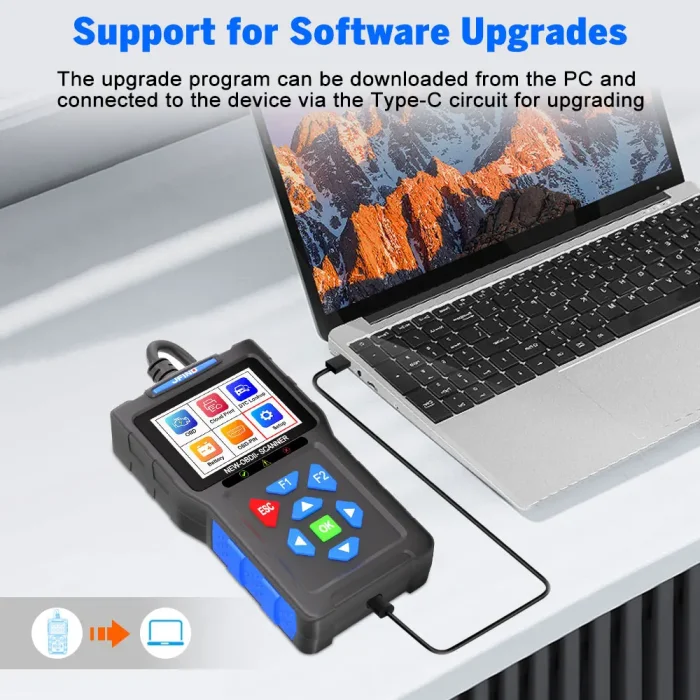

Software Upgrades

• Download updates via PC and install them through the Type-C port.
• Ensures compatibility with new vehicle models and protocols.

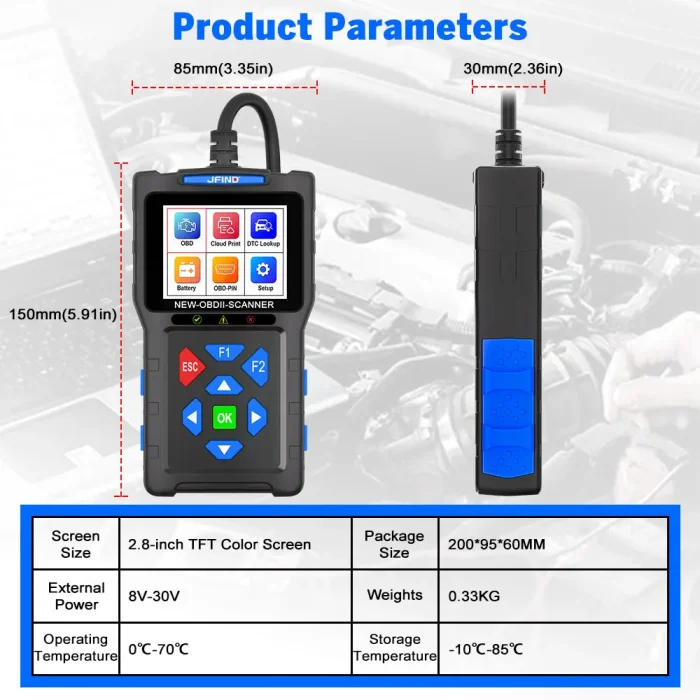

Technical Specifications

• Screen Size: 2.8-inch TFT Color Screen
• External Power: 8V–30V
• Operating Temperature: 0°C–70°C
• Storage Temperature: -10°C–85°C

Why Choose the JFIND JF700 Pro?

• Wide Compatibility: Works with 98% of OBDII-compliant vehicles.
• Comprehensive Testing: Covers battery, charging, and load tests.
• User-Friendly: Features multi-language support and automatic protocol detection.
• Future-Proof: Supports software upgrades for long-term use.

Whether you need to diagnose engine issues, test battery health, or prepare for emissions testing, the JFIND JF700 Pro OBD2 Scanner is the perfect tool for the job.
