GODIAG GT112 K-Line IMMO Key Matching Test Platform for VW Skoda Seat – Full Diagnostic & Offline Dashboard Tool

The GODIAG GT112 K-Line IMMO Key Matching Test Platform Cable is a professional diagnostic and testing solution designed for Volkswagen, Skoda, and Seat vehicles. It is widely used for IMMO system testing, key matching verification, dashboard communication, and offline diagnostic functions.

This tool acts as a bridge between diagnostic devices and vehicle dashboards, making it easier for technicians to perform immobilizer system analysis, key chip detection, and instrument cluster communication tests without requiring full vehicle operation.

What is GODIAG GT112 K-Line IMMO Test Platform?

The GODIAG GT112 is an intelligent IMMO system diagnostic interface designed for VAG group vehicles. It supports 2nd and 3rd generation dashboards, enabling technicians to simulate vehicle communication and test immobilizer functions safely.

Core Purpose of the Device

The main purpose of the GT112 is to:

• Convert dashboard communication into a standard OBD2 interface
• Perform offline IMMO and key matching tests
• Simulate ignition and emergency start conditions
• Test instrument cluster and immobilizer synchronization

Key Application Areas

• Volkswagen (VW)
• Skoda
• Seat
• Other VAG-compatible models

Main Features of GODIAG GT112

The GT112 offers a variety of advanced diagnostic and testing features designed for automotive locksmiths and technicians.

Offline Dashboard Connection

The device allows offline connection to the vehicle dashboard, enabling technicians to:

• Convert dashboard interface into standard OBD2
• Perform safe bench testing without full vehicle setup

IMMO System Synchronization Test

It supports intelligent IMMO testing, including:

• Key chip recognition
• IMMO and dashboard synchronization check
• Immobilizer system communication validation

Independent Ignition Switch Function

The built-in ignition simulation allows:

• Virtual ignition ON/OFF control
• Safe testing of ECU and IMMO behavior
• Bench diagnostics without vehicle key insertion

Key Induction Indicator System

The device includes a visual indicator system that helps identify key status and IMMO response.

Intelligent IMMO Emergency Start Detection

One of the most useful features of the GODIAG GT112 is its emergency start sensing function.

How Emergency Start Detection Works

When the vehicle start button is pressed:

• Bring the smart key close to the detection area
• The device evaluates signal response from the key chip

Indicator Light Results Explained

• Flashing light then off:
  IMMO chip and key are working correctly
• Long flashing light:
  Key and IMMO system do not match; reprogramming required
• No light response:
  Possible IMMO system fault or communication issue

Car IMMO Start and Key Chip Detection

The GT112 also functions as a key chip testing tool for diagnosing immobilizer issues.

Diagnostic Result Interpretation

This function helps determine whether the key or IMMO system is faulty:

Normal Operation

• Light flashes briefly and turns off
• Indicates correct IMMO-key synchronization

Key Mismatch

• Light flashes continuously
• Indicates key needs reprogramming or matching

System Failure

• No light response
• Indicates possible IMMO or wiring failure

Compatibility with Diagnostic Tools

The GODIAG GT112 is designed to work with a wide range of professional automotive diagnostic platforms.

Supported Diagnostic Devices

It is compatible with tools such as:

• VCDS / HEX V2
• VAS 5053 / VAS 5054A / VAS 6154
• SUPER VAG K+CAN
• OBDSTAR series
• Lonsdor key programmers
• AUTEL diagnostic systems
• VVDI2 / Key Tool Plus
• AVDI / ZED-FULL systems

Why Compatibility Matters

This wide compatibility makes the GT112 suitable for:

• Automotive locksmiths
• Workshop technicians
• ECU programmers
• IMMO specialists

Applications of GODIAG GT112

The device is used in multiple automotive service scenarios.

Key Programming and Matching

• IMMO key matching verification
• Smart key emergency testing
• Chip recognition validation

Dashboard Diagnostics

• Instrument cluster communication testing
• Offline dashboard simulation
• Data reading and writing support

Mileage and IMMO Data Services

• Instrument mileage repair
• IMMO system data analysis
• ECU and dashboard synchronization testing

Package Includes

The product package includes:

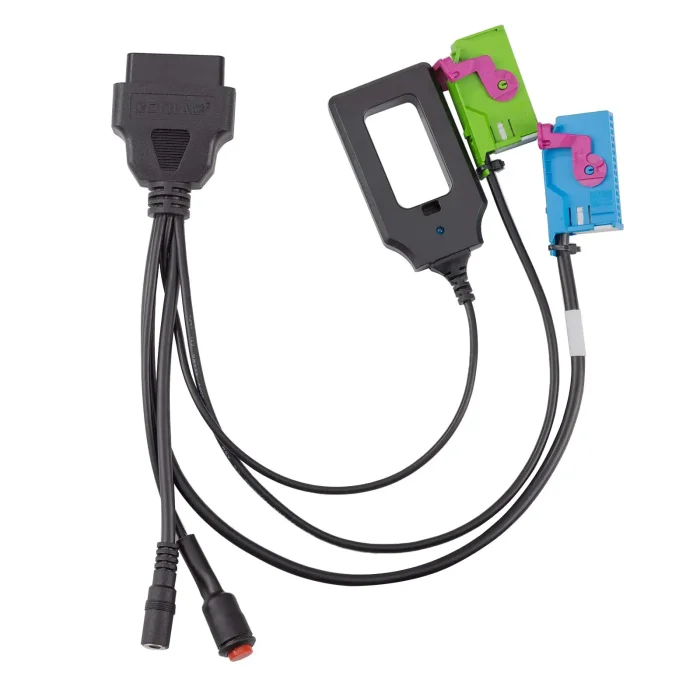

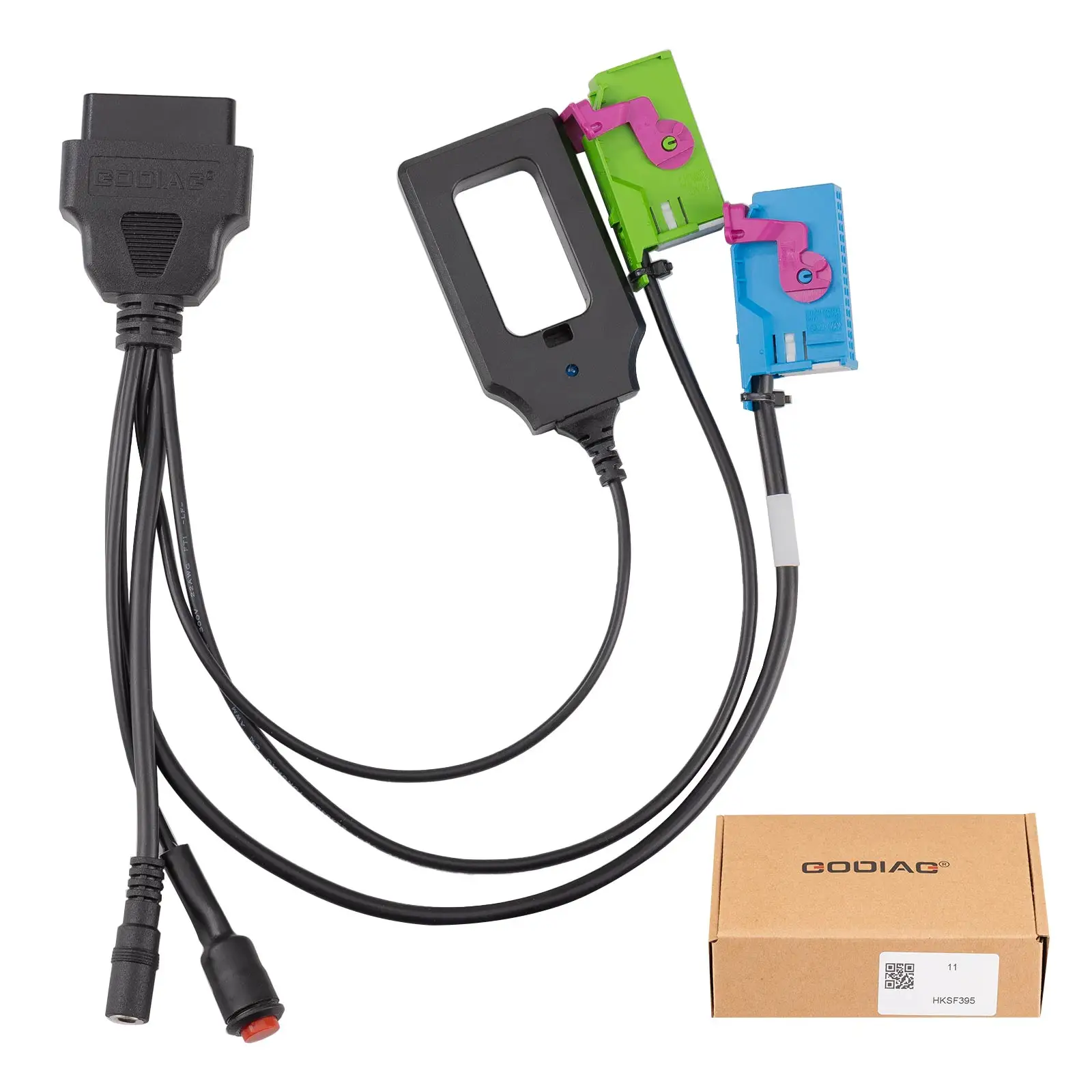

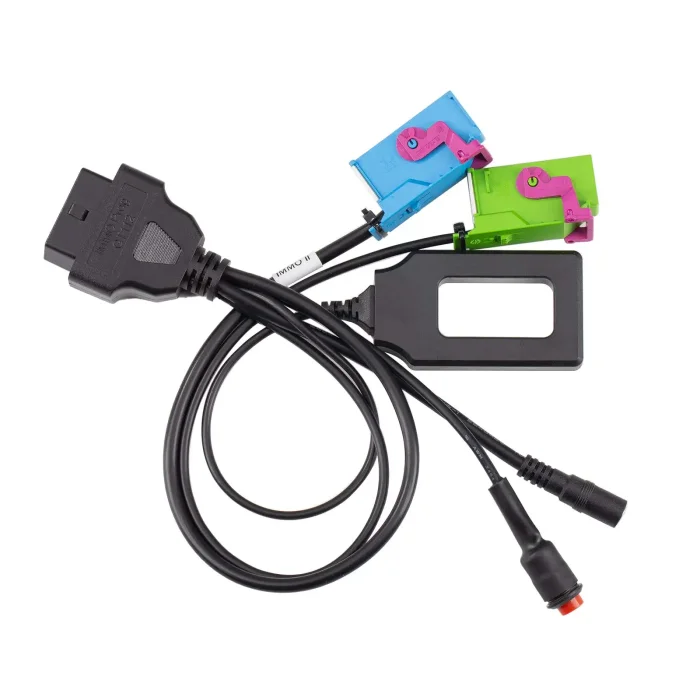

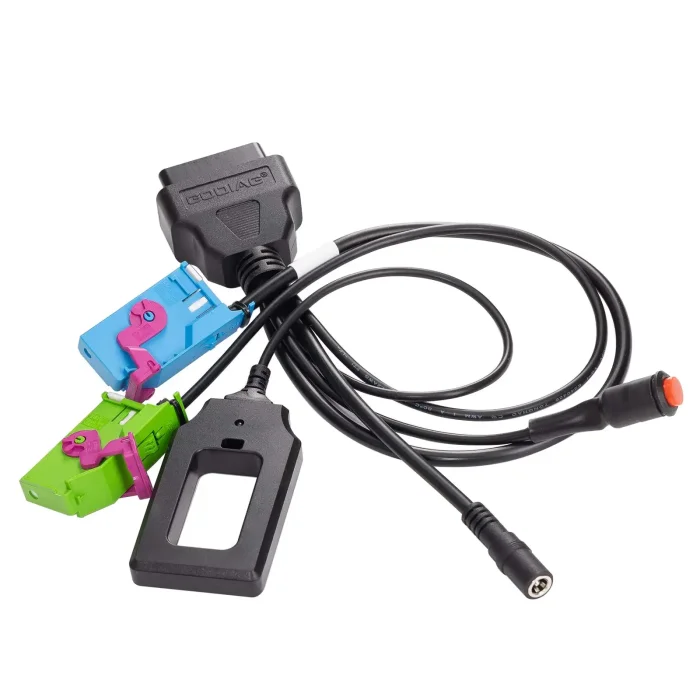

• 1 × GODIAG GT112 K-Line IMMO Test Platform Cable

Conclusion

The GODIAG GT112 K-Line IMMO Key Matching Test Platform is an essential tool for professionals working with VW, Skoda, and Seat vehicles. Its ability to simulate ignition, test key chips, and diagnose IMMO systems makes it a powerful solution for automotive diagnostics and locksmith operations.

Whether you are performing offline dashboard testing, key programming, or immobilizer troubleshooting, the GT112 provides a reliable and efficient testing environment.
