GODIAG GT103 Mini Electric Circuit Tester Electrical System Diagnosis Fuel Injector Cleaning Testing

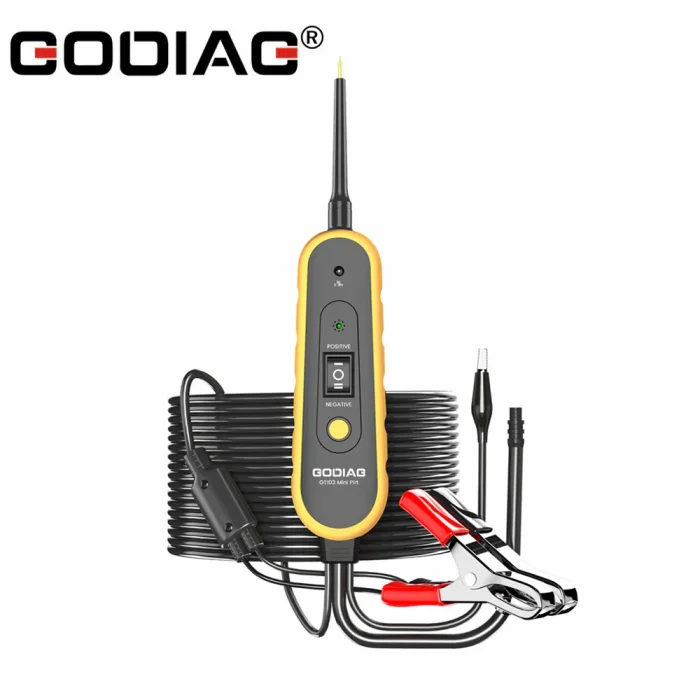

The GODIAG GT103 Mini PIRT Electric Circuit Tester is a powerful and versatile diagnostic tool designed for testing vehicle electrical systems. Powered directly by a car battery or an external battery source, it supports 6V–30V DC systems, making it suitable for cars, trucks, motorcycles, and more.

This compact device helps technicians quickly identify electrical faults, reducing diagnostic time and improving efficiency in automotive repair.

Why Choose the GODIAG GT103 Circuit Tester?

Fast and Accurate Electrical Diagnostics

The GT103 allows users to instantly detect:

• Short circuits
• Open circuits
• Positive and negative polarity
• Continuity issues

This eliminates guesswork and speeds up troubleshooting.

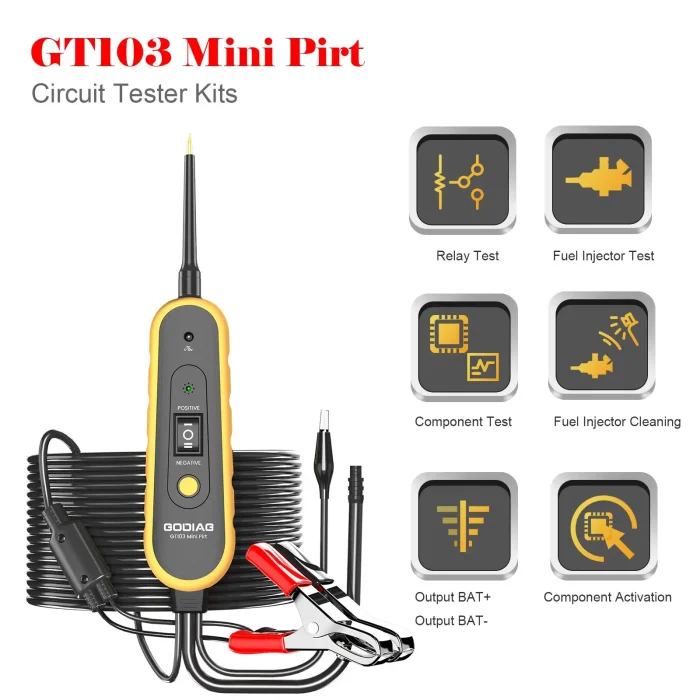

Multi-Functional Automotive Tool

Unlike basic testers, the GT103 combines multiple functions into one device:

• Circuit testing
• Relay testing
• Fuel injector testing
• Fuel injector cleaning

Key Features of GODIAG GT103

Advanced Diagnostic Capabilities

• Power injection and voltage measurement
• Ground testing and polarity detection
• Component activation (fans, relays, motors)
• Continuity testing

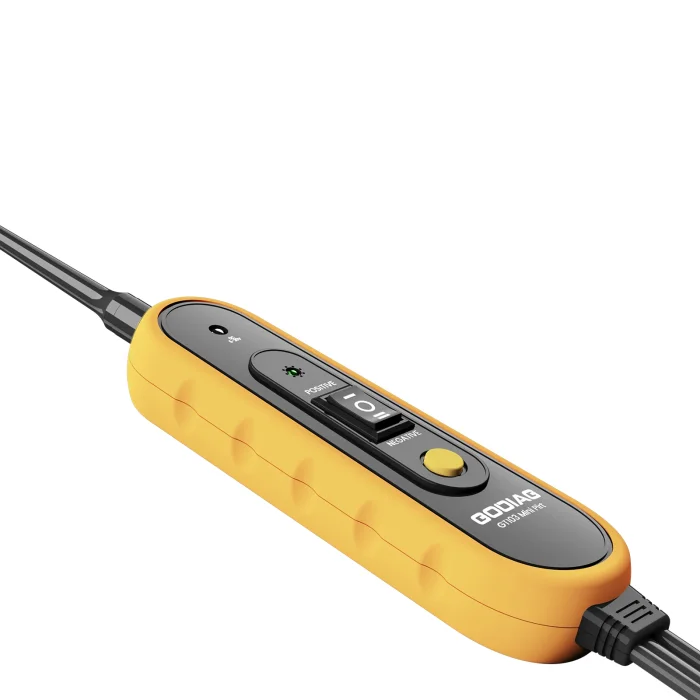

User-Friendly Design

• Built-in flashlight for low-light environments
• Audio tone indicator for easy operation
• 20ft long cable for extended reach

Safety and Protection

• Circuit breaker protection (auto trip above 20A)
• Reverse current output capability
• Durable and reliable construction

Main Functions of GODIAG GT103

1. Circuit Troubleshooting Test

How It Works

When components like headlights, windows, or horns fail:

• Use the tester to check power supply
• Detect positive and negative signals
• Inject voltage directly into components

Fault Diagnosis

• If the component works → circuit issue
• If it doesn’t work → component damage

2. Relay Testing

When to Use

If electrical components fail but appear undamaged, the relay may be faulty.

Testing Steps

1. Remove the relay from the vehicle
2. Connect it using the tester adapter
3. Check switching functionality

This helps confirm whether the relay is functioning properly.

3. Fuel Injector Testing

Symptoms of Faulty Injectors

• Hard starting
• Poor acceleration
• Increased fuel consumption

Testing Method

The GT103 activates the injector:

• If it opens and closes normally → working
• If not → injector is defective

4. Fuel Injector Cleaning

Why Cleaning is Important

Fuel injectors can become clogged due to:

• Carbon deposits
• Sticky residues

This affects fuel atomization and engine performance.

Cleaning Process

Step-by-Step Guide

1. Use a pressurized cleaner (4mm nozzle recommended)
2. Secure the injector firmly
3. Spray cleaning solution carefully

Safety Tips

• Avoid open flames (cleaners are flammable)
• Work in a well-ventilated area
• Wear protective equipment

Wide Vehicle Compatibility

Supported Vehicles

The GODIAG GT103 works with:

• Cars
• Motorcycles
• Trucks
• Buses
• Tractors
• Engineering vehicles
• Marine vessels

Voltage Range

Supports DC 6V–30V systems, covering most automotive electrical systems.

Benefits of Using GODIAG GT103

Save Time and Improve Efficiency

Quick fault detection reduces repair time significantly.

All-in-One Diagnostic Tool

Replaces multiple tools with one compact device.

Professional-Level Testing

Ideal for:

• Auto repair shops
• Technicians
• DIY enthusiasts

Conclusion

The GODIAG GT103 Mini Circuit Tester is a highly efficient and versatile tool for diagnosing vehicle electrical systems. With its ability to test circuits, relays, and fuel injectors—and even perform injector cleaning—it stands out as an essential device for both professionals and car enthusiasts.

If you're looking to speed up diagnostics, improve accuracy, and reduce repair complexity, the GT103 is a smart investment.
