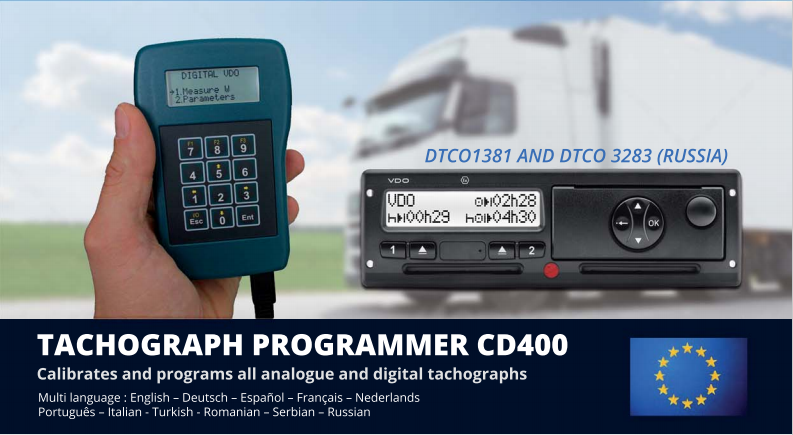

CD400 Tacho Programmer KIT Calibration Programming Tool For Digital Tachograph Truck Tacho Tool

The CD400 Digital Tachograph Programmer is a state-of-the-art tool designed for the calibration, configuration, and verification of analog and digital tachographs in vehicles. Whether you're working with analog or digital systems, this programmer offers a comprehensive suite of features to ensure precise measurements and compliance with regulatory standards.

What is a Tachograph?

A tachograph is a device that measures and records a vehicle's speed and distance over time. It is a critical component for fleet management, driver monitoring, and legal compliance. Analog tachographs record data on paper disks, while digital tachographs store data electronically on internal memory and driver smart cards. The CD400 programmer is compatible with both systems, making it a versatile tool for any workshop or technician.

Key Features of the CD400 Tachograph Programmer

The CD400 programmer is packed with advanced features that make it an essential tool for professionals in the automotive industry.

Analog Tachograph Support

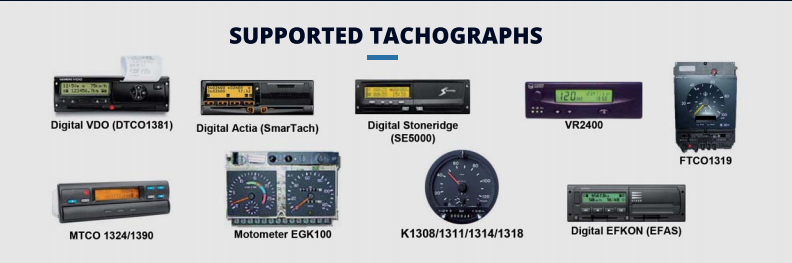

The CD400 supports a wide range of analog tachograph models, including:

• KTCO 1314/1318
• Motometer EGK100
• FTCO 1319
• MTCO 1324/1390
• TSU 1391
• VR2400

Digital Tachograph Support

For digital systems, the CD400 is compatible with:

• DTCO 1381 (DTCO2.1 active)
• SE5000 Exakt Duo
• SmarTach
• EFAS-4

To calibrate digital tachographs, a Workshop Card is required.

Advanced Functions

The CD400 programmer offers a variety of functions to meet the needs of technicians:

• W Figure Determination: Measure the W figure on a measuring track or rolling road.
• K Figure Measurement: Compatible with KTCO 1314, KTCO 1318, and FTCO 1319.
• Speed Simulation: Test speedometers and odometers with customizable automatic test diagrams.
• IMS Activation/Deactivation: Configure Independent Motion Signal parameters on supported models.
• VDO Counter Activation/Deactivation: Manage parameters on DTCO 2.0 devices.
• Mileage Correction: Reset and adjust odometer readings.
• Sensor Pairing: Enable KITAS activation for seamless sensor integration.
• Clock Test: Verify the accuracy of the tachograph's timekeeping.
• Workshop Card PIN Management: Record and input PINs directly through the CD400.

Software Upgrade Process

The CD400 programmer is designed for easy software upgrades, ensuring users always have access to the latest features and improvements. Here’s how to upgrade:

1. Download and Install Software: Download the CD200-ISP software from the official source.
2. Connect the Device: Use the CA-RS232-1 cable to connect the CD400 to your computer’s serial port.
3. Launch the Software: Open the CD200-ISP software and select the appropriate COM port.
4. Select the HEX File: Choose the latest firmware file for the upgrade.
5. Power Supply: Use the dash cam, DC adapter (9V to 30V), or internal 9V battery to power the CD400.
6. Upgrade Completion: Wait for the progress bar to complete, ensuring the device is not interrupted during the process.

Package Included

The CD400 kit comes with everything you need to get started:

• 1pc x CD400 Programmer
• 1pc x CA-1319-0 Cable
• 1pc x CA-CROCO-0 Cable
• 1pc x CA-DIGITAL-0 Cable
• 1pc x CA-EGK100-0 Cable
• 1pc x CA-KTCO-0 Cable
• 1pc x CA-MTCO-1 Cable
• 1pc x CA-RS232 Cable
• 1pc x User Manual

Advantages of the CD400 Programmer

The CD400 programmer stands out for its ease of use, compact design, and advanced functionality.

User-Friendly Design

• No Training Required: The intuitive 4-line menu system ensures even novice users can navigate with ease.
• Automatic Model Detection: The device automatically detects the tachograph model upon power-on.

Compact and Portable

The CD400 is the smallest tachograph programmer on the market, making it easy to carry to any job site.

Enhanced Accuracy

The device offers double the accuracy for W figure measurements by detecting half pulses during the testing process.

Unique Features

• No External Power Required: The CD400 is powered directly by the tachograph, eliminating the need for batteries or external power sources.
• Flash Program Memory: Upgrades are simple and fast, with no complicated procedures required.
• Compatibility: The CD400 is the only programmer capable of resetting and changing the sender type on the VR2400 tachograph.

Why Choose the CD400 Tachograph Programmer?

The CD400 programmer is an indispensable tool for workshops, fleet managers, and technicians. Its versatility, accuracy, and user-friendly design make it the ultimate solution for tachograph calibration and configuration. With support for both analog and digital systems, this programmer ensures compliance with legal requirements while streamlining diagnostic and repair processes.

Whether you're adjusting the odometer, simulating speed, or configuring parameters, the CD400 delivers exceptional performance and reliability. Upgrade your toolkit today and take your tachograph programming to the next level!
