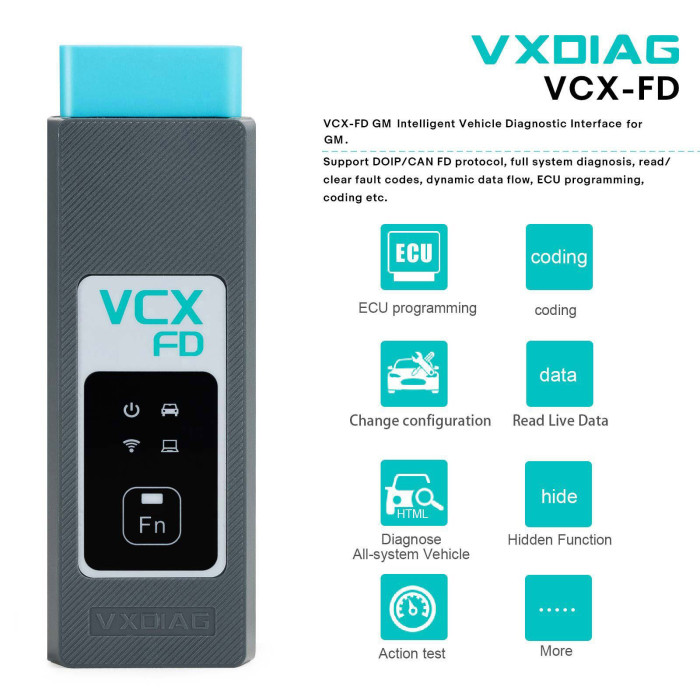

All Car Brand Scanner VCX FD 16 in 1 Diagnostic Tool Support CAN FD DOIP

I. Revolutionary Dual-Core Architecture for Unmatched Diagnostic Performance

1. Dual-Core Processor Architecture Working in Tandem for Enhanced Communication Performance

The dual-core processors utilize 100Mbps Ethernet communication, offering high bandwidth and low latency. Diagnostic communication speed is several times faster than the previous generation.

• 550MHz ARM Protocol Processor for CAN-FD and all traditional vehicle bus protocols.
• 560MHz MIPS Network Processor for DoIP super diagnostic gateway.

2. Dual Operating Systems for Concurrent Tasks, Ensuring More Stable Software Operation

• RTOS (Real-Time Operating System) ensures concurrent multi-task communication on vehicle bus protocols.
• OpenWrt (Network Operating System) flexibly connects various network interfaces and vehicles.

II. Supports a Wider Range of Vehicle Bus Protocols

• Integrated OBD smart protocol multiplexer chip, with all pins capable of intelligently switching to any protocol.
• Supports 3-channel CAN-FD concurrent communication with a maximum speed of 5M Bps.
• Supports ISO-13400 standard dual-channel DoIP interface, Option 1 and Option 2.

III Flexible Connectivity and Sleek New Design for Enhanced Usability

1. Flexible and Easy-to-Use Connectivity

• The main communication interface supports multiple connections such as USB, RJ45, and WLAN, offering flexibility and ease of use.
• Supports wireless router mode, allowing the diagnostic computer to connect wirelessly to the device.
• Supports wireless workstation mode, enabling the device to connect to a wireless local area network (WLAN) so that any computer can connect to the device.
• Supports mapping the vehicle's DoIP Ethernet to WLAN, enabling wireless DoIP diagnostics.

2. All-New Design

• Features a portable design with an integrated OBD-II interface, making it convenient for plug-and-play use.
• The reinforced Type-C connector design prevents wobbling and disconnection, ensuring a more reliable connection.

IV. Powerful Diagnostics, Comprehensive OEM Support

1. Supports 3 Vehicle Brands

VCX-FD now supports OEM diagnostics for GM and Ford/Mazda.

2. Hardware Upgrades with Support for CAN-FD and DoIP

With hardware updates, the device fully supports new models and OEM diagnostic software based on CAN-FD and DoIP.

Advanced diagnostics and programming functions reach OEM-level standards, with speeds even surpassing OEM equipment. Supports one-click installation, uninstallation, and upgrades of OEM drivers, making it easy to use.

V. Updated International Standard API Interface

Provides cross-platform API interfaces (Windows / Linux / Android)

• SAE-J2534-1/2 PassThru V04.04 & V05.00
• ISO-22900 D-PDU API for MVCI
• RP-1210A/B/C API for VDA

VI. J2534 OEM-Level ECU Programming Functions

• ECU software upgrades and calibration.
• ECU replacement flashing and programming.

VII. Dual-Mode Intelligent Remote Diagnostics

• Super remote diagnostics enable OEM online diagnostics with just network connectivity.
• Compatible with remote diagnostics, supporting various special function devices for remote diagnostics.
• The device supports one-click network configuration for quick access to the remote diagnostic platform.

VIII. Hardware Specifications

IX. Indicator Light

X. Supported Vehicle Communication Protocols

XI. OBD-II Pin Bus Protocol Coverage

XII. Product Accessories

VCX-FD Device

138 x 47 x 21 (mm)

RJ45 Adapter

USB-C to RJ45 Network Adapter, 0.2 meters

Software link

USB Communication Cable

USB-C to USB-A, 2 meters
