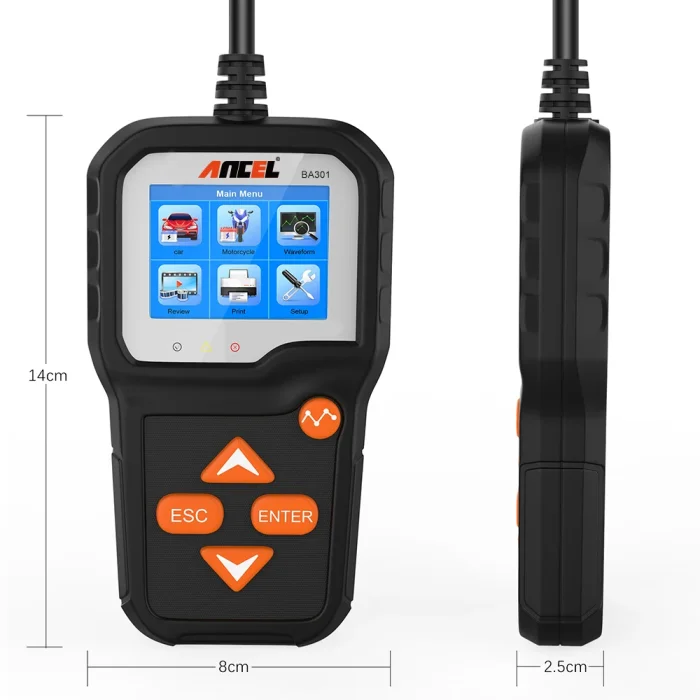

ANCEL BA301 Battery Tester 6-12V Diagnostic Tool for CCA, Battery Health, and Vehicle Charging Systems

The BA301 Battery Tester from ANCEL sets a new standard in automotive battery diagnostics. Leveraging state-of-the-art conductance testing technology, it delivers fast, accurate measurements of a vehicle starting battery’s true cold-cranking amps (CCA), overall health, and common faults in the starting and charging systems. This enables maintenance personnel to quickly identify problems and streamline repair workflows, reducing vehicle downtime for service centers, repair shops, and individual technicians.

Ancel BA301 Key Features and Benefits

Broad battery range and versatility

• Supports 6V and 12V batteries, including CCA, DIN, EN, and IEC standards.
• Test batteries inside or outside the vehicle for flexible workflows.

Fast, accurate measurements

• CCA, internal resistance (mΩ), and health percentage reported in milliseconds.
• Real-time analysis supports rapid, confident maintenance decisions.

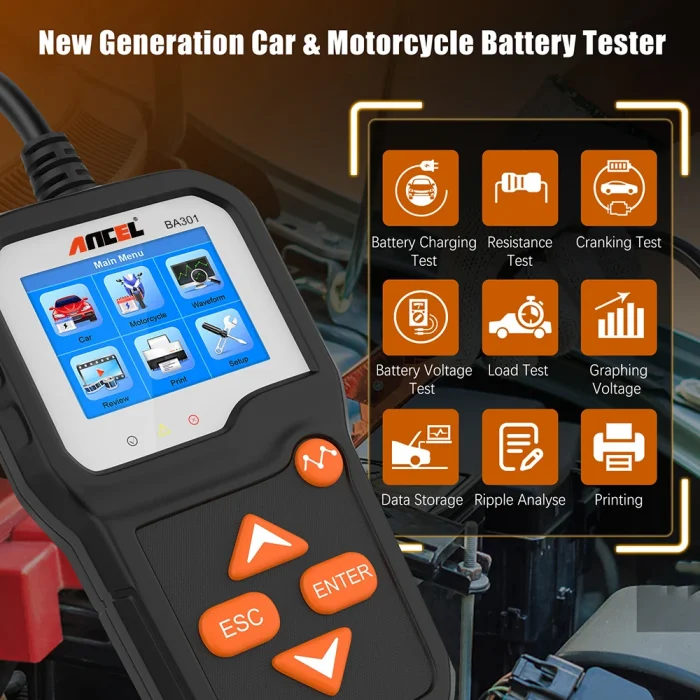

Comprehensive system analysis

• Cranking test: measures cranking time and voltage with a clear status.
• Charging test: evaluates generator output, rectifier performance, and overall charging system health.
• Waveform voltage analysis: provides insights into voltage stability during ignition and operation.

Battery health and lifecycle insights

• Life percentage indicates remaining battery life.
• Analysis results classify status as Good, Recharge, or Replace to guide actions.

User-friendly and efficient

• Simple interface with 3 LED indicators for at-a-glance health status.
• One-key access to battery voltage waveform analysis.
• PC compatibility for printing reports and lifetime free updates.

Detailed Functions and Technical Specifications

Electrical and test capabilities

• System voltage: 6-12V
• Test result categories: Good, Recharge, Replace
• Capacity metrics: CCA (DIN, EN, IEC compliant)
• Internal resistance: measured in milli-ohms (mΩ)
• Life percentage: remaining life (%)
• Tests: Battery test, cranking test, charging test, plus additional features
• Waveform testing: real-time voltage analysis during load and idle conditions

Cranking Test

• Assesses the actual cranking current and cranking voltage to verify starting motor performance.
• Provides cranking time, voltage, and status to identify issues such as excessive load or rotor friction.

Charging Test

• Evaluates the charging system (generator, rectifier, rectifier diode, etc.).
• Displays load voltage, no-load voltage, ripple, and overall charging system status to detect overcharging or undercharging.

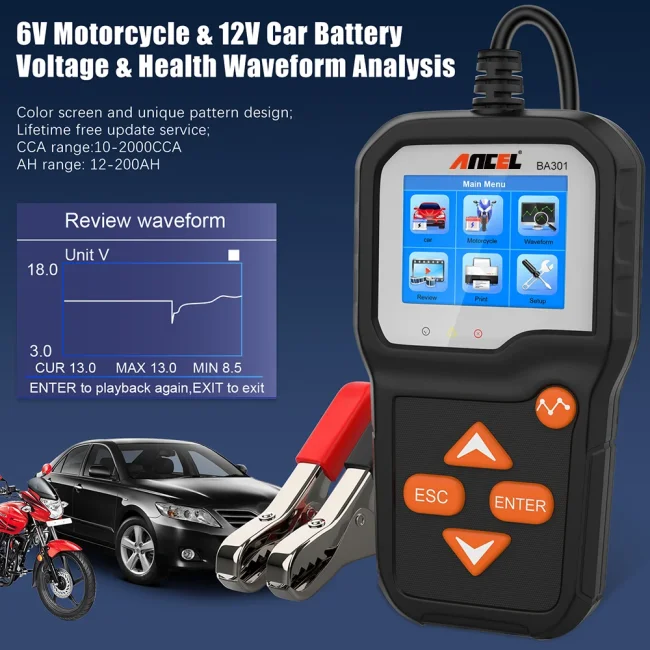

Real-time voltage monitoring

• Monitors voltage in real time with a hot-key for quick readouts.
• Waveform shows maximum and minimum voltages during ignition, remaining static until changes are detected.

Data recording and updates

• Records battery data for playback and detailed analysis.
• Lifetime free updates ensure compatibility with evolving standards.
• Printing via PC for professional reports.

Language and Model Coverage

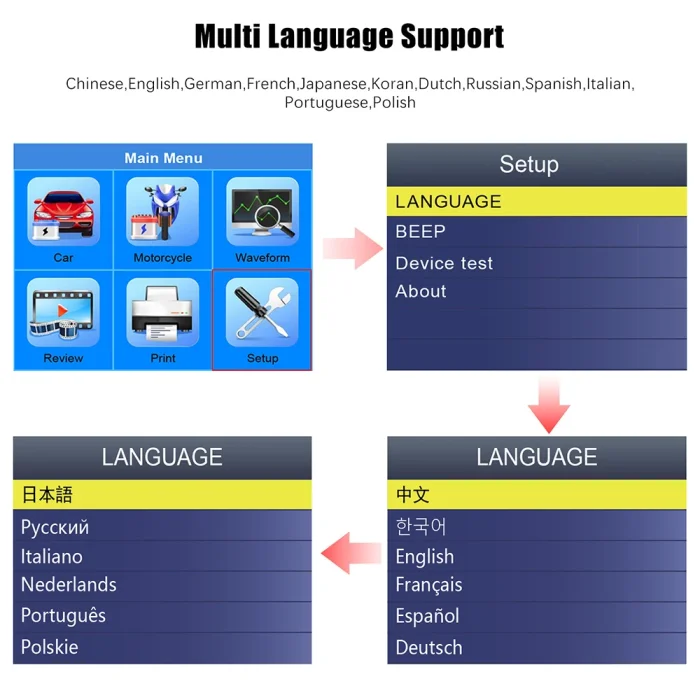

Multi-language support

• Chinese, English, German, French, Japanese, Korean, Dutch, Russian, Spanish, Italian, Portuguese, Polish.

Model coverage and applications

• 12V Battery Tester supports cars, motorcycles, boats, light trucks, SUVs, and sedans.
• Suitable for service centers, repair shops, and individual technicians.

Practical Use Cases and Benefits

Fleet maintenance and repair efficiency

• Rapid, repeatable tests help diagnose issues faster, reducing downtime.
• Clear result categories streamline decision-making.

Quality assurance and documentation

• Lifetime free updates ensure current testing standards.
• PC reporting enables professional service records and customer documentation.

Compatibility and System Requirements

Hardware compatibility

• 6-12V automotive battery systems across major battery types and brands.
• High-performance STM32-based chipset for fast computation and reliability.

Software and reporting

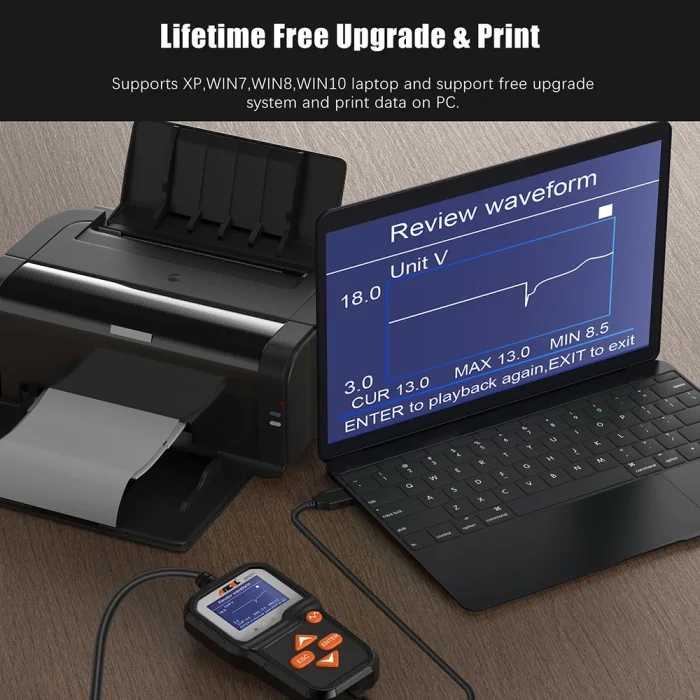

• PC reporting via USB; supports printing test reports.
• Compatible with Windows XP, 7, 8, and 10 for data management.

How to Use the BA301 Battery Tester

Quick start

• Connect to the battery as directed in the user manual.
• Power on and select a test mode (Cranking, Charging, or General Battery Test).
• Read results on-screen or print a report via PC.

Interpreting results

• Good: Battery health is satisfactory; no immediate action required.
• Recharge: Battery may benefit from charging or further evaluation.
• Replace: Battery health has degraded; replacement recommended.

Why Choose ANCEL BA301 Over Competitors

• State-of-the-art conductance testing for accurate CCA and health metrics.
• Wide compatibility with various battery types and standards.
• Real-time waveform analysis and lifetime free updates.
• Multilingual support and printing capabilities for professional use.

BA301 Tester Cover 9 Measure Standards:

1.CCA:100-2000
2.BCI:100-2000
3.CA:100-2000
4.MCA:100-2000
5.JIS:26A17-24SH52
6.DIN:100-1400
7.IEC:100-1400
8.EN:100-2000
9SAE:100-2000

Final Thoughts
The BA301 Battery Tester is a robust, reliable tool for automotive battery diagnostics. It delivers fast, accurate assessments of CCA, battery health, and the overall status of starting and charging systems, empowering technicians to identify problems quickly and carry out timely repairs.
